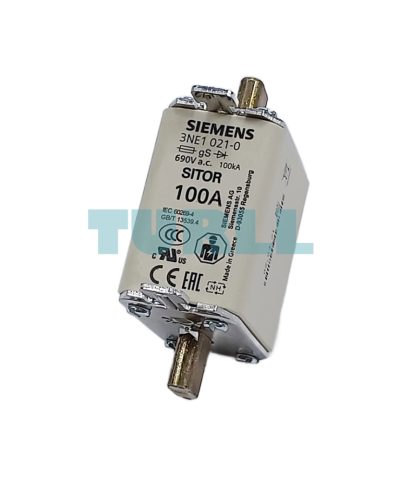

Siemens 3NE1021-0 SITOR Fuse Link, NH00, 100A, gS, 690V AC, Blade Contact Original Brand New
$106.12
High-performance SITOR fuse link designed for semiconductor protection. Featuring an NH00 size with blade contacts, it supports a rated current of 100A and a gS operating class, providing both overload and short-circuit protection for power semiconductors and cables.
Availability: In stock
Overview
The Siemens 3NE1021-0 SITOR Fuse Link is a high-performance semiconductor protection fuse designed for reliable overcurrent protection in industrial and power electronics applications. Featuring NH00 blade contacts, a rated current of 100 A, and gS utilization category, this fuse ensures fast and safe interruption of fault currents. It supports AC voltages up to 690 V and DC voltages up to 250 V, making it ideal for demanding electrical environments. A front-mounted indicator allows for quick visual status checks, reducing downtime and improving maintenance efficiency.
Key Benefit
-
Dual Protection: The gS characteristic covers both semiconductor protection and cable/line protection, reducing the need for multiple fuse types.
-
High Versatility: Suitable for AC (690V) and DC (250V) applications.
-
Visual Monitoring: Equipped with a front indicator for immediate status identification.
-
Compact Design: The NH00 form factor allows for high-density installation in power distribution boards.
Function
-
Protects semiconductor devices from short circuits and overloads
-
Ensures safe disconnection in high-current applications
-
Provides visual indication when the fuse has operated
-
Supports both AC and DC electrical systems
Technical Specification
-
Manufacturer: Siemens
-
Product Number: 3NE1021-0
-
Fuse Type: SITOR Fuse Link
-
Size: NH00
-
Rated Current (In): 100 A
-
Utilization Category: gS
-
Rated Voltage (AC): 690 V
-
Rated Voltage (DC): 250 V
-
Contact Type: Blade Contacts
-
Indicator: Front Indicator
Visit 3NE1021-0 for more detail info
For more our products visit turll
Download
| Weight | 0.205 kg |
|---|---|

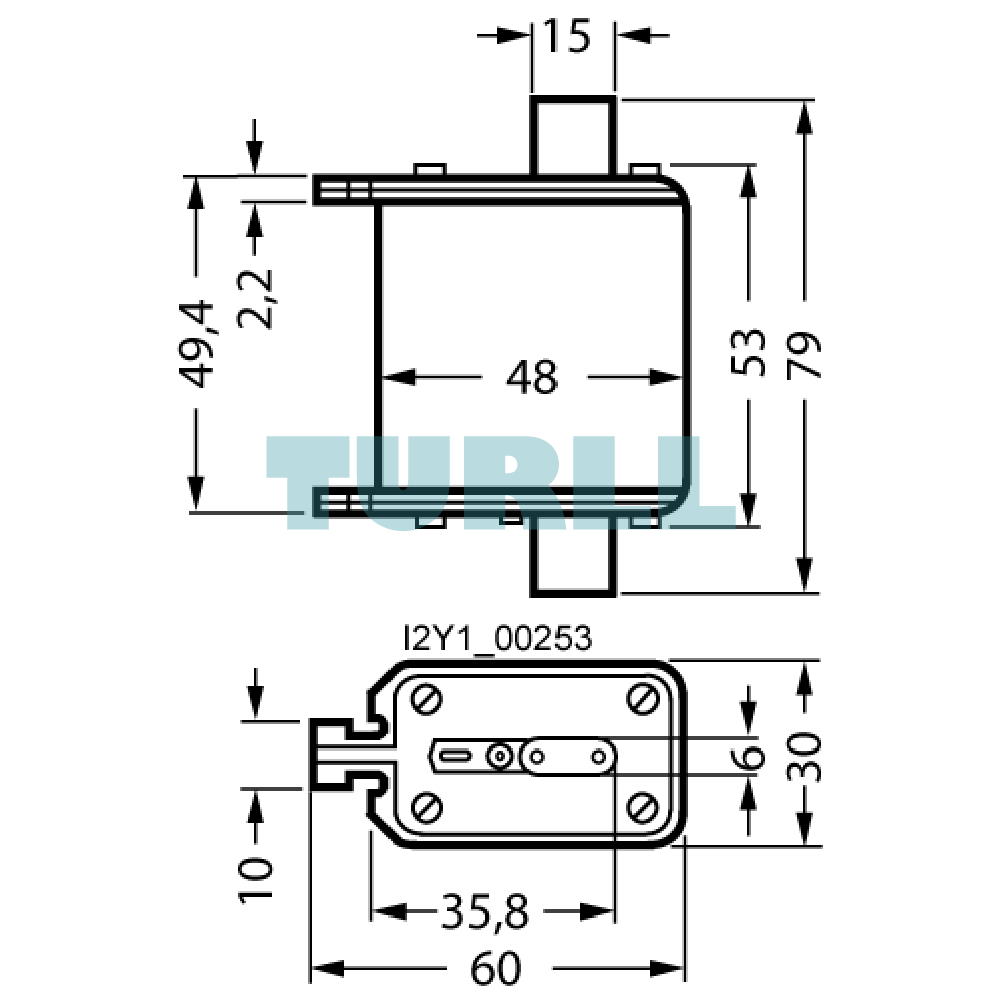

| Dimensions | 92.00 × 102.00 × 71.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | SITOR fuse link |
| design of the product | With blade contacts |
| design of an identification indicator | front indicator |
| design of the switching contact | With blade contacts, silver-plated |
| design of the fuse link | SITOR, LV HRC design |
| size of fuse system / acc. to DIN EN 60269-1 | NH00 |
| operating class of the fuse link | gS |
| varying load factor (WL) | 1 |
| type of voltage / of the operating voltage | AC/DC |
| supply voltage | – |
| ● at DC | 250 V |
| switching capacity current | – |
| ● acc. to IEC 60947-2 / rated value | 100 kA |
| power loss [W] | – |
| ● for rated value of the current / at AC / in hot operating state / per pole | 10 W |
| operational current | – |
| ● at 30 °C / rated value | 100 A |
| ● at 40 °C / rated value | 100 A |
| ● at 45 °C / rated value | 100 A |
| ● at 50 °C / rated value | 99 A |
| ● at 55 °C / rated value | 98 A |
| ● at 60 °C / rated value | 97 A |
| ● at AC / rated value | 100 A |
| product description | Not non-interchangeable |
| mounting position | Any, preferably vertical |
| ambient temperature / during operation | – |
| ● minimum | -20 °C |
| ● maximum | 50 °C |
| environmental category | -20 to +50 at 95% relative humidity |
| Miscellaneous | Miscellaneous |
