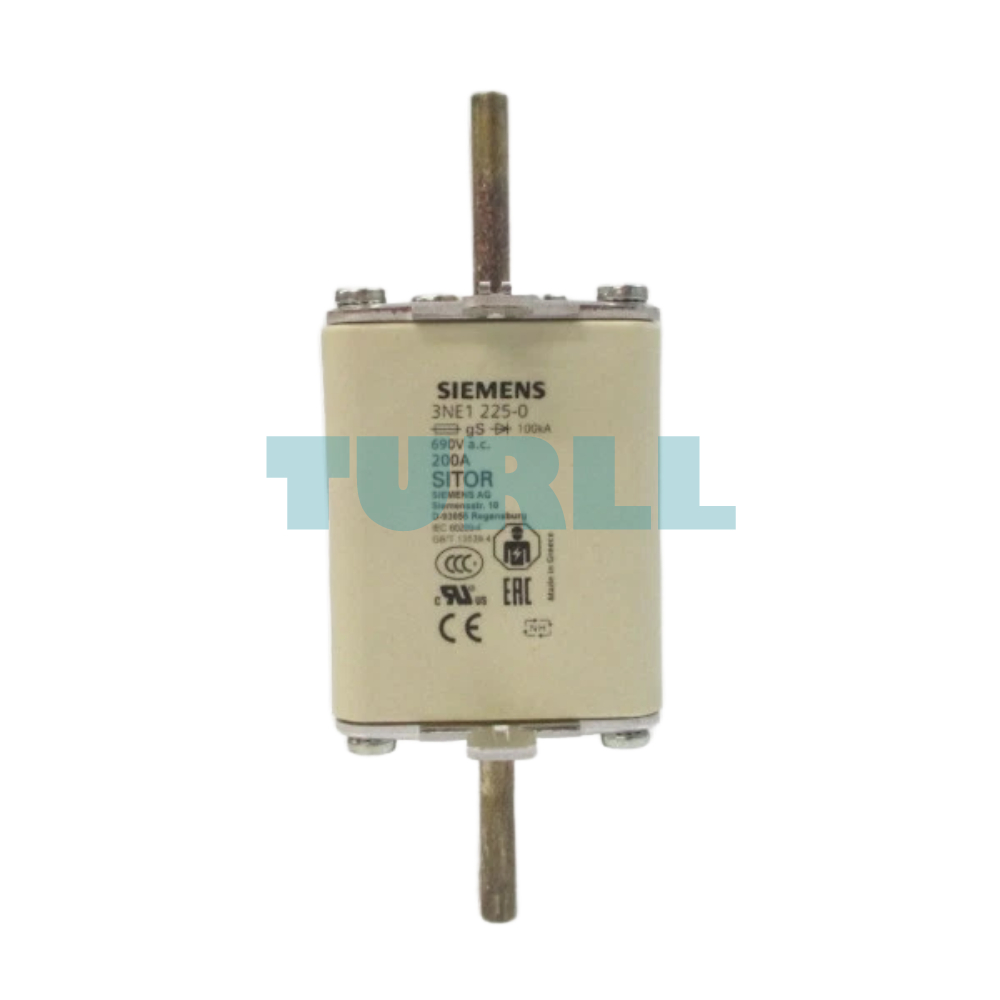

Siemens 3NE1225-0 SITOR Fuse Link with Blade Contacts, NH1, 200A, gS, 690V AC, 250V DC, Front Indicator
Siemens 3NE1225-0 SITOR Fuse Link with Blade Contacts, NH1, 200A, gS, 690V AC, 250V DC, Front Indicator
Siemens 3NE1225-0 SITOR Fuse Link with Blade Contacts, NH1, 200A, gS, 690V AC, 250V DC, Front Indicator
Siemens 3NE1225-0 SITOR Fuse Link with Blade Contacts, NH1, 200A, gS, 690V AC, 250V DC, Front Indicator
Siemens 3NE1225-0 SITOR Fuse Link with Blade Contacts, NH1, 200A, gS, 690V AC, 250V DC, Front Indicator

SIEMENS

Siemens 3NE1225-0 SITOR Fuse Link with Blade Contacts, NH1, 200A, gS, 690V AC, 250V DC, Front Indicator Original Brand New

Model / SKU3NE1225-0

Siemens 3NE1225-0 is a high-performance SITOR fuse link designed for semiconductor protection. Featuring NH1 size, 200A rated current, and a gS operating class, it provides reliable protection for power converters and rectifiers up to 690V AC.

Original price was: $137.03.Current price is: $97.68.
Out of stockSubject to sourcing — request a quote
  • ConditionOriginal Brand New
  • Warranty12 months
Request a Quote
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 3NE1225-0 SITOR Fuse Link is a high-performance fuse designed for industrial electrical protection. Featuring blade contacts and NH1 dimensions, this fuse offers a current rating of 200 A with a 690V AC voltage rating and 250V DC capability. It is built with a front indicator for easy monitoring and maintenance. The gS classification ensures reliable and consistent protection against short circuits and overloads, making it an essential component for a wide range of electrical systems.

Features and Benefit

  1. Reliable Protection: The Siemens 3NE1225-0 SITOR fuse link ensures optimal protection for electrical systems by preventing damage due to overloads and short circuits.

  2. Blade Contacts for Secure Connections: The blade contact design provides secure and stable connections, enhancing both safety and performance.

  3. High Voltage Ratings: Supports 690V AC and 250V DC, making it suitable for diverse industrial applications requiring high power handling capacity.

  4. Front Indicator for Easy Monitoring: The integrated front indicator allows users to visually check the fuse status, simplifying maintenance and troubleshooting.

  5. Durable Construction: Built for reliability in harsh environments, the fuse is designed to perform under challenging electrical conditions, ensuring longevity and continuous operation.

  6. Ideal for Industrial Use: Perfect for use in industrial machinery, control panels, and other heavy-duty electrical systems that require superior protection and durability.

Specification

  • Product Number: Siemens 3NE1225-0

  • Type: SITOR Fuse Link

  • Design: Blade Contacts (NH1)

  • Rated Current (In): 200A

  • Rated Voltage (Un AC): 690V

  • Rated Voltage (Un DC): 250V

  • Fuse Class: gS

  • Front Indicator: Yes

  • Applications: Industrial machinery, electrical panels, and protection systems.

Visit 3NE1225-0 for more detail info

For more our products visit turll

Download

Datasheet in PDF

Specifications

SKU / Model3NE1225-0
BrandSIEMENS
product brand nameSENTRON
product designationSITOR fuse link
design of the productWith blade contacts
design of an identification indicatorfront indicator
design of the switching contactWith blade contacts, silver-plated
design of the fuse linkSITOR, LV HRC design
size of fuse system / acc. to DIN EN 60269-1NH1
operating class of the fuse linkgS
varying load factor (WL)1
type of voltage / of the operating voltageAC/DC
supply voltage-
● at DC250 V
switching capacity current-
● acc. to IEC 60947-2 / rated value100 kA
power loss [W]-
● for rated value of the current / at AC / in hot operating state / per pole27 W
operational current-
● at 30 °C / rated value200 A
● at 40 °C / rated value200 A
● at 45 °C / rated value200 A
● at 50 °C / rated value198 A
● at 55 °C / rated value196 A
● at 60 °C / rated value194 A
● at AC / rated value200 A
product descriptionNot non-interchangeable
mounting positionAny, preferably vertical
ambient temperature / during operation-
● minimum-20 °C
● maximum50 °C
environmental category-20 to +50 at 95% relative humidity
MiscellaneousMiscellaneous
Weight0.582 kg
Dimensions178.00 × 200.00 × 85.00 mm
