Siemens 3NE8024-1 SITOR Fuse Link, NH00, 160A, aR Characteristic
Siemens 3NE8024-1 SITOR Fuse Link, NH00, 160A, aR Characteristic
Siemens 3NE8024-1 SITOR Fuse Link, NH00, 160A, aR Characteristic
Siemens 3NE8024-1 SITOR Fuse Link, NH00, 160A, aR Characteristic
Siemens 3NE8024-1 SITOR Fuse Link, NH00, 160A, aR Characteristic

SIEMENS

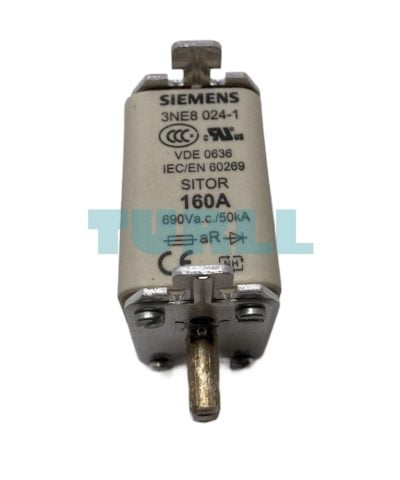

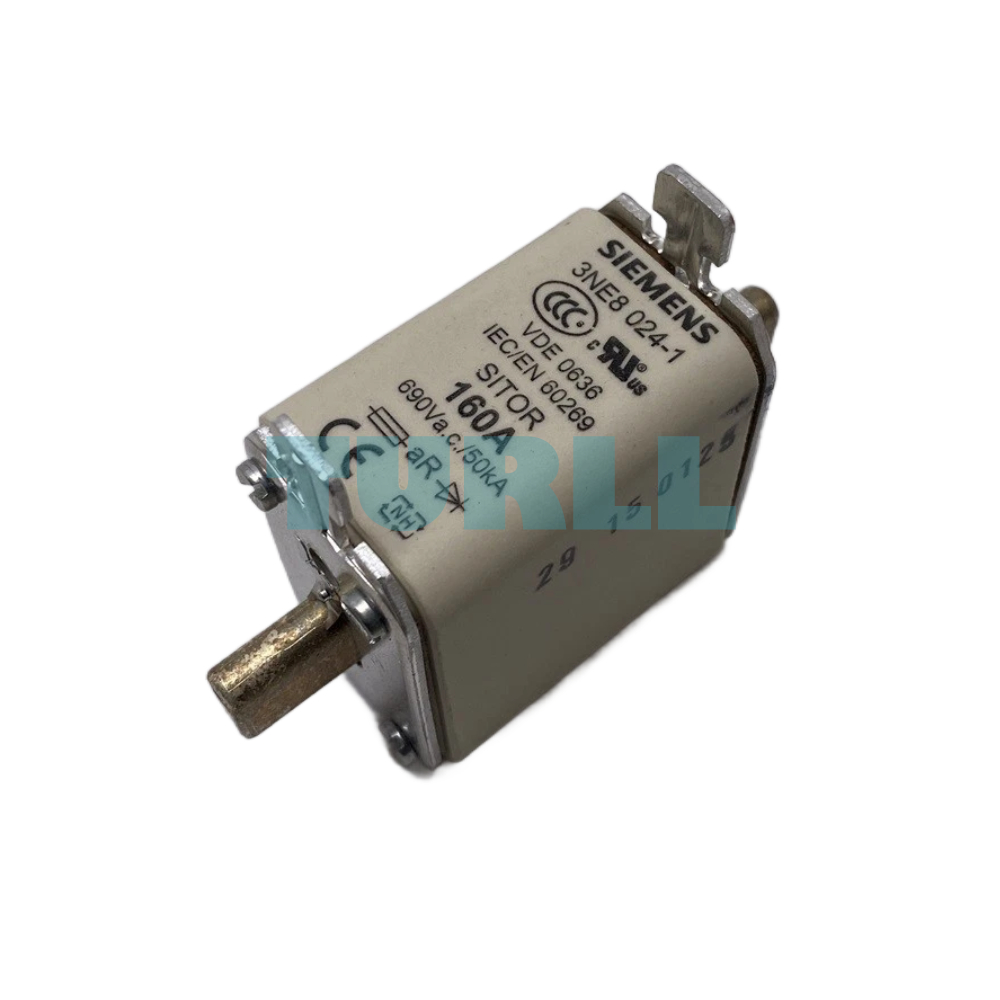

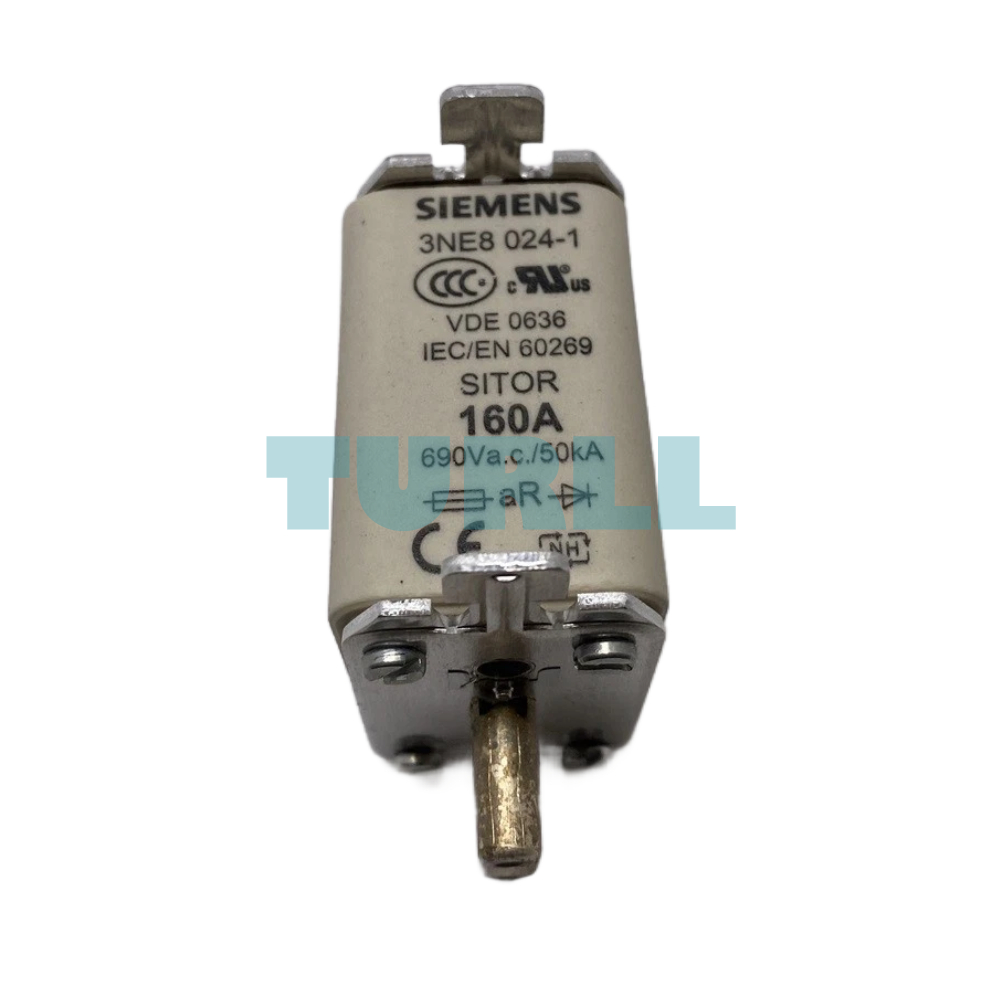

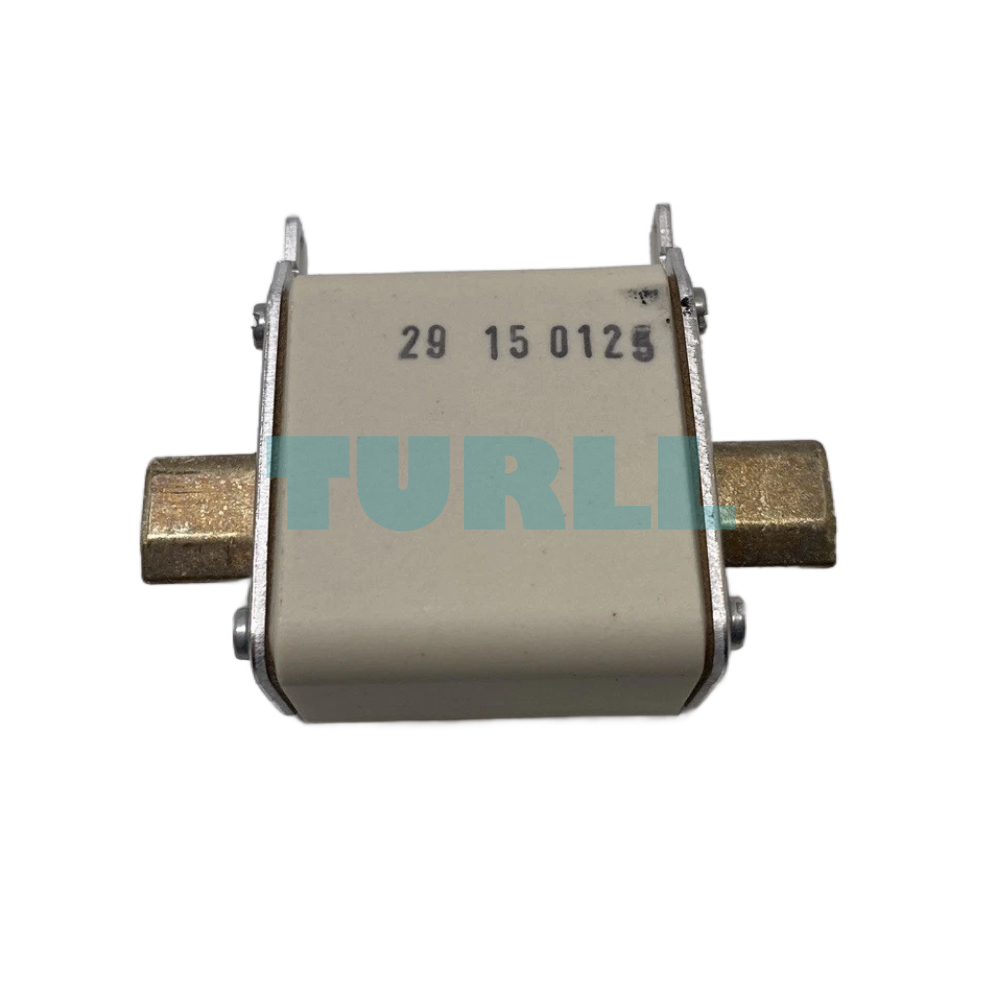

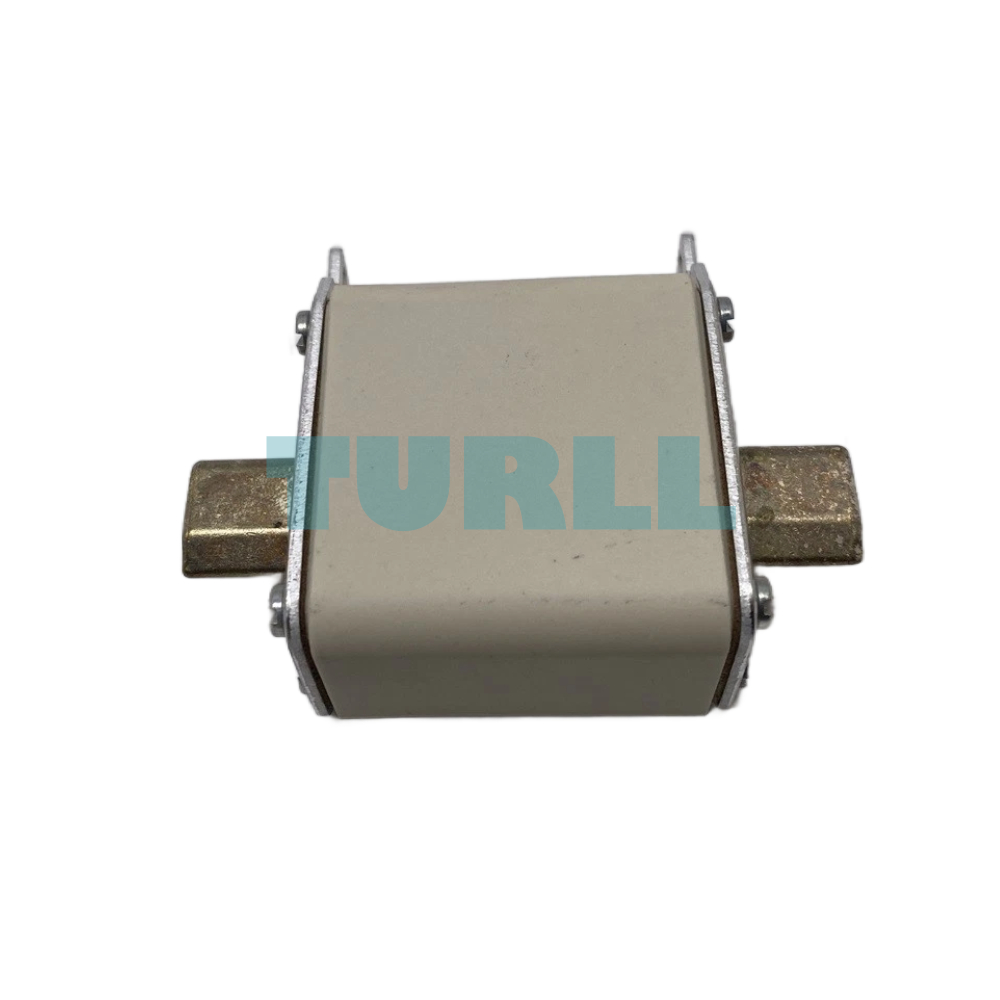

Siemens 3NE8024-1 SITOR Fuse Link, NH00, 160A, aR Characteristic Original Brand New

Model / SKU3NE8024-1

High-performance SITOR semiconductor fuse link featuring blade contacts and an NH00 compact design. Rated at 160 A with an aR utilization category, it provides elite short-circuit protection for power semiconductors in both AC (690V) and DC (440V) applications.

Original price was: $54.70.Current price is: $29.67.
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 3NE8024-1 belongs to the SITOR series, specifically engineered to protect sensitive power semiconductors (such as diodes, thyristors, and GTOs) from the damaging effects of short circuits. Its rapid response time and NH00 form factor make it a standard choice for modern industrial power electronics.

Key Benefit

  • Ultra-Fast Tripping: The aR characteristic ensures high-speed disconnection, minimizing let-through energy to protect expensive electronic components.

  • Versatile Application: Dual-rated for both 690V AC and 440V DC systems, offering flexibility across different power grids.

  • Visual Monitoring: Equipped with a front indicator for immediate identification of blown fuses, reducing system downtime.

  • Compact Design: The NH00 size allows for high-density installation in distribution boards and control cabinets.

Technical Function

  • Semiconductor Protection: Designed specifically for the protection of power converters and rectifiers.

  • Heat Dissipation: Optimized blade contacts ensure low power loss and efficient heat management during continuous operation.

  • Safety Standards: Complies with international NH-system standards for reliable interchangeability.

Specification

  • Manufacturer: Siemens

  • Product Number: 3NE8024-1

  • Product Type: SITOR Fuse Link

  • Fuse Size: NH00

  • Rated Current (In): 160 A

  • Utilization Category: aR

  • Rated Voltage AC: 690 V

  • Rated Voltage DC: 440 V

  • Contact Type: Blade contacts

  • Indicator: Front indicator

Visit 3NE8024-1 for more detail info

For more our products visit turll

Download

Datasheet in PDF

Specifications

SKU / Model3NE8024-1
BrandSIEMENS
product brand nameSENTRON
product designationSITOR fuse link
design of the productWith blade contacts
design of an identification indicatorfront indicator
design of the switching contactWith blade contacts, silver-plated
design of the fuse linkSITOR, LV HRC design
size of fuse system / acc. to DIN EN 60269-1NH00
operating class of the fuse linkaR
varying load factor (WL)0.95
type of voltage / of the operating voltageAC/DC
supply voltage-
● at DC440 V
switching capacity current-
● acc. to IEC 60947-2 / rated value100 kA
power loss [W]-
● for rated value of the current / at AC / in hot operating state / per pole38 W
operational current-
● at 30 °C / rated value160 A
● at 40 °C / rated value160 A
● at 45 °C / rated value160 A
● at 50 °C / rated value158.4 A
● at 55 °C / rated value156.8 A
● at 60 °C / rated value155.2 A
● at AC / rated value160 A
product descriptionNot non-interchangeable
mounting positionAny, preferably vertical
ambient temperature / during operation-
● minimum-20 °C
● maximum50 °C
environmental category-20 to +50 at 95% relative humidity
MiscellaneousMiscellaneous
Weight0.209 kg

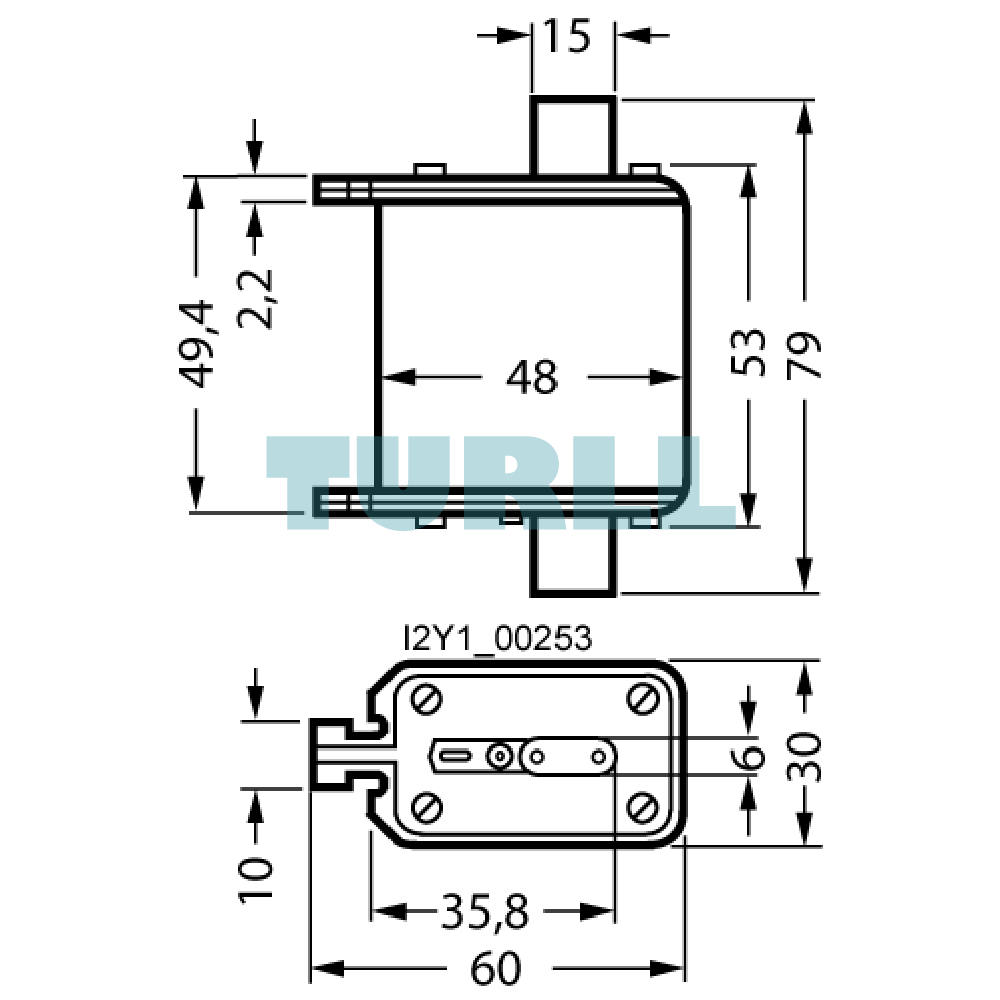

Dimensions92.00 × 102.00 × 71.00 mm
