Siemens 3RA1952-2F Base Plate for 3RT105 Combination Star-Delta Starters Original Brand New

Overview

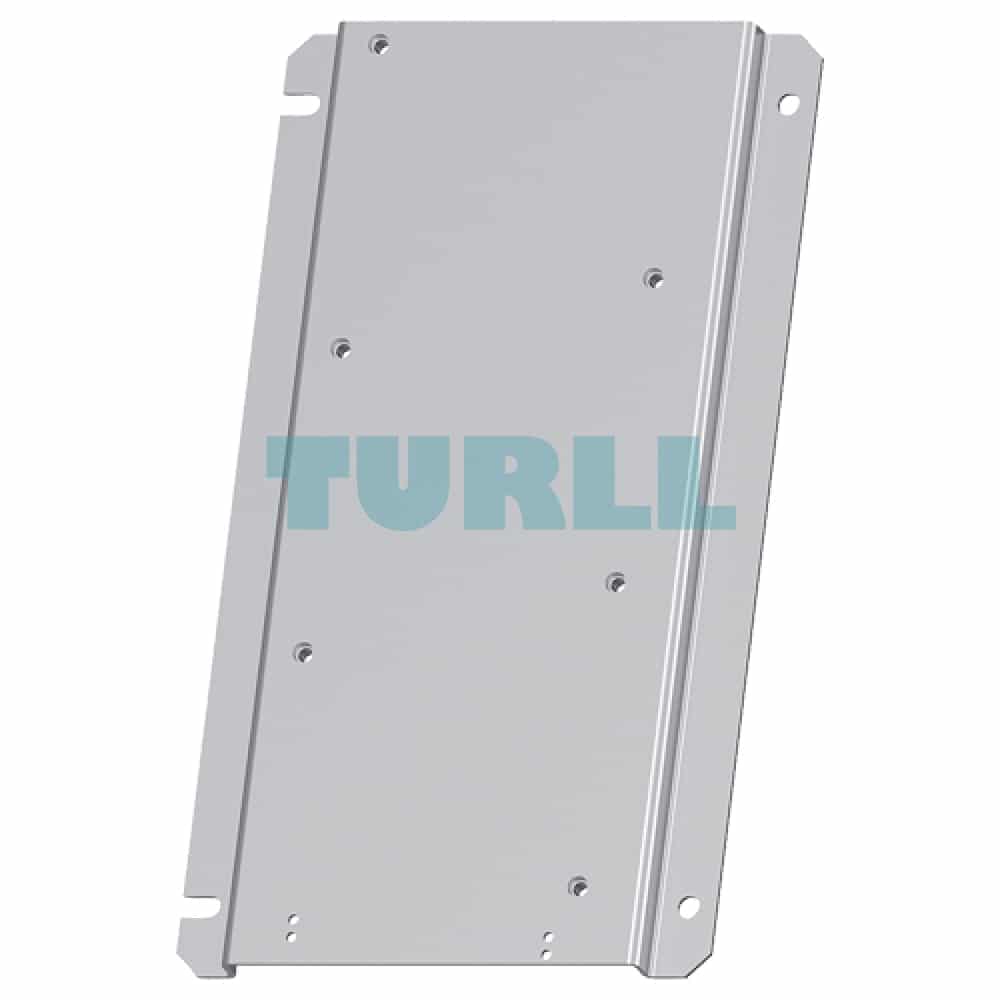

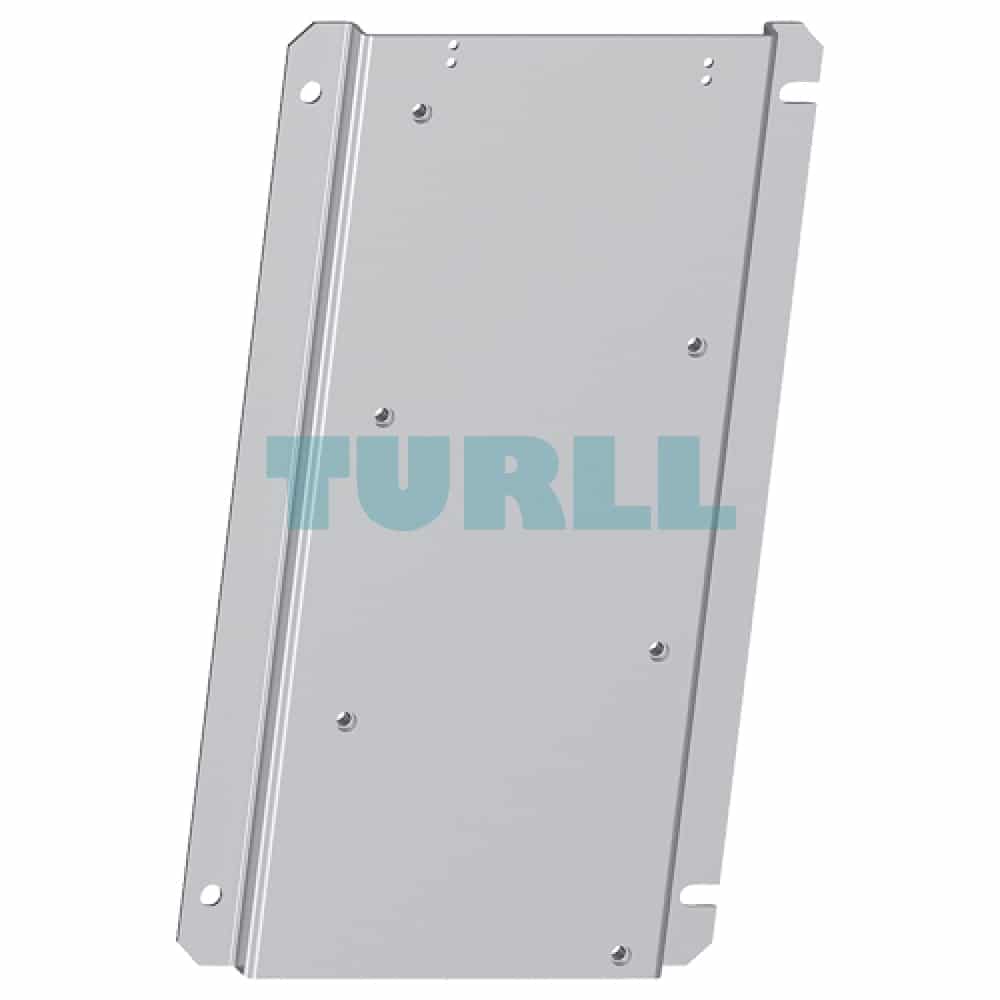

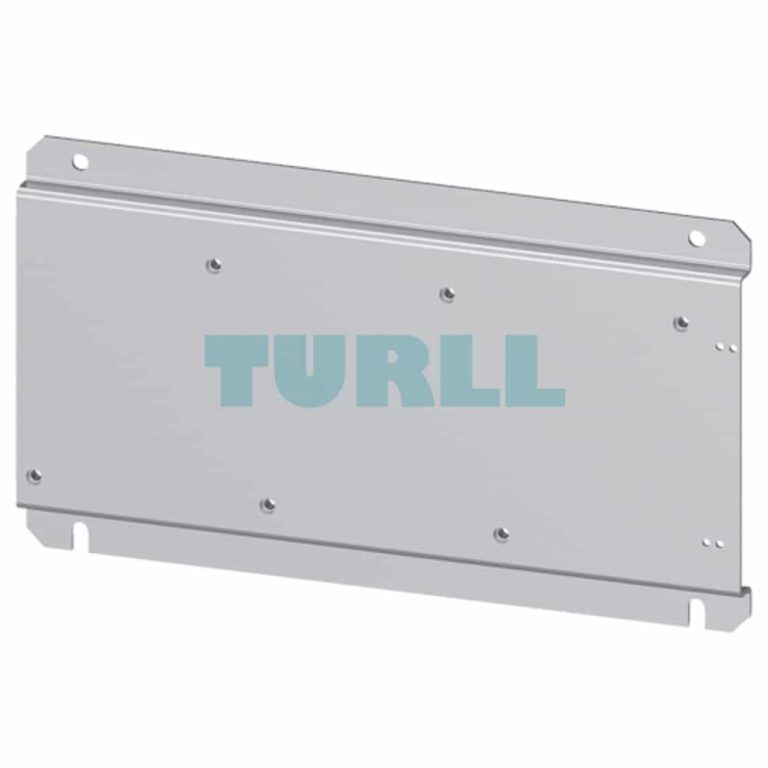

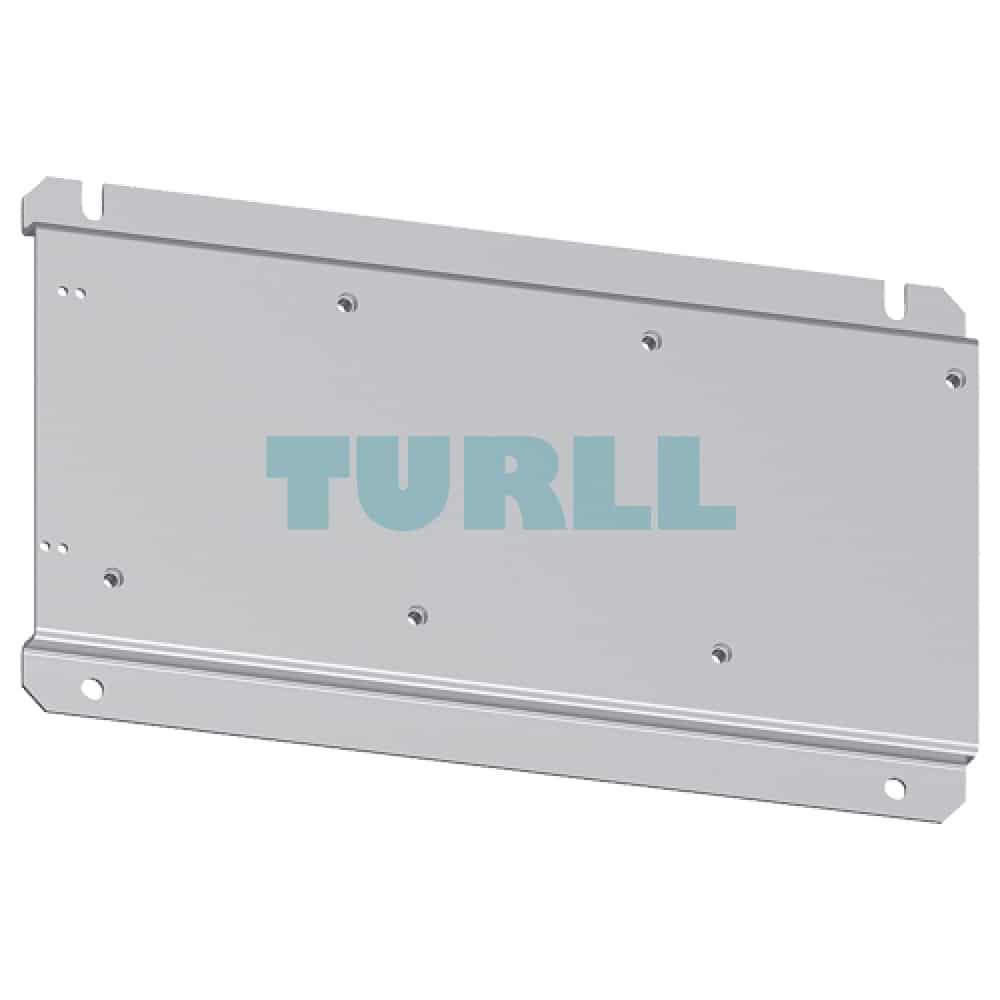

The Siemens 3RA1952-2F is a robust base plate specifically engineered for the efficient and secure mounting of three S6 size contactors (3RT1.5). This component is crucial for building a reliable star-delta (wye-delta) starter, a common solution for reducing the starting current of large three-phase motors. By providing a pre-configured mounting solution, this base plate significantly simplifies the assembly process, ensuring correct spacing and alignment for a professional and durable setup. It’s an essential accessory for industrial applications requiring controlled motor startup.

Key Features & Benefit

• Streamlined Assembly: Simplifies the mounting of three 3RT1.5 contactors, reducing installation time and effort.
• Pre-Drilled & Aligned: Ensures precise spacing and alignment of the contactors, which is critical for the proper function of a star-delta starter.
• Durable Construction: Made with high-quality materials to withstand the rigors of industrial environments.
• Space-Efficient Design: Provides a compact solution for motor control panels, helping to optimize panel layout.
• Enhances Reliability: A secure and stable mounting platform helps prevent component misalignment or damage from vibration, increasing system reliability.

Function

The primary function of the Siemens 3RA1952-2F base plate is to serve as a foundation for a star-delta motor starter. In this type of starter, a motor is first connected in a “star” or “wye” configuration to limit the inrush current during startup. After a brief delay, the control system switches the motor to a “delta” connection, allowing it to run at full power. The 3RA1952-2F base plate physically supports and organizes the three contactors (main, star, and delta) required to perform this switching sequence.
