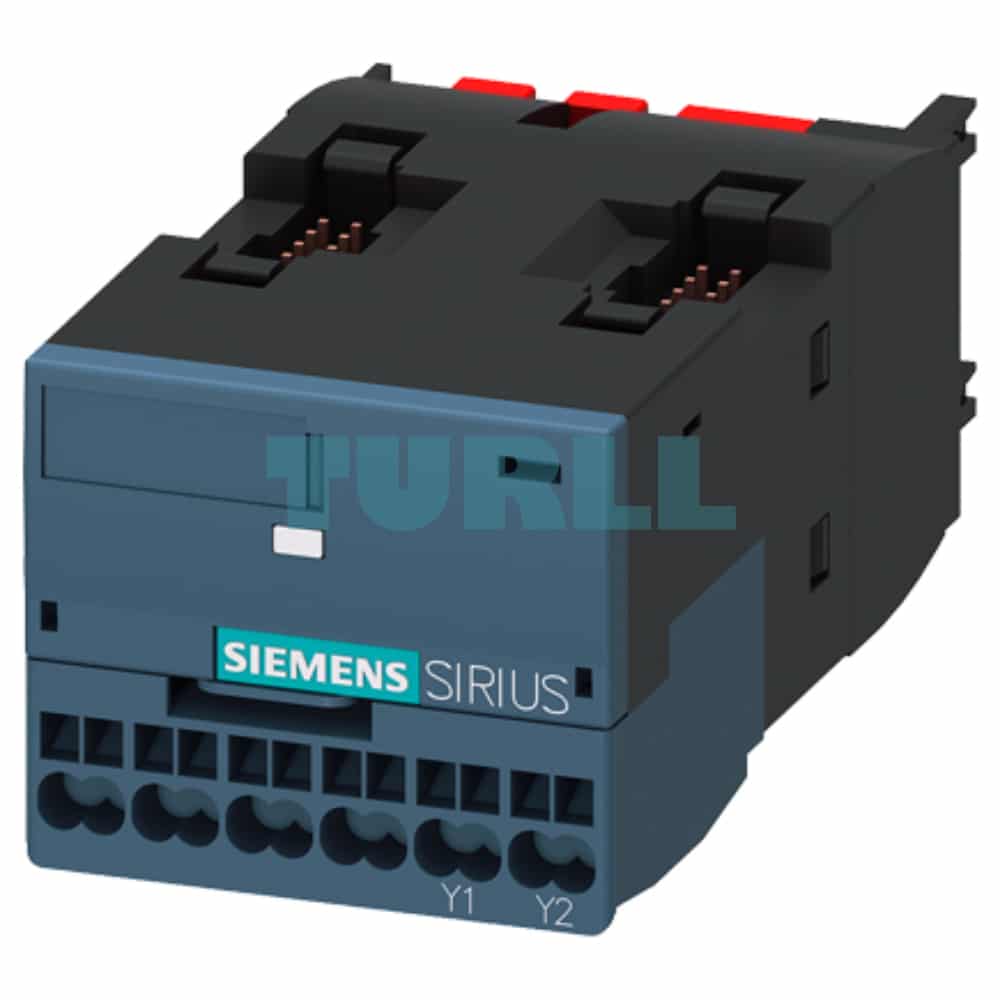

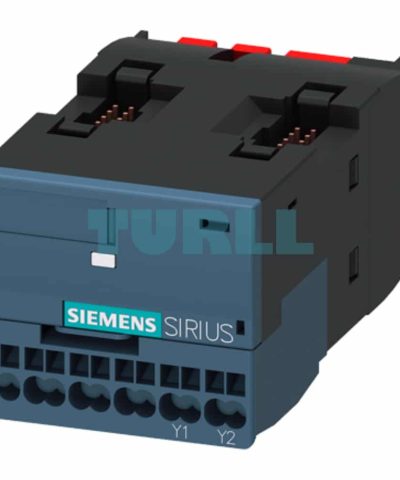

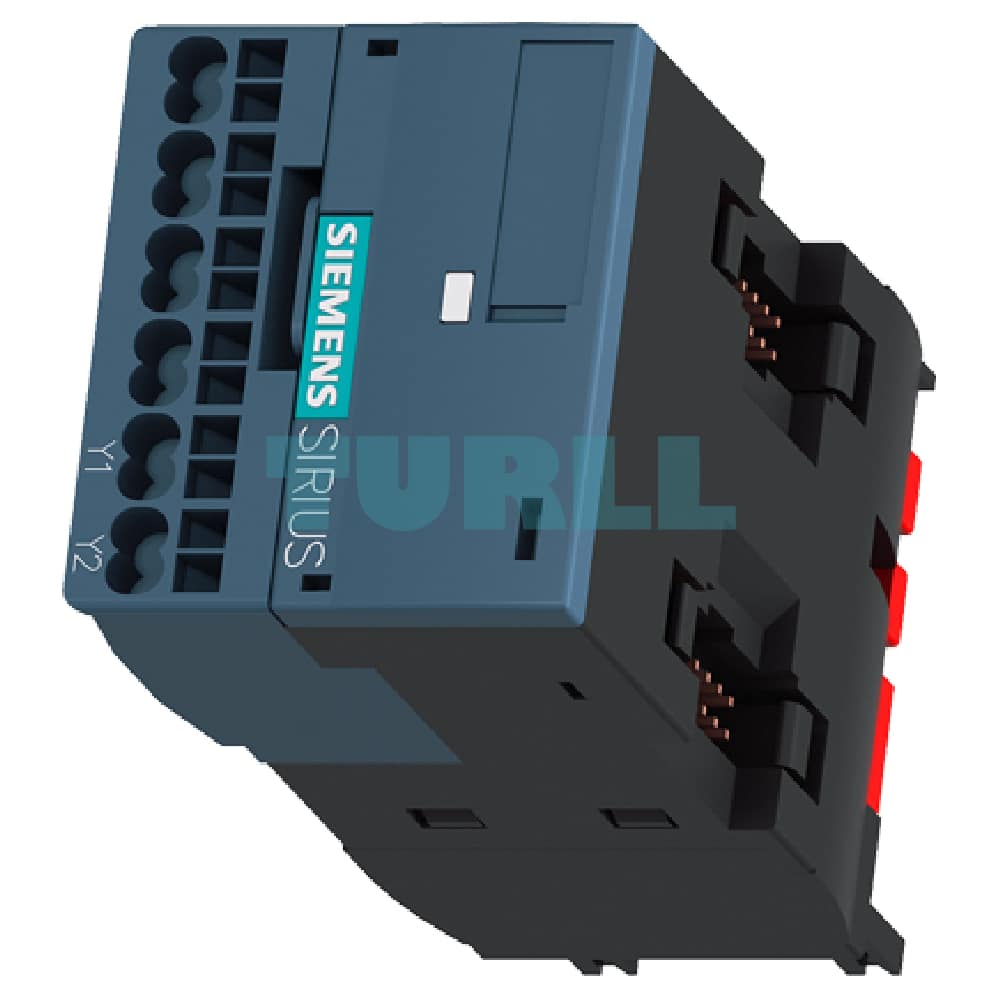

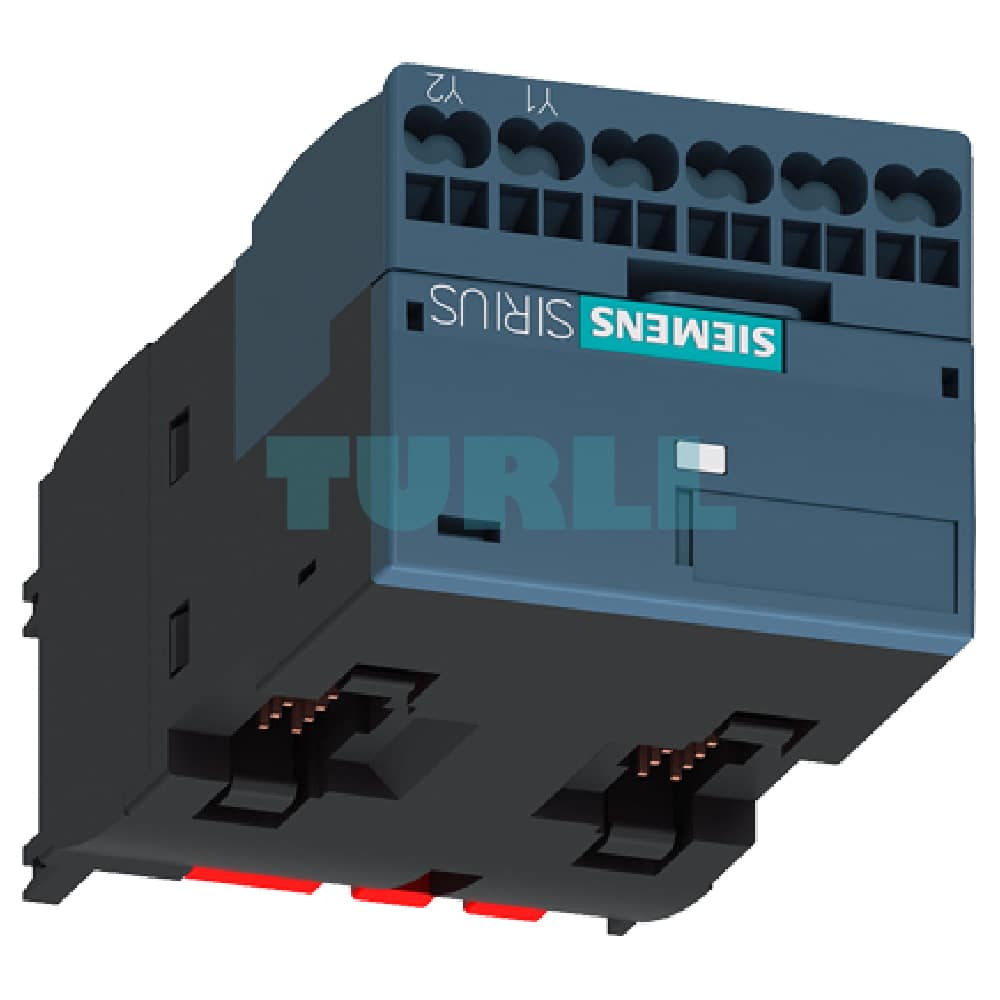

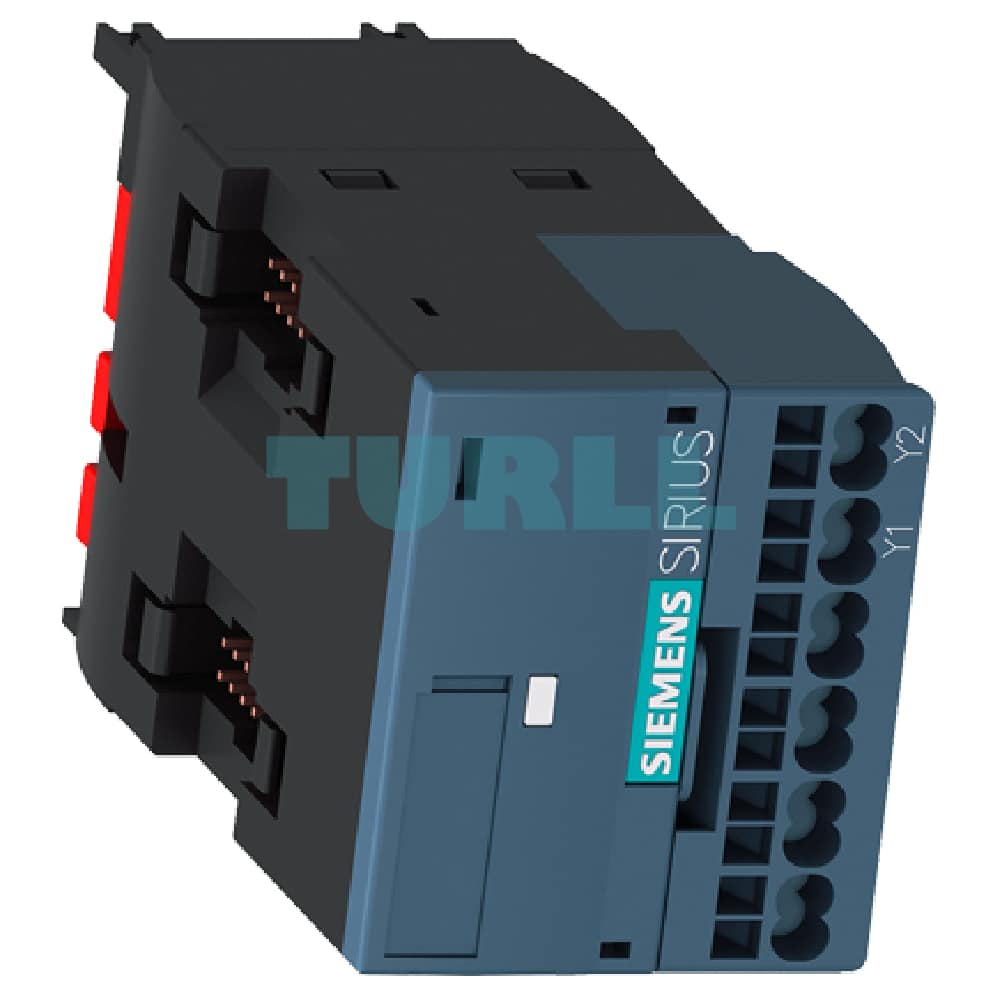

Siemens 3RA2711-2DB00 SIRIUS IO-Link/AS-i Coupling Module for Reversing Starter, Spring-Loaded Terminal Original Brand New

Overview

The Siemens 3RA2711-2DB00 is a highly efficient SIRIUS function module designed to integrate reversing starters into modern industrial communication networks. It acts as a coupling module for both IO-Link and AS-Interface (AS-i) systems, drastically simplifying control wiring. Featuring user-friendly spring-loaded terminals and a front-snapping mechanism, this module allows for quick, error-free mounting onto specific communication-capable Siemens 3RT20 contactors (e.g., 3RT20...-.....-0CC0). It integrates essential control functions like timing and interlocking for reversing duty, making it an ideal, compact solution for motor control applications in industrial automation.

Technical Specifications & Features

• Product Number: 3RA2711-2DB00
• Manufacturer: Siemens
• Product Series: SIRIUS 3RA27 Function Modules
• Application: Reversing Starter (Reversing Start)
• Communication: IO-Link / AS-Interface (AS-i)
• Connection Type: Spring-Loaded Terminals
• Mounting: Front-snapping onto communication-capable contactors (3RT20...-.....-0CC0)
• Functionality: Integrated essential timing and interlocking functions for reversing duty.
• Compatibility: SIRIUS 3RT2 Contactors (S00/S0 sizes, requiring communication-capable variant)
• Simplifies Wiring: Reduces control current wiring significantly.
• Diagnostics: Enables detailed diagnostics via the communication network.
• Protection: IP20 (on the front)

Key Benefit

• Reduced Wiring Effort: The front-snapping design and integrated functions eliminate complex control wiring, significantly reducing installation time and cost.
• Quick & Easy Installation: Spring-loaded terminals and the unique snap-on mechanism ensure fast, secure, and error-proof assembly directly onto the contactor.
• Advanced Diagnostics: Gain comprehensive fault and status information (e.g., availability, switching state) directly through the IO-Link or AS-i network, enabling proactive maintenance and minimizing downtime.
• Space-Saving Design: Integrate motor control and communication in a compact form factor, optimizing control cabinet space and reducing the need for separate I/O modules.
• Enhanced System Reliability: Integrated interlocking and timing functions ensure safe and reliable reversing starter operation.
• Seamless TIA Integration: Full integration into the Totally Integrated Automation (TIA) Portal for simplified configuration and parameterization.

Function

The 3RA2711-2DB00 module acts as a smart interface between the higher-level control system (PLC via IO-Link Master or AS-i Master) and the mechanical reversing contactor assembly.

1. Communication Gateway: Translates IO-Link or AS-i commands into control signals for the contactor.
2. Control Signal Transmission: Receives Start, Stop, and Reverse commands from the master and controls the contactor accordingly.
3. Status Feedback: Reports the contactor's switching state, device availability, and diagnostic messages (e.g., overload warnings) back to the master.
4. Integrated Interlocking: Provides the necessary electrical and/or mechanical interlocking for safe reversing operation, preventing simultaneous engagement of both forward and reverse contactors.
