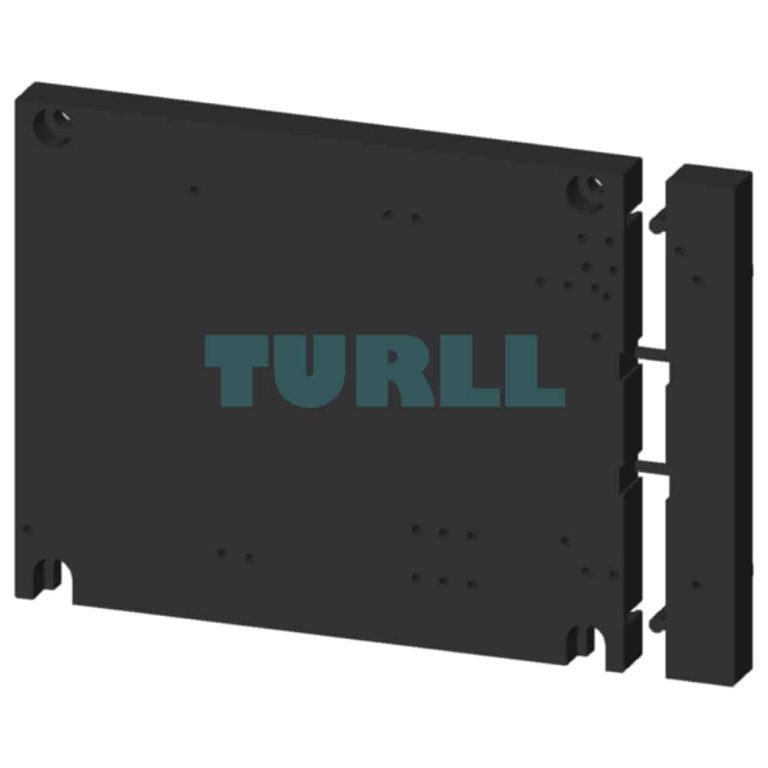

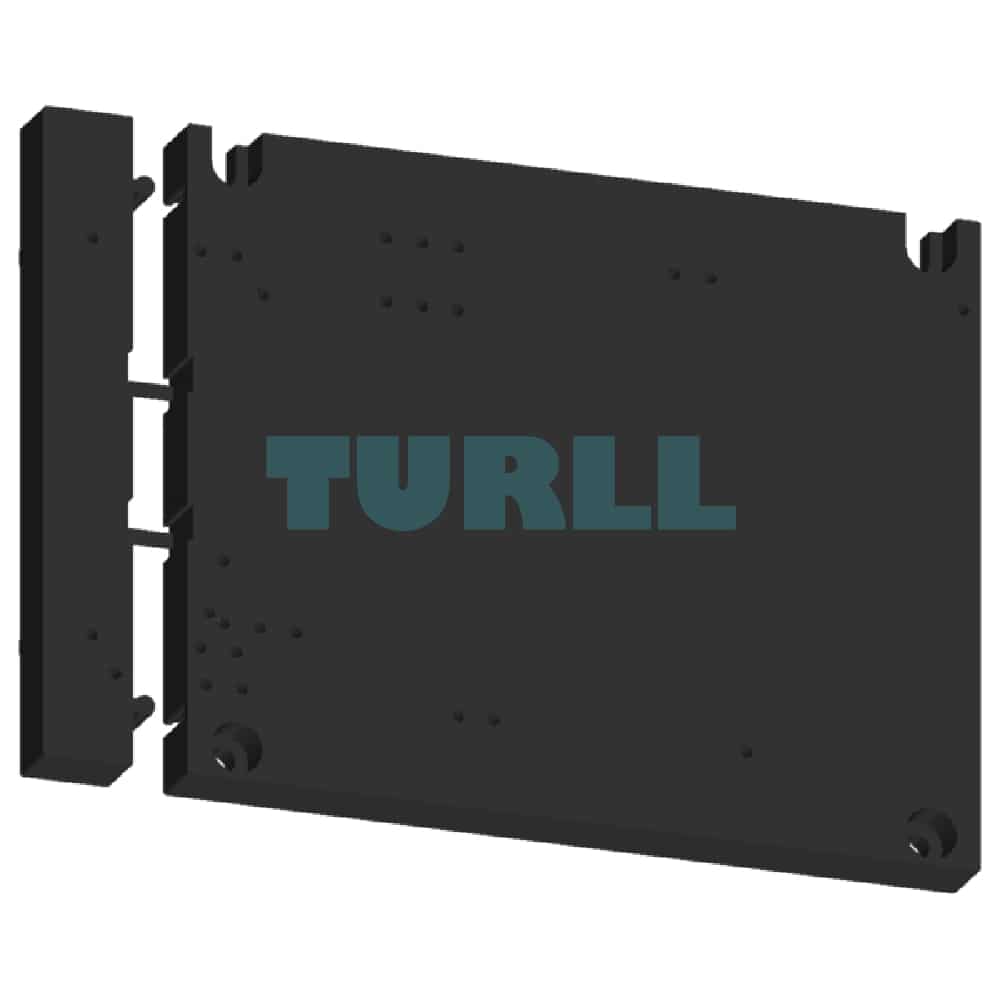

Siemens 3RA2942-2F Base Plate for Star-Delta Starter Assemblies Original Brand New

Overview

The Siemens 3RA2942-2F is a robust and reliable base plate specifically designed to simplify the assembly of star-delta (wye-delta) starters. This component provides a pre-configured mounting solution, ensuring quick, secure, and organized installation of three contactors. It’s compatible with a variety of Siemens Sirius components, including three 3RT2.4 contactors or a combination of two 3RT2.4 contactors and one 3RT2.3 contactor. Using this base plate streamlines the wiring process and enhances the overall safety and tidiness of the control panel.

Benefit

• Simplified Assembly: Reduces installation time by providing a ready-to-use mounting platform for three contactors.
• Enhanced Organization: Ensures a clean and professional layout, minimizing clutter and improving accessibility for maintenance.
• Reliable Mounting: Securely holds contactors in place, preventing movement and potential wiring faults due to vibration.
• Increased Safety: A structured layout reduces the risk of incorrect wiring, which is critical for star-delta starter applications.
• Compatibility: Designed specifically for seamless integration with Siemens Sirius components, guaranteeing a perfect fit and reliable performance.

Function

The 3RA2942-2F base plate serves as the foundation for building a star-delta starter. It features dedicated mounting points that precisely align with the screw holes or snap-on mechanisms of the specified Siemens contactors. This allows for a standardized and repeatable assembly process, which is essential for mass production or consistent project installations. By using this base plate, technicians can quickly and accurately position the three contactors—main, delta, and star—required for the star-delta starting method.
