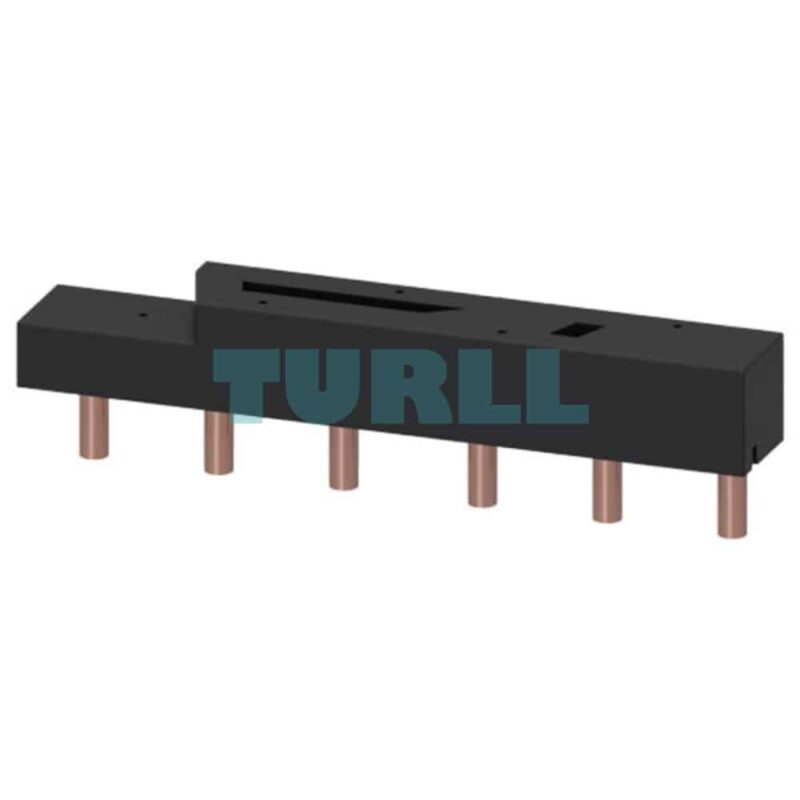

Siemens 3RA2943-3FA00 Electrical Wiring Module for Star-Delta (Wye-Delta) Starter Size S3 Original Brand New

Overview

The Siemens 3RA2943-3FA00 is an electrical wiring module designed for use with a star-delta (wye-delta) starter combination, specifically utilizing three contactors of Size S3. This module significantly simplifies and expedites the complex electrical connections required for a star-delta starter circuit, which is commonly used for the reduced-voltage starting of three-phase induction motors. By providing pre-engineered and standardized wiring, it ensures correct connections, reduces installation time and costs, and minimizes potential wiring errors in industrial control panels.

Benefit

• Reduced Wiring Time: Replaces individual wiring connections, drastically cutting down installation and commissioning time.
• Error Prevention: Standardized, pre-wired connections eliminate common wiring faults.
• System Reliability: Ensures correct phase sequence and motor protection operation.
• Space Saving: Compact design integrates connections neatly within the control cabinet.
• Compatibility: Perfectly suited for Siemens SIRIUS modular control gear, specifically contactors of Size S3.

Function

This module establishes the necessary electrical connections between the main, star, and delta contactors in a star-delta starter configuration. It handles the power circuitry for the motor switching sequence:

1. Star (Wye) Connection: Initial connection for reduced starting current and torque.
2. Timing Period: Brief delay.
3. Delta Connection: Final connection for full operating voltage and speed. It is designed to handle the power flow required by the Size S3 contactors in this specific motor starting application.
