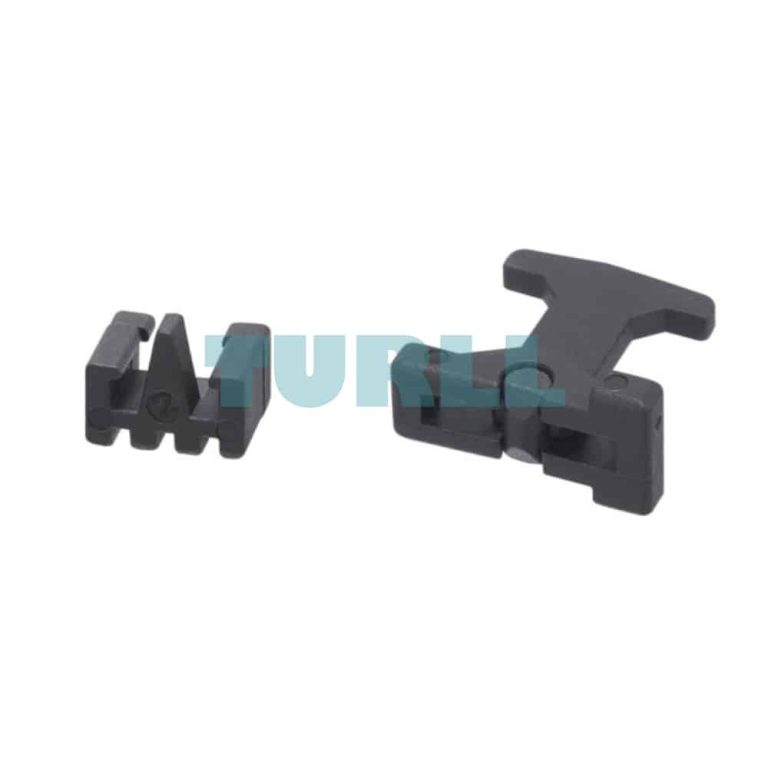

Siemens 3RA7912-2H Mechanical Interlock Connector, Lateral, for Contactor Size S00 Original Brand New

Overview

The Siemens 3RA7912-2H is a high-quality mechanical interlock connector designed for reliable and safe operation of contactor circuits. Specifically engineered for use with contactors of size S00, this lateral interlock connector ensures that only one of two contactors can be activated at a time, preventing simultaneous engagement. This critical safety feature is essential for reversing starters, motor control, and other applications where accidental simultaneous power-on could lead to equipment damage or hazardous conditions. Built to Siemens’ rigorous industrial standards, the 3RA7912-2H provides a robust and long-lasting solution for your electrical control needs.

Features & Specification

• Product Type: Mechanical Interlock Connector
• Part Number: 3RA7912-2H
• Manufacturer: Siemens
• Application: Reversing contactor assemblies
• Mounting: Lateral (side-by-side mounting)
• Compatibility: Designed specifically for contactor size S00
• Function: Prevents simultaneous activation of two contactors
• Construction: Durable, high-quality materials for industrial environments
• Installation: Simple and intuitive installation process

Benefit

• Enhanced Safety: The primary benefit is the prevention of dangerous short circuits and equipment damage by ensuring mutual exclusivity of contactor operation.
• Increased Reliability: Reduces the risk of system failure and downtime by providing a secure mechanical link between two contactors.
• Space-Saving Design: The lateral mounting design allows for a compact and efficient arrangement of components within a control cabinet.
• Simplified Integration: Seamlessly integrates with Siemens SIRIUS modular system components, including 3RT contactors and other control devices.
• Longevity: Constructed from robust materials, ensuring a long operational life and resistance to wear and tear in demanding industrial settings.

Function

The 3RA7912-2H acts as a physical barrier. When one contactor is engaged, the mechanical linkage shifts to physically block the plunger of the second contactor, making it impossible for it to close. This “one-at-a-time” principle is the core function of the interlock, making it indispensable for applications like:

• Reversing motor starters (Forward/Reverse control)
• Two-speed motor control
• Crane and hoist control systems
• Any application requiring a failsafe mechanism to prevent simultaneous power-on.

Installation & Application

Installation is straightforward. The 3RA7912-2H connector snaps directly onto the side of two adjacent Siemens S00 contactors, creating a secure mechanical connection. No special tools are required. For best results, it should be used with compatible Siemens 3RT2 series contactors.
