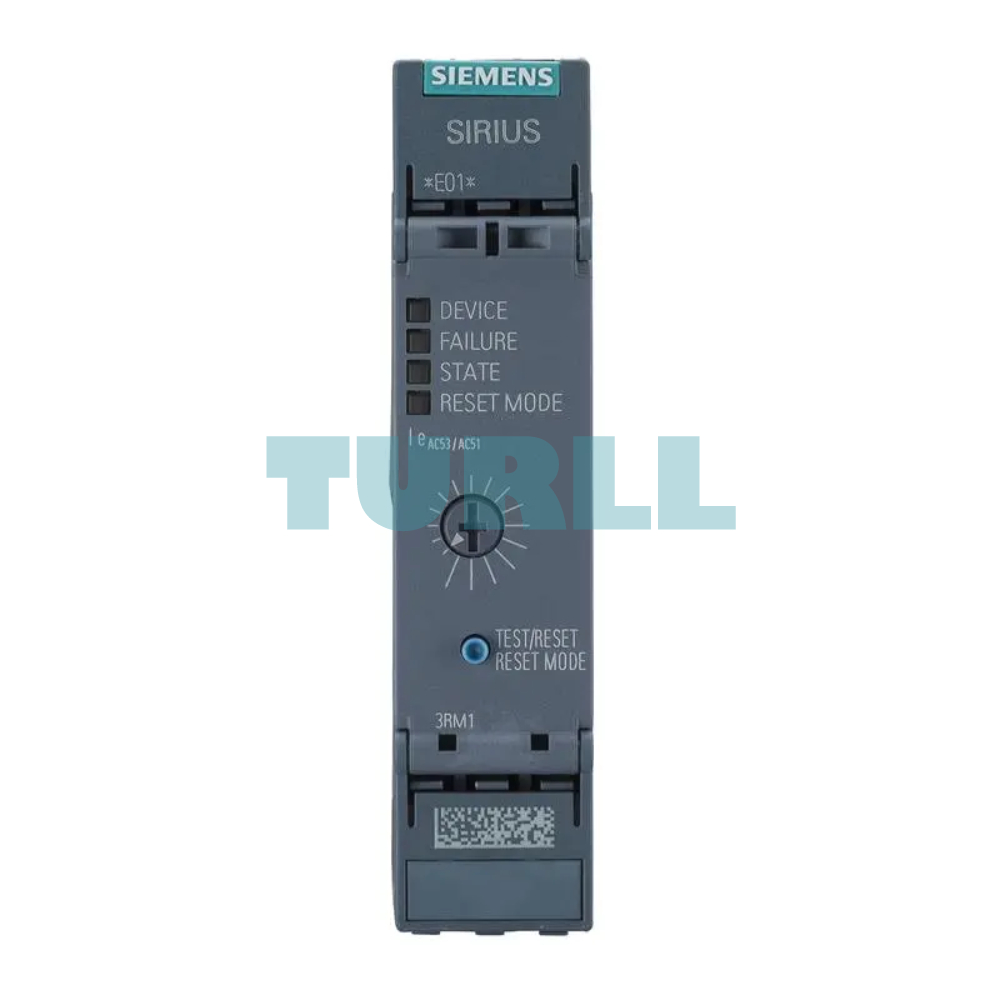

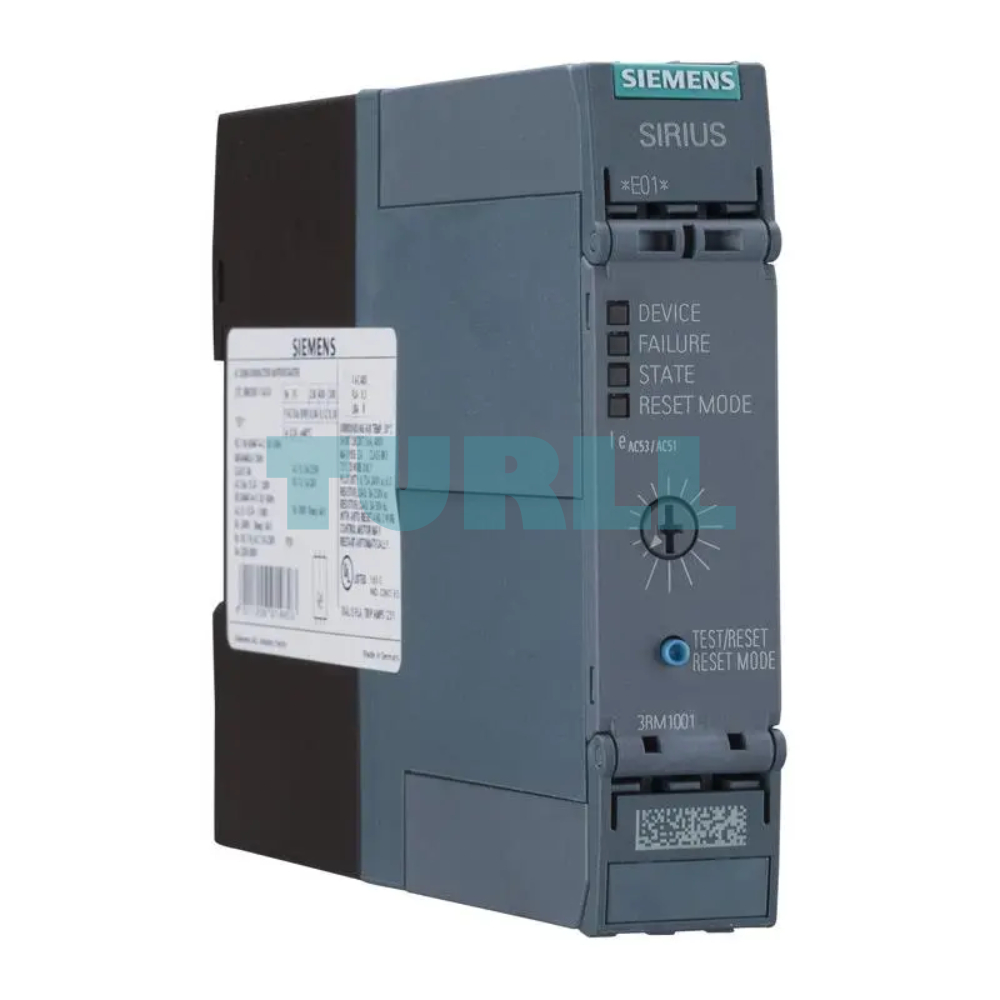

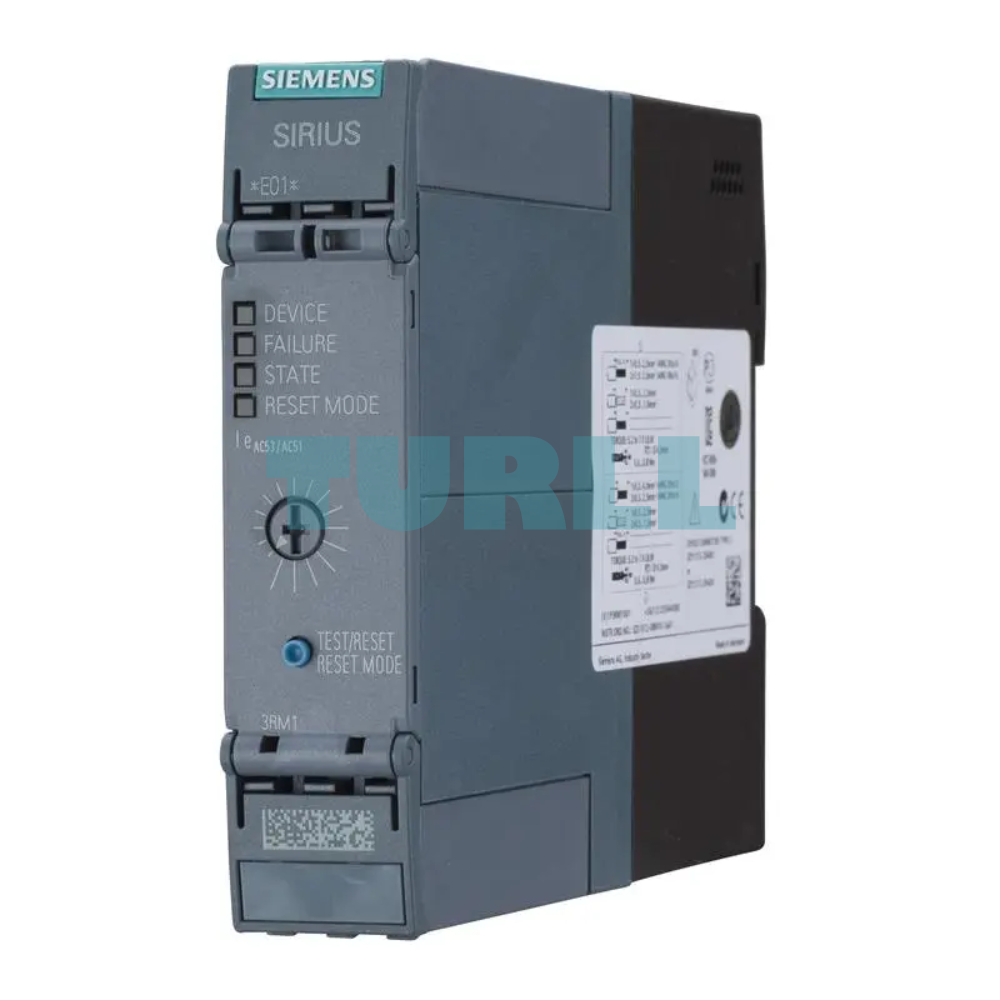

Siemens 3RM1201-1AA04 Reversing Starter, 3RM1 Series, 500V, 0-0.12kW, 24V DC Original Brand New
$158.40
Reversing starter (3RM1 series) supports small motors up to 0.12 kW, 500V, 0.1–0.5A, with 24V DC control and screw terminals for reliable industrial motor control.
Availability: In stock
Overview
The Siemens 3RM1201-1AA04 is a high-performance reversing starter from the 3RM1 series, designed for compact and reliable motor control. Engineered to handle voltages up to 500V and currents from 0.1 to 0.5A, this reversing starter ensures precise motor operation with maximum safety. Ideal for small motors ranging from 0 to 0.12 kW, it features durable screw terminals and a robust design for long-lasting performance.
Benefit
-
Space Savings: With a minimal width of just 22.5 mm, it drastically reduces the required footprint in the control cabinet (up to 82% compared to conventional starter combinations).
-
Hybrid Switching Technology: Combines the best of both worlds: low-wear semiconductor technology for making and breaking, and energy-efficient relay technology for continuous operation, leading to significantly longer service life and reduced heat losses.
-
Integrated Overload Protection: Comes standard with an adjustable electronic overload relay (0.1 – 0.5 A), eliminating the need for a separate thermal overload relay and simplifying wiring.
-
Simplified Installation: Features reliable screw terminals for secure and straightforward wiring of the main and control circuits.
-
High Functional Density: Combines reversing functionality, direct starting, and motor protection in one compact housing.
-
Fast Diagnostics: Integrated LED status indicators allow for quick and accurate troubleshooting and error diagnosis.
-
Wide Application Range: Ideal for controlling auxiliary drives such as pumps, fans, and hoisting equipment in various industrial machines and conveyor systems.
Functions & Features
-
Reversing starter for small motors (0–0.12 kW)
-
Voltage rating: 500 V
-
Current range: 0.1–0.5 A
-
Control voltage: 24 V DC
-
Connection type: Screw terminals
-
Compact 3RM1 series design for easy installation
-
Ensures reliable forward and reverse motor operation
-
High safety standards for industrial use
Visit 3RM1201-1AA04 for more detail info
For more our products visit turll
Download
| Weight | 0.340 kg |
|---|---|
| Dimensions | 36.00 × 109.00 × 167.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS |
| product category | Motor starter |
| product designation | Reversing starter |
| design of the product | with electronic overload protection |
| product type designation | 3RM1 |
| trip class | CLASS 10A |
| equipment variant acc. to IEC 60947-4-2 | 3 |
| ● intrinsic device protection | Yes |
| ● for power supply reverse polarity protection | No |
| suitability for operation device connector 3ZY12 | Yes |
| power loss [W] for rated value of the current at AC in hot operating state per pole | 0.01 W |
| insulation voltage rated value | 500 V |
| overvoltage category | III |
| surge voltage resistance rated value | 6 kV |
| maximum permissible voltage for safe isolation | – |
| ● between main and auxiliary circuit | 500 V |
| ● between control and auxiliary circuit | 250 V |
| shock resistance | 6g / 11 ms |
| vibration resistance | 1 … 6 Hz, 15 mm; 20 m/s², 500 Hz |
| operating frequency maximum | 1 1/s |
| mechanical service life (switching cycles) typical | 30 000 000 |
| reference code acc. to IEC 81346-2 | Q |
| product function | – |
| ● direct start | No |
| ● reverse starting | Yes |
| product function short circuit protection | No |
| EMC emitted interference acc. to IEC 60947-1 | class A |
| EMC immunity acc. to IEC 60947-1 | Class A |
| conducted interference | – |
| ● due to burst acc. to IEC 61000-4-4 | 3 kV / 5 kHz |
| ● due to conductor-earth surge acc. to IEC 61000-4-5 | 2 kV |
| ● due to conductor-conductor surge acc. to IEC 61000-4-5 | 1 kV |
| ● due to high-frequency radiation acc. to IEC 61000-4-6 | 10 V |
| field-based interference acc. to IEC 61000-4-3 | 10 V/m |
| electrostatic discharge acc. to IEC 61000-4-2 | 4 kV contact discharge / 8 kV air discharge |
| conducted HF interference emissions acc. to CISPR11 | Class B for the domestic, business and commercial environments |
| field-bound HF interference emission acc. to CISPR11 | Class B for the domestic, business and commercial environments |
| protection class IP on the front acc. to IEC 60529 | IP20 |
| touch protection on the front acc. to IEC 60529 | finger-safe |
| number of poles for main current circuit | 3 |
| design of the switching contact | Hybrid |
| design of the switching contact as NO contact for signaling function | OUT, electronic, 24 V DC, 15 mA |
| adjustable current response value current of the current-dependent overload release | 0.1 … 0.5 A |
| minimum load [%] | 20 %; from set rated current |
| type of the motor protection | solid-state |
| operating voltage rated value | 48 … 500 V |
| relative symmetrical tolerance of the operating voltage | 10 % |
| operating frequency 1 rated value | 50 Hz |
| operating frequency 2 rated value | 60 Hz |
| relative symmetrical tolerance of the operating frequency | 10 % |
| ● at AC at 400 V rated value | 0.5 A |
| ● at AC-3 at 400 V rated value | 0.5 A |
| ● at AC-53a at 400 V at ambient temperature 40 °C rated value | 0.5 A |
| ampacity when starting maximum | 4 A |
| operating power for 3-phase motors at 400 V at 50 Hz | 0 … 0.12 kW |
| input voltage at digital input | – |
| ● at DC rated value | 24 V |
| input current at digital input | – |
| ● for signal <1> at DC | 11 mA |
| ● with signal <0> at DC | 1 mA |
| number of CO contacts for auxiliary contacts | 1 |
| operational current of auxiliary contacts at AC-15 at 230 V maximum | 3 A |
| operational current of auxiliary contacts at DC-13 at 24 V maximum | 1 A |
| type of voltage of the control supply voltage | DC |
| control supply voltage at DC rated value | 19.2 … 30 V |
| relative negative tolerance of the control supply voltage at DC | 20 % |
| relative positive tolerance of the control supply voltage at DC | 25 % |
| control supply voltage 1 at DC rated value | 24 V |
| operating range factor control supply voltage rated value at DC | – |
| ● initial value | 0.8 |
| ● full-scale value | 1.25 |
| control current at DC | – |
| ● in standby mode of operation | 25 mA |
| ● when switching on | 150 mA |
| duration of inrush current peak at 24 V | 85 ms |
| power loss [W] in auxiliary and control circuit | – |
| ● in switching state OFF | – |
| ● in switching state ON | – |
| — with bypass circuit | 1.68 W |
| ON-delay time | 60 … 90 ms |
| OFF-delay time | 60 … 90 ms |
| operational current | – |
| ● at 40 °C rated value | 0.5 A |
| ● at 50 °C rated value | 0.5 A |
| ● at 55 °C rated value | 0.5 A |
| ● at 60 °C rated value | 0.5 A |
| mounting position | vertical, horizontal, standing (observe derating) |
| fastening method | screw and snap-on mounting onto 35 mm standard mounting rail |
| required spacing | – |
| ● with side-by-side mounting | – |
| ● for grounded parts | – |
| — forwards | 0 mm |
| — backwards | 0 mm |
| — upwards | 50 mm |
| — at the side | 3.5 mm |
| — downwards | 50 mm |
| installation altitude at height above sea level maximum | 4 000 m; For derating see manual |
| ambient temperature | – |
| ● during operation | -25 … +60 °C |
| ● during storage | -40 … +70 °C |
| ● during transport | -40 … +70 °C |
| environmental category during operation acc. to IEC 60721 | 3K6 (no ice formation, only occasional condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6 |
| relative humidity during operation | 10 … 95 % |
| air pressure acc. to SN 31205 | 900 … 1 060 hPa |
| protocol is supported | – |
| ● PROFINET IO protocol | No |
| ● PROFIsafe protocol | No |
| product function bus communication | No |
| protocol is supported AS-Interface protocol | No |

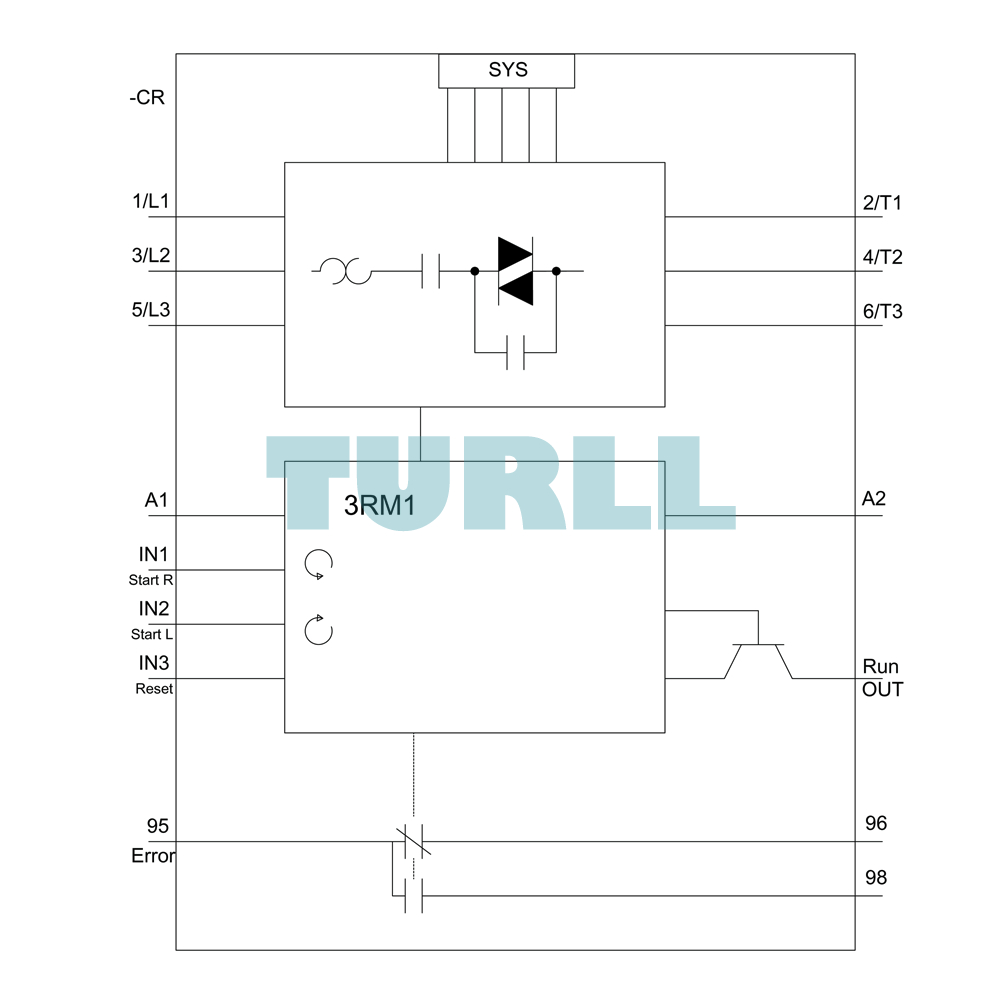

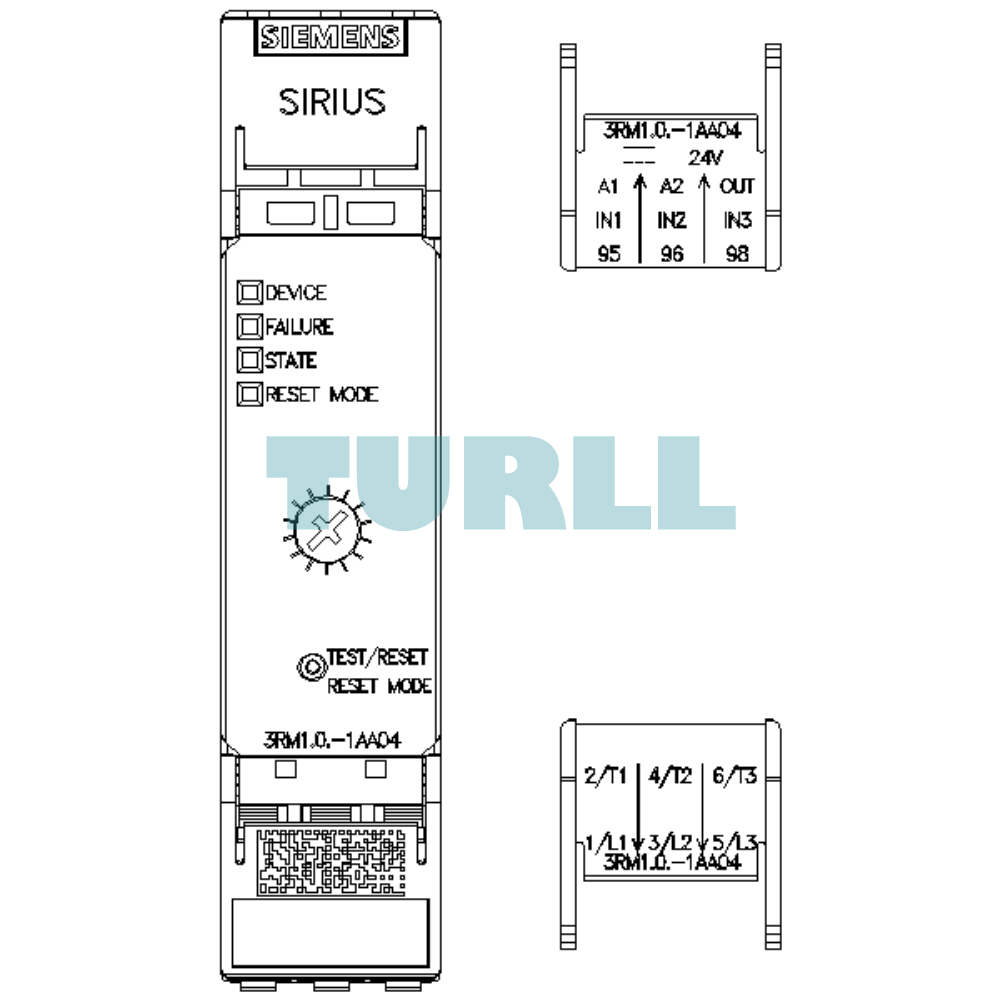

| type of electrical connection | screw-type terminals for main circuit, screw-type terminals for control circuit |
| ● for main current circuit | screw-type terminals |
| ● for auxiliary and control circuit | screw-type terminals |
| wire length for motor unshielded maximum | 100 m |
| ● at AWG cables for main contacts | 1x (20 … 12), 2x (20 … 14) |
| connectable conductor cross-section for main contacts | – |
| connectable conductor cross-section for auxiliary contacts | – |
| ● solid or stranded | 0.5 … 2.5 mm² |
| ● finely stranded with core end processing | 0.5 … 2.5 mm² |
| type of connectable conductor cross-sections | – |
| — solid | 1x (0,5 … 2,5 mm²), 2x (1,0 … 1,5 mm²) |
| — finely stranded with core end processing | 1x (0.5 … 2.5 mm²), 2x (0.5 … 1 mm²) |
| ● at AWG cables for auxiliary contacts | 1x (20 … 14), 2x (18 … 16) |
| AWG number as coded connectable conductor cross section | – |
| ● for main contacts | 20 … 12 |
| ● for auxiliary contacts | 20 … 14 |
| operating voltage at AC | – |
| ● according to UL rated value | 480 V |
| ● according to CSA rated value | 400 V |
| Test Certificates | Railway other |
