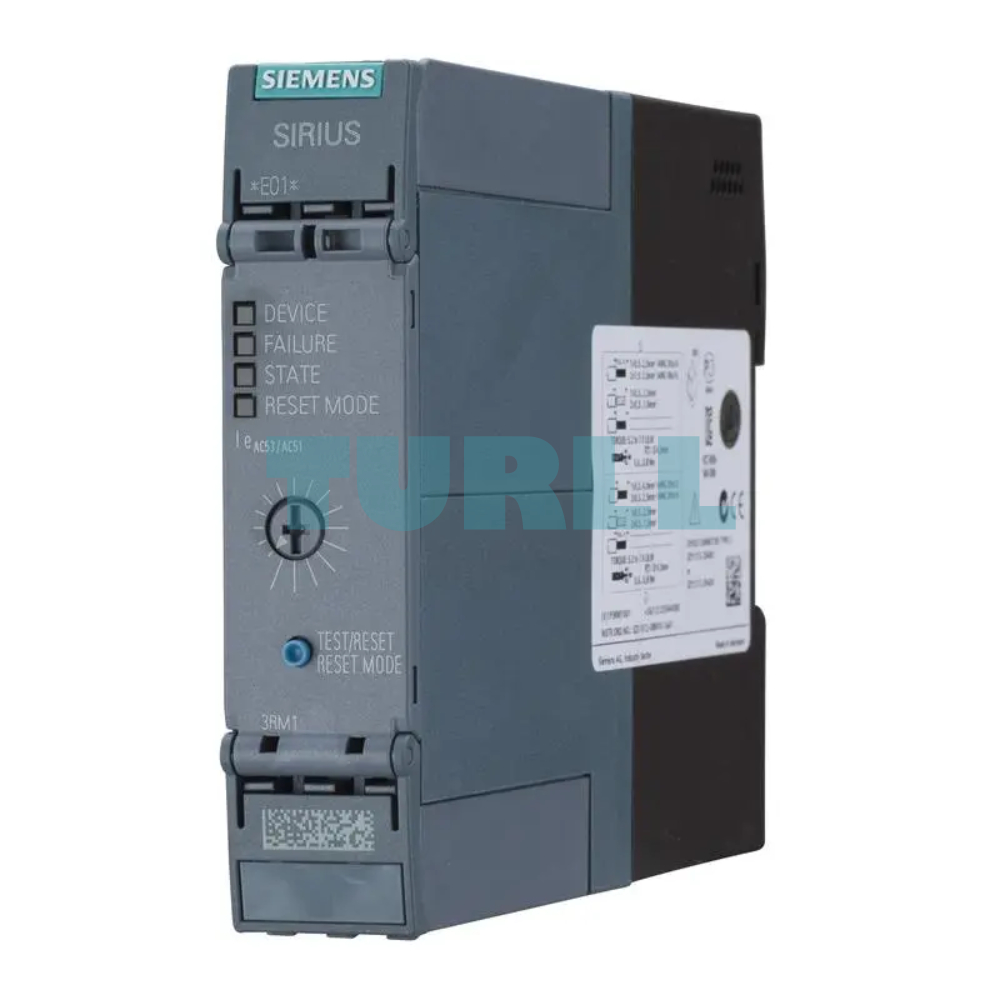

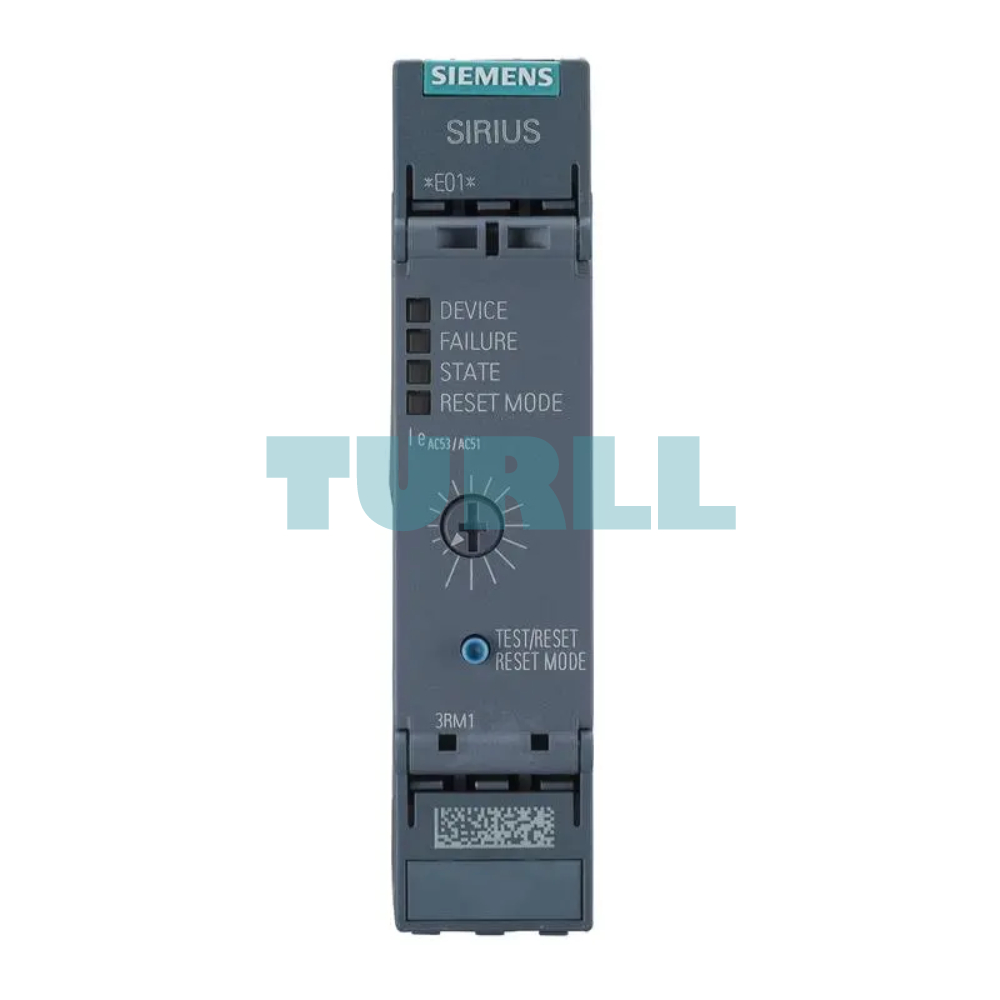

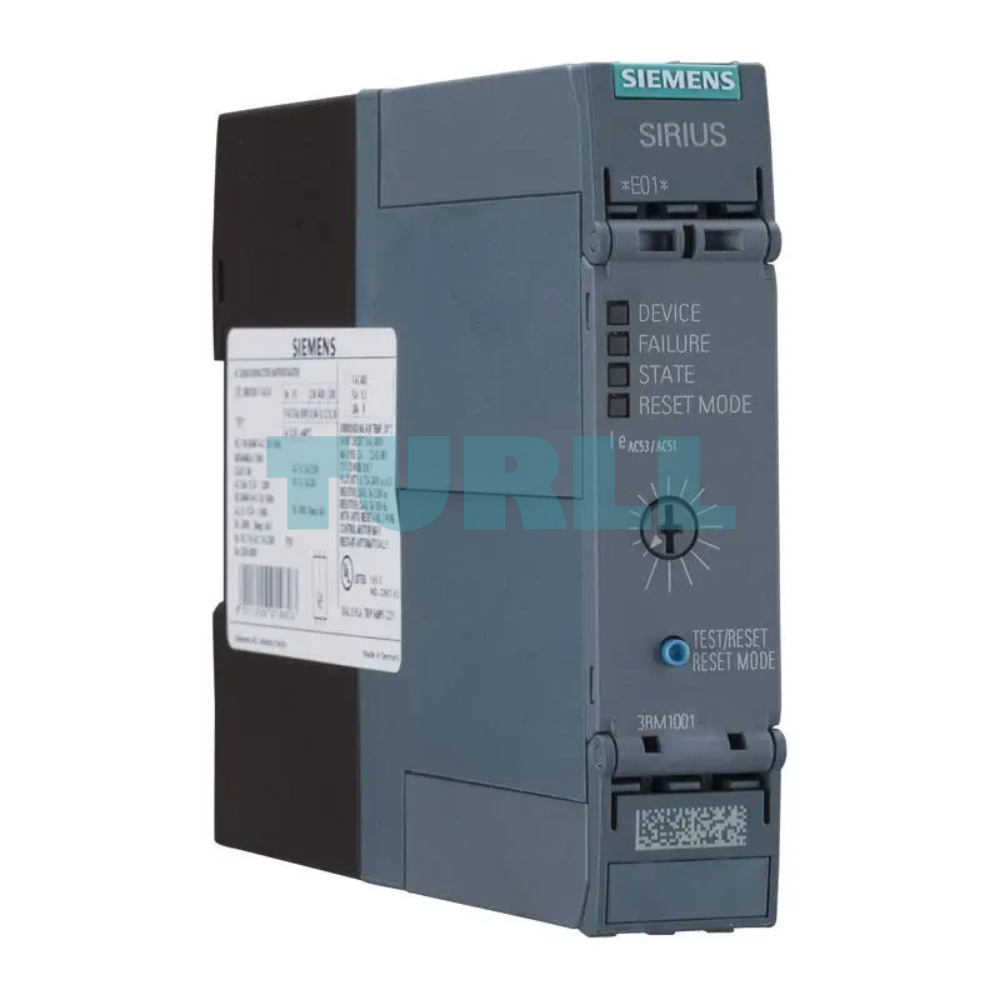

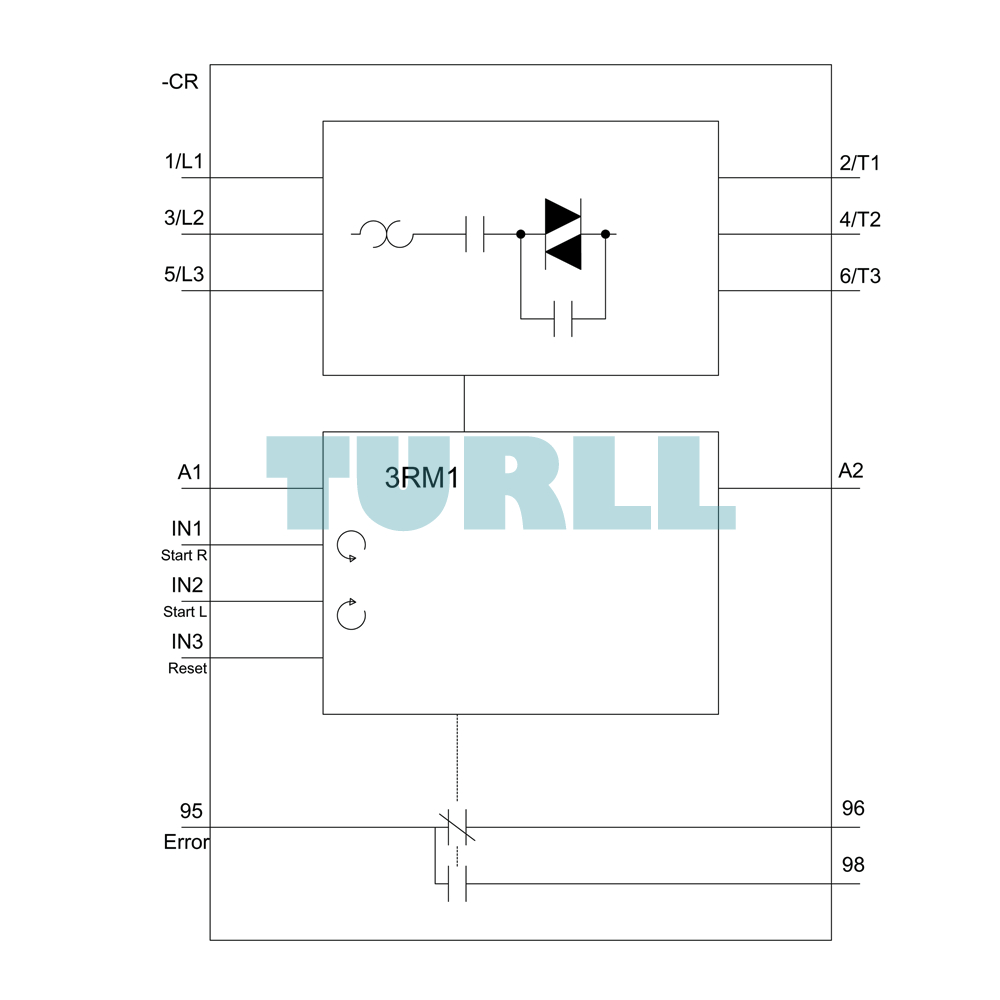

Siemens 3RM1201-1AA14 Reversing Starter 500V, 0-0.12 kW, 110-230V AC Original Brand New
$158.40
Siemens 3RM1201-1AA14 compact reversing starter from the SIRIUS 3RM1 series. Features a current range of 0.1-0.5 A, 500 V max, 0.12 kW max, and 110-230 V AC control voltage with screw terminals. Ideal for space-saving, reliable motor reversal.
Availability: In stock
Overview
The Siemens 3RM1201-1AA14 is a high-performance reversing starter designed for precise motor control in compact installations. Engineered for reliability and ease of use, it supports motor applications ranging from 0 to 0.12 kW with operating currents of 0.1 to 0.5 A. Its robust design includes screw terminals for secure connections and supports a wide voltage range of 110-230V AC, making it versatile for industrial and commercial applications.
Benefit
-
Reliable Motor Control: Ensures safe and efficient forward/reverse operation for small motors.
-
Compact & Durable Design: Space-saving size with robust construction for long-lasting performance.
-
Wide Voltage Compatibility: Works seamlessly with 110-230V AC power supply.
-
Easy Installation: Screw terminals provide secure connections for quick setup.
-
Energy Efficient: Optimized for low power consumption in small motor applications.
Function
-
Reversing motor starter for forward and reverse operation
-
Controls motors rated 0 – 0.12 kW with 0.1 – 0.5 A current
-
Supports AC voltage input: 110-230V AC
-
Provides overcurrent protection when used with compatible circuit breakers
-
Simplifies wiring with screw terminal connections
Application
This compact reversing starter is essential in applications such as:
-
Pumps and Fan Systems
-
Small Conveyor Systems
-
Machine Tools and Process Equipment
-
Automated Handling and Assembly Technology
-
Door and Gate Drive Systems
Visit 3RM1201-1AA14 for more detail info
For more our products visit turll
Download
| Weight | 0.340 kg |
|---|---|

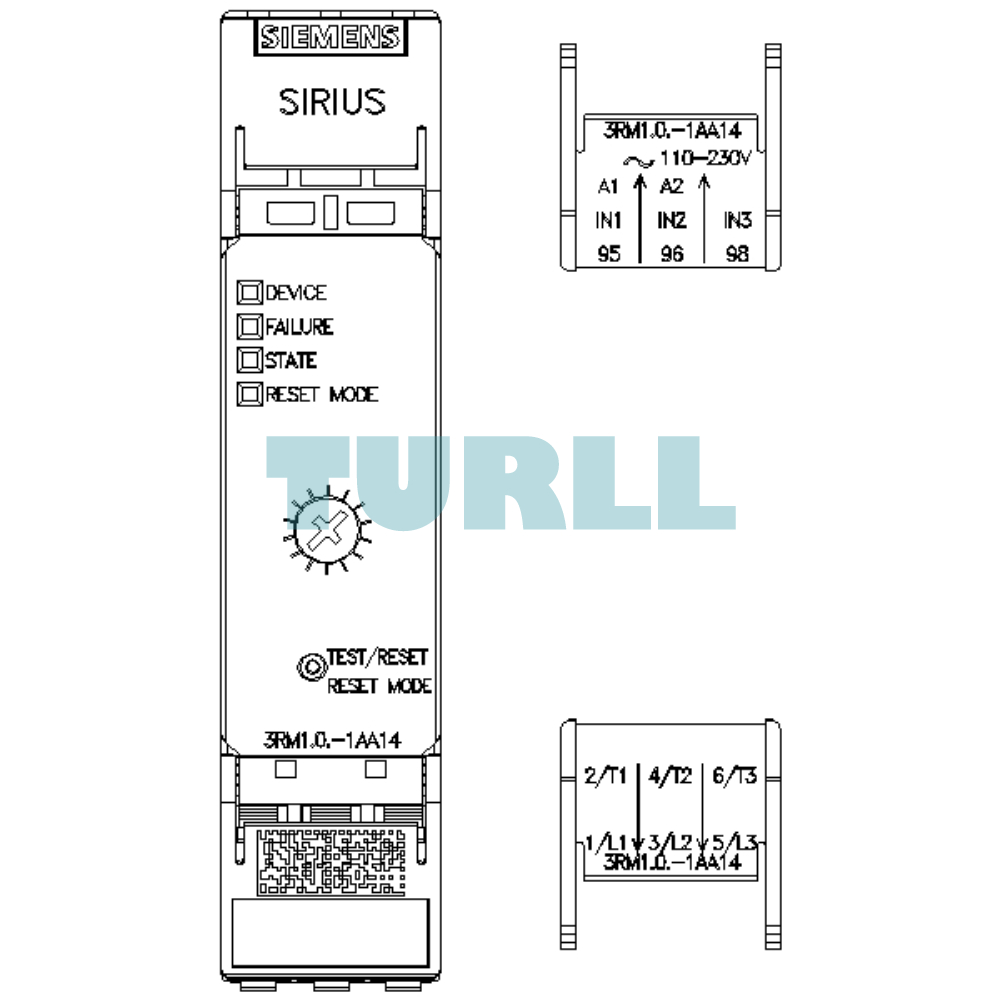

| Dimensions | 36.00 × 109.00 × 167.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS |
| product category | Motor starter |
| product designation | Reversing starter |
| design of the product | with electronic overload protection |
| product type designation | 3RM1 |
| trip class | CLASS 10A |
| equipment variant acc. to IEC 60947-4-2 | 3 |
| ● intrinsic device protection | Yes |
| ● for power supply reverse polarity protection | No |
| suitability for operation device connector 3ZY12 | No |
| power loss [W] for rated value of the current at AC in hot operating state per pole | 0.01 W |
| insulation voltage rated value | 500 V |
| overvoltage category | III |
| surge voltage resistance rated value | 6 kV |
| maximum permissible voltage for safe isolation | – |
| ● between main and auxiliary circuit | 500 V |
| ● between control and auxiliary circuit | 250 V |
| shock resistance | 6g / 11 ms |
| vibration resistance | 1 … 6 Hz, 15 mm; 20 m/s², 500 Hz |
| operating frequency maximum | 1 1/s |
| mechanical service life (switching cycles) typical | 30 000 000 |
| reference code acc. to IEC 81346-2 | Q |
| product function | – |
| ● direct start | No |
| ● reverse starting | Yes |
| product function short circuit protection | No |
| EMC emitted interference acc. to IEC 60947-1 | class A |
| EMC immunity acc. to IEC 60947-1 | Class A |
| conducted interference | – |
| ● due to burst acc. to IEC 61000-4-4 | 3 kV / 5 kHz |
| ● due to conductor-earth surge acc. to IEC 61000-4-5 | 2 kV |
| ● due to conductor-conductor surge acc. to IEC 61000-4-5 | 1 kV |
| ● due to high-frequency radiation acc. to IEC 61000-4-6 | 10 V |
| field-based interference acc. to IEC 61000-4-3 | 10 V/m |
| electrostatic discharge acc. to IEC 61000-4-2 | 4 kV contact discharge / 8 kV air discharge |
| conducted HF interference emissions acc. to CISPR11 | Class B for domestic, business and commercial environments; Class A for industrial environments at 110 V DC |
| field-bound HF interference emission acc. to CISPR11 | Class B for domestic, business and commercial environments; Class A for industrial environments at 110 V DC |
| protection class IP on the front acc. to IEC 60529 | IP20 |
| touch protection on the front acc. to IEC 60529 | finger-safe |
| number of poles for main current circuit | 3 |
| design of the switching contact | Hybrid |
| design of the switching contact as NO contact for signaling function | OUT, electronic, 24 V DC, 15 mA |
| adjustable current response value current of the current-dependent overload release | 0.1 … 0.5 A |
| minimum load [%] | 20 %; from set rated current |
| type of the motor protection | solid-state |
| operating voltage rated value | 48 … 500 V |
| relative symmetrical tolerance of the operating voltage | 10 % |
| operating frequency 1 rated value | 50 Hz |
| operating frequency 2 rated value | 60 Hz |
| relative symmetrical tolerance of the operating frequency | 10 % |
| ● at AC at 400 V rated value | 0.5 A |
| ● at AC-3 at 400 V rated value | 0.5 A |
| ● at AC-53a at 400 V at ambient temperature 40 °C rated value | 0.5 A |
| ampacity when starting maximum | 4 A |
| operating power for 3-phase motors at 400 V at 50 Hz | 0 … 0.12 kW |
| ● at DC rated value | 110 V |
| input voltage at digital input | – |
| ● at AC rated value | 110 V |
| ● with signal <0> at AC | 0 … 40 V |
| ● for signal <1> at AC | 93 … 253 V |
| input current at digital input | – |
| ● for signal <1> at DC | 1.5 mA |
| ● with signal <0> at DC | 0.25 mA |
| input current at digital input with signal <0> at AC | – |
| input current at digital input for signal <1> at AC | – |
| ● at 110 V | 1.1 mA |
| ● at 230 V | 2.3 mA |
| number of CO contacts for auxiliary contacts | 1 |
| operational current of auxiliary contacts at AC-15 at 230 V maximum | 3 A |
| operational current of auxiliary contacts at DC-13 at 24 V maximum | 1 A |
| type of voltage of the control supply voltage | AC/DC |
| control supply voltage at AC | – |
| ● at 50 Hz rated value | 110 … 230 V |
| ● at 60 Hz rated value | 110 … 230 V |
| relative negative tolerance of the control supply voltage at AC at 60 Hz | 15 % |
| relative positive tolerance of the control supply voltage at AC at 60 Hz | 10 % |
| control supply voltage 1 at AC | – |
| ● at 50 Hz | 110 … 230 V |
| ● at 60 Hz | 110 … 230 V |
| control supply voltage frequency | – |
| ● 1 rated value | 50 Hz |
| ● 2 rated value | 60 Hz |
| relative negative tolerance of the control supply voltage at DC | 15 % |
| relative positive tolerance of the control supply voltage at DC | 10 % |
| control supply voltage 1 at DC rated value | 110 V |
| operating range factor control supply voltage rated value at DC | – |
| operating range factor control supply voltage rated value at AC at 50 Hz | – |
| operating range factor control supply voltage rated value at AC at 60 Hz | – |
| ● initial value | 0.85 |
| ● full-scale value | 1.1 |
| control current at AC | – |
| ● at 110 V in standby mode of operation | 16 mA |
| ● at 230 V in standby mode of operation | 9 mA |
| ● at 110 V when switching on | 55 mA |
| ● at 230 V when switching on | 33 mA |
| ● at 110 V during operation | 36 mA |
| ● at 230 V during operation | 22 mA |
| control current at DC | – |
| ● in standby mode of operation | 6 mA |
| ● when switching on | 15 mA |
| power loss [W] in auxiliary and control circuit | – |
| ● in switching state OFF | – |
| ● in switching state ON | – |
| — with bypass circuit | 5.06 W |
| ON-delay time | 60 … 90 ms |
| OFF-delay time | 60 … 90 ms |
| operational current | – |
| ● at 40 °C rated value | 0.5 A |
| ● at 50 °C rated value | 0.5 A |
| ● at 55 °C rated value | 0.5 A |
| ● at 60 °C rated value | 0.5 A |
| mounting position | vertical, horizontal, standing (observe derating) |

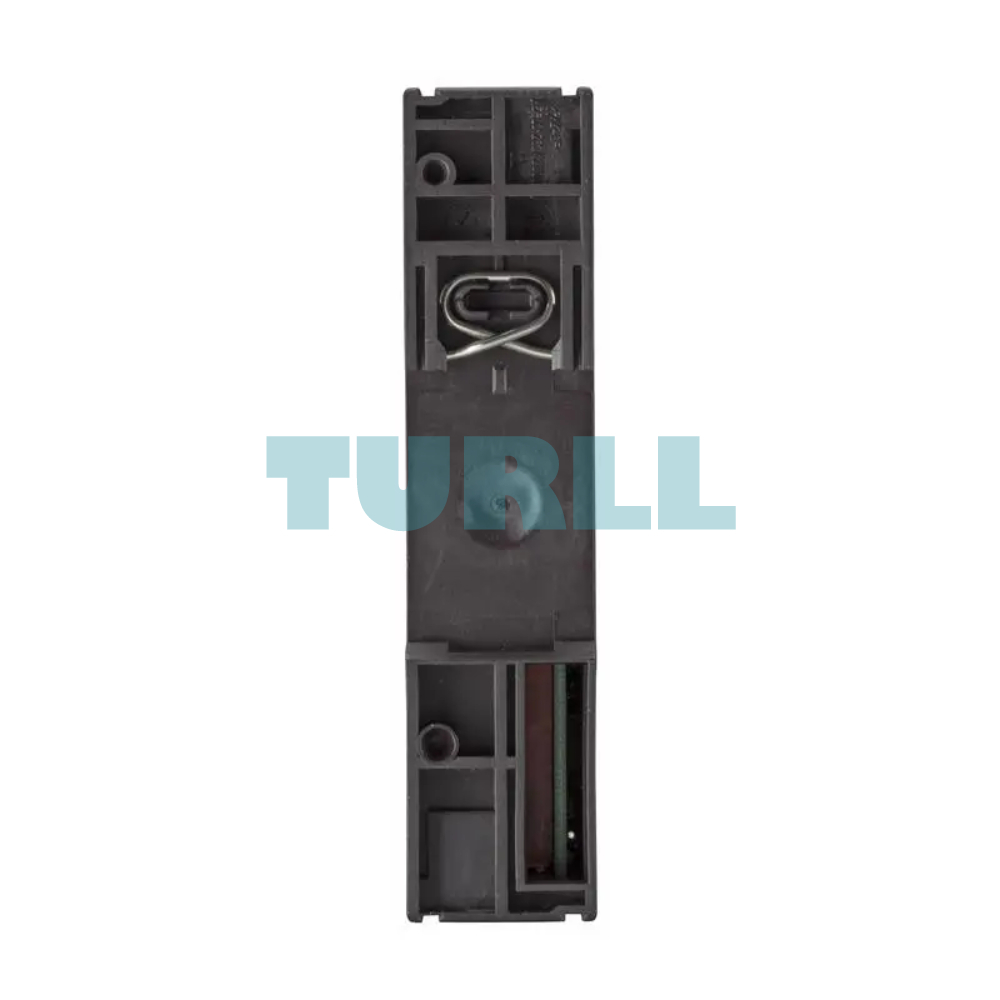

| fastening method | screw and snap-on mounting onto 35 mm standard mounting rail |
| required spacing | – |
| ● with side-by-side mounting | – |
| ● for grounded parts | – |
| — forwards | 0 mm |
| — backwards | 0 mm |
| — upwards | 50 mm |
| — at the side | 3.5 mm |
| — downwards | 50 mm |
| installation altitude at height above sea level maximum | 4 000 m; For derating see manual |
| ambient temperature | – |
| ● during operation | -25 … +60 °C |
| ● during storage | -40 … +70 °C |
| ● during transport | -40 … +70 °C |
| environmental category during operation acc. to IEC 60721 | 3K6 (no ice formation, only occasional condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6 |
| relative humidity during operation | 10 … 95 % |
| air pressure acc. to SN 31205 | 900 … 1 060 hPa |
| protocol is supported | – |
| ● PROFINET IO protocol | No |
| ● PROFIsafe protocol | No |
| product function bus communication | No |
| protocol is supported AS-Interface protocol | No |
| type of electrical connection | screw-type terminals for main circuit, screw-type terminals for control circuit |
| ● for main current circuit | screw-type terminals |
| ● for auxiliary and control circuit | screw-type terminals |
| wire length for motor unshielded maximum | 100 m |
| ● at AWG cables for main contacts | 1x (20 … 12), 2x (20 … 14) |
| connectable conductor cross-section for main contacts | – |
| connectable conductor cross-section for auxiliary contacts | – |
| ● solid or stranded | 0.5 … 2.5 mm² |
| ● finely stranded with core end processing | 0.5 … 2.5 mm² |
| type of connectable conductor cross-sections | – |
| — solid | 1x (0,5 … 2,5 mm²), 2x (1,0 … 1,5 mm²) |
| — finely stranded with core end processing | 1x (0.5 … 2.5 mm²), 2x (0.5 … 1 mm²) |
| ● at AWG cables for auxiliary contacts | 1x (20 … 14), 2x (18 … 16) |
| AWG number as coded connectable conductor cross section | – |
| ● for main contacts | 20 … 12 |
| ● for auxiliary contacts | 20 … 14 |
| operating voltage at AC | – |
| ● according to UL rated value | 480 V |
| ● according to CSA rated value | 400 V |
| Test Certificates | Railway other |
| last modified: | 11/3/2021 |
