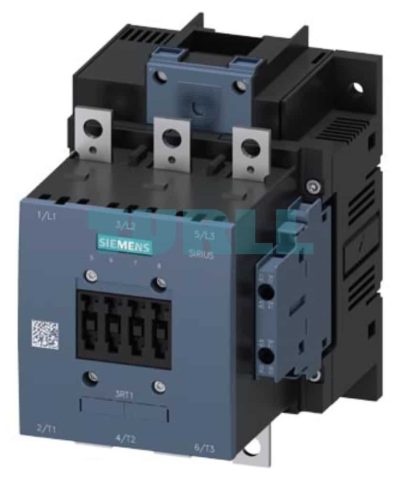

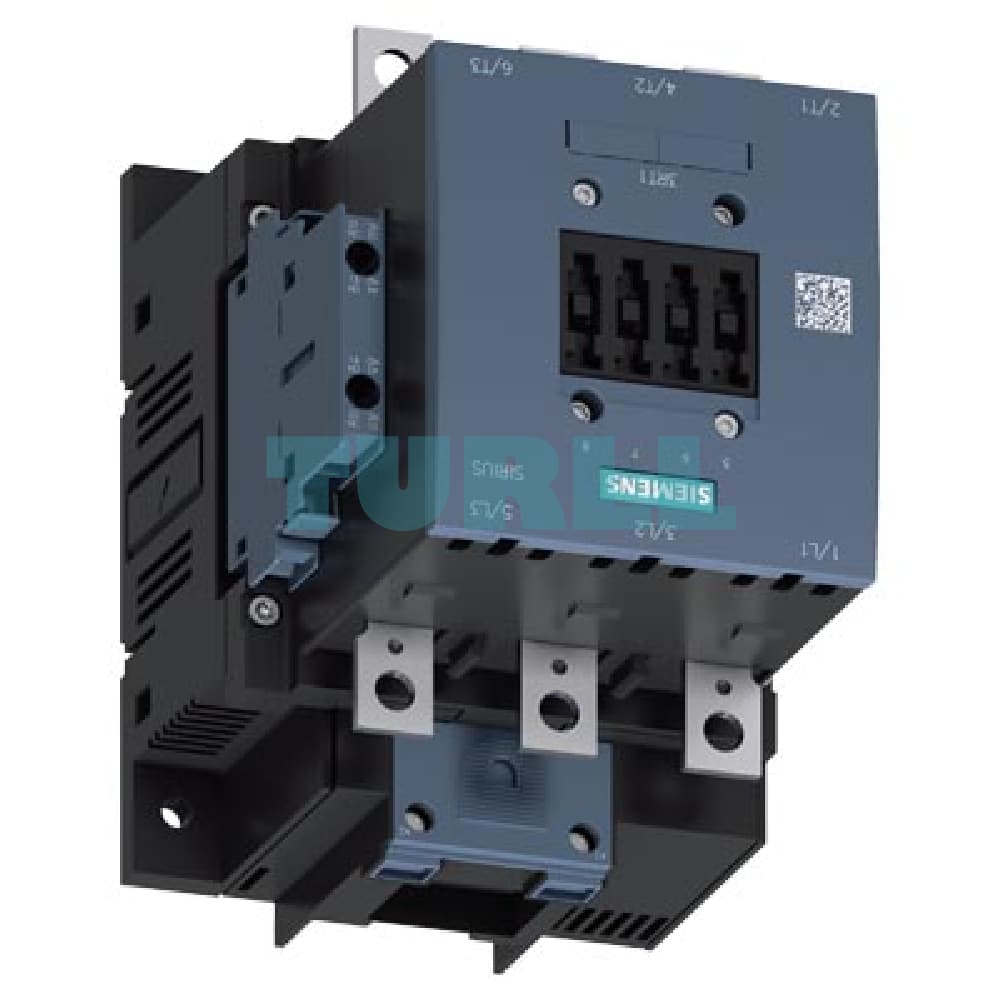

Siemens SIRIUS 3RT1054-6AB36 Power Contactor, Size S6, 115A, 55kW, 23-26V AC/DC Coil Original Brand New
$244.55
Siemens 3RT1054-6AB36 power contactor, AC-3e/AC-3 115 A, 55 kW / 400 V, AC (50-60 Hz) / DC Uc: 23-26 V 3-pole, auxiliary contacts 2 NO + 2 NC drive: conventional main circuit: busbar control and auxiliary circuit: screw terminal
Overview
The Siemens SIRIUS 3RT1054-6AB36 Power Contactor is a high-performance, 3-pole switching device from the proven SIRIUS modular system, specifically designed for reliably switching AC-3e/AC-3 motor loads up to 115 A (55 kW at 400 V). As a Size S6 IEC power contactor, it offers a robust solution for demanding industrial applications.
This model is equipped with a versatile 23-26V AC/DC (Universal Current – UC) conventional drive coil, ensuring reliable operation across different control voltages. Its main circuit uses busbar terminals for high-current connections, while the control and auxiliary circuits feature convenient screw terminals. It comes with pre-installed auxiliary contacts (2 NO + 2 NC), simplifying wiring and monitoring.
Key Features & Specification
- Product ID: 3RT1054-6AB36
- Brand/Series: Siemens SIRIUS 3RT10
- Product Type: Power Contactor / Motor Contactor
- Size: S6
- Poles: 3-pole
- Operating Current (AC-3e/AC-3): 115 A (at 400 V)
- Power Rating: 55 kW at 400 V (Horsepower rating may vary based on voltage, consult datasheet)
- Coil Voltage (Uc): 23-26 V AC/DC (Universal Current – UC)
- Auxiliary Contacts: 2 NO (Normally Open) + 2 NC (Normally Closed)
- Main Circuit Connection: Busbar connection
- Control/Auxiliary Circuit Connection: Screw terminals
- Drive Type: Conventional
- Standards: IEC 60947, IE3/IE4-ready
Benefit
- High Reliability & Durability: Part of the Siemens SIRIUS modular system, known for its outstanding contact reliability and long mechanical/electrical lifespan, reducing maintenance costs.
- Flexible Control Voltage: The 23-26V UC coil allows for operation with both AC and DC control supplies, offering flexibility in panel design and stock keeping.
- Space and Wiring Efficiency: Integrated auxiliary contacts (2 NO / 2 NC) eliminate the need for separate side-mounted blocks, saving space and installation time.
- Robust Power Connection: Busbar connection on the main circuit provides a secure, high-current interface ideal for industrial power distribution.
- IE3/IE4 Ready: Optimized for reliable switching of high-efficiency IE3 and IE4 motors, future-proofing your motor control applications.
Functions / Applications
The Siemens 3RT1054-6AB36 Contactor is primarily used for switching and controlling high-current, 3-phase AC motor loads.
- Motor Control: Switching of 3-phase asynchronous motors (e.g., pumps, compressors, fans) up to 55 kW.
- Resistive Loads (AC-1): Suitable for switching high resistive loads (e.g., heating elements) with higher current ratings (consult technical data).
- General Power Switching: Switching of large power circuits in industrial control panels and machinery.
- Integration: Designed for seamless integration with SIRIUS motor protection components (e.g., 3RU or 3RB overload relays) to form complete motor starters.
For more of our high-quality industrial automation products, visit turll today.
| Weight | 3.29 kg |
|---|---|
| Dimensions | 129 × 190 × 181 mm |
