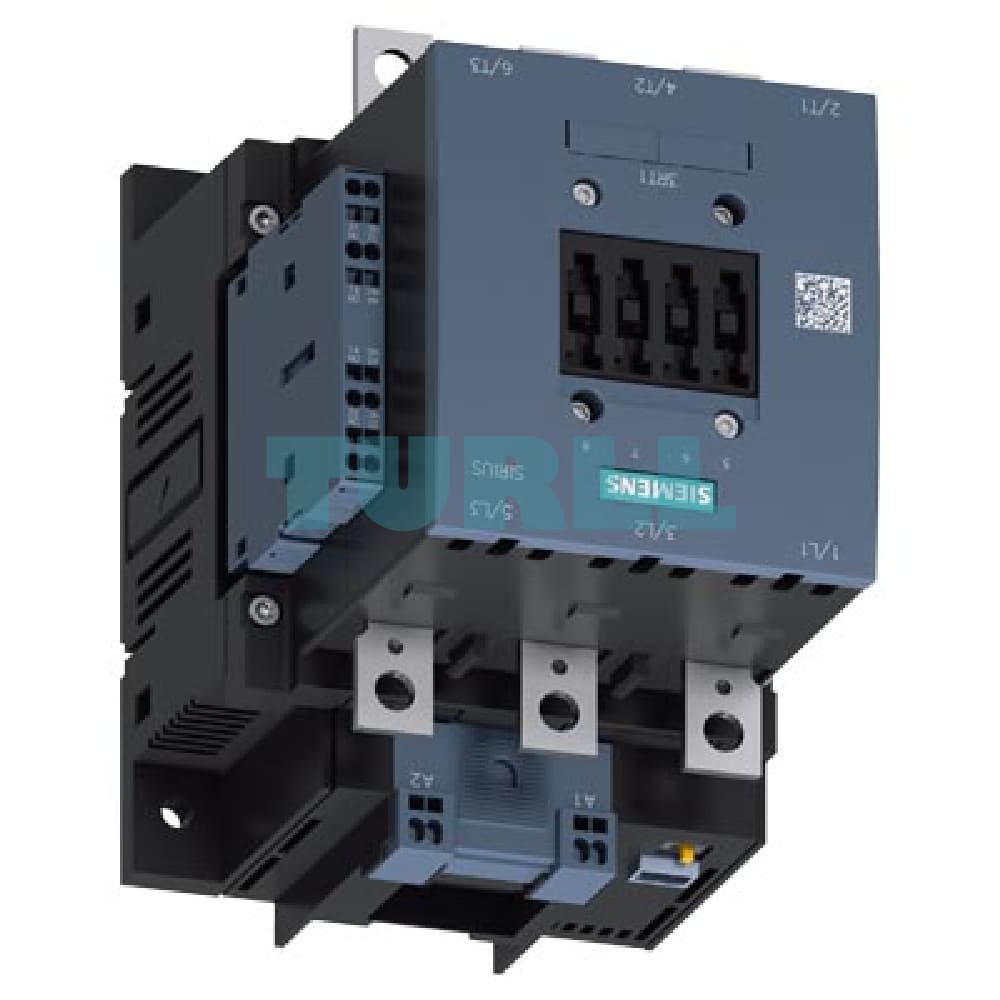

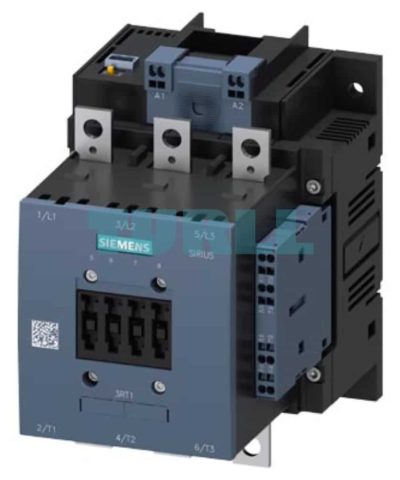

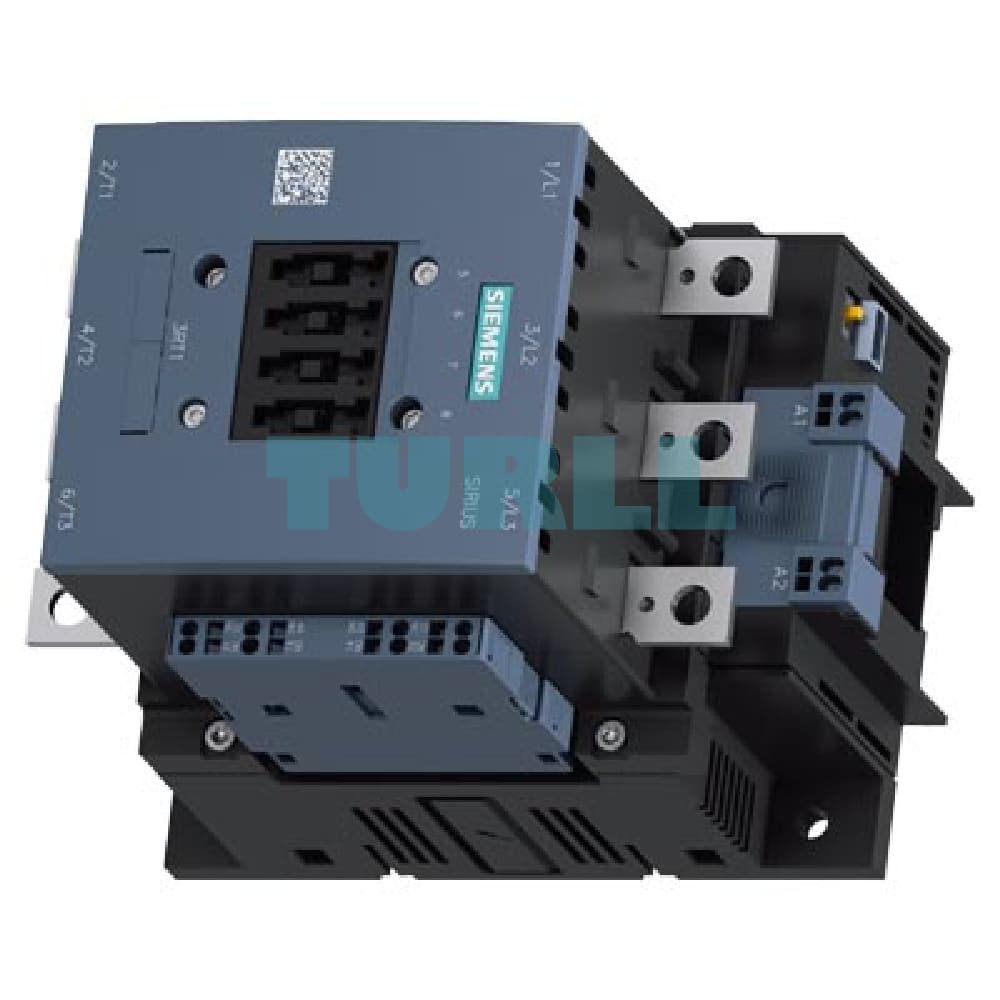

Siemens SIRIUS 3RT1056-2NP36 Power Contactor, 185A, 90kW, 200-277V AC/DC Electronic Coil, Size S6, 3-Pole Original Brand New

Overview

The Siemens 3RT1056-2NP36 Power Contactor from the SIRIUS 3RT1 series is a robust, high-performance switching device designed for controlling motors and other electrical loads up to 185 Amps (AC-3e/AC-3). This 3-pole contactor is rated for a motor output of 90 kW at 400 V and features a modern electronic operating mechanism. Its wide-range control supply voltage (200-277 V AC/DC) and integrated PLC input (24 V DC) make it ideal for flexible and efficient integration into modern industrial automation and control systems.

Key Features and Technical Specification

• Part Number: 3RT1056-2NP36
• Contactor Series: Siemens SIRIUS 3RT1
• Rated Operational Current (AC-3e/AC-3): 185 A
• Rated Power (400 V): 90 kW
• Number of Poles: 3-Pole
• Control Supply Voltage (Uc): 200-277 V AC/DC (Universal Coil)
• Drive Type: Electronic with high-efficiency
• PLC Compatibility: Integrated 24 V DC PLC input for direct control
• Auxiliary Contacts: 2 Normally Open (NO) + 2 Normally Closed (NC) integrated
• Main Circuit Connection: Busbar connection
• Control/Auxiliary Circuit Connection: Spring-loaded terminals (for fast, vibration-proof wiring)
• Contactor Size: Size S6

Benefit

• Maximum Reliability: The electronic drive ensures a wide operating voltage range, reducing coil-related failures and simplifying international use.
• Space & Cost Efficiency: The compact Size S6 design and high power rating (90 kW) save panel space compared to older contactor models.
• Fast, Secure Wiring: Spring-loaded terminals on the control and auxiliary circuits provide quick installation and a durable, maintenance-free connection, minimizing downtime.
• Direct PLC Integration: The dedicated 24 V DC PLC input allows for direct and easy interface with programmable logic controllers, simplifying complex control schemes.
• Versatile Power Connection: Busbar connections on the main circuit offer a robust and clean solution for high-current wiring in power distribution systems.
• Enhanced Diagnostics: The electronic drive provides better control and diagnostic capabilities compared to conventional AC/DC coils.

Function and Application

The 3RT1056-2NP36 power contactor is the essential component for switching high-power loads in various industrial applications. It is primarily used for:

• Starting and stopping large three-phase AC motors (DOL – Direct On Line).
• Switching high-current loads in heating, lighting, and power factor correction systems.
• Serving as the actuator in safety-related motor shutdown circuits.

Its high performance, versatility, and advanced electronic features make it a top choice for demanding industries like manufacturing, heavy machinery, process control, and building automation.
