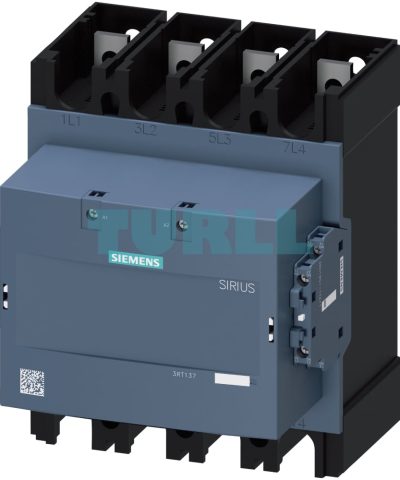

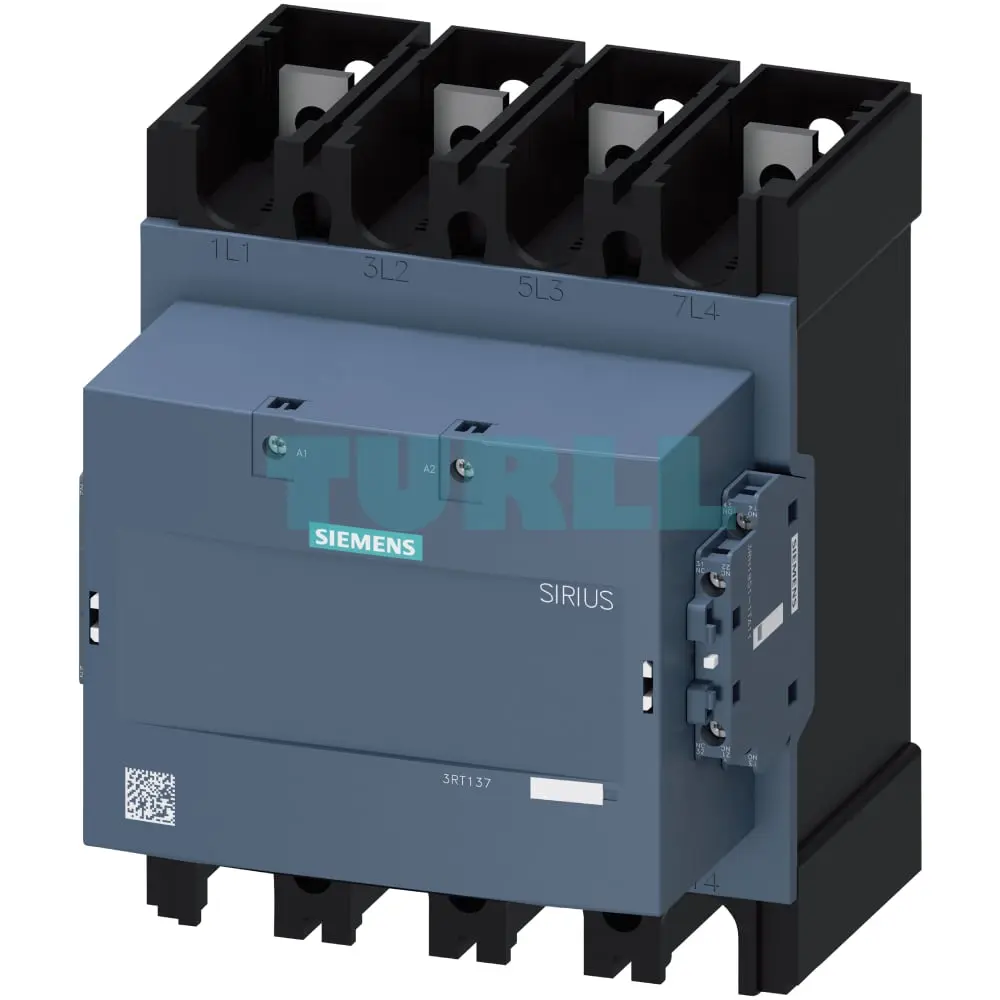

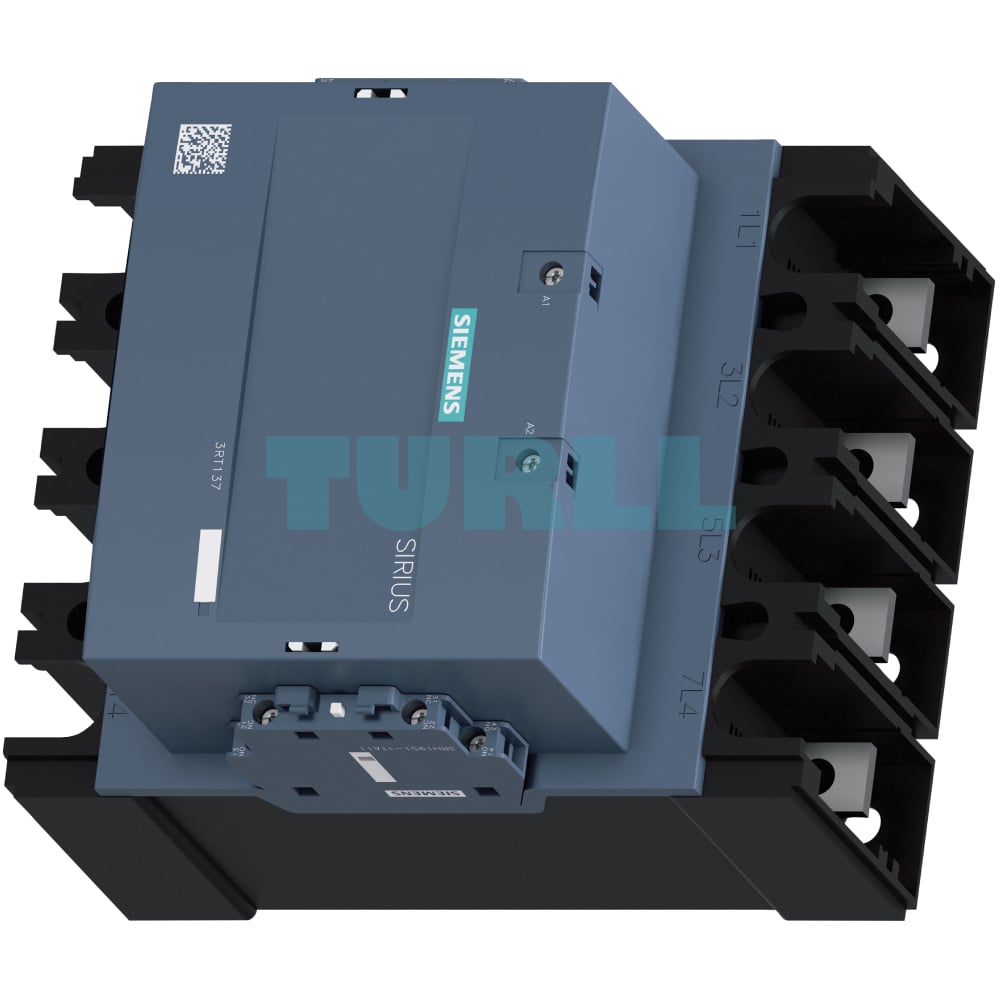

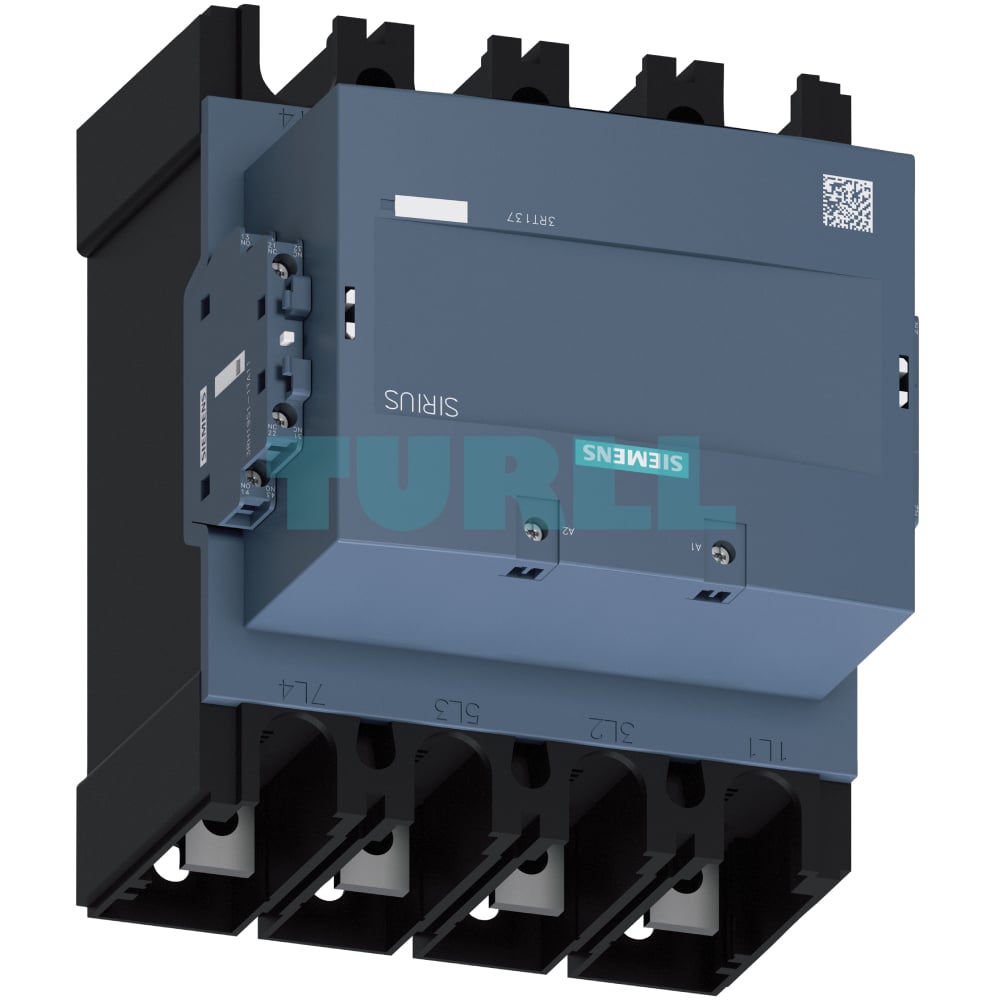

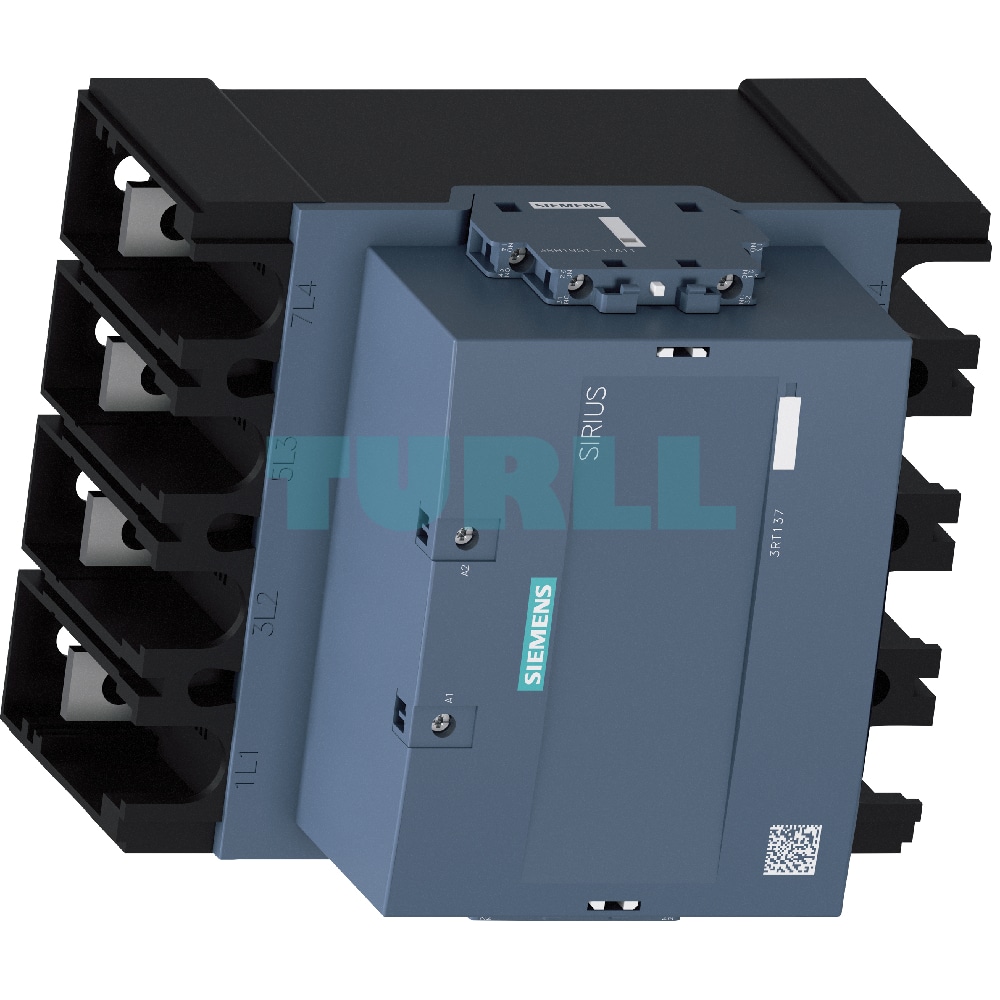

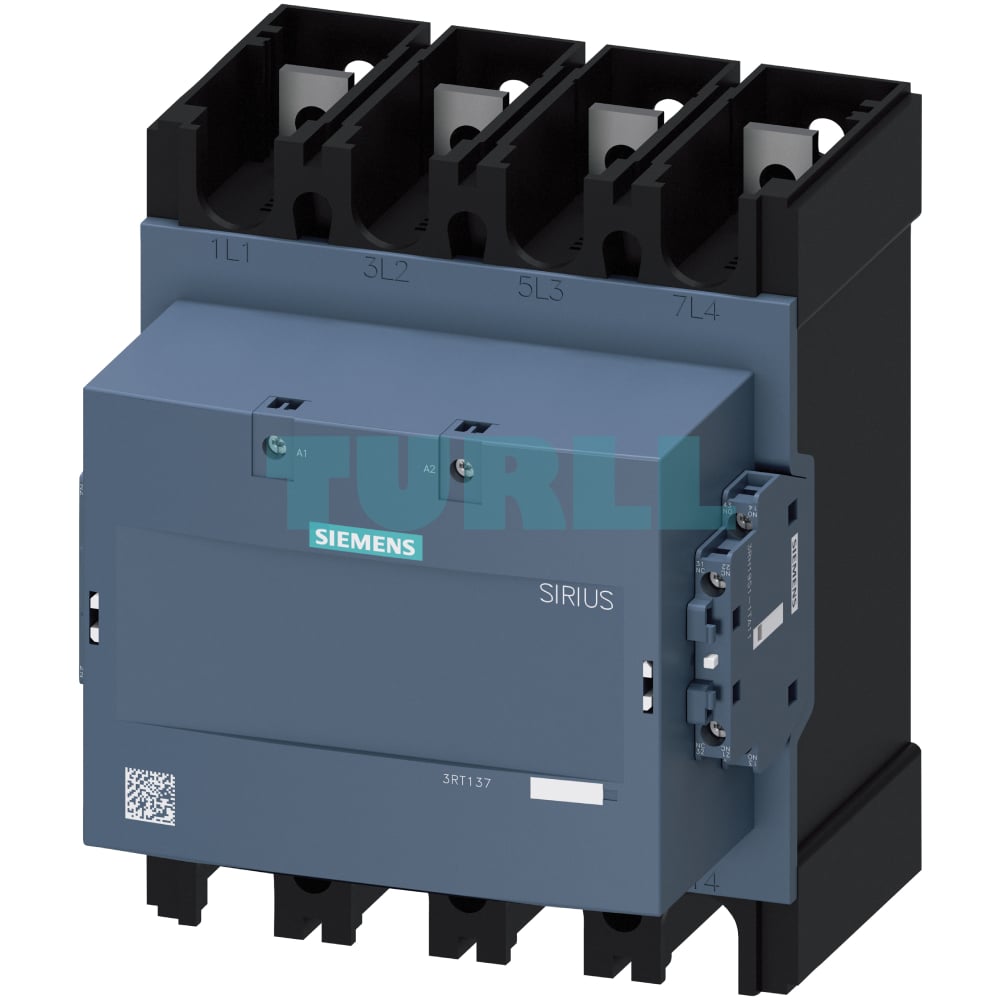

Siemens 3RT1373-6AE36 Contactor, AC-1, 400A, 400V, S12, 4-Pole, 24-60V AC/20-60V DC Control, 2NO+2NC Original Brand New

Overview

The Siemens 3RT1373-6AE36 is a high-performance 4-pole contactor designed for switching weak or non-inductive loads (AC-1) up to 400 A at 400 V and 40 °C. Part of the robust SIRIUS 3RT13 series, this contactor features a wide-range solid-state operating mechanism that supports both AC (24-60 V) and DC (20-60 V) control voltages, ensuring versatile application.

It comes equipped with 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts, and offers flexible connection options via connection rail and screw terminals for main circuits, and screw terminals for auxiliary and control circuits. Built to meet stringent industrial standards like IEC 60947, the 3RT1373-6AE36 is an ideal solution for disconnecting loads, power generation plants from the grid, and transfer switching applications.

Key Features & Benefit

• High Power Rating: Handles up to 400 A at 400 V for reliable switching of AC-1 loads.
• Versatile Control Voltage: Wide-range solid-state operating mechanism accepts 24-60 V AC and 20-60 V DC, simplifying inventory and application.
• Integrated Auxiliary Contacts: Features 2 NO + 2 NC auxiliary contacts, providing immediate feedback and control possibilities.
• Robust & Compliant: Manufactured according to IEC 60947-1, IEC 60947-4-1, and IEC 60947-5-1 standards, ensuring safety and performance.
• Enhanced Surge Protection: Equipped with an integrated varistor for coil damping, protecting against overvoltage and extending operational life.
• Flexible Connection: Main circuit connections via connection rail and screw terminals, with auxiliary and control circuits utilizing screw terminals for secure wiring.
• Electromagnetic Compatibility (EMC): Fulfills requirements for environment category A, suitable for diverse industrial settings.
• High Contact Reliability: Auxiliary contacts are designed for high reliability, even at low voltages (≤ 110 V) and currents (≤ 100 mA), making them suitable for solid-state circuits.
• Overload Protection Integration: Compatible with 3RB2 electronic overload relays for comprehensive motor protection.

Function

• Four-pole Switching (AC-1): Designed for efficient switching of weak or non-inductive loads in AC-1 categories.
• Load Disconnection: Effectively disconnects various loads or power generation plants from the electrical grid.
• Transfer Switching: Facilitates seamless transfer switching applications.
• Control Circuit Operation: The integrated auxiliary contacts enable control circuit functionality for monitoring and interlocking.
• Overvoltage Damping: Built-in varistor protects the coil from damaging voltage surges.

Standards:

• IEC 60947-1
• IEC 60947-4-1
• IEC 60947-5-1 (auxiliary switches)

Protection of Connections: All connections require appropriate short-circuit and overload protection.

• Main Connections: Refer to the technical product data sheet for free-standing contactor protection. For device combinations (contactor with overload relay or circuit breaker), consult the Digital/Configuration Manual for load feeders.
• Auxiliary Connections: Protection information available in the technical product data sheet.
• Control Supply Voltage Connections: Protection selection should consider relevant standards for control panels, cable dimensioning, power supply current-limiting functions, load characteristics (inrush current, switch-on, holding power), and any further switching elements like overload relay auxiliary contacts. Recommendations for miniature or circuit breakers in control circuits are available in the “Control panel tip – Selecting and dimensioning suitable power supplies quickly and reliably” guide.

Protection against Overvoltage at Control Supply Voltage Connection: The 3RT13 contactors come pre-equipped with coil damping (varistor) for overvoltage protection. Note that damping increases break times of the contactor and delay times of NO/NC contacts. Refer to the Equipment Manual for detailed influence of damping on time response.

Connection Methods:

• Main Circuit: Screw terminals with connecting bars for cable lugs or flexible/rigid busbars. 3RT136 and 3RT137 contactors can be fitted with broadened bus connectors (see accessories).
• Auxiliary and Control Circuit: Screw terminals.

Electromagnetic Compatibility: The contactors meet environment category A requirements. When used with frequency converters, refer to the Equipment Manual for specific configuration notes.

Contact Reliability of Auxiliary Contacts: High contact reliability is guaranteed for voltages $\le 110V$ and currents $\le 100mA$, making them suitable for solid-state circuits with currents $\ge 1mA$ at $\ge 17V$.

Motor Protection: The 3RT13 contactors can be fitted with 3RB2 electronic overload relays for comprehensive motor overload protection.

Operating Mechanism Type: Features a wide-range solid-state operating mechanism, controllable with 50/60 Hz AC and DC.

• DC control operating range: 0.8×Usmin​​ to 1.1×Usmax​​
• AC control operating range: 0.85×Usmin​​ to 1.1×Usmax​​

Replacing Components: It is not possible to change the operating mechanism or contacts for 3RT13 contactors.

Fitting Auxiliary Contacts and Mounting Additional Auxiliary Switches: 3RT13 contactors are supplied with two laterally mounted auxiliary switches. The basic units can be expanded with additional auxiliary switches, adhering to permissible configurations.

Accessories and Spare Parts: Refer to the overview graphic and “Accessories ordering data” for 3RT135 to 3RT137 contactors.

Application

The 3RT13 contactors are suitable for:

• Four-pole switching of weak or non-inductive loads (AC-1)
• Disconnecting loads or power generation plants from the grid
• Transfer switching
