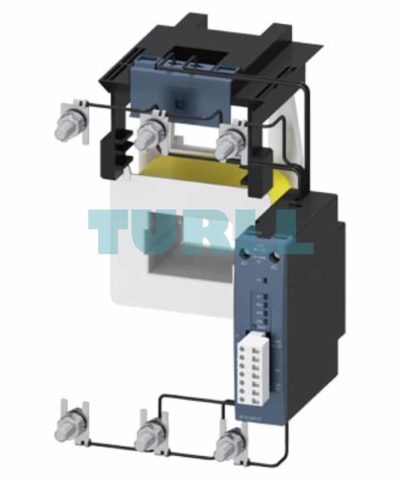

Siemens 3RT1975-5PP31 Electronic Changeover Operating Mechanism for 3RT107/3RT147 Contactors, 200-220V AC/DC with 24V DC Original Brand New

Overview: Siemens 3RT1975-5PP31 Electronic Changeover Operating Mechanism

The Siemens 3RT1975-5PP31 is a high-performance electronic changeover operating mechanism specifically engineered for use with the Siemens SIRIUS series 3RT107 and 3RT147 power contactors. This essential accessory enables reliable and efficient load switching in demanding industrial applications, offering the versatility of AC (50-60 Hz) and DC operation with a control supply voltage of 200 to 220 V.

Designed for modern automation systems, the operating mechanism features an advanced electronic drive with a dedicated 24 V DC PLC input and RLT signal capability. This functionality ensures precise control, reduced wiring complexity, and seamless integration into Programmable Logic Controller (PLC) environments, making it an ideal choice for critical changeover functions, motor reversing, and other redundant switching tasks.

Key Benefits for Industrial Automation

• PLC System Integration: Direct 24 V DC PLC input simplifies wiring and allows for high-speed, precise digital control from your automation system, reducing potential for human error.
• Maximum Contactor Compatibility: Perfectly matched for the high-power 3RT107 and 3RT147 contactors, guaranteeing optimal performance and a long operational life.
• Flexible Power Supply: Universal control voltage of 200…220 V for both AC (50/60 Hz) and DC applications provides versatility and simplifies inventory management.
• Enhanced Reliability: The electronic operating mechanism offers reliable switching performance critical for applications requiring frequent or critical load transfers.
• Genuine SIRIUS Component: As part of the Siemens SIRIUS modular system, it ensures quality, robust construction, and seamless compatibility with other Siemens control gear.

Function

The 3RT1975-5PP31 serves as the electromechanical interface that controls the main contacts of the compatible 3RT107 or 3RT147 contactor. In a changeover setup, it ensures that only one contactor is closed at any given time, providing electrical interlocking and preventing short circuits during the transition.

1. It receives the control signal through its 24 V DC PLC input, a low-power signal suitable for direct connection to a PLC digital output module.
2. The internal electronic circuitry manages the high-power coil drive, ensuring optimal performance and protection.
3. The RLT signal (if utilized) provides feedback or advanced diagnostic capabilities to the control system.
4. It is the core component for creating reliable reversing contactor assemblies and power switching solutions.

Technical Specification

• Product Number: 3RT1975-5PP31
• Product Type: Changeover Operating Mechanism (Solenoid Coil Accessory)
• Applicable Contactors: Siemens SIRIUS 3RT107 and 3RT147
• Control Voltage (AC/DC): 200…220 V (50 Hz / 60 Hz)
• Operating Mechanism Type: Electronic
• Control Input: 24 V DC PLC Input
• Signal: RLT Signal
