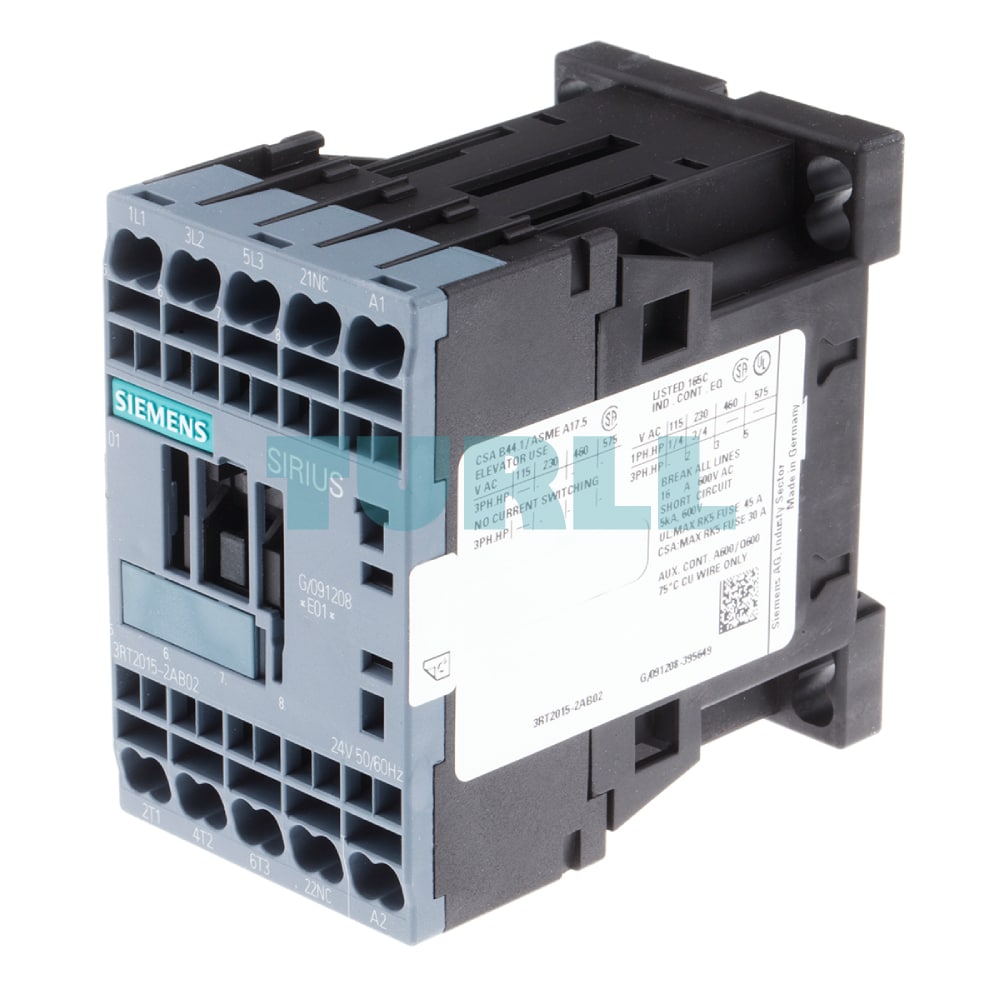

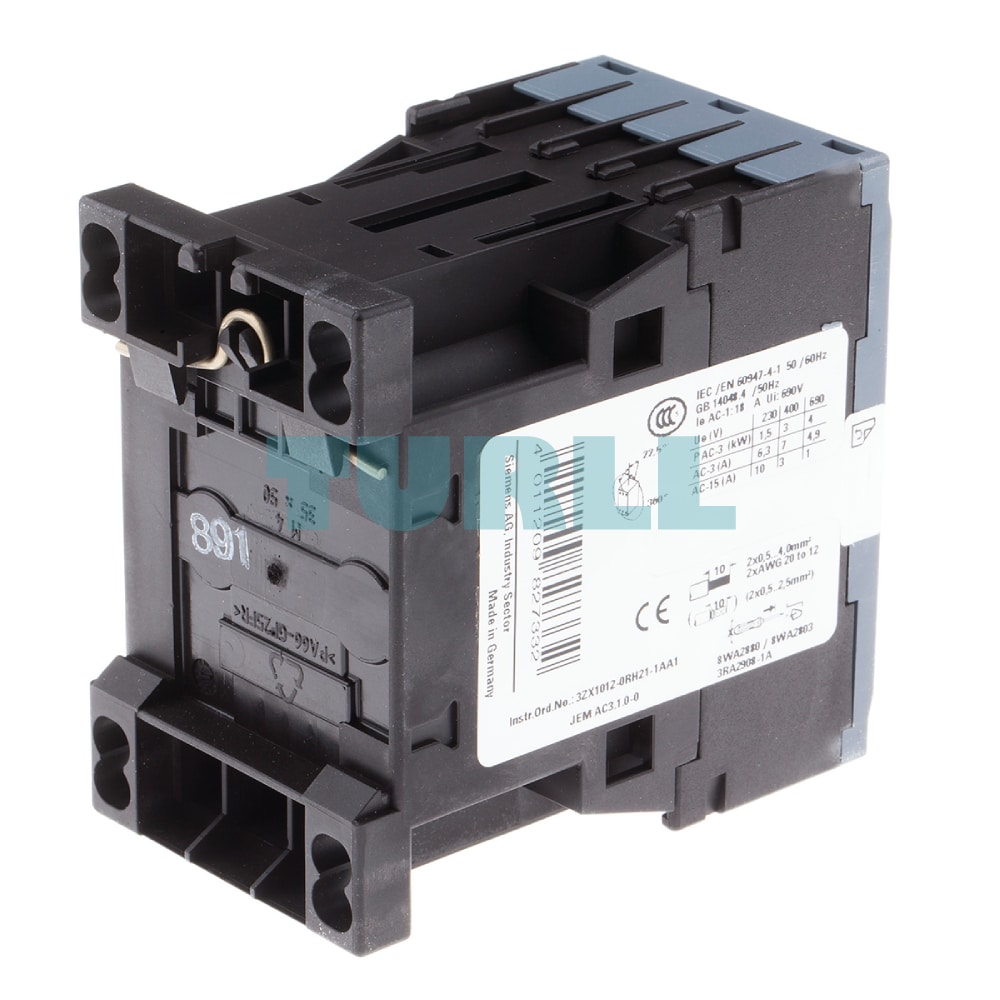

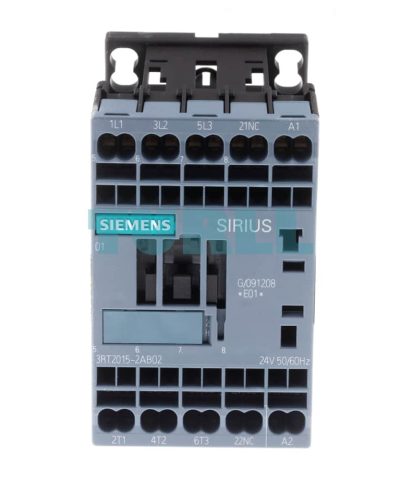

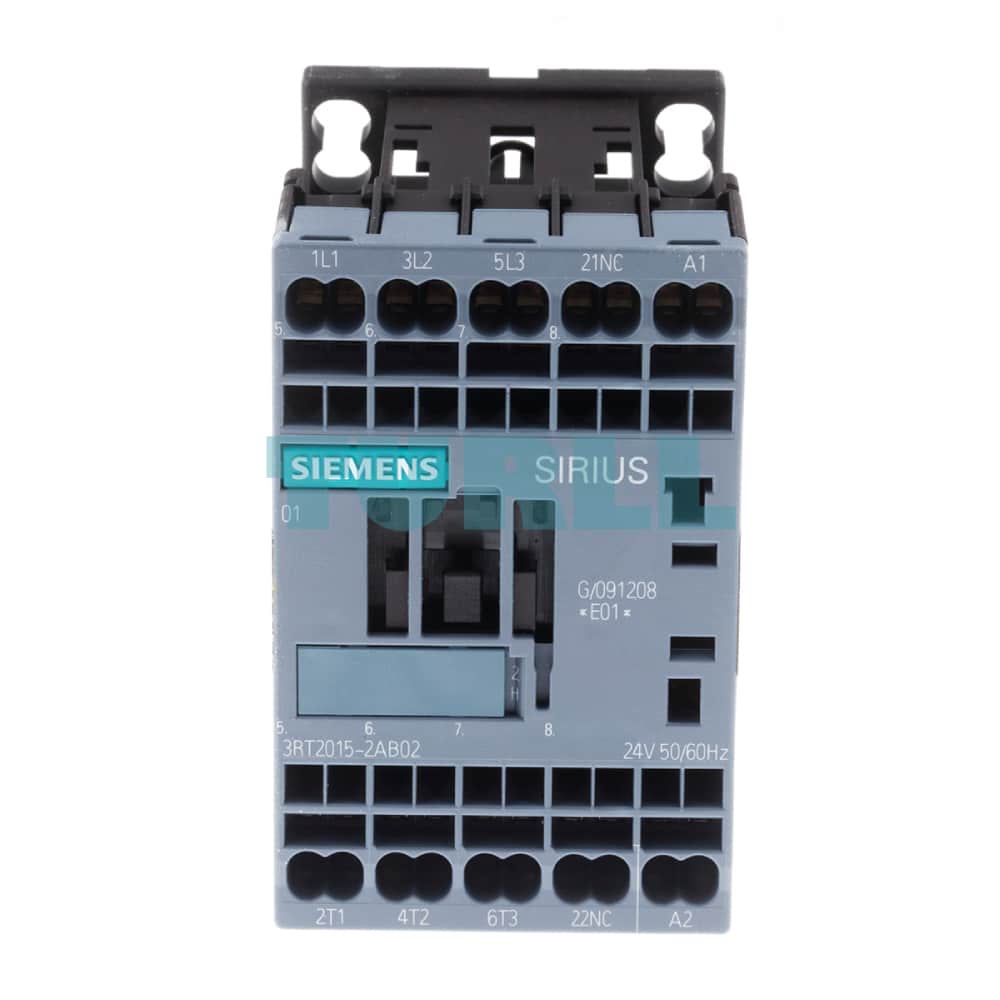

Siemens 3RT2015-2AB02 Power Contactor 7A, 3kW, 24V AC, 1NC Auxiliary, Spring-Loaded Terminal, Size S00 Original Brand New

Overview: Siemens 3RT2015-2AB02 SIRIUS Power Contactor

The Siemens 3RT2015-2AB02 is a high-performance SIRIUS power contactor designed for reliable switching of electrical loads, particularly in motor control applications. Engineered for efficiency and durability, this compact Size S00 contactor is ideal for use in industrial automation, machinery, and control panels. Its robust design and high-quality materials ensure long-term performance and safety.

Key Features & Technical Specification

• Product Number: 3RT2015-2AB02
• Series: SIRIUS 3RT2
• Contactor Type: Power Contactor
• Rated Operational Current: 7 A (at AC-3e/AC-3, 400 V)
• Rated Power: 3 kW (at 400 V)
• Number of Poles: 3-pole
• Control Supply Voltage: 24 V AC, 50/60 Hz
• Auxiliary Contacts: 1 normally closed (1 NC)
• Connection Type: Spring-loaded terminal
• Size: S00
• Short-Circuit Protection: Can be fused with a 16 A gL/gG fuse
• Operating Ambient Temperature: -25 to +60 °C

Benefit

• Compact and Space-Saving: The Size S00 design allows for integration into tight control panels, maximizing space efficiency.
• Reliable Performance: Built with Siemens’ renowned quality, this contactor provides stable and reliable switching under demanding industrial conditions.
• Easy and Fast Wiring: Spring-loaded terminals eliminate the need for screws, significantly reducing installation time and providing a vibration-proof connection.
• Energy Efficient: Optimized for low power consumption, contributing to reduced operational costs.
• Versatile Application: Suitable for a wide range of applications, including switching motors, heaters, and other resistive loads.
• Safety and Durability: Designed to meet international standards (IEC, UL, CSA), ensuring a high level of operational safety and a long service life.

Function

The Siemens 3RT2015-2AB02 power contactor functions as an electrically operated switch. When the 24V AC control voltage is applied to the coil, it creates an electromagnetic field that pulls the main contacts together. This action closes the circuit, allowing power to flow to the connected load (e.g., an electric motor). When the control voltage is removed, the contacts open, interrupting the power flow and safely de-energizing the load. The integrated 1NC auxiliary contact provides a signal for control and monitoring circuits, indicating the open state of the main contacts.

Ideal Application

• Motor control and protection in industrial machinery
• Heating, ventilation, and air conditioning (HVAC) systems
• Pump and compressor control
• Conveyor systems
• Lighting control panels
• Automation systems and building management
