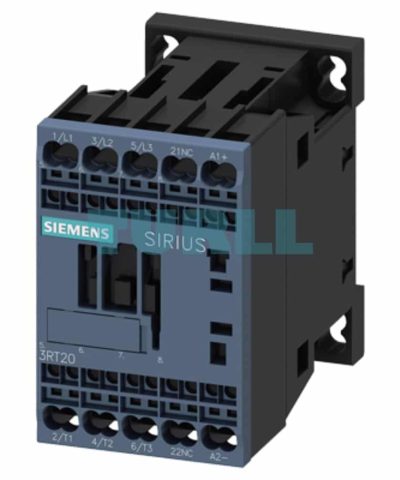

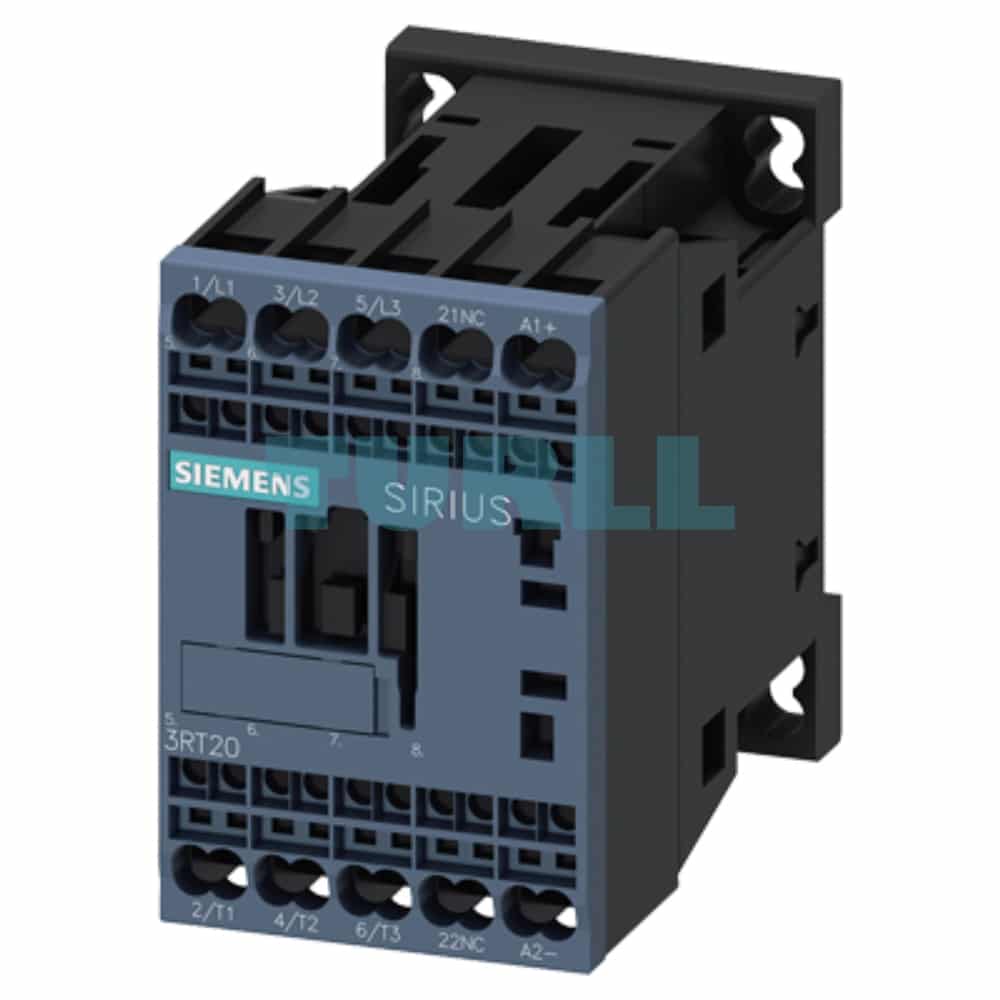

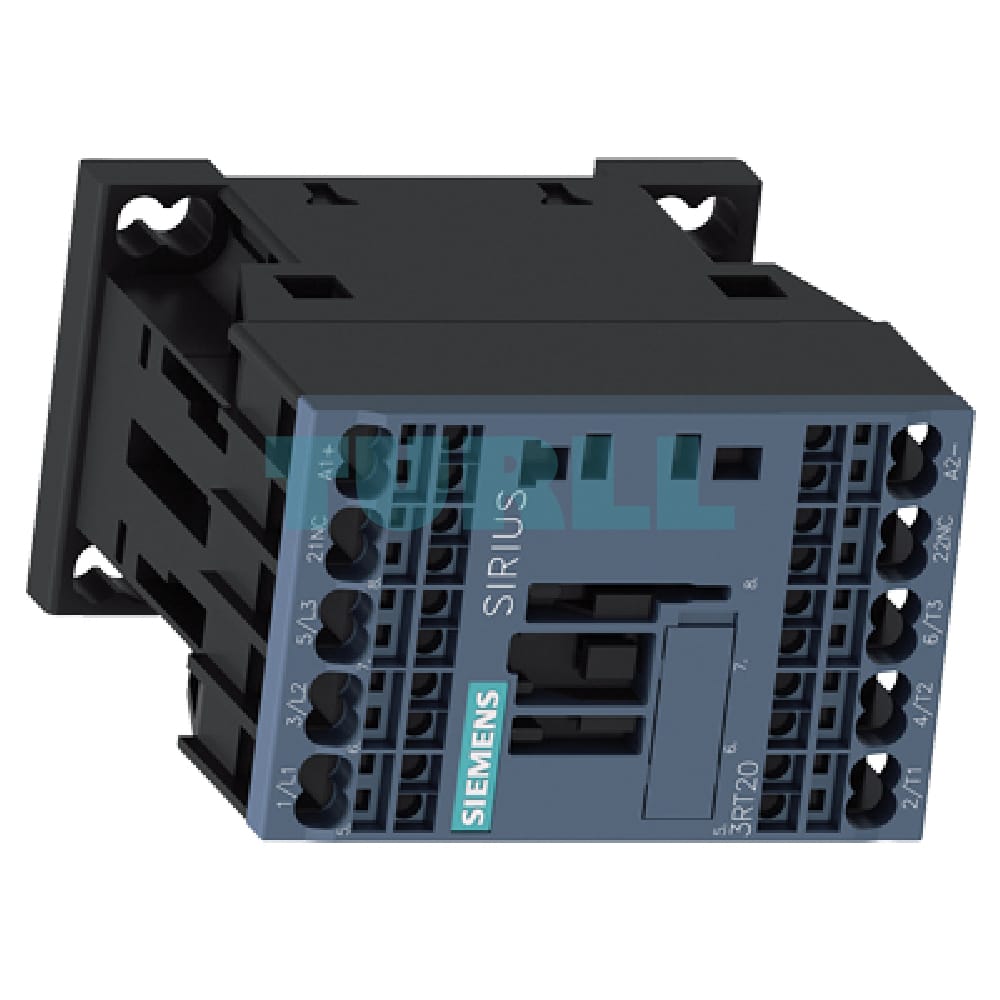

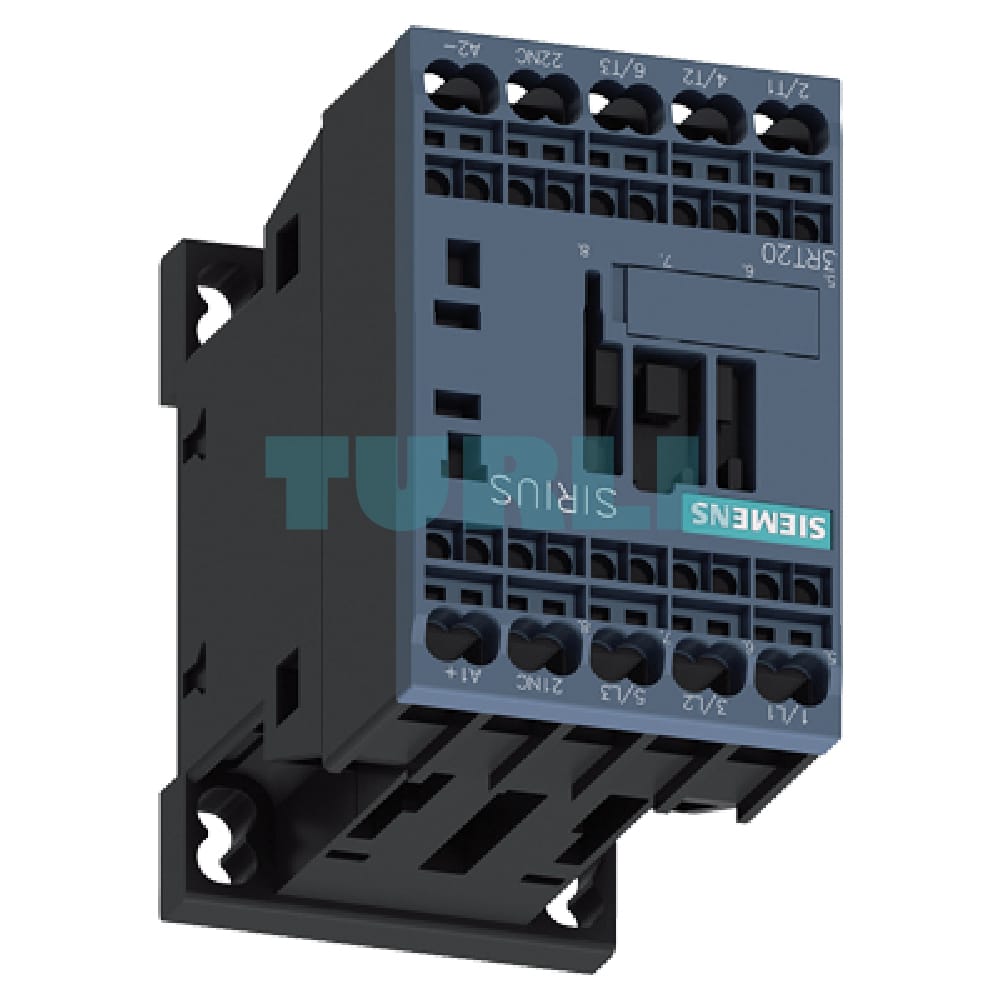

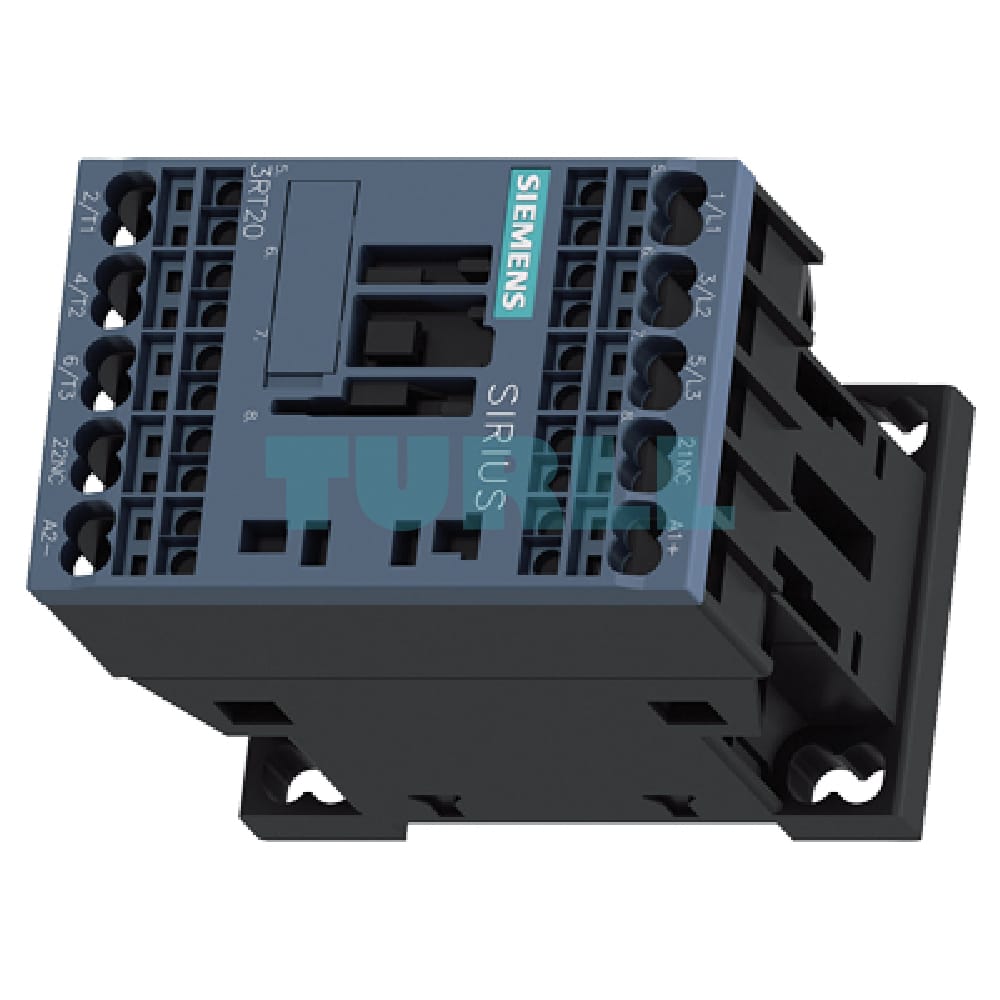

Siemens 3RT2016-2SB42 Power Contactor 9A, 4kW, 24V DC, Suppressor Diode, S00 Frame, Spring-Loaded Terminal Original Brand New

Overview

The Siemens 3RT2016-2SB42 is a high-performance 3-pole power contactor designed for efficient and reliable switching of motors and other electrical loads. Part of the SIRIUS family, this contactor is engineered for demanding industrial applications. It boasts a compact S00 frame size, making it a space-saving solution for control panels.

The integrated suppressor diode protects against voltage peaks, enhancing the lifespan of the coil and control circuits. Its spring-loaded terminals ensure fast, secure, and vibration-resistant wiring connections, reducing installation time and maintenance.

Key Features

• Product Number: 3RT2016-2SB42
• Contactor Type: Power Contactor
• Poles: 3-pole
• Operating Current (AC-3e/AC-3): 9 A
• Operating Power (AC-3e/AC-3): 4 kW at 400 V
• Control Supply Voltage: 24 V DC (0.85-1.85* Uc)
• Integrated Protection: Suppressor diode for coil protection
• Auxiliary Contacts: 1 NC (Normally Closed)
• Terminal Type: Spring-loaded terminals
• Frame Size: S00

Benefit

• Enhanced Reliability: The integrated suppressor diode protects the coil from overvoltage, extending the contactor’s service life and ensuring stable operation.
• Space-Saving Design: The compact S00 frame size allows for higher density installations in control cabinets, optimizing panel space.
• Fast and Secure Wiring: Spring-loaded terminals offer a quick and reliable connection, resistant to vibrations and requiring no re-tightening.
• Versatile Application: Suitable for a wide range of motor control applications up to 4 kW, as well as switching resistive loads.
• High Performance: Part of the trusted Siemens SIRIUS product line, guaranteeing quality and long-term performance in industrial environments.

Function

The Siemens 3RT2016-2SB42 power contactor functions as an electrically operated switch. When the 24V DC control voltage is applied to its coil, it closes the main power contacts, allowing current to flow to the connected load (e.g., an electric motor). The single NC auxiliary contact simultaneously opens, which can be used for interlocking or signaling purposes in a control circuit.

The built-in suppressor diode dissipates the energy from the coil when the control voltage is removed, preventing damage to sensitive electronic components in the control system. The spring-loaded terminals provide a gas-tight and permanent connection, crucial for reliable performance in harsh industrial conditions.
