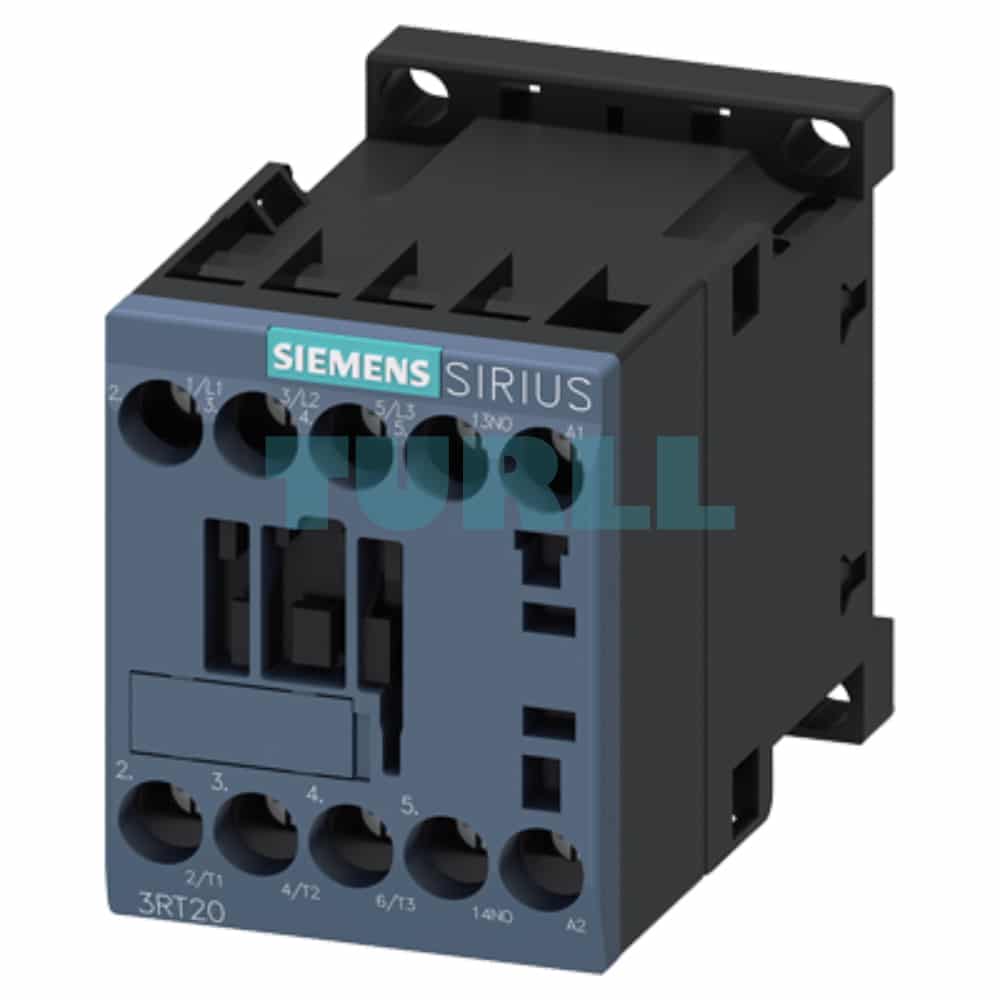

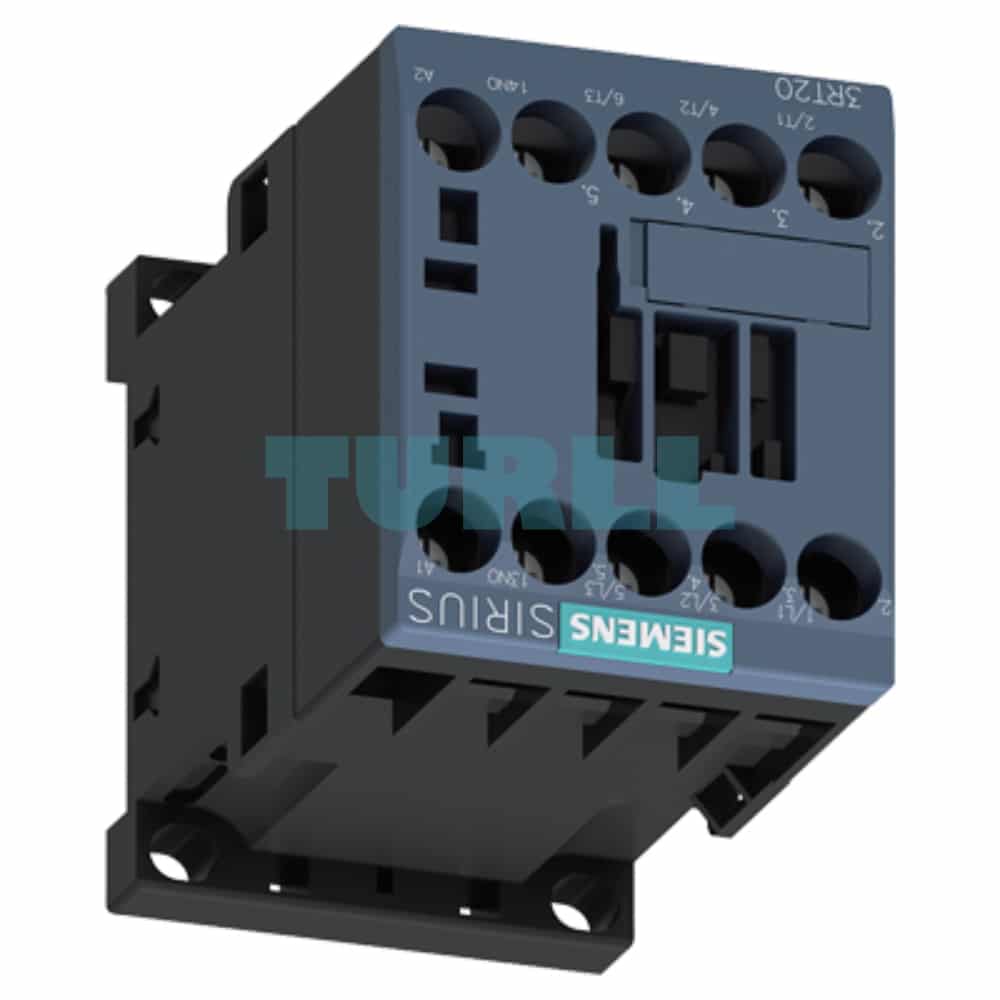

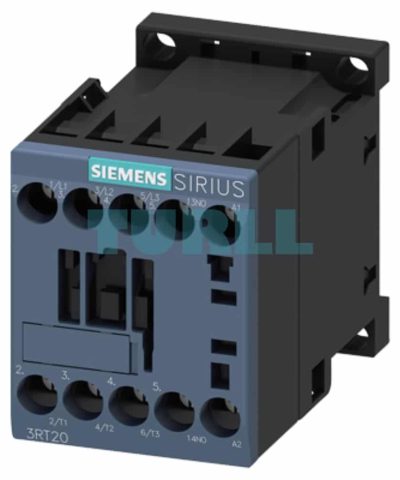

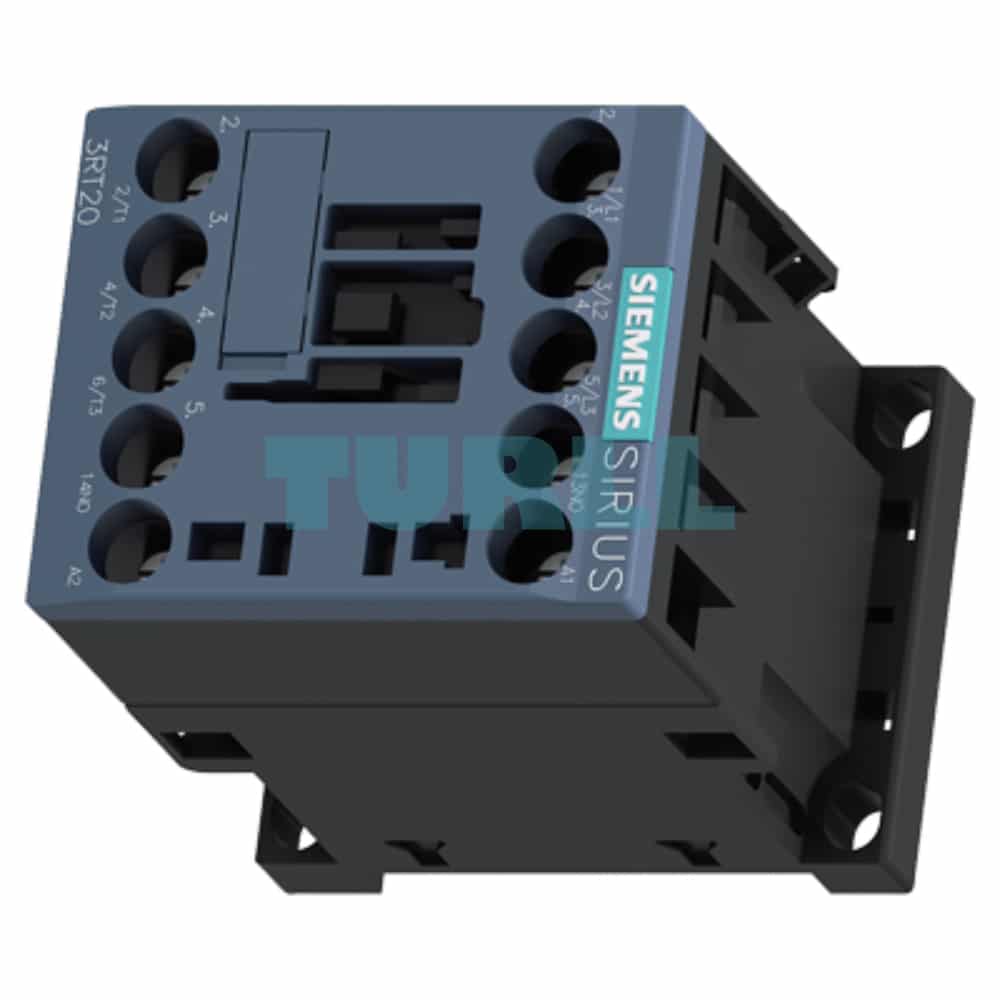

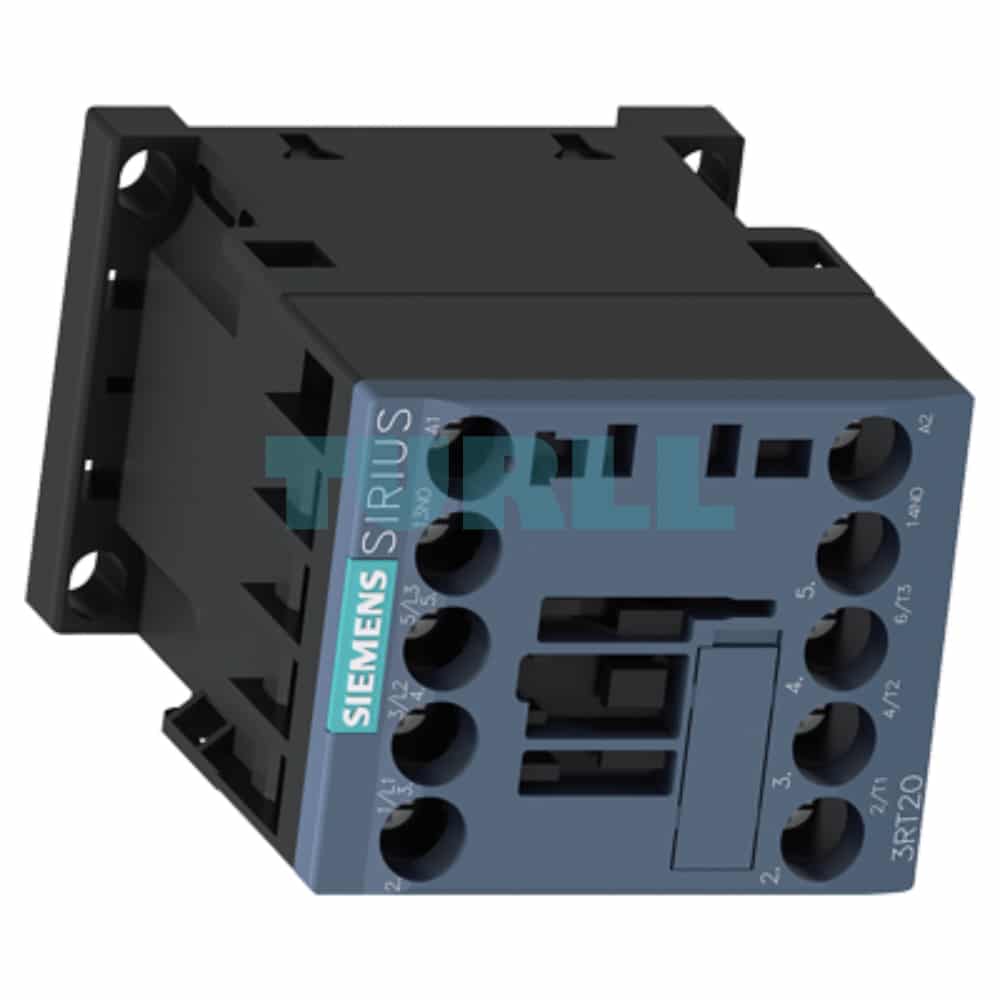

Siemens 3RT2017-1AH01 SIRIUS Power Contactor AC-3e/AC-3, 12A, 5.5 kW, 48V AC, 1 NO, Screw Terminal, Size S00 Original Brand New

Overview

The Siemens 3RT2017-1AH01 is a high-performance SIRIUS 3RT2 series power contactor designed for reliable switching of motors and other electrical loads. This compact and robust size S00 contactor is engineered to meet the demands of modern industrial automation and control systems. With its AC-3e/AC-3 rating, it is suitable for a wide range of applications, providing efficient and safe operation.

Technical Specification

• Product Number: 3RT2017-1AH01
• Contactor Type: Power Contactor
• Rated Operational Current (AC-3e/AC-3): 12 A
• Rated Power (AC-3e/AC-3) at 400 V: 5.5 kW
• Number of Poles: 3-pole
• Control Supply Voltage: 48 V AC, 50/60 Hz
• Auxiliary Contacts: 1 NO (Normally Open)
• Electrical Connection: Screw Terminal
• Size: S00
• Series: SIRIUS 3RT2

Key Benefit

• High Performance and Reliability: Part of the trusted SIRIUS 3RT2 series, this contactor offers exceptional operational performance and a long service life.
• Space-Saving Design: The compact size S00 form factor allows for high-density installation in control panels, optimizing valuable cabinet space.
• Versatile Application: Suitable for a wide range of motor control applications, including starting, switching, and reversing.
• Integrated Auxiliary Contact: The built-in 1 NO auxiliary contact simplifies wiring and provides a convenient solution for signaling or interlocking functions.
• Easy and Secure Wiring: The screw terminal connections ensure a strong, secure, and reliable electrical connection, simplifying installation and maintenance.
• Global Standards Compliance: Designed and manufactured to meet international standards (IEC, UL, CSA, etc.), ensuring compatibility and safety for global use.

Function

The Siemens 3RT2017-1AH01 functions as an electrically controlled switch used for switching an electrical power circuit. When the 48 V AC coil is energized, the main contacts close, allowing power to flow to the connected load (e.g., an electric motor). Simultaneously, the normally open (NO) auxiliary contact also closes, which can be used for control circuit feedback or interlocking. The robust design ensures it can handle high inrush currents typical of motor starting applications (AC-3e/AC-3).
