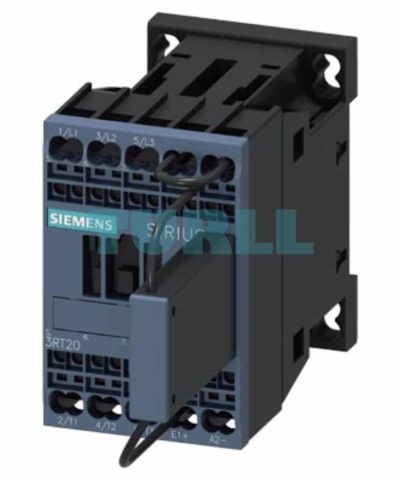

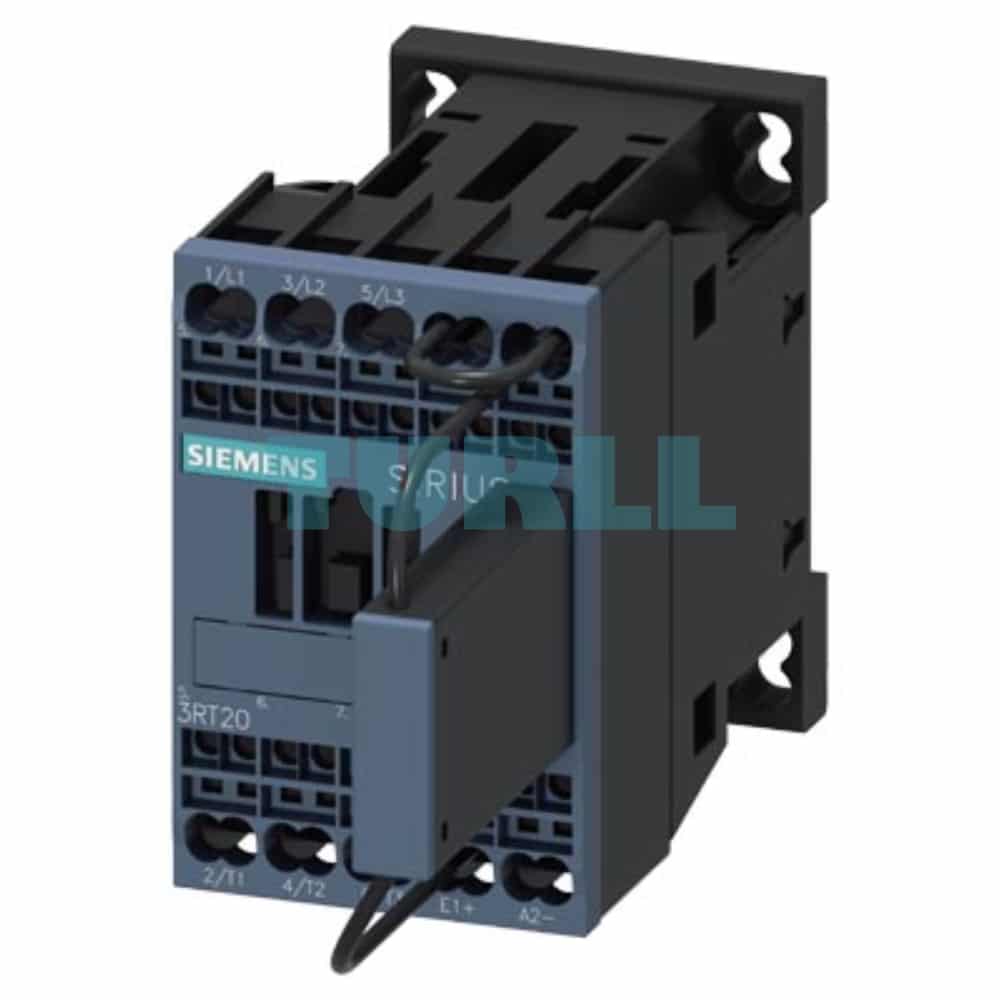

Siemens 3RT2018-2KB42-0LA0 SIRIUS 3RT20 Contactor, 16 A, 24 V DC, 1 NC, S00, Spring-loaded Terminal Original Brand New

Overview

The Siemens 3RT2018-2KB42-0LA0 is a high-performance traction contactor from the SIRIUS 3RT20 series, specifically engineered for reliable switching in DC applications. With a compact S00 frame size, this 3-pole contactor is rated for 16 A and 7.5 kW at 400 V (AC-3e/AC-3), making it ideal for controlling motors and other loads in challenging environments.

The integrated suppressor diode and plugged-on series resistor ensure enhanced protection and extended service life. Featuring a 24 V DC control voltage with a wide operating range of 0.7-1.25*Uc, it offers exceptional stability and adaptability. The 1 NC auxiliary contact and spring-loaded terminals simplify wiring and installation, providing a secure and vibration-resistant connection.

Key Benefit

• Reliable DC Switching: Specifically designed for DC applications, ensuring stable and safe operation.
• Compact Design: The S00 frame size allows for space-saving installation in control cabinets and enclosures.
• Enhanced Protection: Integrated suppressor diode and series resistor protect against voltage spikes and extend the lifespan of the contactor.
• Wide Voltage Range: The 0.7-1.25*Uc control voltage range provides reliable switching even with fluctuations in the power supply.
• Secure & Fast Connection: Spring-loaded terminals offer a quick, reliable, and maintenance-free wiring solution, ideal for high-vibration applications.
• Versatile Use: Suitable for a wide range of applications including motor control, lighting, heating, and other industrial loads.
• Easy Integration: The 1 NC auxiliary contact facilitates seamless integration into control circuits and signaling systems.

Function

• Switching Function: Controls the flow of electrical current to connected loads (e.g., motors).
• Overload Protection: When used in conjunction with a suitable circuit breaker or overload relay, it protects the motor from damage due to overcurrent.
• Remote Control: The 24 V DC coil allows for remote switching of the contactor.
• Signaling: The 1 NC auxiliary contact provides feedback on the contactor’s status to the control system.

Technical Specification

• Product: Traction Contactor
• Product Number: 3RT2018-2KB42-0LA0
• Series: SIRIUS 3RT20
• Frame Size: S00
• Poles: 3-pole
• Rated Current (AC-3e/AC-3): 16 A
• Rated Power (AC-3e/AC-3): 7.5 kW @ 400 V
• Control Voltage: 24 V DC
• Control Voltage Range: 0.7-1.25*Uc
• Auxiliary Contacts: 1 NC
• Connection Type: Spring-loaded terminal
• Special Features: Integrated suppressor diode, plugged on series resistor
