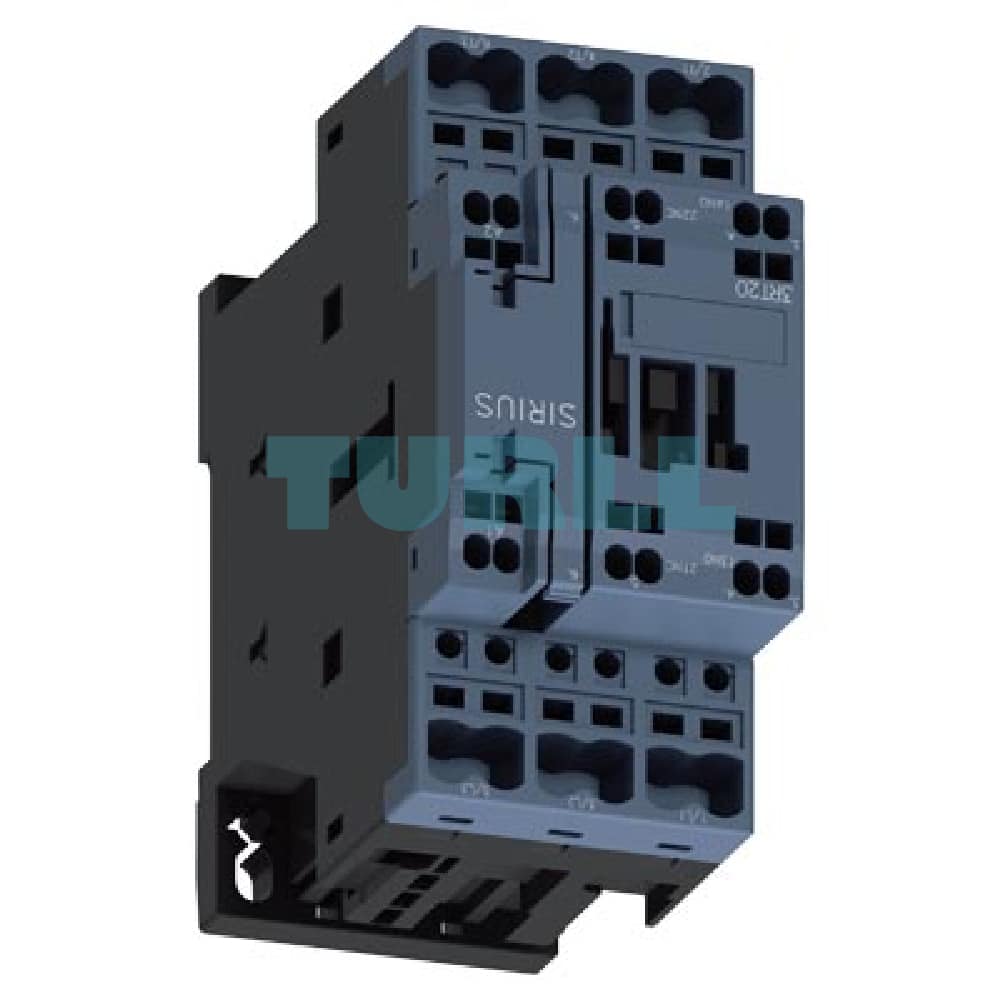

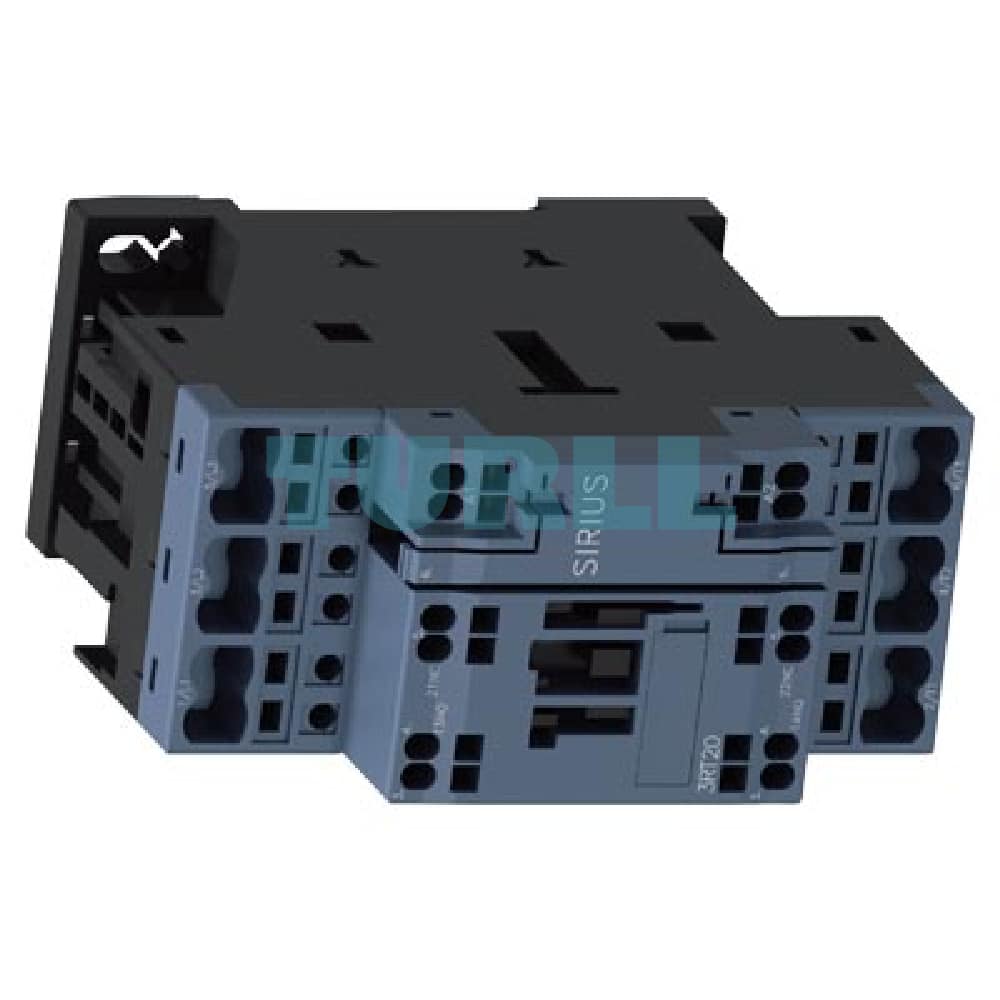

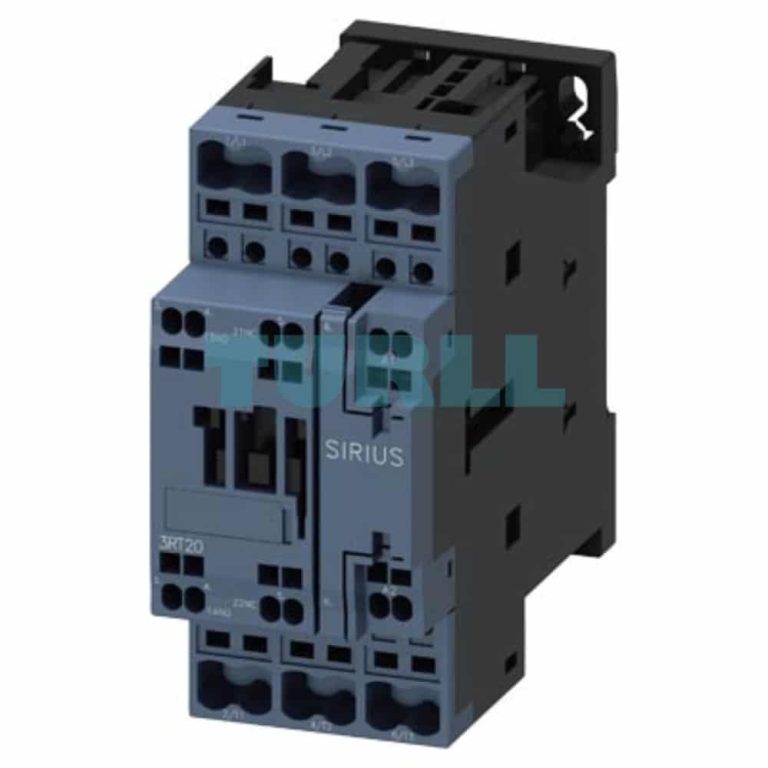

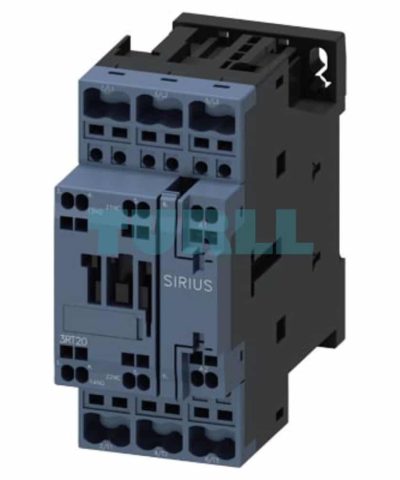

Siemens SIRIUS 3RT2023-2AH00 Power Contactor, 9A, 4kW, 48V AC Coil, Spring-Loaded Terminal, Size S0 Original Brand New
$18.85
Siemens 3RT2023-2AH00 power contactor, AC-3e/AC-3, 9 A, 4 kW / 400 V, 3-pole, 48 V AC, 50 Hz, auxiliary contacts: 1 NO + 1 NC, spring-loaded terminal, size: S0
Overview
The Siemens 3RT2023-2AH00 is a high-performance SIRIUS 3RT2 Power Contactor designed for reliably switching motors and other resistive loads. As part of the SIRIUS modular system, this size S0 contactor offers a compact design, exceptional contact reliability, and readiness for IE3/IE4 efficiency motors. It is a robust, globally approved component perfect for industrial control panels and machine building applications. Its spring-loaded terminal technology ensures fast, vibration-resistant, and maintenance-free wiring, making installation quick and reliable.
Key Features & Technical Specifications
- Part Number: 3RT2023-2AH00
- Product Type: Power Contactor / Motor Contactor
- Manufacturer: Siemens (SIRIUS)
- Current Rating (AC-3e/AC-3): 9 A
- Rated Operational Power (AC-3): 4 kW at 400 V
- Poles: 3-pole main circuit
- Coil Voltage: 48 V AC, 50 Hz
- Auxiliary Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC)
- Terminal Type: Spring-loaded terminal (Spring-Cage Connection)
- Frame Size: S0
- Standards: IEC, UL/CSA Approved
Benefits
- Reliable Motor Switching: Rated for AC-3e/AC-3 applications, ensuring long service life and high operational reliability for electric motors up to 4 kW.
- Fast & Secure Wiring: The innovative spring-loaded terminal connection significantly reduces wiring time, eliminates the need for re-tightening, and provides a secure, vibration-proof connection.
- Compact Design: The Size S0 footprint saves valuable space within control cabinets, supporting dense panel layouts.
- System Integration: Perfectly coordinated with other components in the SIRIUS modular system, simplifying design and installation of complete load feeders.
- Global Compliance: With approvals like IEC and UL/CSA, this contactor is suitable for use in installations worldwide.
Function
The Siemens 3RT2023-2AH00 operates as an electromechanical switching device. Upon application of the 48V AC, 50 Hz control voltage to the coil, the main contacts close, connecting the 3-pole load (e.g., a motor) to the power supply. The integrated 1 NO + 1 NC auxiliary contacts provide feedback on the contactor’s status to the control system (e.g., PLC or relays).
For more our products visit turll
| Weight | 0.446 kg |
|---|---|
| Dimensions | 109 × 55 × 108 mm |
