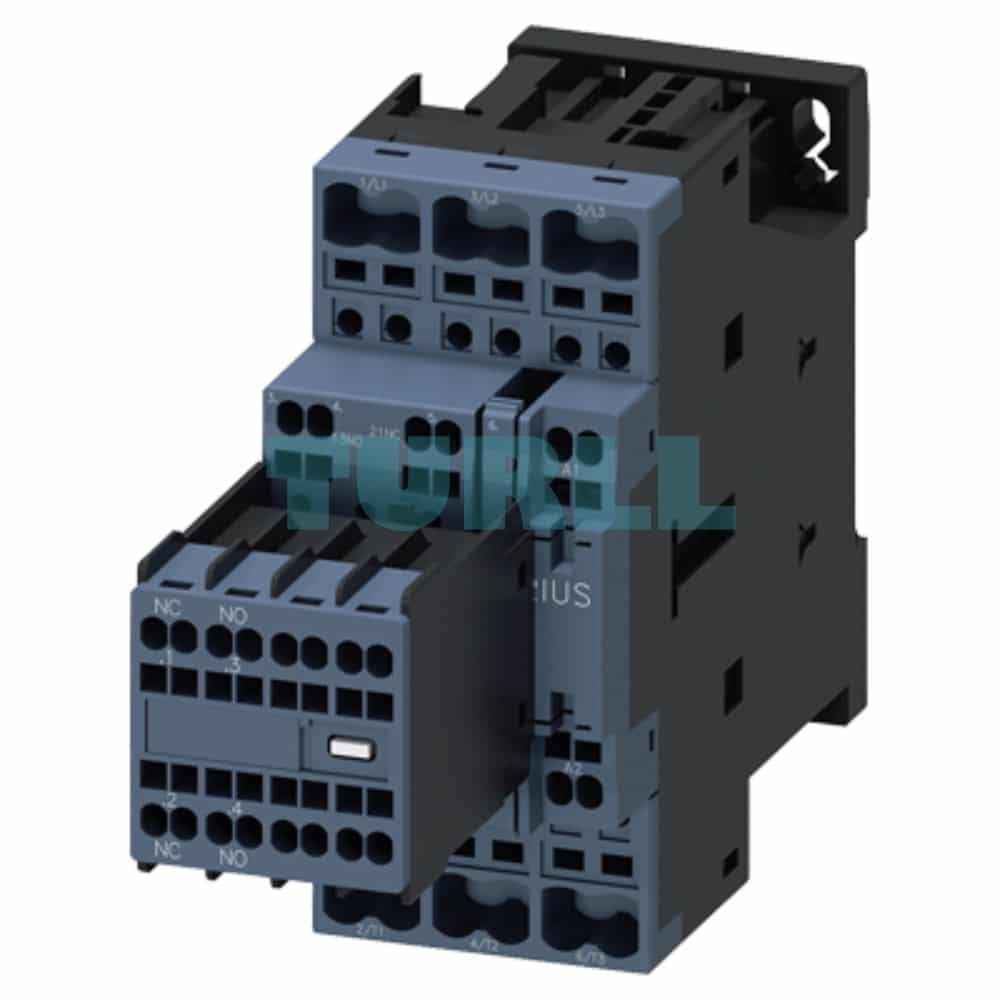

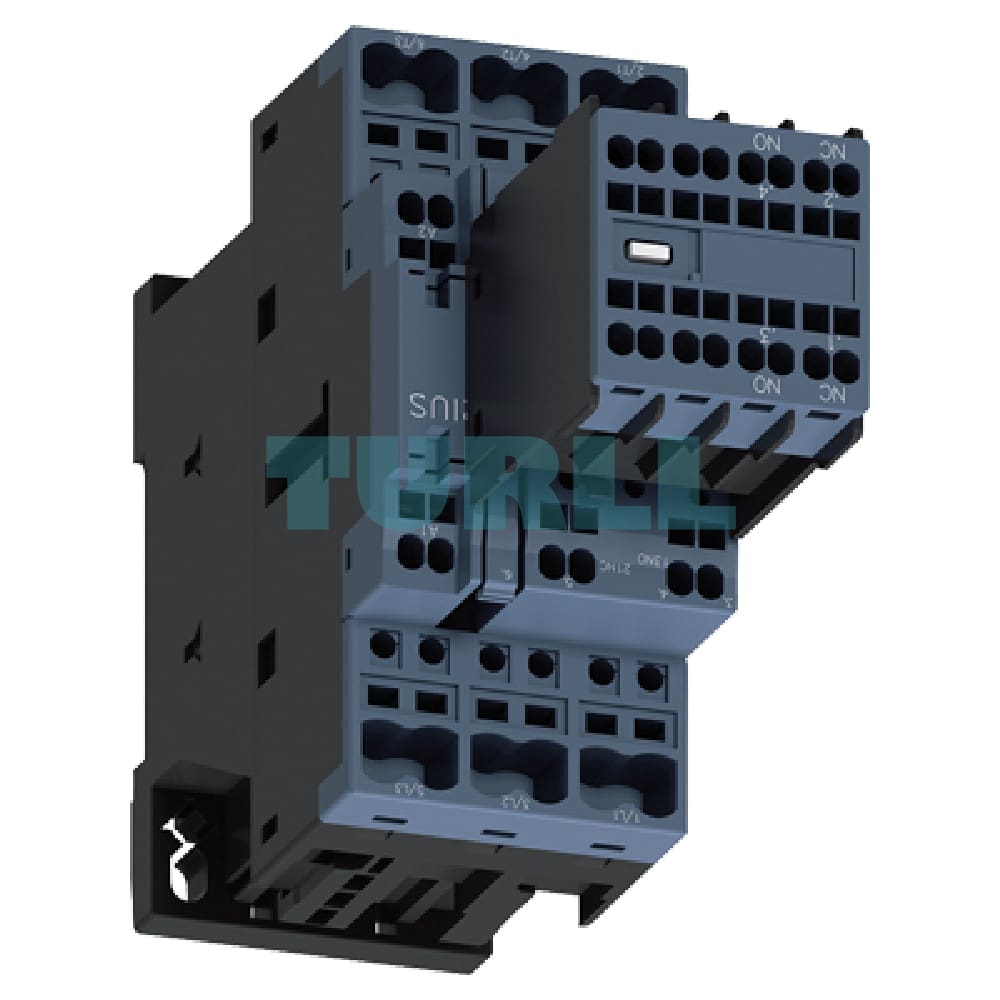

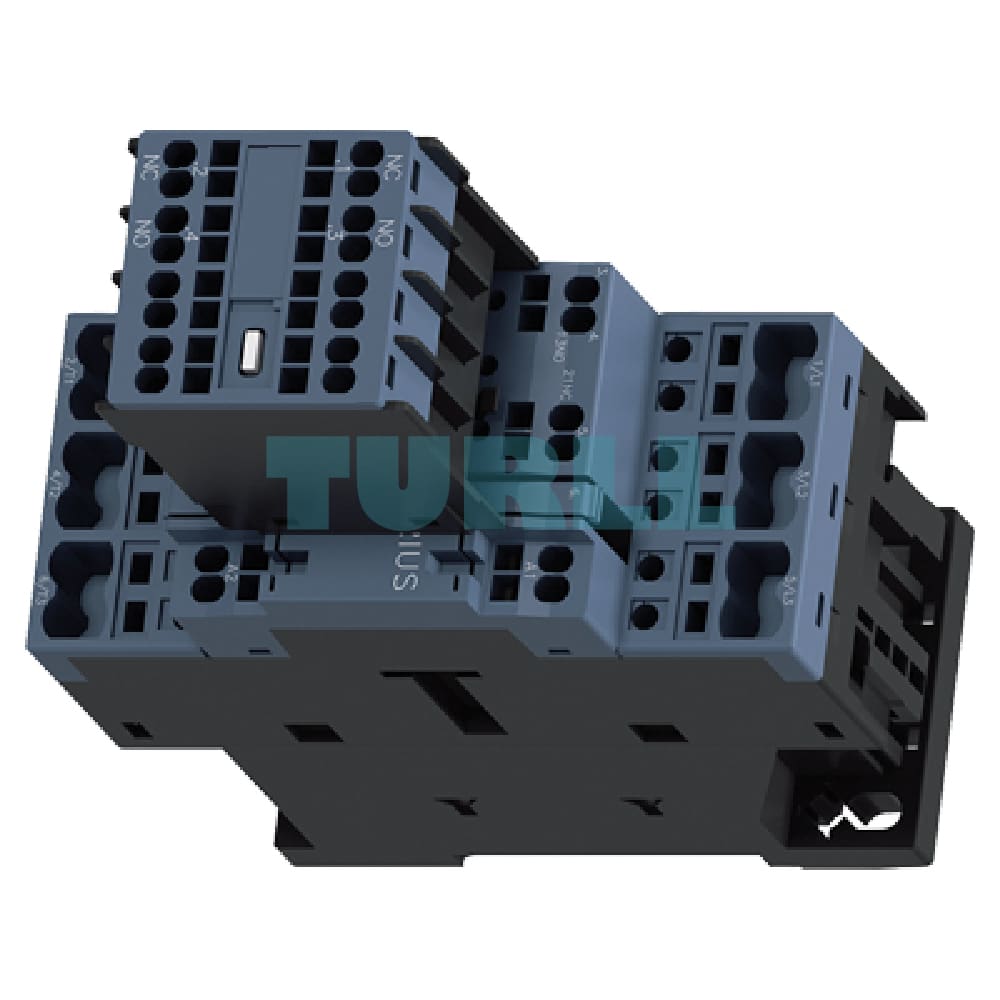

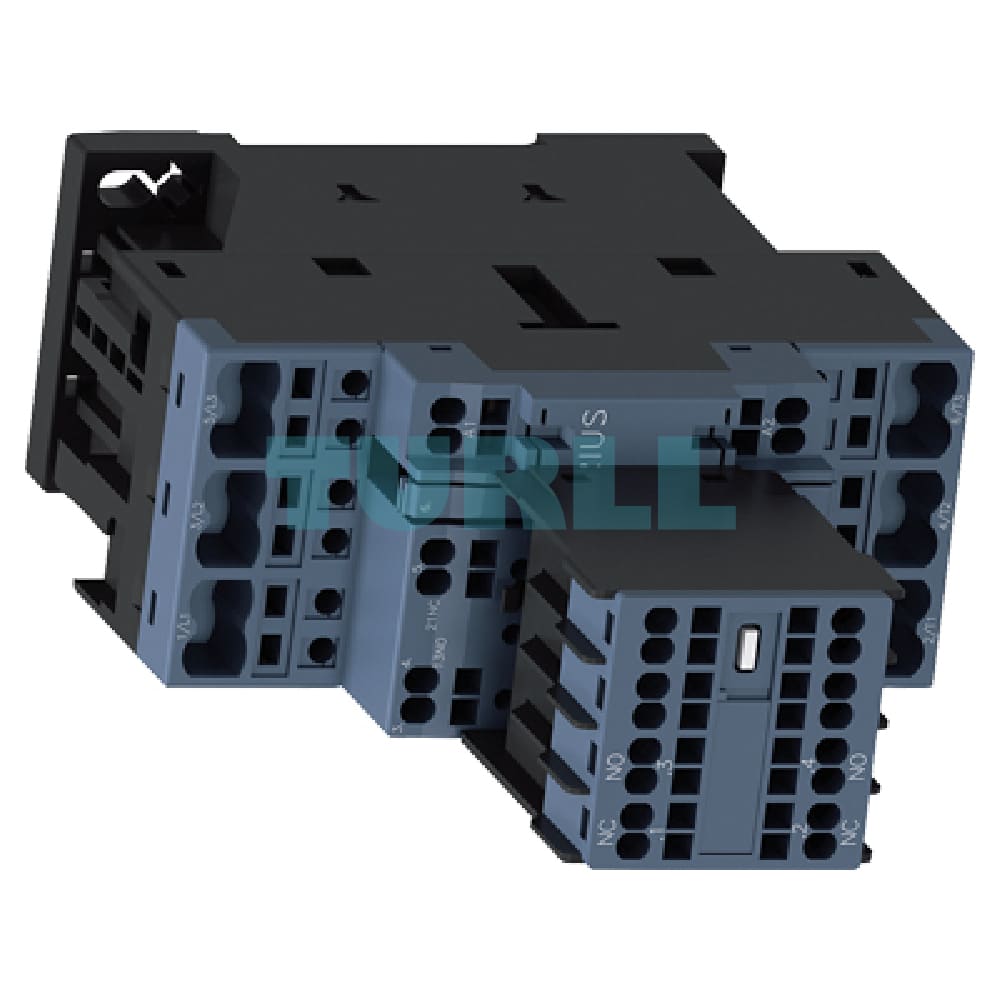

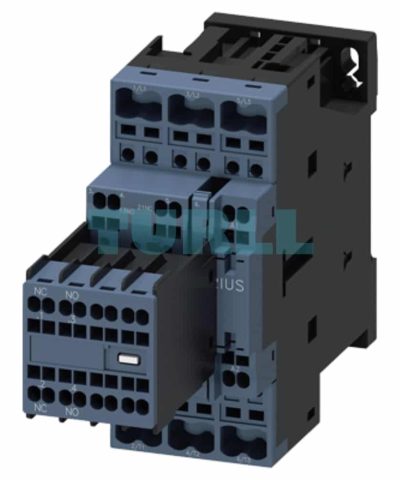

Siemens SIRIUS 3RT2025-2AP04 Power Contactor AC-3e/AC-3, 17A, 7.5kW, 230V AC, 2NO+2NC Aux, Spring-Loaded Terminal Original Brand New

Overview

The Siemens SIRIUS 3RT2025-2AP04 is a high-performance power contactor engineered for reliable switching of motors and other industrial loads. As part of the renowned SIRIUS modular system, this contactor offers a compact design and robust functionality.

It is rated for AC-3e/AC-3 operation up to 17 A and 7.5 kW at 400 V, making it ideal for a wide range of applications from motor control to general power switching. The integrated 2 NO + 2 NC auxiliary contacts provide enhanced control and monitoring capabilities, while the innovative spring-loaded terminals ensure fast, secure, and vibration-proof connections.

Key Features & Benefit

• High Performance: Optimized for AC-3e/AC-3 applications, offering reliable switching of motors up to 7.5 kW.
• Efficient and Space-Saving: The compact Size S0 design allows for high-density installations in control cabinets, maximizing panel space.
• Enhanced Reliability: The integrated auxiliary switch (2 NO + 2 NC) is removable, providing flexibility for maintenance and system configuration.
• Fast and Secure Connection: Spring-loaded terminals eliminate the need for retightening and provide a permanent, vibration-resistant connection, reducing installation time and maintenance effort.
• Versatile Application: Suitable for a broad range of industrial applications, including motor control, lighting, and heating systems.
• Long Service Life: Built with high-quality materials to ensure durability and a long operational lifespan, reducing total cost of ownership.

Function

The Siemens 3RT2025-2AP04 serves as an electrically operated switch for a power circuit. When the 230 V AC control voltage is applied to the coil, it closes the main power contacts, allowing current to flow to the connected load.

The integrated auxiliary contacts change state simultaneously, providing signals for monitoring or interlocking other components within the control system. The removable auxiliary switch offers a flexible solution for different control logic requirements.

Technical Specification

• Product Number: 3RT2025-2AP04
• Rated Operational Current (AC-3e/AC-3): 17 A
• Rated Operational Power (AC-3e/AC-3): 7.5 kW at 400 V
• Number of Poles: 3-pole
• Control Supply Voltage: 230 V AC, 50 Hz
• Auxiliary Contacts: 2 NO (Normally Open) + 2 NC (Normally Closed)
• Terminal Type: Spring-loaded terminals
• Size: S0
• Special Features: Removable auxiliary switch
