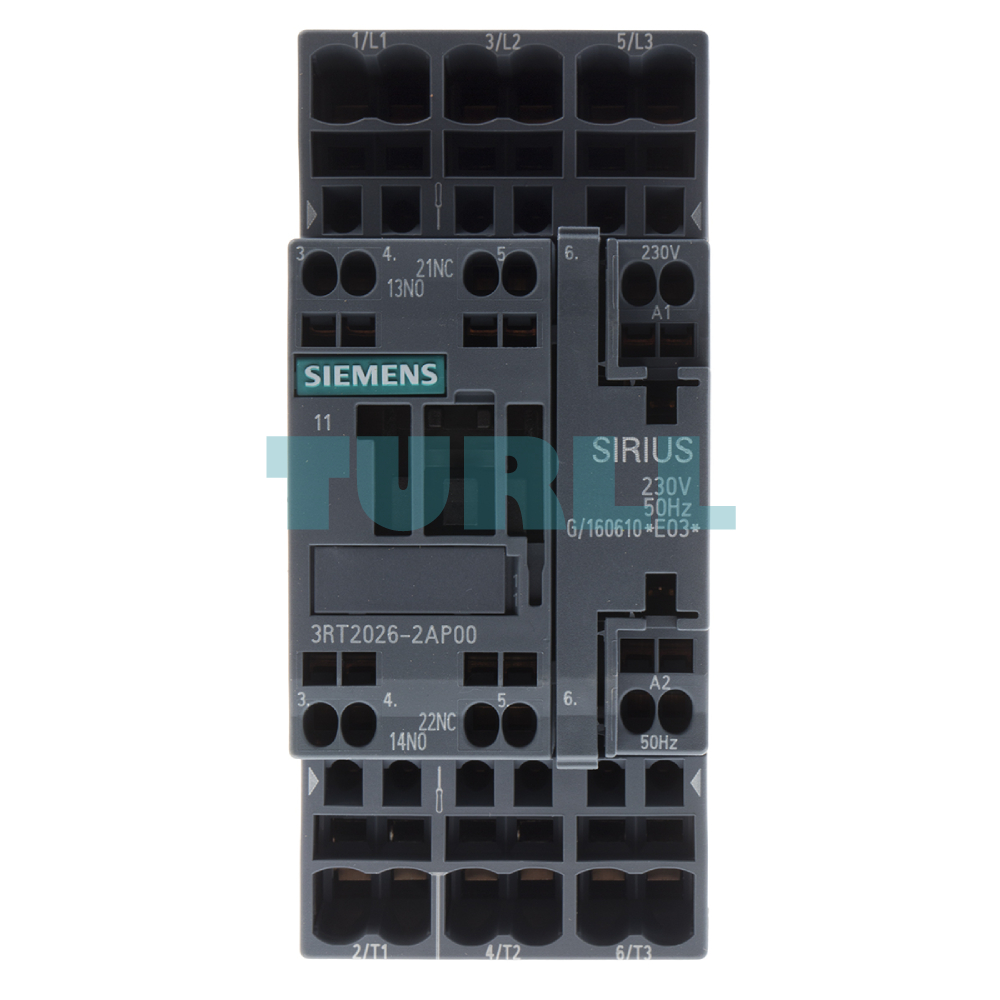

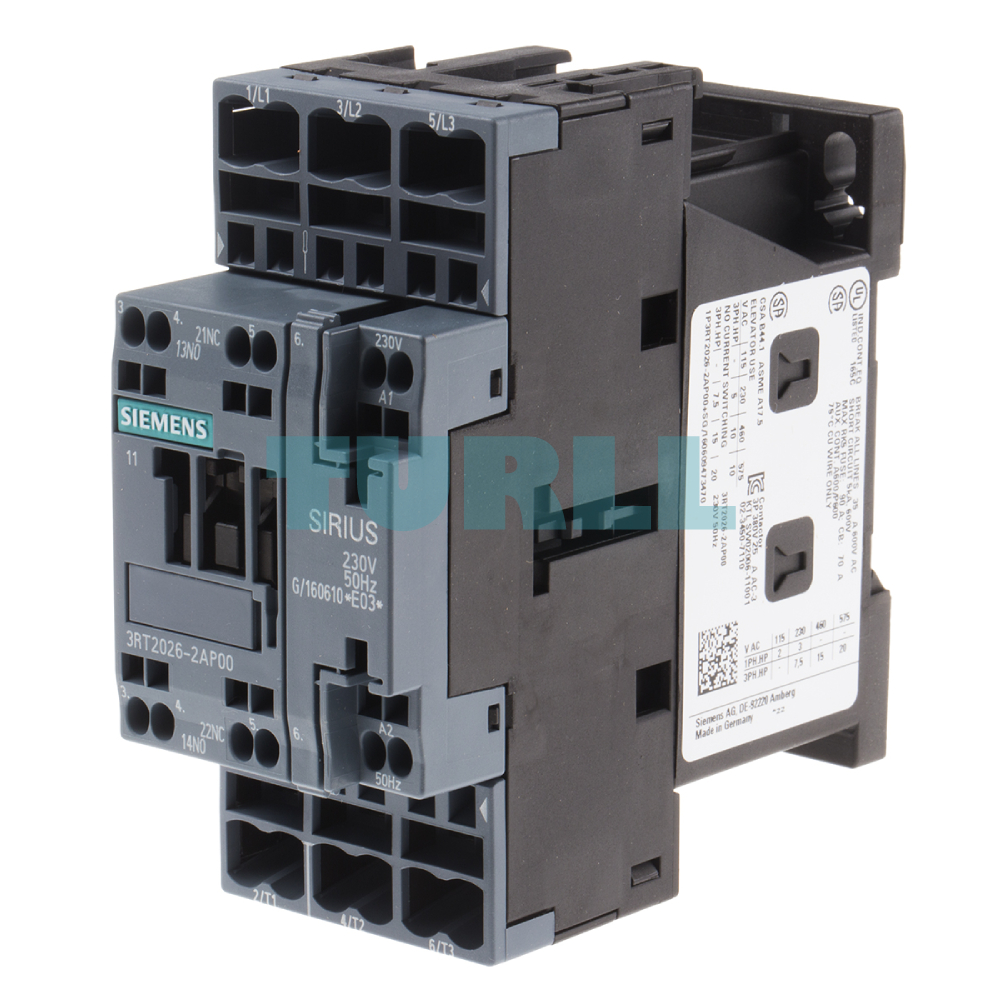

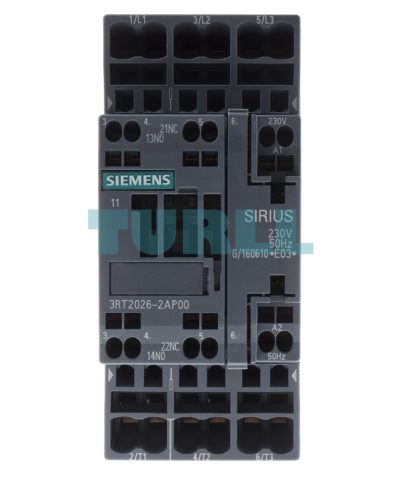

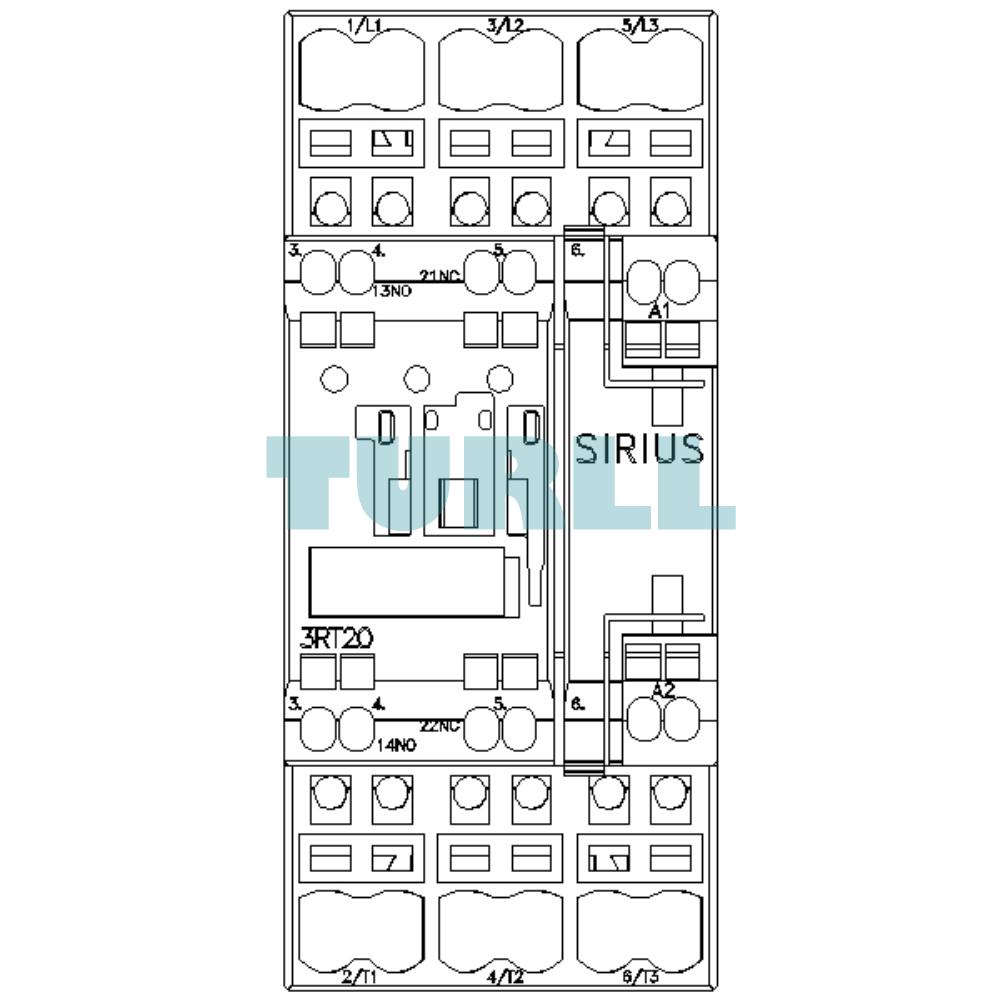

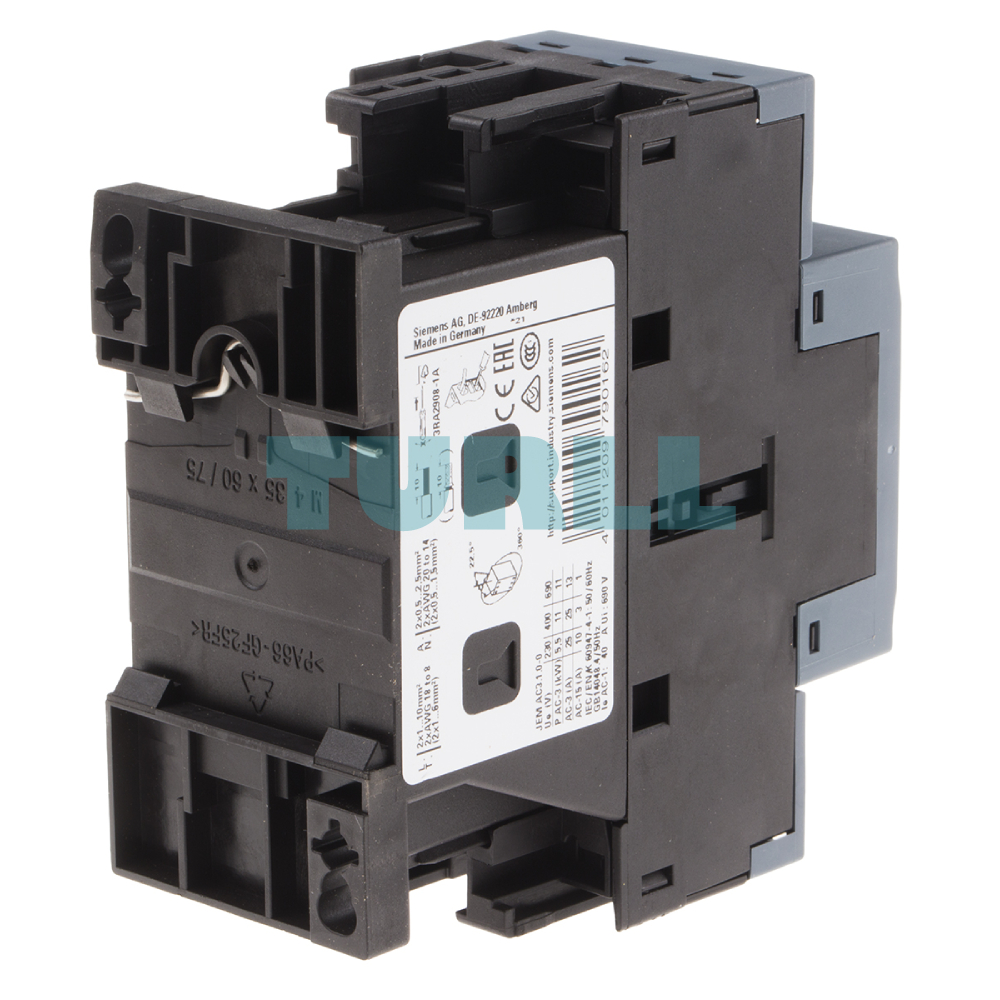

Siemens 3RT2026-2AP00 Power Contactor 25A, 11 kW / 400V, 3-Pole, 230V AC Original Brand New
High-performance Siemens power contactor, 3-pole, 25 A, 11 kW / 400 V, 230 V AC, 50 Hz, with 1 NO + 1 NC auxiliary contacts and spring-loaded terminal for reliable industrial applications.
- ConditionOriginal Brand New
- Warranty12 months
- Genuine Products
- Up to 1-Year Warranty
- Global Shipping
- Secure Payment
- PI / Bank Transfer Available
- Bulk Quote Support
Description
Overview
The Siemens SIRIUS 3RT2026-2AP00 is a high-performance power contactor designed for switching motors and other loads up to 25 Amps (AC-3e/AC-3). Part of the reliable SIRIUS modular system, this 3-pole contactor is engineered for demanding industrial environments, offering high operational reliability and a long service life. Its compact Size S0 design saves valuable panel space, making it ideal for integration into various control systems and machinery. The use of spring-loaded terminals ensures fast, vibration-proof, and maintenance-free wiring connections, drastically reducing installation time.
Benefit
-
High Performance & Reliability: Ensures stable operation in demanding industrial environments.
-
Versatile Application: Compatible with AC-3e/AC-3 loads up to 11 kW / 400 V.
-
Enhanced Safety: Includes 1 NO + 1 NC auxiliary contacts for easy integration into control circuits.
-
Easy Installation: Features a spring-loaded terminal for fast, secure wiring.
-
Compact Design: Size S0 allows for space-efficient setups.
Features
-
Rated Current: 25 A
-
Rated Operational Power: 11 kW / 400 V
-
Poles: 3-pole
-
Coil Voltage: 230 V AC, 50 Hz
-

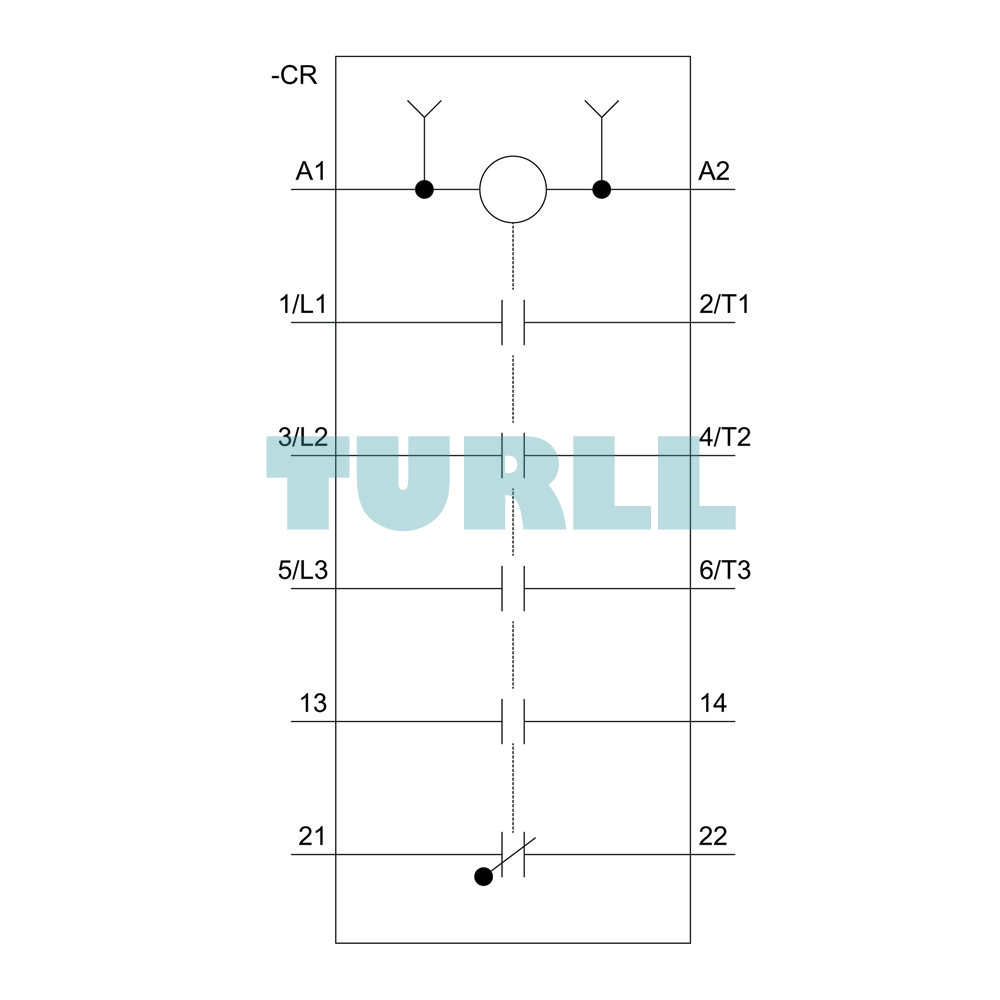

Auxiliary Contacts: 1 NO + 1 NC
-
Terminal Type: Spring-loaded
-
Size: S0
-
Type: AC-3e / AC-3 Power Contactor
Function/Application
The 3RT2026-2AP00 contactor is primarily used for switching:
-
3-Phase AC Motors: Ideal for starting, stopping, and reversing motors in pumps, fans, conveyors, and machinery.
-
Resistive Loads: Suitable for switching heating and lighting circuits.
-
Industrial Control: Acts as a reliable interface between the control system (PLC, pushbuttons) and the high-power load circuit.
Download
Visit 3RT2026-2AP00 for more detail info
For more our products visit turll
Specifications
| SKU / Model | 3RT2026-2AP00 |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS |
| product designation | Power contactor |
| product type designation | 3RT2 |
| size of contactor | S0 |
| product extension | - |
| ● function module for communication | No |
| ● auxiliary switch | Yes |
| power loss [W] for rated value of the current at AC in hot operating state | 4.8 W |
| ● per pole | 1.6 W |
| power loss [W] for rated value of the current without load current share typical | 9.8 W |
| surge voltage resistance | - |
| ● of main circuit rated value | 6 kV |
| ● of auxiliary circuit rated value | 6 kV |
| maximum permissible voltage for safe isolation between coil and main contacts acc. to EN 60947-1 | 400 V |
| shock resistance at rectangular impulse | - |
| shock resistance with sine pulse | - |
| mechanical service life (switching cycles) | - |
| ● of contactor typical | 10 000 000 |
| ● of the contactor with added electronically optimized auxiliary switch block typical | 5 000 000 |
| ● of the contactor with added auxiliary switch block typical | 10 000 000 |
| reference code acc. to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
| ambient temperature | - |
| ● during operation | -25 ... +60 °C |
| ● during storage | -55 ... +80 °C |
| relative humidity minimum | 10 % |
| relative humidity at 55 °C acc. to IEC 60068-2-30 maximum | 95 % |
| number of poles for main current circuit | 3 |
| number of NO contacts for main contacts | 3 |
| operating voltage at AC-3 rated value maximum | 690 V |
| ● at AC-1 at 400 V at ambient temperature 40 °C rated value | 40 A |
| ● at AC-1 | - |
| — up to 690 V at ambient temperature 40 °C rated value | 40 A |
| — up to 690 V at ambient temperature 60 °C rated value | 35 A |
| ● at AC-4 at 400 V rated value | 15.5 A |
| ● at AC-5a up to 690 V rated value | 35.2 A |
| ● at AC-5b up to 400 V rated value | 20.7 A |
| — up to 230 V for current peak value n=20 rated value | 20.2 A |
| — up to 400 V for current peak value n=20 rated value | 20.2 A |
| — up to 500 V for current peak value n=20 rated value | 20.2 A |
| — up to 690 V for current peak value n=20 rated value | 12.9 A |
| ● at AC-6a | - |
| — up to 230 V for current peak value n=30 rated value | 13.5 A |
| — up to 400 V for current peak value n=30 rated value | 13.5 A |
| — up to 500 V for current peak value n=30 rated value | 13.5 A |
| — up to 690 V for current peak value n=30 rated value | 13 A |
| minimum cross-section in main circuit at maximum AC-1 rated value | 10 mm² |
| operational current for approx. 200000 operating cycles at AC-4 | - |
| operational current | - |
| ● at 1 current path at DC-1 | - |
| ● with 2 current paths in series at DC-1 | - |
| ● with 3 current paths in series at DC-1 | - |
| ● at 1 current path at DC-3 at DC-5 | - |
| ● with 2 current paths in series at DC-3 at DC-5 | - |
| ● with 3 current paths in series at DC-3 at DC-5 | - |
| — at 24 V rated value | 35 A |
| — at 110 V rated value | 35 A |
| — at 220 V rated value | 10 A |
| — at 440 V rated value | 0.6 A |
| — at 600 V rated value | 0.6 A |
| operating power | - |
| ● at AC-3 | - |
| — at 400 V rated value | 11 kW |
| — at 500 V rated value | 11 kW |
| — at 690 V rated value | 11 kW |
| operating power for approx. 200000 operating cycles at AC-4 | - |
| ● up to 230 V for current peak value n=20 rated value | 8 kV·A |
| ● up to 400 V for current peak value n=20 rated value | 13.9 kV·A |
| ● up to 500 V for current peak value n=20 rated value | 17.4 kV·A |
| ● up to 690 V for current peak value n=20 rated value | 15.4 kV·A |
| operating apparent power at AC-6a | - |
| ● up to 230 V for current peak value n=30 rated value | 5.3 kV·A |
| ● up to 400 V for current peak value n=30 rated value | 9.3 kV·A |
| ● up to 500 V for current peak value n=30 rated value | 11.6 kV·A |
| ● up to 690 V for current peak value n=30 rated value | 15.5 kV·A |
| short-time withstand current in cold operating state up to 40 °C | - |
| ● limited to 1 s switching at zero current maximum | 375 A; Use minimum cross-section acc. to AC-1 rated value |
| ● limited to 5 s switching at zero current maximum | 299 A; Use minimum cross-section acc. to AC-1 rated value |
| ● limited to 10 s switching at zero current maximum | 200 A; Use minimum cross-section acc. to AC-1 rated value |
| ● limited to 30 s switching at zero current maximum | 128 A; Use minimum cross-section acc. to AC-1 rated value |
| ● limited to 60 s switching at zero current maximum | 106 A; Use minimum cross-section acc. to AC-1 rated value |
| no-load switching frequency | - |
| operating frequency | - |
| ● at AC-1 maximum | 1 000 1/h |
| ● at AC-2 maximum | 750 1/h |
| ● at AC-3 maximum | 750 1/h |
| ● at AC-4 maximum | 250 1/h |
| type of voltage of the control supply voltage | AC |
| control supply voltage at AC | - |
| ● at 50 Hz rated value | 230 V |
| operating range factor control supply voltage rated value of magnet coil at AC | - |
| apparent pick-up power of magnet coil at AC | - |
| inductive power factor with closing power of the coil | - |
| apparent holding power of magnet coil at AC | - |
| inductive power factor with the holding power of the coil | - |
| ● at 50 Hz | 0.25 |
| closing delay | - |
| opening delay | - |
| ● at AC | 4 ... 16 ms |
| arcing time | 10 ... 10 ms |
| control version of the switch operating mechanism | Standard A1 - A2 |
| number of NC contacts for auxiliary contacts instantaneous contact | 1 |
| number of NO contacts for auxiliary contacts instantaneous contact | 1 |
| operational current at AC-12 maximum | 10 A |
| operational current at AC-15 | - |
| ● at 230 V rated value | 10 A |
| ● at 400 V rated value | 3 A |
| ● at 500 V rated value | 2 A |
| ● at 690 V rated value | 1 A |
| operational current at DC-12 | - |
| operational current at DC-13 | - |
| ● at 24 V rated value | 10 A |
| ● at 48 V rated value | 2 A |
| ● at 60 V rated value | 2 A |
| ● at 110 V rated value | 1 A |
| ● at 125 V rated value | 0.9 A |
| ● at 220 V rated value | 0.3 A |
| contact reliability of auxiliary contacts | 1 faulty switching per 100 million (17 V, 1 mA) |
| full-load current (FLA) for 3-phase AC motor | - |
| ● at 480 V rated value | 21 A |
| ● at 600 V rated value | 22 A |
| yielded mechanical performance [hp] | - |
| ● for single-phase AC motor | - |
| — at 110/120 V rated value | 2 hp |
| — at 230 V rated value | 3 hp |
| ● for 3-phase AC motor | - |
| — at 200/208 V rated value | 5 hp |
| — at 220/230 V rated value | 7.5 hp |
| — at 460/480 V rated value | 15 hp |
| — at 575/600 V rated value | 20 hp |
| contact rating of auxiliary contacts according to UL | A600 / P600 |
| design of the fuse link | - |
| ● for short-circuit protection of the main circuit | - |
| — with type of coordination 1 required | gG: 100 A (690 V, 100 kA), aM: 50 A (690 V, 100 kA), BS88: 100 A (415 V, 80 kA) |
| — with type of assignment 2 required | gG: 35A (690V, 100kA), aM: 20A (690V, 100kA), BS88: 35A (415V, 80kA) |
| ● for short-circuit protection of the auxiliary switch required | gG: 10 A (500 V, 1 kA) |
| mounting position | +/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface |
| fastening method | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715 |
| ● side-by-side mounting | Yes |
| required spacing | - |
| ● with side-by-side mounting | - |
| ● for grounded parts | - |
| ● for live parts | - |
| — forwards | 10 mm |
| — upwards | 10 mm |
| — downwards | 10 mm |
| — at the side | 6 mm |
| type of electrical connection | - |
| ● for main current circuit | spring-loaded terminals |
| ● for auxiliary and control circuit | spring-loaded terminals |
| ● at contactor for auxiliary contacts | Spring-type terminals |
| ● of magnet coil | Spring-type terminals |
| — solid | 2x (1 ... 10 mm²) |
| ● at AWG cables for main contacts | 2x (18 ... 8) |
| connectable conductor cross-section for main contacts | - |
| ● solid | 1 ... 10 mm² |
| ● stranded | 1 ... 10 mm² |
| connectable conductor cross-section for auxiliary contacts | - |
| ● solid or stranded | 0.5 ... 2.5 mm² |
| ● finely stranded with core end processing | 0.5 ... 1.5 mm² |
| ● finely stranded without core end processing | 0.5 ... 2.5 mm² |
| type of connectable conductor cross-sections | - |
| — solid or stranded | 2x (0.5 ... 2.5 mm²) |
| — finely stranded with core end processing | 2x (0.5 ... 1.5 mm²) |
| — finely stranded without core end processing | 2x (0.5 ... 2.5 mm²) |
| ● at AWG cables for auxiliary contacts | 2x (20 ... 14) |
| AWG number as coded connectable conductor cross section | - |
| ● for main contacts | 18 ... 8 |
| ● for auxiliary contacts | 20 ... 14 |
| B10 value with high demand rate acc. to SN 31920 | 450 000 |
| proportion of dangerous failures | - |
| ● with low demand rate acc. to SN 31920 | 40 % |
| ● with high demand rate acc. to SN 31920 | 73 % |
| failure rate [FIT] with low demand rate acc. to SN 31920 | 100 FIT |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| protection class IP on the front acc. to IEC 60529 | IP20 |
| touch protection on the front acc. to IEC 60529 | finger-safe, for vertical contact from the front |
| suitability for use | - |
| ● safety-related switching OFF | Yes |
| last modified: | 11/17/2021 |
| Weight | 0.449 kg |
| Dimensions | 54.00 × 108.50 × 105.50 mm |
