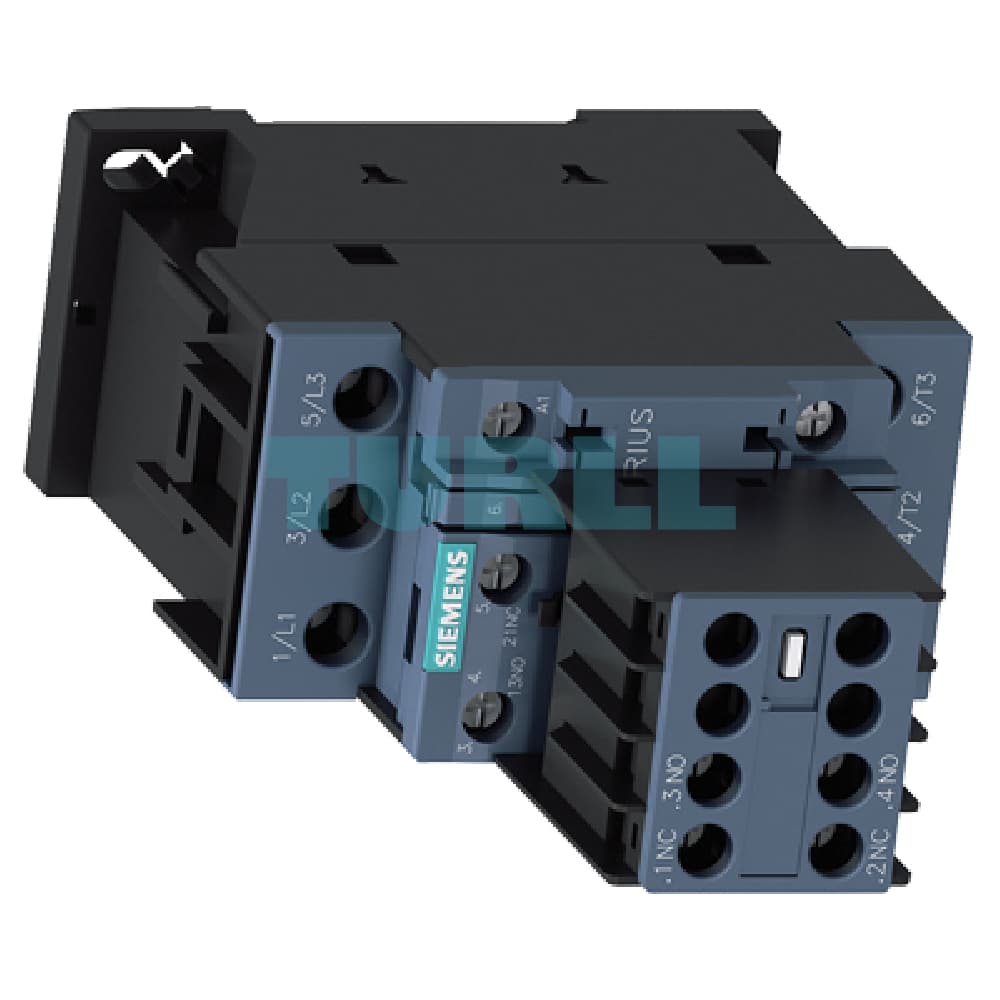

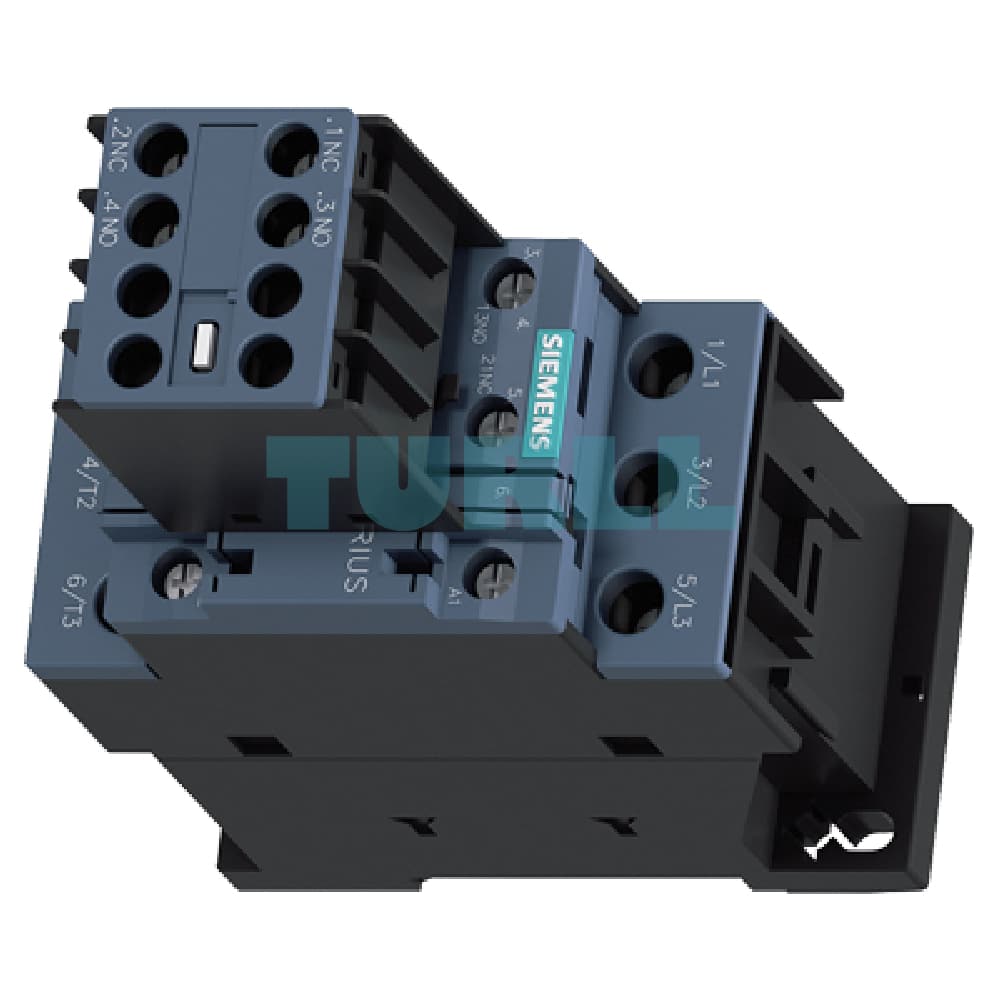

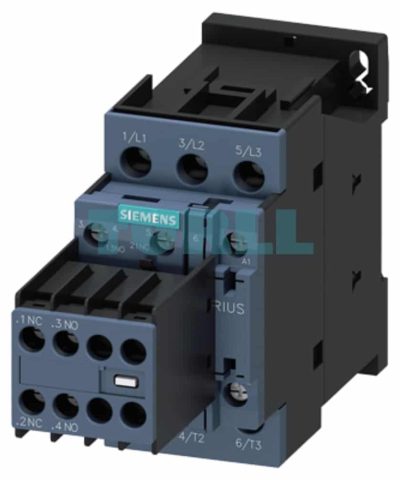

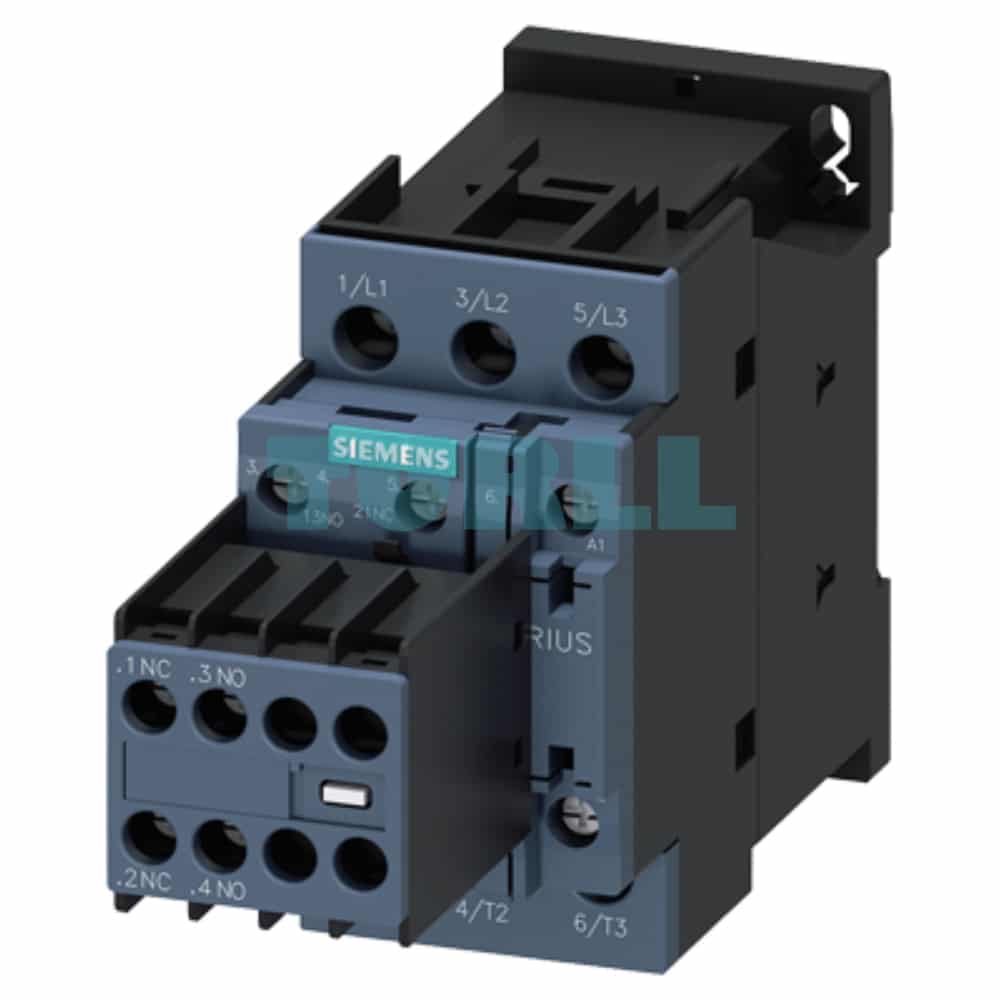

Siemens 3RT2027-1AN24 Power Contactor 32A, 15kW, 2 NO + 2 NC Aux Contacts, 220V AC Coil Original Brand New

Overview

The Siemens SIRIUS 3RT2027-1AN24 is a high-performance power contactor engineered for reliable switching of motors and other electrical loads. Part of the SIRIUS 3RT2 series, this robust and compact device is designed for industrial applications requiring exceptional operational reliability and longevity. Featuring a size S0 frame, it offers a powerful switching capability of up to 32 A and 15 kW at 400 V, making it suitable for a wide range of demanding environments.

Key Benefit

• Exceptional Durability: Built with high-quality materials, the 3RT2027-1AN24 ensures a long mechanical and electrical service life, reducing maintenance and replacement costs.
• Space-Saving Design: The compact S0 size allows for high-density panel layouts, optimizing control cabinet space.
• Enhanced Functionality: Equipped with 2 NO (Normally Open) and 2 NC (Normally Closed) auxiliary contacts, it provides flexible options for control and signaling circuits.
• Easy Installation and Maintenance: The device features reliable screw terminals for secure and straightforward wiring. The removable auxiliary switch simplifies configuration and replacement.
• Global Standard Compliance: Meets international standards (AC-3e/AC-3) for motor switching, ensuring compatibility and safety in global applications.

Function

• Motor Control: Primarily used for switching three-phase motors up to 15 kW.
• Load Switching: Capable of controlling various resistive and inductive loads.
• Remote Switching: Allows for remote control of electrical circuits in automated systems.
• Signaling and Interlocking: The integrated auxiliary contacts enable feedback to PLC or control systems and provide interlocking functions for safety applications.

Technical Specification

• Product Type: Power Contactor
• Model Number: 3RT2027-1AN24
• Rated Operational Current (AC-3e/AC-3): 32 A
• Rated Power (AC-3e/AC-3): 15 kW @ 400 V
• Number of Poles: 3-pole
• Control Supply Voltage: 220 V AC, 50/60 Hz
• Auxiliary Contacts: 2 NO + 2 NC
• Connection Type: Screw Terminal
• Size: S0
• Features: Removable Auxiliary Switch
• Brand: Siemens
• Series: SIRIUS 3RT2
