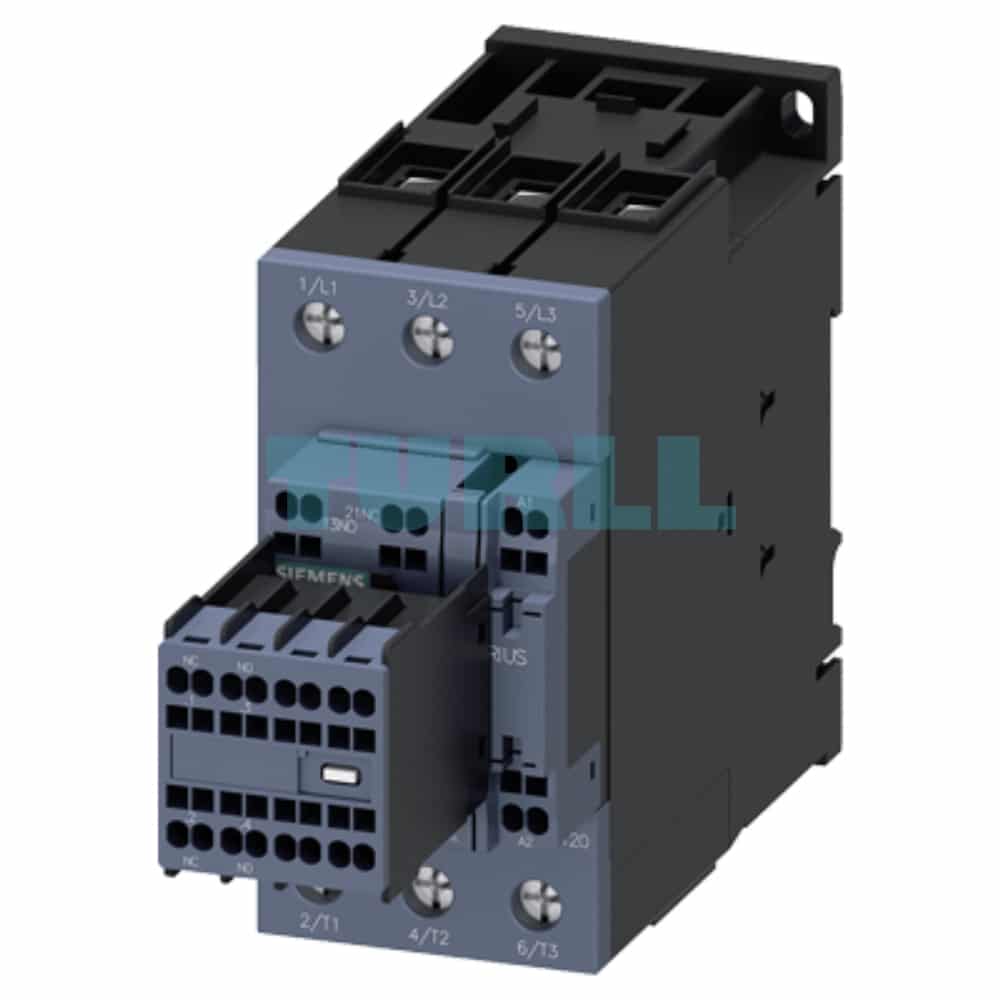

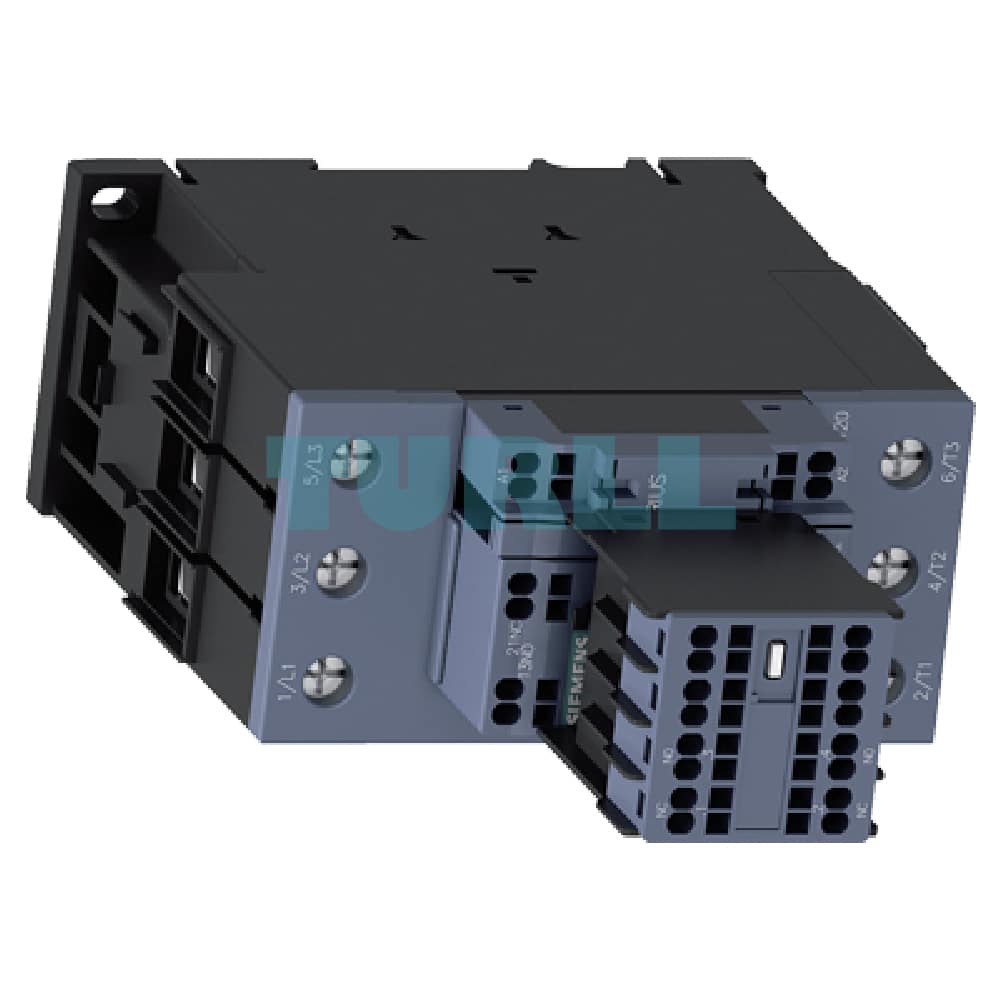

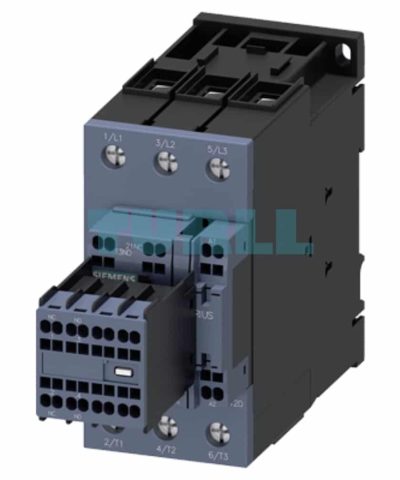

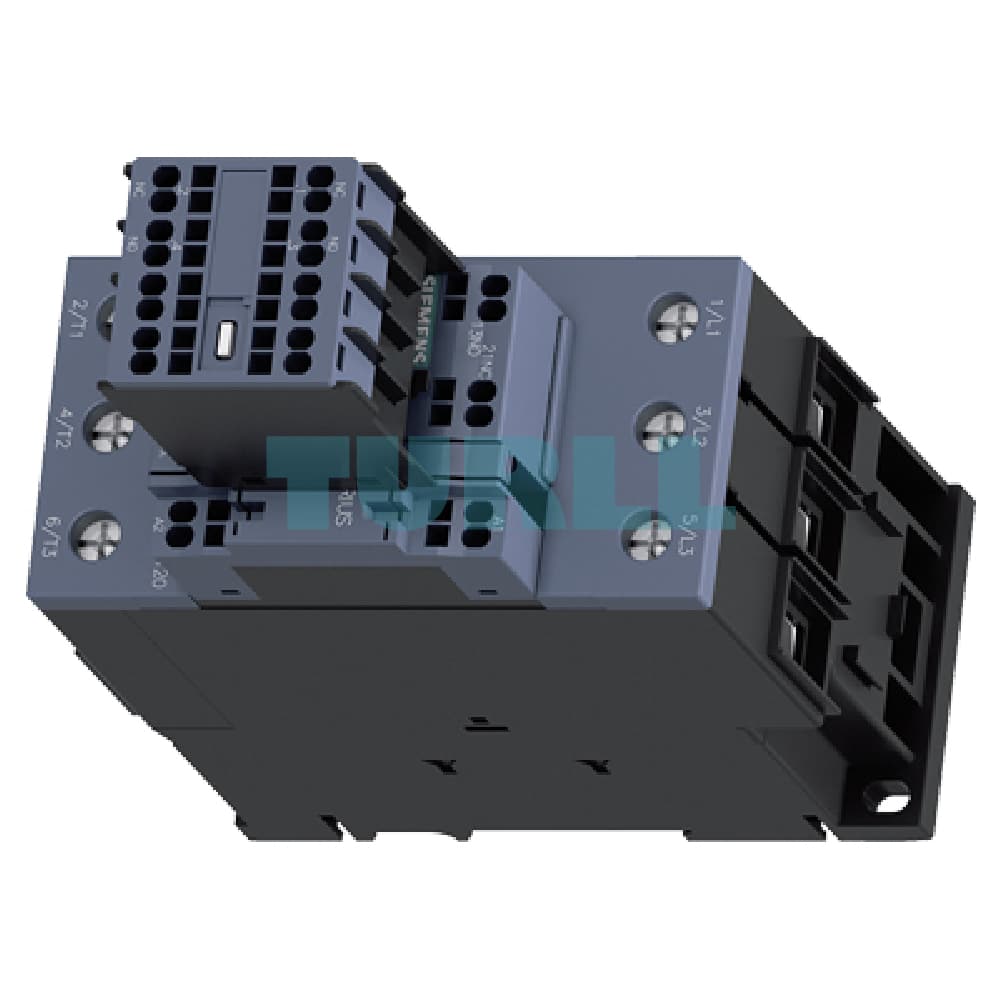

Siemens 3RT2035-3AF04 Power Contactor 41A, 18.5 kW / 400V, 3-Pole, 110V AC Original Brand New

Overview

The Siemens 3RT2035-3AF04 power contactor is engineered for reliable switching of motors and electrical loads in industrial applications. Designed for AC-3e/AC-3 duty, it provides consistent performance at 41 A and up to 18.5 kW at 400 V. Its compact 3-pole configuration and versatile auxiliary contacts make it ideal for complex control circuits.

This contactor is equipped with a screw terminal for the main circuit and spring-loaded terminals for control and auxiliary circuits, ensuring quick, secure, and maintenance-free installation. The removable auxiliary switch adds flexibility for system upgrades or replacements.

Key Features & Benefits

• High Load Capacity: Handles up to 41 A and 18.5 kW / 400 V efficiently.

• Durable AC-3e/AC-3 Rating: Reliable switching for motors and heavy-duty loads.

• 3-Pole Design: Ideal for three-phase motor applications.

• Flexible Auxiliary Contacts: 2 NO + 2 NC, suitable for complex control circuits.

• Easy Installation: Screw terminals for main circuits; spring-loaded terminals for control and auxiliary circuits.

• Compact & Modular: Size S2 with a removable auxiliary switch for customization.

• Industrial Reliability: Siemens quality ensures long-lasting operation in demanding environments.

Functions & Applications

• Motor control and protection

• Switching resistive and inductive loads

• Industrial automation and control panels

• HVAC and pump systems

• Manufacturing machinery

Technical Specifications

• Product Number: 3RT2035-3AF04

• Rated Current: 41 A

• Power Rating: 18.5 kW / 400 V

• Poles: 3

• Control Voltage: 110 V AC, 50 Hz

• Auxiliary Contacts: 2 NO + 2 NC

• Main Circuit Terminals: Screw

• Control & Auxiliary Circuit Terminals: Spring-loaded

• Size: S2

• Additional Feature: Removable auxiliary switch
