Siemens 3RT2035-3NP30 S2 Power Contactor 41A, 18.5kW with Varistor & Spring-Loaded Terminal Original Brand New
$124.40

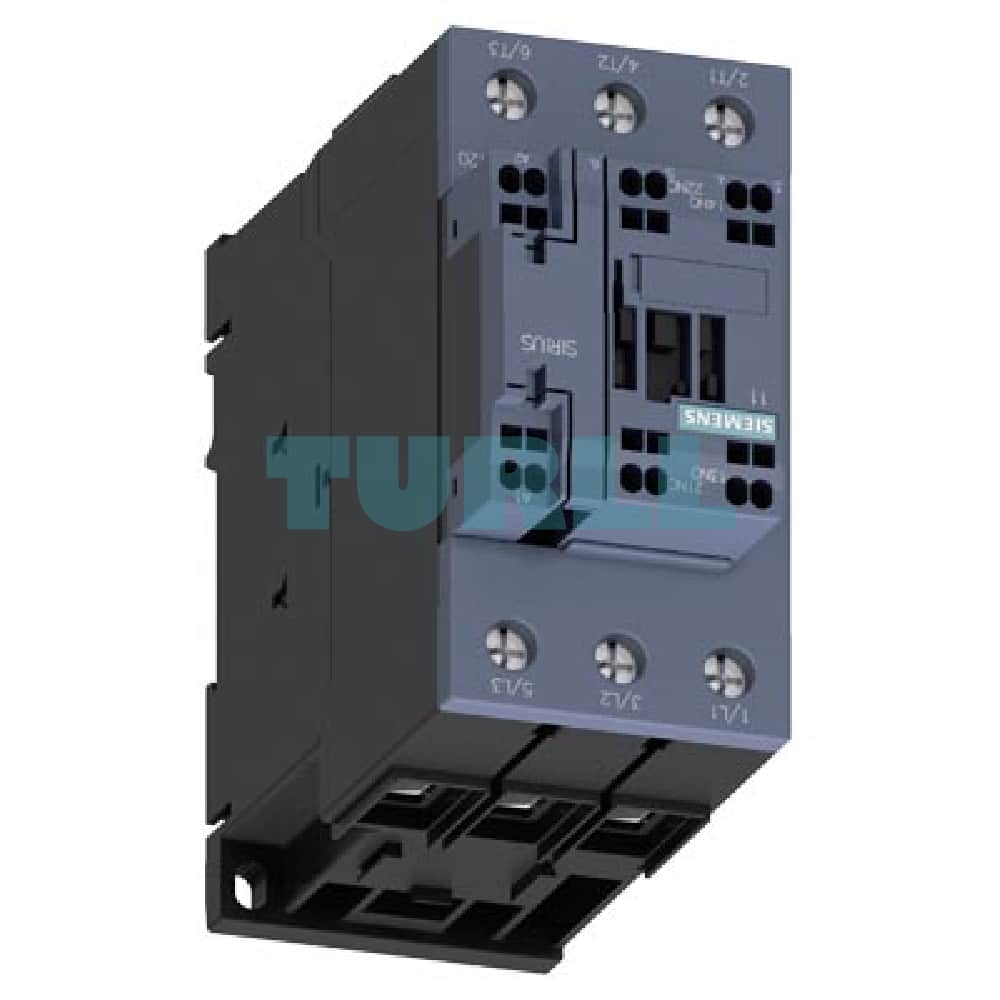

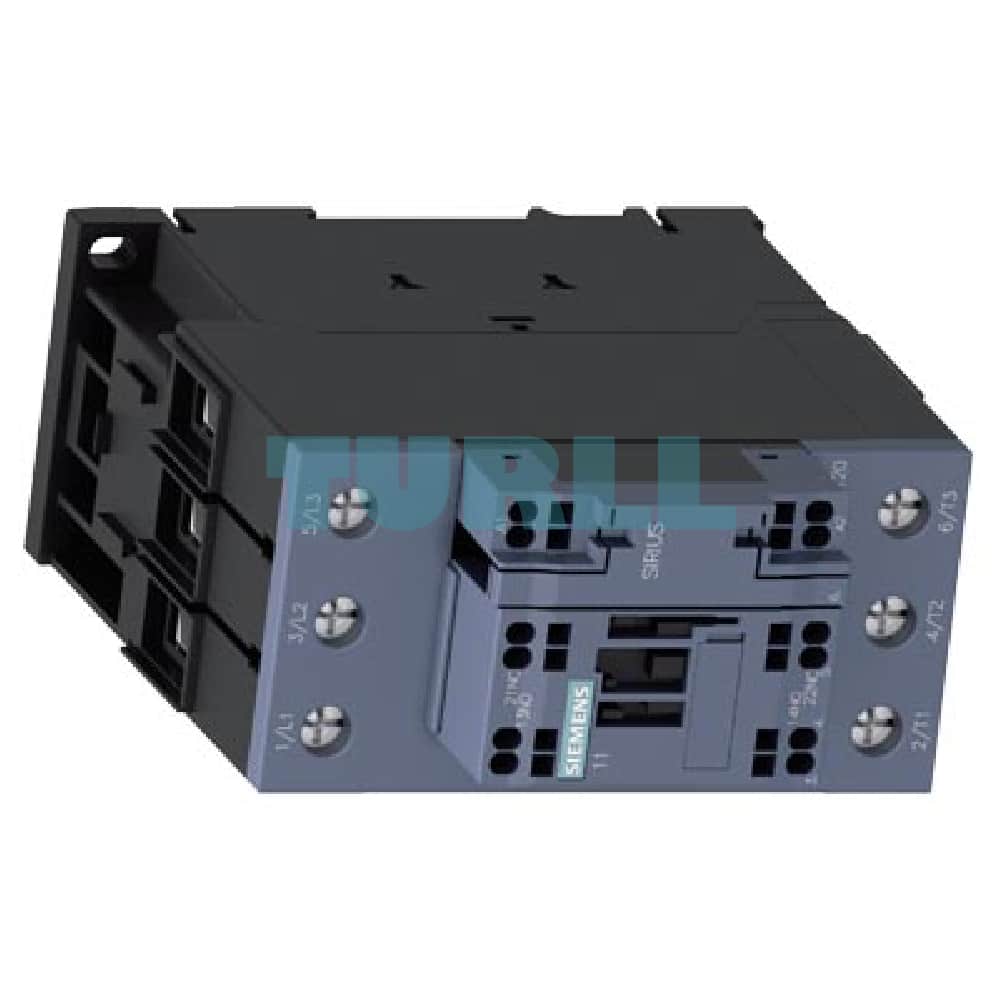

Siemens 3RT2035-3NP30 power contactor, AC-3e/AC-3, 41 A, 18.5 kW / 400 V, 3-pole, 175-280 V AC/DC, 50/60 Hz, with integrated varistor, auxiliary contacts: 1 NO + 1 NC, main circuit: screw terminal, control and auxiliary circuit: spring-loaded terminal, size: S2,
Overview
The Siemens 3RT2035-3NP30 is a high-performance, S2-sized power contactor designed for reliable and efficient switching of electrical loads up to 41 A. This robust 3-pole contactor is engineered for use in demanding industrial applications, offering exceptional performance for motors up to 18.5 kW at 400 V. Its versatility is further enhanced by a wide control voltage range of 175-280 V AC/DC, making it suitable for a variety of power systems. A key feature is the integrated varistor, which provides superior surge protection for the control coil, extending the product’s lifespan and ensuring system stability. The combination of screw terminals for the main circuit and innovative spring-loaded terminals for the control and auxiliary circuits simplifies installation and ensures a vibration-proof connection.
Key Benefit
- Enhanced Reliability: The integrated varistor protects the coil from voltage spikes, minimizing downtime and maintenance costs.
- Flexible Application: Wide control voltage range (175-280 V AC/DC) allows for seamless integration into diverse electrical systems.
- Fast & Secure Installation: Spring-loaded terminals on the control and auxiliary circuits offer quick, tool-free wiring and a reliable, vibration-proof connection.
- High Performance: Rated for AC-3e/AC-3 applications, this contactor is ideal for switching motors and other resistive loads up to 18.5 kW.
- Space-Saving Design: The compact S2 size allows for efficient use of space within control panels and electrical cabinets.
- Comprehensive Functionality: Includes one normally open (1 NO) and one normally closed (1 NC) auxiliary contact for feedback and control circuit integration.
Technical Function
- Product Designation: Power Contactor
- Product Number: 3RT2035-3NP30
- Size: S2
- Poles: 3-pole
- Rated Operational Current: 41 A (at up to 60 °C)
- Rated Power (AC-3): 18.5 kW at 400 V
- Control Supply Voltage: 175-280 V AC/DC (50/60 Hz)
- Surge Protection: Integrated Varistor
- Auxiliary Contacts: 1 NO + 1 NC
- Terminals:
- Main Circuit: Screw Terminal
- Control & Auxiliary Circuit: Spring-Loaded Terminal
Product Application
The Siemens 3RT2035-3NP30 is perfect for:
- Motor starters and controls
- HVAC systems
- Pump and compressor control
- Industrial machinery and automation
- Lighting control systems
For more our products visit turll
| Weight | 1.115 kg |
|---|---|
| Dimensions | 122.5 × 62 × 142 mm |
