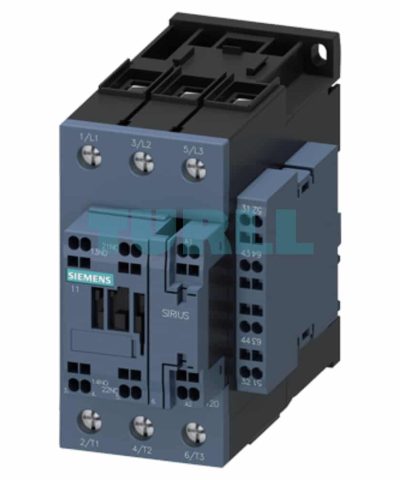

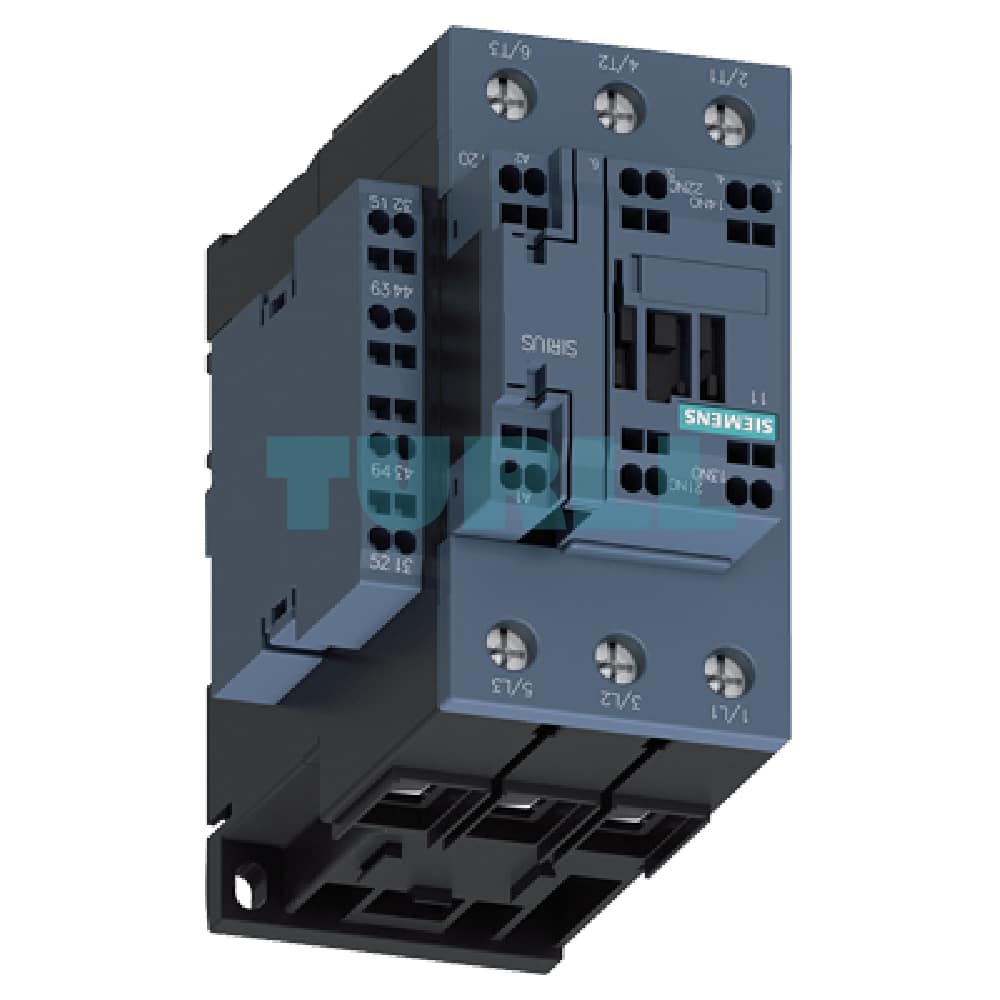

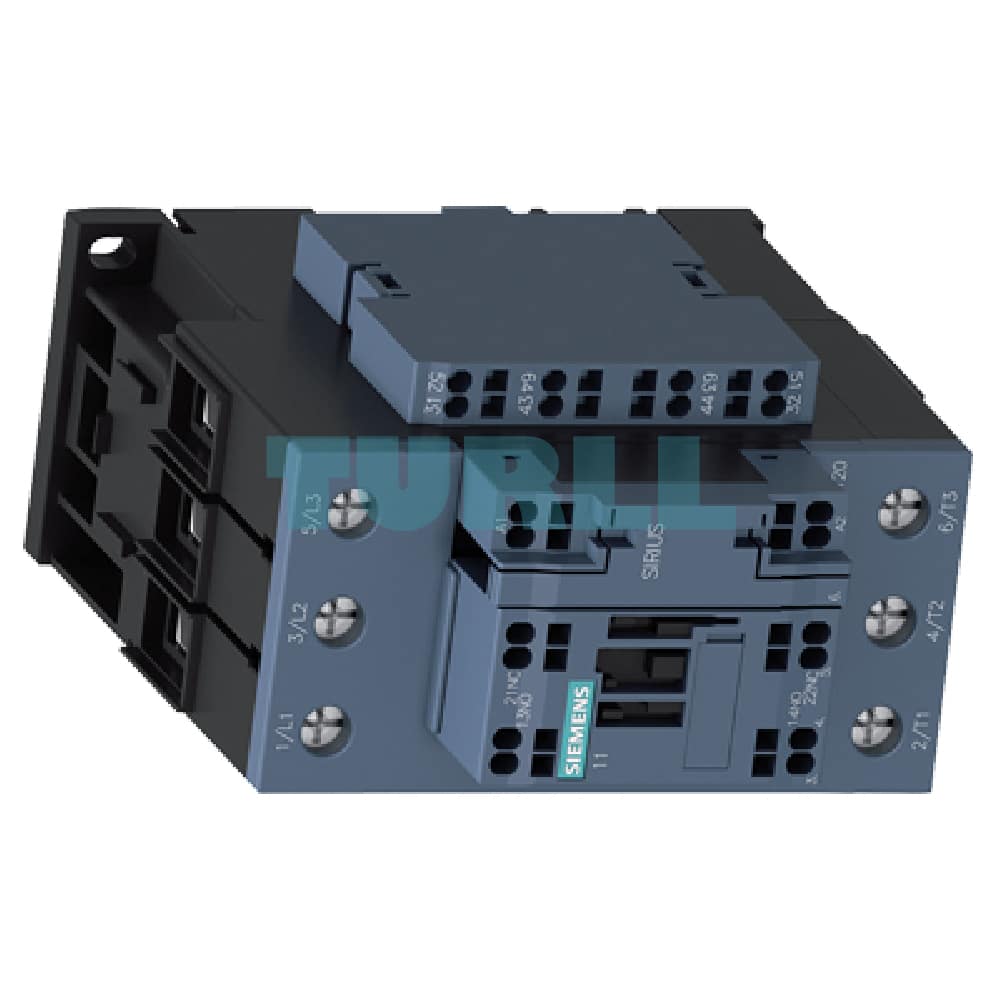

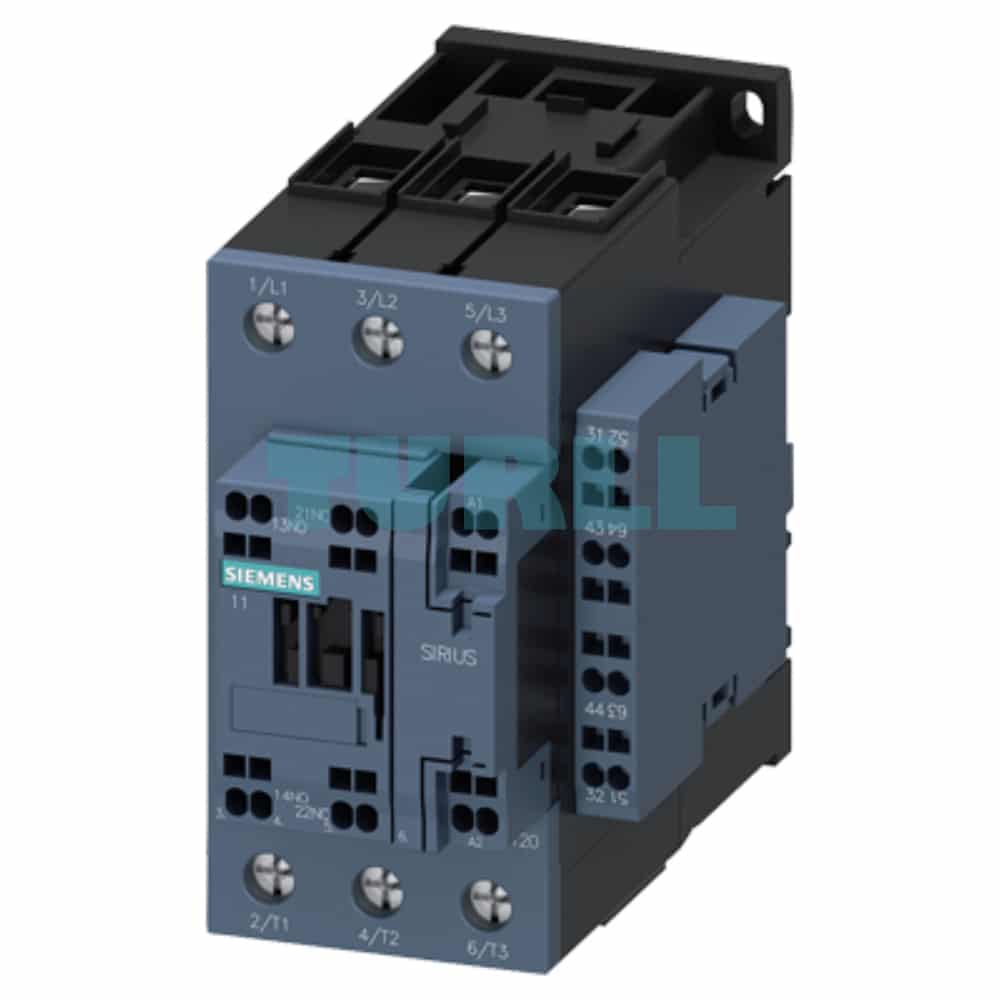

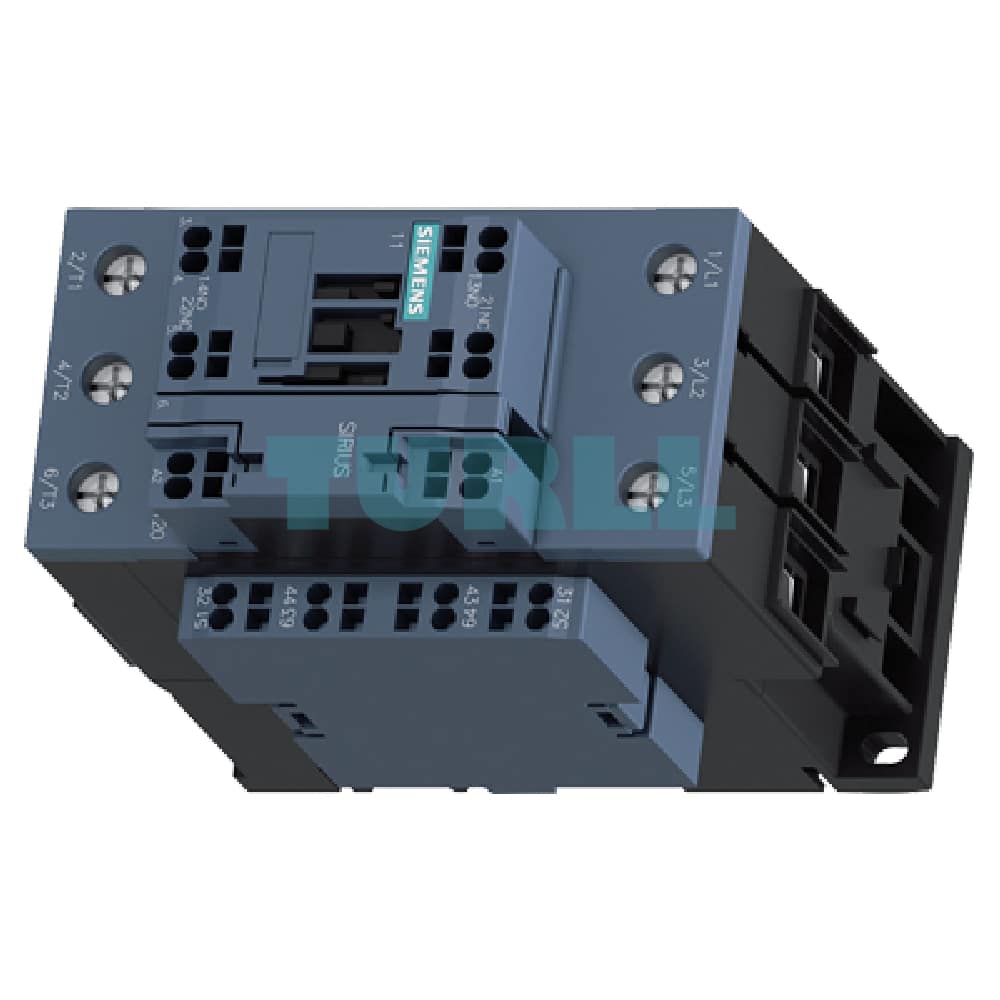

Siemens 3RT2036-3AF06 Power Contactor 3-Pole, 51A, 22kW, 110V AC, AC-3, Size S2 with 2NO+2NC Auxiliary Contacts Original Brand New
$146.68
Siemens 3RT2036-3AF06 power contactor, AC-3e/AC-3, 51 A, 22 kW / 400 V, 3-pole, 110 V AC, 50 Hz, auxiliary contacts: 2 NO + 2 NC, main circuit: screw terminal, control and auxiliary circuit: spring-loaded terminal, size: S2, lateral auxiliary switch
Product Overview
The Siemens 3RT2036-3AF06 is a high-efficiency power contactor designed for robust motor switching in industrial applications. Supporting up to 22 kW at 400V (AC-3), this 3-pole contactor is built with a 110V AC, 50 Hz control coil and equipped with 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts. Built to Siemens’ high standards, this unit offers durability, safety, and reliability in a compact Size S2 design.
Key Benefit
-
High Switching Capacity: Handles up to 51A and 22 kW at 400V, ideal for motor control.
-
Versatile Control: Integrated 2NO + 2NC auxiliary contacts for flexible control options.
-
Reliable Connections: Main circuit with screw terminals, control circuit with spring-loaded terminals.
-
Compact Size S2: Saves space while maintaining performance.
-
Industrial-Grade Build: Built for continuous operation in demanding environments.
-
Energy Efficient Coil: Operates at 110V AC, 50 Hz with optimal energy usage.
Function & Applications:
The Siemens 3RT2036-3AF06 is ideal for:
-
Motor starters and motor protection setups
-
Automation systems
-
HVAC and pumping systems
-
Industrial machinery
-
Electrical distribution panels
Its compatibility with AC-3 duty cycles makes it perfect for frequent motor starting and stopping operations. The lateral auxiliary switch adds expandability for advanced automation control.
Discover more Siemens automation solutions and industrial components. Visit Our Full Product Range at turll
| Weight | 1.035 kg |
|---|---|
| Dimensions | 124 × 83 × 147 mm |
