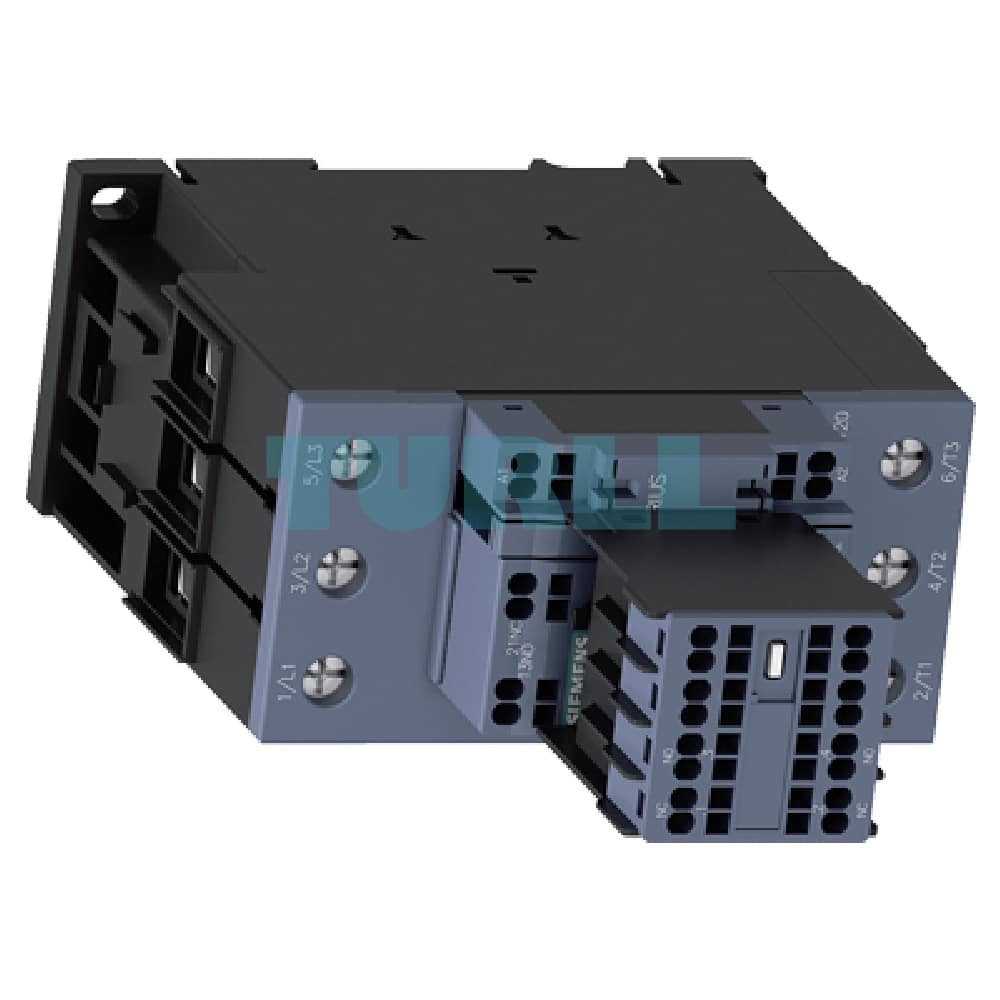

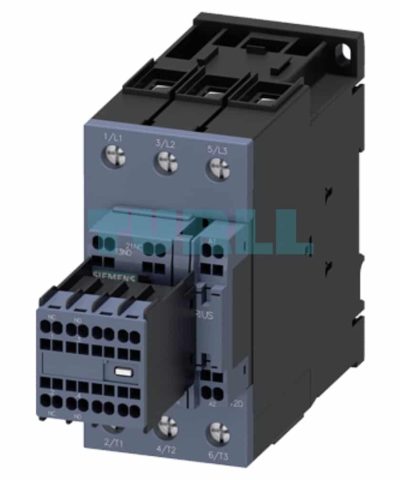

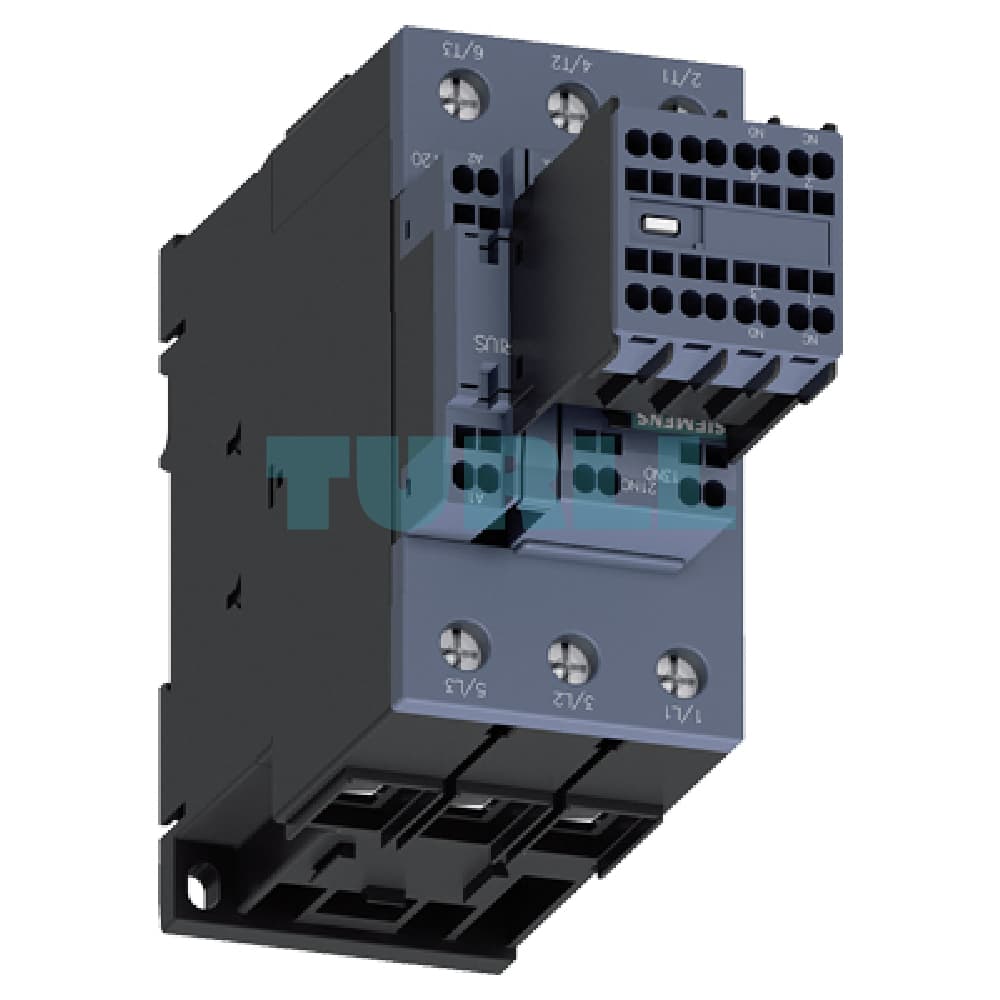

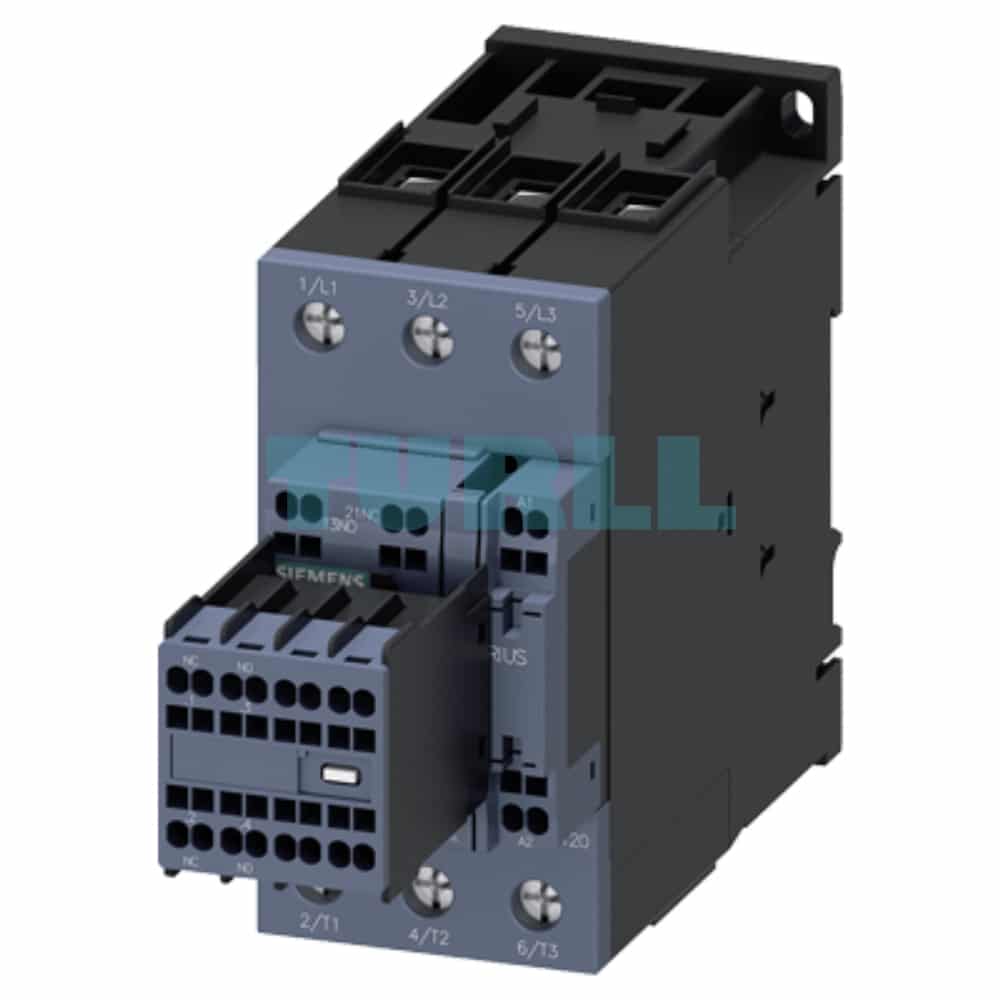

Siemens 3RT2037-3AF04 SIRIUS Power Contactor, S2, 65A, 30kW, 110V AC, Screw/Spring Terminals Original Brand New

Overview

The Siemens 3RT2037-3AF04 is a high-performance SIRIUS series power contactor designed for reliable and efficient switching of electric motors and other loads. This 3-pole contactor is rated for AC-3e/AC-3 operation up to 65 A and 30 kW at 400 V, making it suitable for a wide range of industrial applications. Its compact size S2 design ensures it fits into space-constrained control panels without compromising performance.

Key Features & Specification

• Product Number: 3RT2037-3AF04
• Type: Power Contactor
• Series: SIRIUS
• Rated Current (AC-3e/AC-3): 65 A
• Rated Power (AC-3e/AC-3): 30 kW at 400 V
• Poles: 3-pole
• Operating Voltage: 110 V AC, 50 Hz
• Auxiliary Contacts: 2 NO (Normally Open) + 2 NC (Normally Closed)
• Main Circuit Connection: Screw Terminal
• Control & Auxiliary Circuit Connection: Spring-Loaded Terminal
• Size: S2
• Special Feature: Removable Auxiliary Switch

Benefit

• High Performance: Capable of handling significant loads up to 65A and 30kW, ideal for demanding industrial machinery.
• Reliable Operation: Designed for longevity and consistent performance in harsh industrial environments.
• Flexible Connectivity: Combines robust screw terminals for the main circuit with fast and secure spring-loaded terminals for control wiring, simplifying installation and maintenance.
• Space-Saving Design: The compact S2 size helps to optimize panel space, reducing the overall footprint of your control system.
• Easy Maintenance: The removable auxiliary switch allows for quick and easy modification or replacement without needing to dismantle the entire contactor.
• Versatile Application: Suitable for a variety of applications including motor control, resistive load switching, and more.

Function

The Siemens 3RT2037-3AF04 functions as an electromechanical switch. When the 110 V AC control voltage is applied to its coil, it creates a magnetic field that closes the main contacts, allowing current to flow to the connected load. When the control voltage is removed, the contacts open, interrupting the circuit. The integrated auxiliary contacts (2 NO + 2 NC) can be used for feedback signals, interlocking circuits, or other control functions, enhancing the safety and automation of the system.

Application

This power contactor is ideal for use in:

• Motor control centers (MCCs)
• Pump and fan control systems
• Heating, ventilation, and air conditioning (HVAC) systems
• Industrial automation and machinery
• Conveyor systems
• General load switching applications
