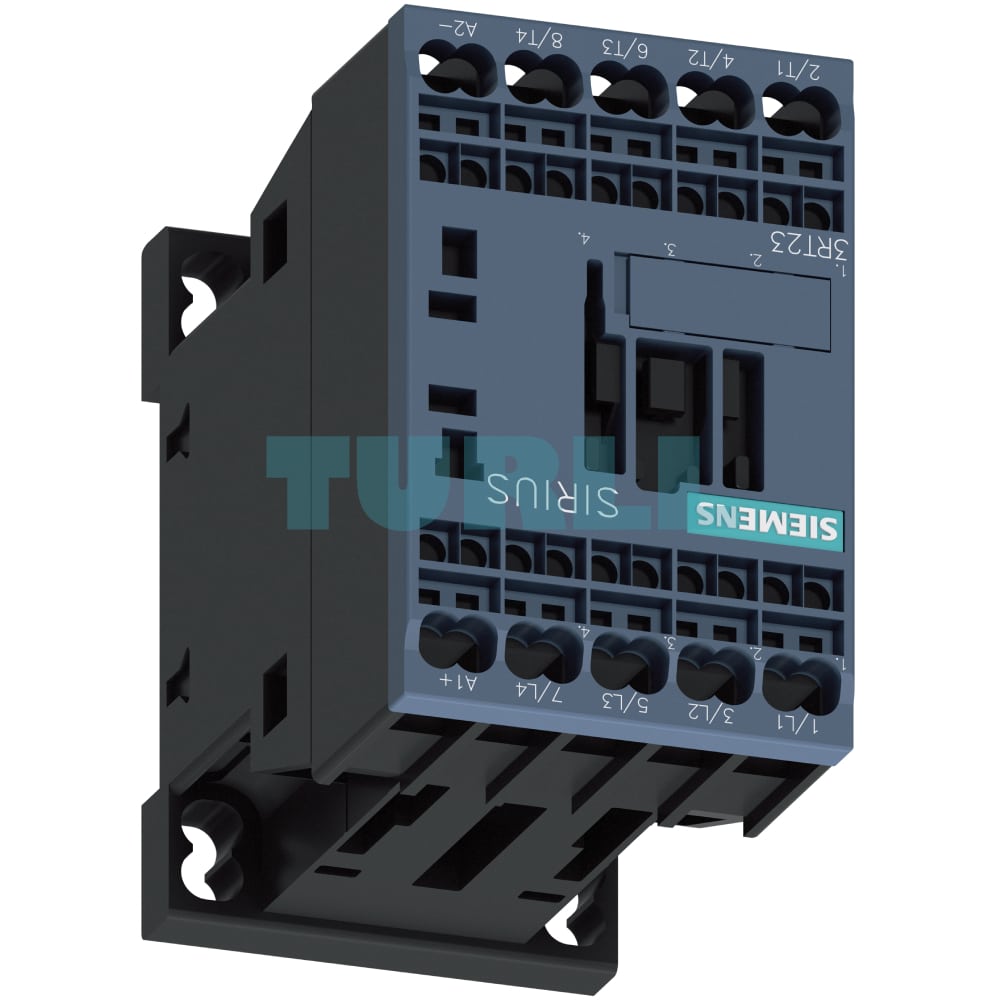

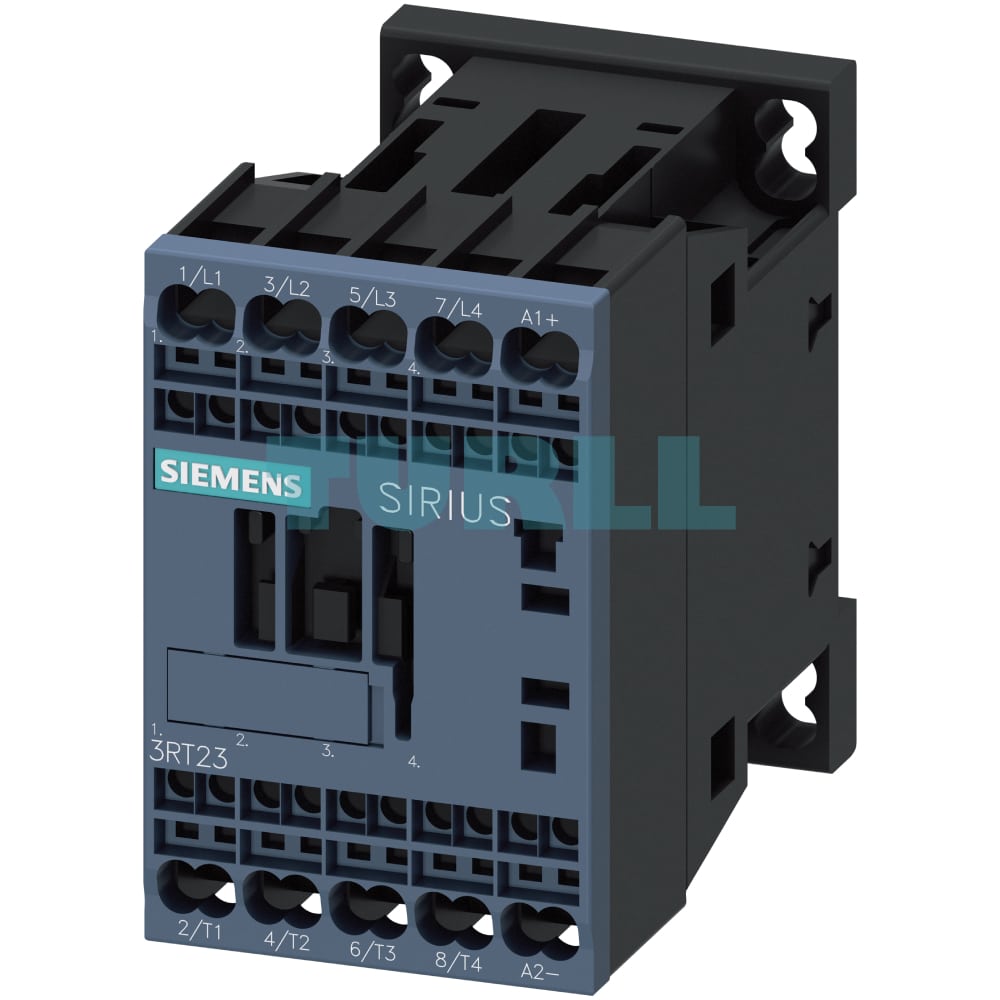

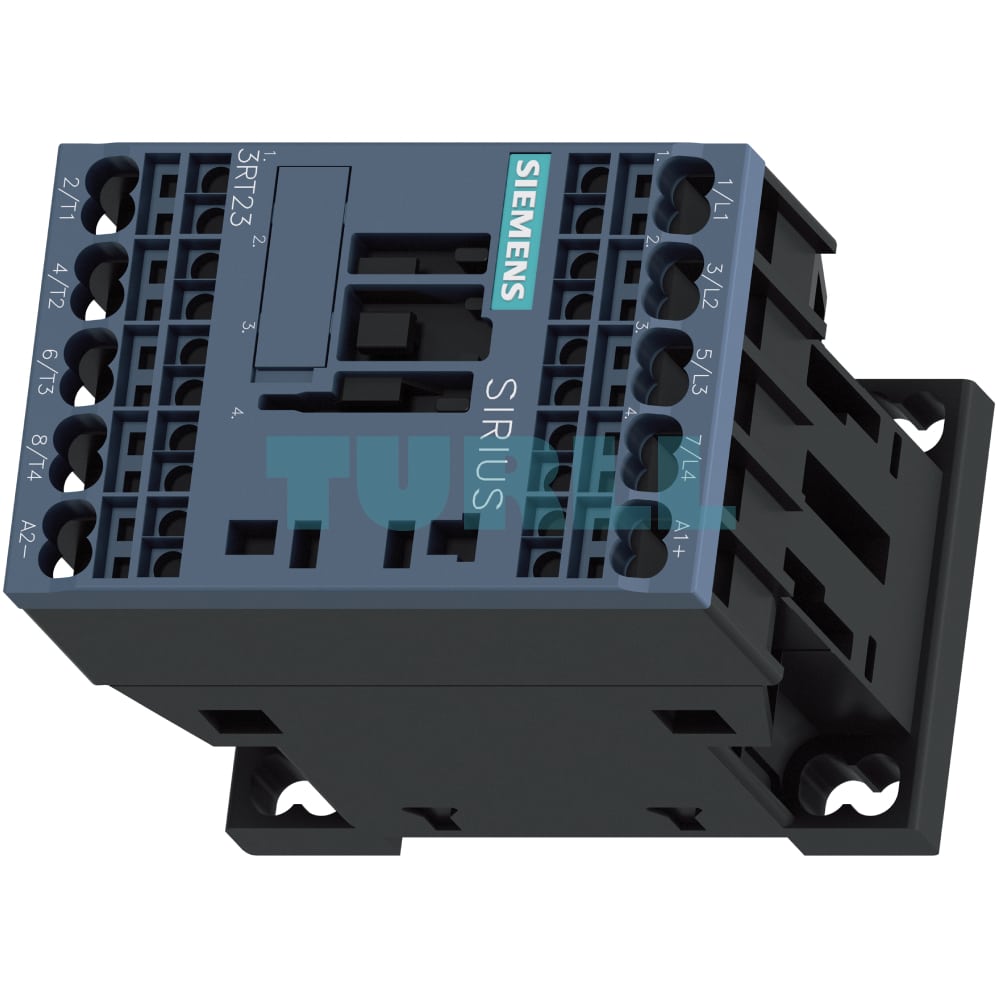

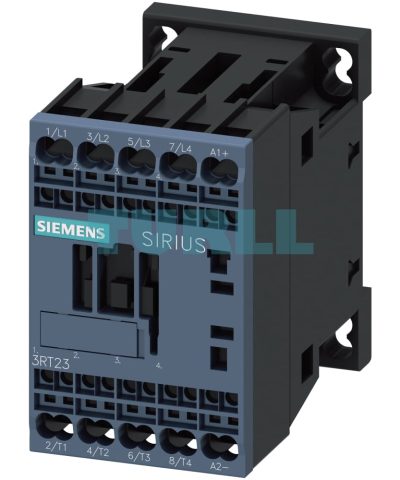

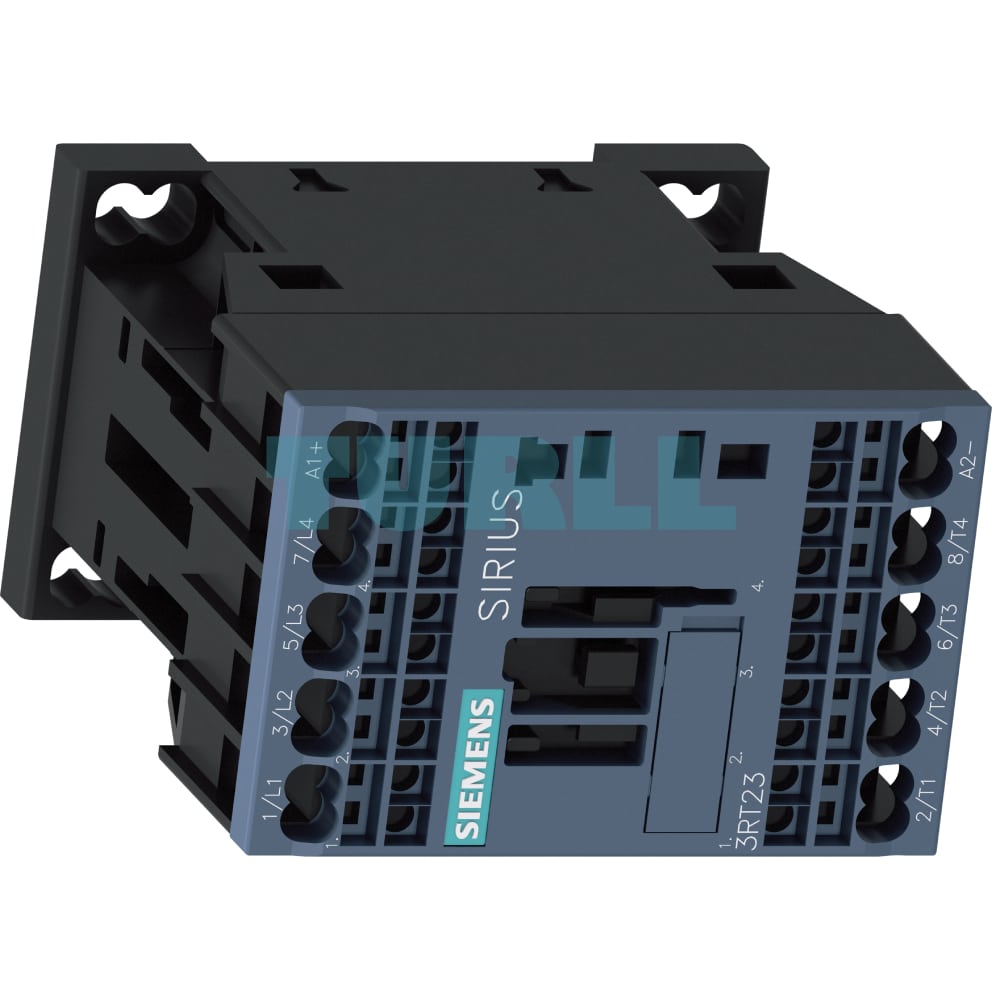

Siemens 3RT2316-2BF40 Contactor: 4-Pole AC-1, 18A, 110V DC, Spring-Loaded Terminal Original Brand New

Overview

The Siemens SIRIUS 3RT2316-2BF40 contactor is part of the trusted 3RT23 series, engineered for demanding industrial environments. This 4-pole AC-1 contactor is specifically suited for switching resistive loads, non-inductive loads, and for applications like disconnecting loads or power generation plants from the grid, and transfer switching. Its compact S00 size makes it ideal for space-constrained installations, while the spring-loaded terminals simplify wiring and enhance connection reliability.

Key Features & Function

• 4-Pole AC-1 Contactor: Designed for switching non-inductive or weakly inductive loads (AC-1 category).
• High Current Rating: Handles up to 18 A at 400 V and 40 °C, suitable for various power switching needs.
• 110 V DC Operating Coil: Ensures reliable control with a DC supply voltage.
• Spring-Loaded Terminals: Provides fast, secure, and vibration-resistant connections, reducing wiring time and maintenance.
• Compact Size S00: Optimizes panel space, allowing for more efficient system designs.
• Integrated Auxiliary Contact: The basic unit includes one integrated auxiliary contact for signaling or interlocking functions.
• Modular Design: Expandable with additional auxiliary switches for increased functionality.
• Standards Compliance: Conforms to IEC 60947-1, IEC 60947-4-1, and IEC 60947-5-1 (for auxiliary switches), ensuring international compatibility and safety.
• Electromagnetic Compatibility (EMC): Fulfills requirements for environment category A.
• Motor Protection Integration: Compatible with Siemens 3RU2 thermal overload relays or 3RB3 electronic overload relays for comprehensive motor protection (when used with motors).
• Coil Replacement Capability: The solenoid coil can be replaced, extending the lifespan of the contactor.

Benefit

• Enhanced Reliability: Robust design and adherence to international standards ensure dependable operation in industrial settings.
• Space Saving: Compact S00 size allows for high-density installations in control cabinets.
• Reduced Wiring Time: Spring-loaded terminals offer quick and easy installation, leading to cost savings.
• Versatile Application: Ideal for a wide range of AC-1 switching applications, including load disconnection, power generation, and transfer switching.
• Improved Safety: Features like short-circuit and overload protection considerations, and optional surge suppressors, contribute to safer operation.
• Longer Service Life: Replaceable solenoid coil extends the operational life of the contactor, reducing total cost of ownership.
• System Integration: Seamless compatibility with Siemens SIRIUS control components for comprehensive automation solutions.

Application

The Siemens 3RT2316-2BF40 contactor is ideally suited for:

• Four-pole switching of weak or non-inductive loads (AC-1 applications)
• Disconnecting loads or power generation plants from the electrical grid
• Transfer switching applications
• General industrial control circuits requiring reliable switching of resistive loads
• Integration into control panels, machinery, and automation systems
