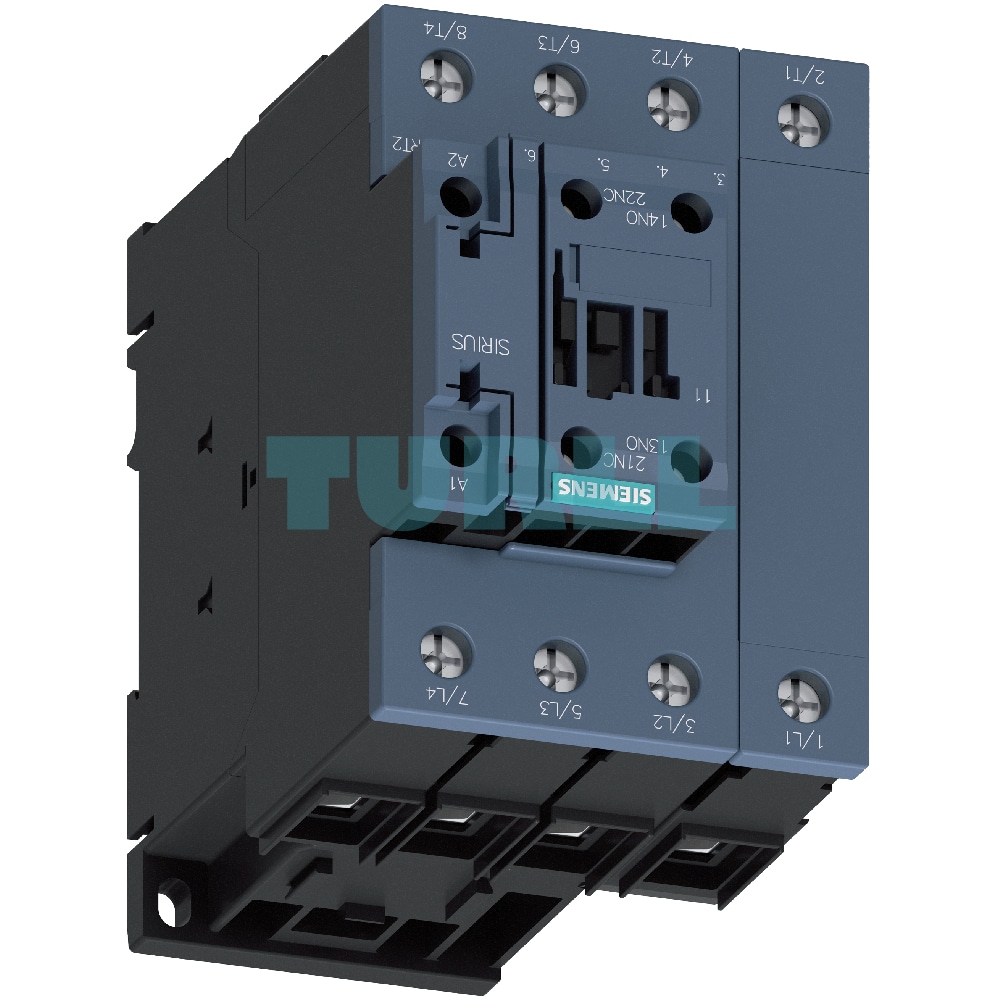

Siemens 3RT2337-1AP00 Contactor, 4-Pole, AC-1, 110A, 230V AC, S2 Size, Screw Terminal Original Brand New

Siemens SIRIUS 3RT2337-1AP00 Contactor: Reliable 4-Pole Switching for AC-1 Applications

The Siemens 3RT2337-1AP00 is a high-performance 4-pole contactor from the SIRIUS 3RT2 series, specifically designed for switching of non-inductive or weakly inductive loads (AC-1). With a robust current rating of 110 A at 400 V / 40 °C, this S2-sized contactor provides dependable control in various industrial and commercial applications. Its 230 V AC, 50 Hz coil ensures reliable operation, while the integrated 1 NO + 1 NC auxiliary contacts offer versatile signaling and interlocking capabilities. Featuring convenient screw terminals, installation and wiring are straightforward and secure.

Overview

The Siemens 3RT2337-1AP00 contactor is engineered to meet stringent international standards, including IEC 60947-1, IEC 60947-4-1, and IEC 60947-5-1 for auxiliary switches, ensuring high levels of safety and performance. This component is an essential part of robust electrical control systems, facilitating efficient management of power circuits for applications such as disconnecting loads or power generation plants from the grid, and transfer switching.

Key Benefit

• Optimized for AC-1 Applications: Specifically designed for switching of non-inductive or weakly inductive loads, ensuring efficient and reliable operation for heating systems, resistive loads, and general power distribution.
• High Current Capacity: Rated for 110 A (AC-1) at 400 V / 40 °C, suitable for demanding applications requiring significant power handling.
• Integrated Auxiliary Contacts: Includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contact, providing immediate feedback on contactor status and enabling complex control schemes.
• Robust and Reliable: Built to Siemens’ renowned quality standards, ensuring long-term performance and durability in challenging industrial environments.
• Easy Installation: Features secure screw terminals for straightforward and reliable wiring connections.
• Standards Compliant: Adheres to key international electrical standards (IEC 60947 series) for peace of mind regarding safety and performance.
• Flexible Protection Options: Supports various protection methods for main, auxiliary, and control circuits, including short-circuit and overload protection, and options for overvoltage damping.

Function

• 4-Pole Switching: Enables simultaneous control of four independent circuits, making it ideal for multi-phase systems or applications requiring multiple switching points.
• Load Disconnection: Effectively disconnects non-inductive or weakly inductive loads from the main power supply.
• Grid Isolation: Can be used to safely isolate power generation plants from the electrical grid.
• Transfer Switching: Facilitates seamless transfer between different power sources or loads.
• Control Circuit Integration: Auxiliary contacts allow for interlocking, signaling, and integration into complex control and automation systems.

Connection Methods:

• Main Circuit: Screw terminals with box terminal. Direct connection to the connecting bar is possible with cable lugs when the box terminal is removed.
• Auxiliary and Control Circuit: Screw terminals.

Protection and Safety:

• Short-circuit and Overload Protection: All connections must be protected using suitable measures. Refer to technical product data sheets and configuration manuals for detailed guidance on protecting main, auxiliary, and control supply voltage connections.
• Overvoltage Protection: Can be retrofitted with RC elements, varistors, diodes, or diode assemblies for damping opening surges in the coil (accessories sold separately). Note that damping increases contactor break times and contact delay times.

Motor Protection Compatibility:

While primarily for AC-1 applications, the 3RT23 contactors can be combined with 3RU2 thermal overload relays or 3RB3 electronic overload relays for protection against overload when used in configurations involving motor-driven loads (AC-3).

Maintenance and Accessories:

• Solenoid Coil Replacement: Possible for this model.
• Auxiliary Switches: The basic unit comes with two integrated auxiliary contacts (1 NO + 1 NC) and can be expanded with additional auxiliary switches, adhering to permissible configurations.
• Accessories and Spare Parts: A wide range of accessories and spare parts are available for the SIRIUS 3RT2 contactors (refer to relevant accessory overviews for details).

Application

The Siemens 3RT2337-1AP00 contactor is an ideal choice for:

• Four-pole switching of weak or non-inductive loads (AC-1)
• Disconnecting loads from the electrical grid
• Isolating power generation plants from the grid
• Transfer switching applications
