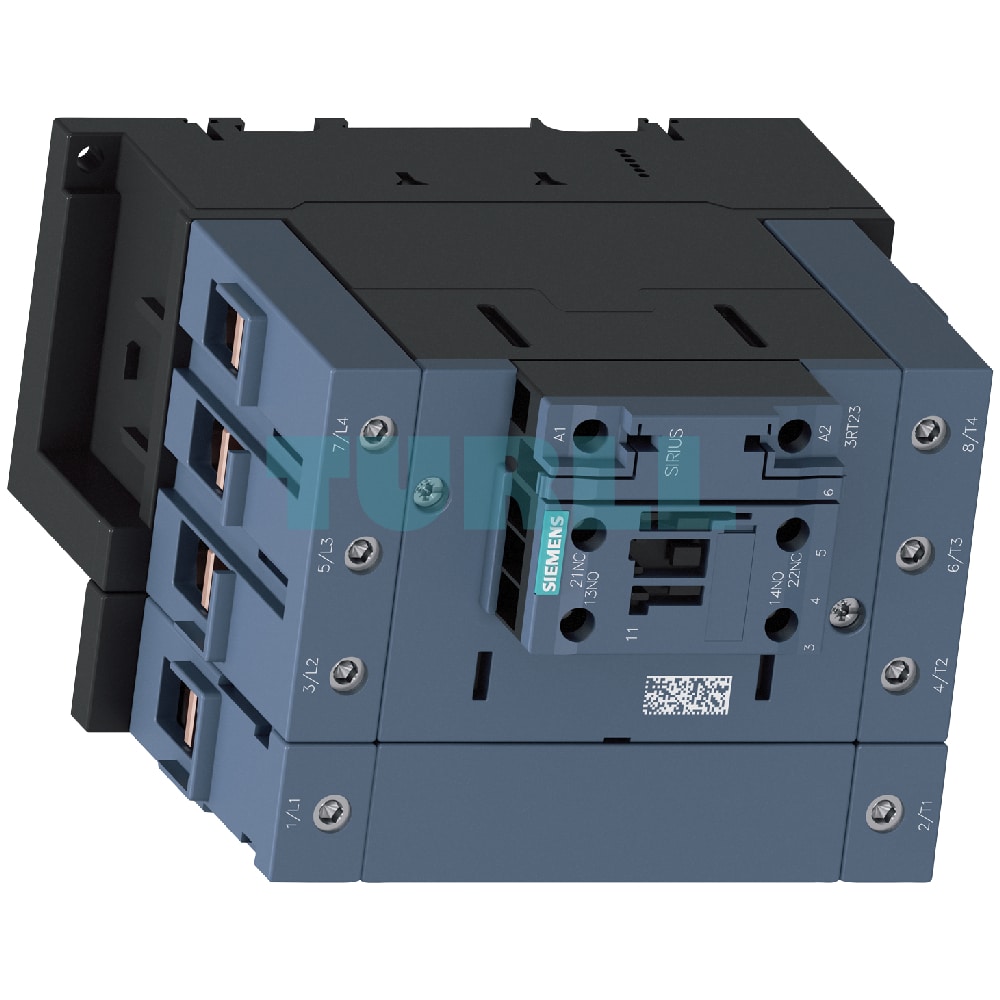

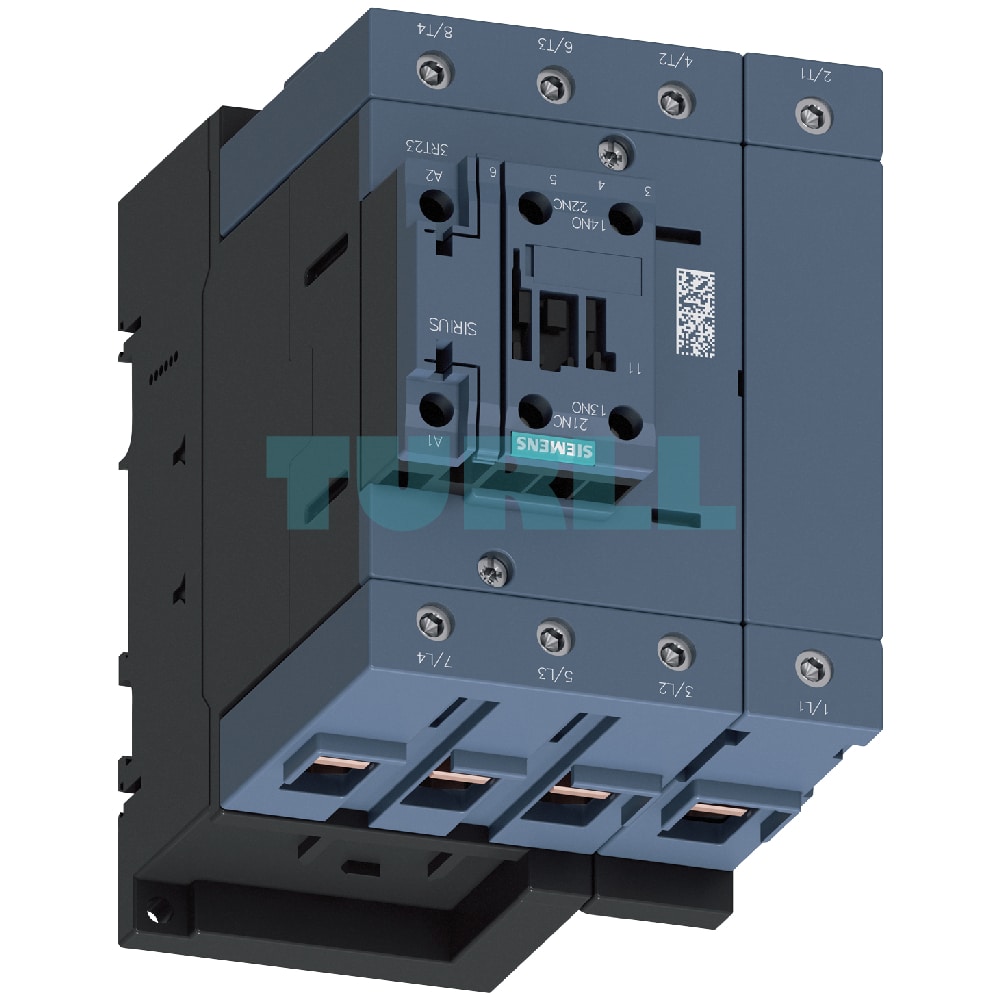

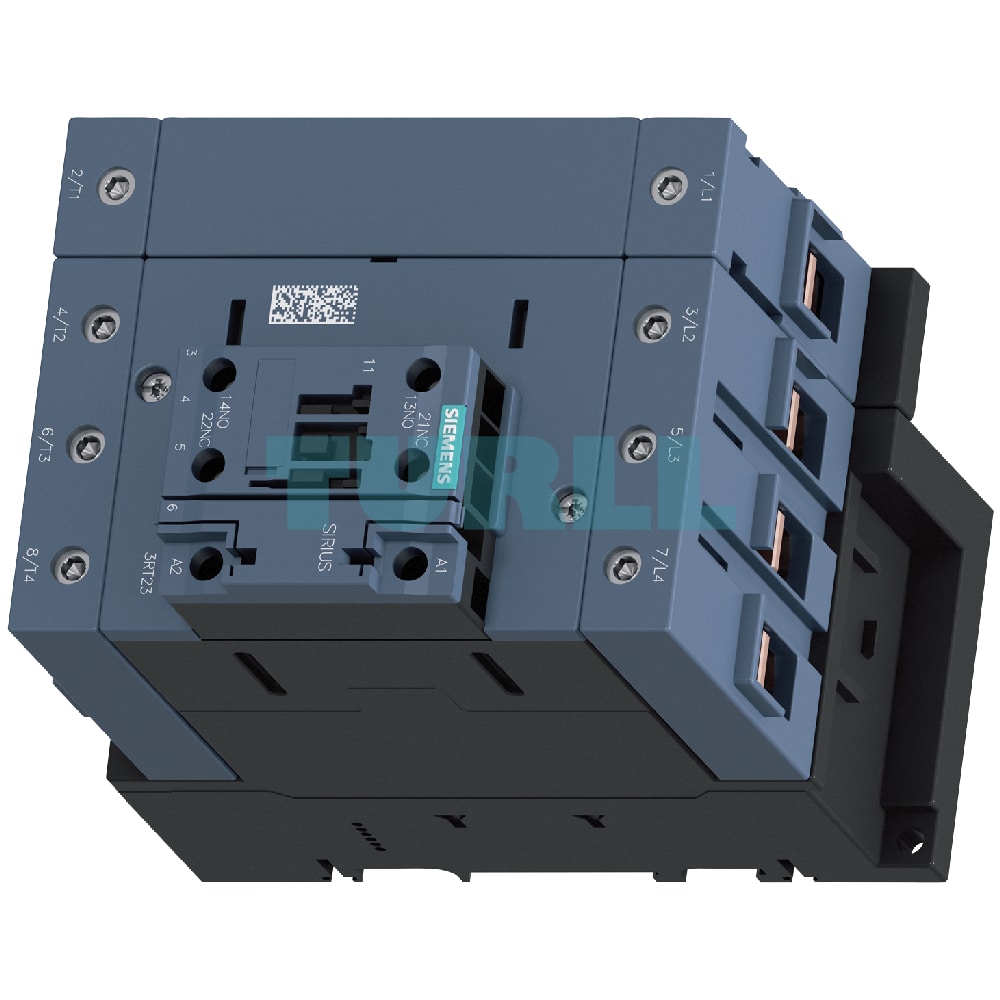

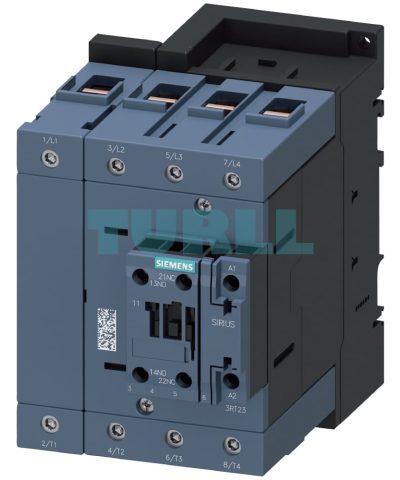

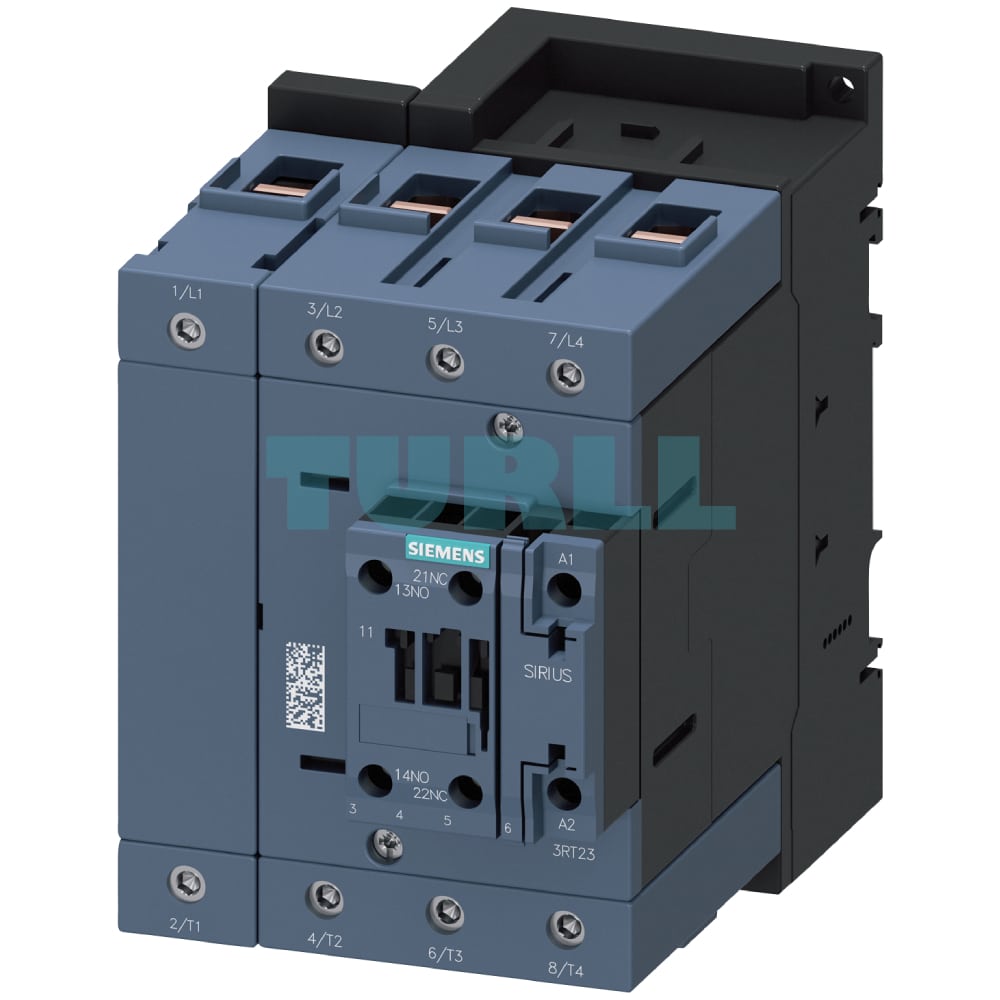

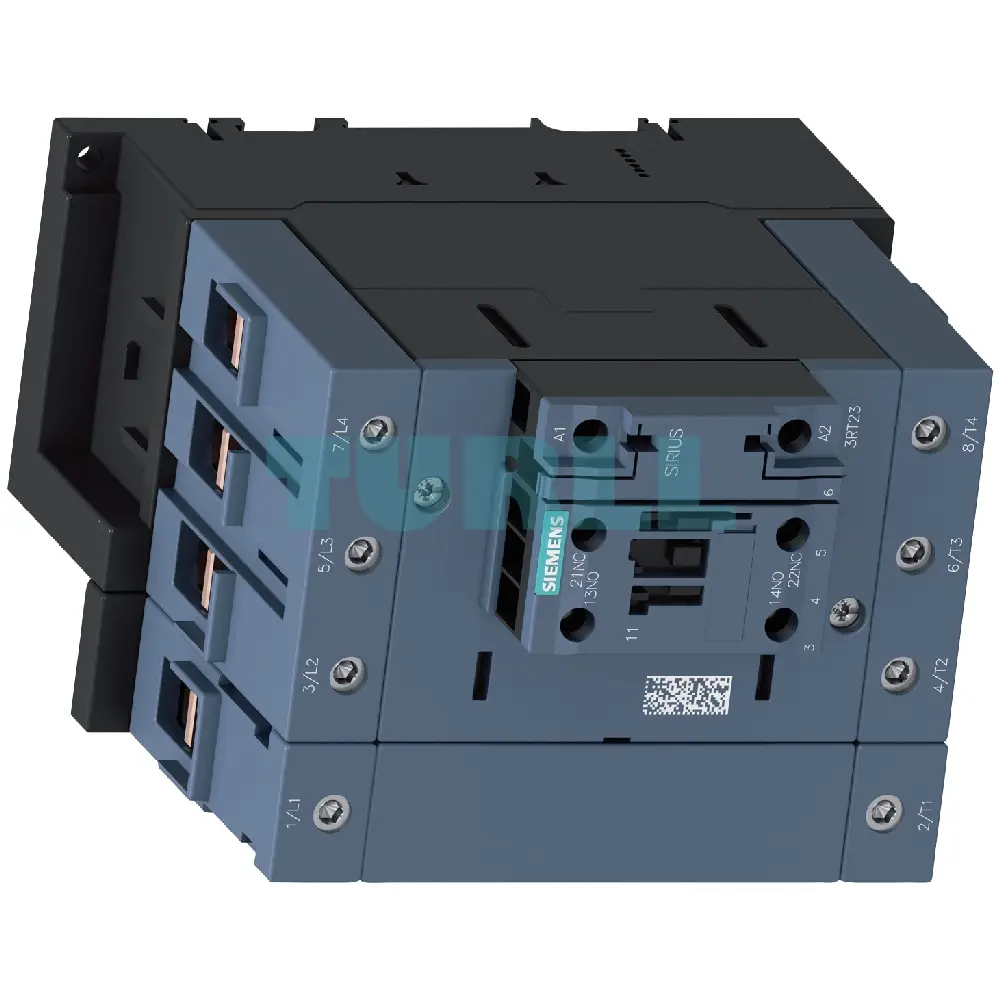

Siemens SIRIUS 3RT2346-1NB30-4AA0 Power Contactor AC-3, 95A, 45kW, 4-Pole, 20-33V AC/DC Original Brand New

Overview

The Siemens SIRIUS 3RT2346-1NB30-4AA0 is a high-performance 4-pole power contactor designed for switching AC-3 loads up to 95 A (45 kW at 400 V). Part of the robust SIRIUS 3RT23 series, this contactor offers exceptional reliability and a wide range of applications, including the switching of weak or non-inductive loads (AC-1), disconnecting loads or power generation plants from the grid, and transfer switching. Its compact Size S3 design and integrated varistor for surge suppression make it a versatile and dependable choice for industrial control systems.

Key Features & Function

• High Power Rating: Capable of switching 95 A (AC-3) and 45 kW at 400 V, suitable for demanding motor control applications and resistive loads.
• 4-Pole Configuration: Provides four main power poles for comprehensive circuit control.
• Wide Operating Voltage: Features a universal 20-33 V AC/DC control supply voltage (50/60 Hz), offering flexibility in control circuit design.
• Integrated Varistor: Comes with a pre-installed varistor for effective damping of opening surges in the coil, enhancing product longevity and system stability.
• Auxiliary Contacts: Includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contact for feedback and control circuit integration. These contacts are highly reliable, even for low voltages (≤ 110 V) and currents (≤ 100 mA), making them ideal for solid-state circuits.
• Screw Terminals: Equipped with robust screw terminals for secure and straightforward wiring of both main and auxiliary circuits.
• Compact Size S3: Optimized for space-saving installation within control panels.
• Compliance: Manufactured in accordance with international standards, including IEC 60947-1, IEC 60947-4-1, and IEC 60947-5-1 (for auxiliary switches), ensuring safety and interoperability.

Benefit

• Enhanced System Reliability: The integrated varistor protects the control coil from voltage spikes, contributing to a more stable and reliable operation of your electrical system.
• Flexible Application: Suitable for a broad spectrum of applications, from general-purpose switching of non-inductive loads to specific motor control tasks, and grid connection/disconnection.
• Easy Integration: Standardized design, versatile control voltage, and readily available auxiliary contacts simplify integration into new or existing control panels.
• Robust Construction: Built to Siemens’ high-quality standards, ensuring a long mechanical service life and reliable performance in demanding industrial environments.
• Simplified Protection: Designed for easy integration with Siemens SIRIUS 3RU2 thermal overload relays or 3RB3 electronic overload relays for comprehensive motor protection.
• User-Friendly Installation: Screw terminals offer a secure and well-understood connection method, simplifying installation and maintenance.

Application

The Siemens 3RT2346-1NB30-4AA0 power contactor is ideal for various industrial applications, including:

• Switching of non-inductive or weakly inductive loads (AC-1)
• Motor control and starting (AC-3)
• Disconnecting power generation plants or other loads from the electrical grid
• Transfer switching applications
• Industrial automation and control panels

Accessories and Protection:

For comprehensive protection and expanded functionality, consider integrating the 3RT2346-1NB30-4AA0 with:

• Overload Protection: Siemens 3RU2 thermal overload relays or 3RB3 electronic overload relays.
• Auxiliary Switches: Additional instantaneous auxiliary switches can be easily mounted for expanded control circuit options.
• Surge Suppressors: While a varistor is integrated, additional surge suppressors (RC elements, diodes) are available as accessories for extreme conditions if required for other circuits.
