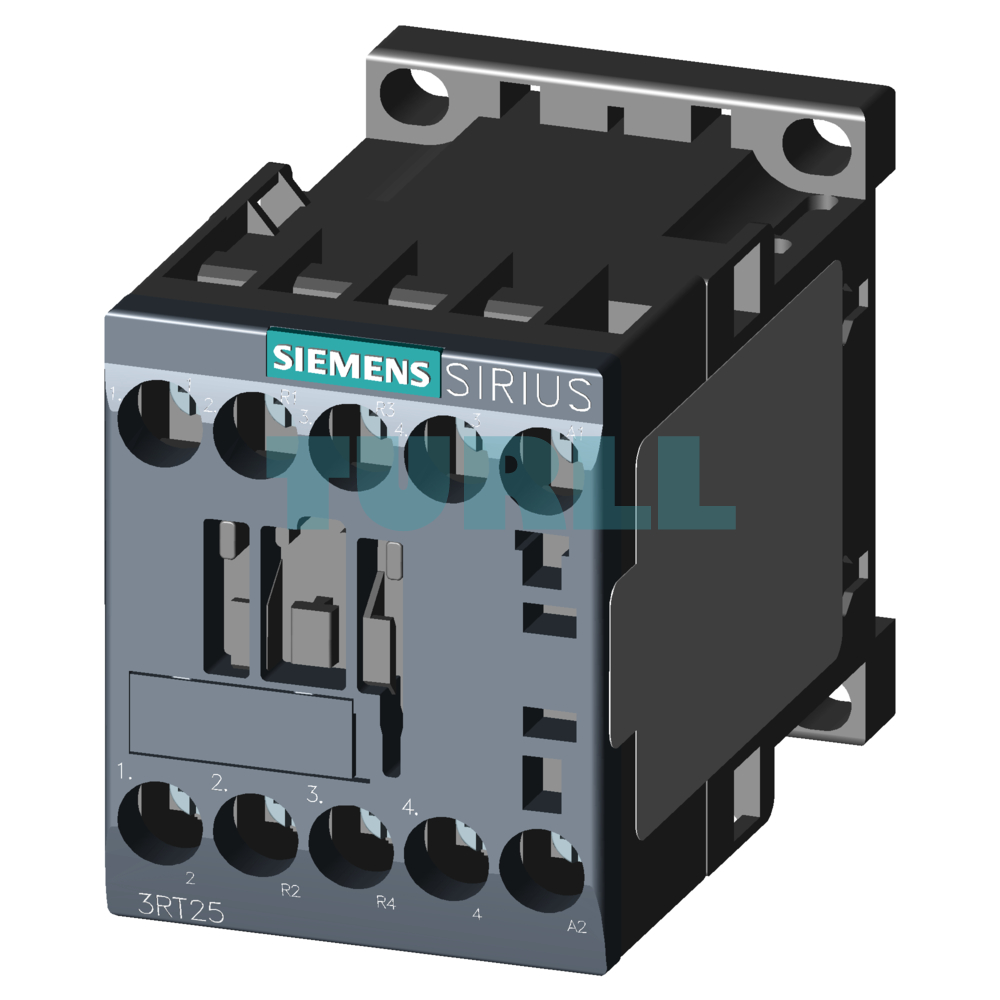

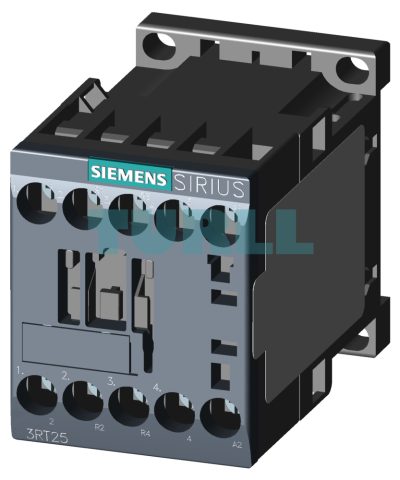

Siemens 3RT2518-1AP60 Power Contactor 16A, 7.5kW, 4-Pole, AC-3 Original Brand New

Overview

The Siemens 3RT2518-1AP60 is a high-performance power contactor from the SIRIUS 3RT2 series, designed for reliably switching motors, heating elements, and general loads in industrial applications. This compact 4-pole contactor is rated for AC-3 operation at 16 A and a maximum motor power of 7.5 kW at 400 V. Its small Size S00 form factor makes it ideal for space-saving installations in control panels. Equipped with reliable screw terminals for easy wiring, this contactor offers durability and a long electrical service life.

Key Features & Benefit

• High Performance: Handles AC-3 loads up to 16 A and 7.5 kW / 400 V.

• Reliable Switching: 4-pole design with 2 NO + 2 NC main contacts for flexible control.

• Versatile Use: Suitable for 220 V AC (50 Hz) and 240 V AC (60 Hz) applications.

• Easy Installation: Screw terminal connections ensure safe and secure wiring.

• Durable Design: Built to withstand industrial operating conditions, ensuring long-lasting reliability.

Function and Application

The 3RT2518-1AP60 functions as an electromagnetic switch, primarily used for switching 3-phase AC motors (AC-3 duty) and other loads up to 16 A.

• Motor Switching: Ideal for starting and stopping motors in applications like pumps, fans, conveyors, and machinery control.

• Load Control: Can be used to switch heating, lighting, or capacitor banks.

• Isolation: The 4-pole design allows for double-break isolation or simultaneous control of multiple circuits.

Technical Specification

• Product Number: 3RT2518-1AP60

• Type: Power Contactor

• Poles: 4

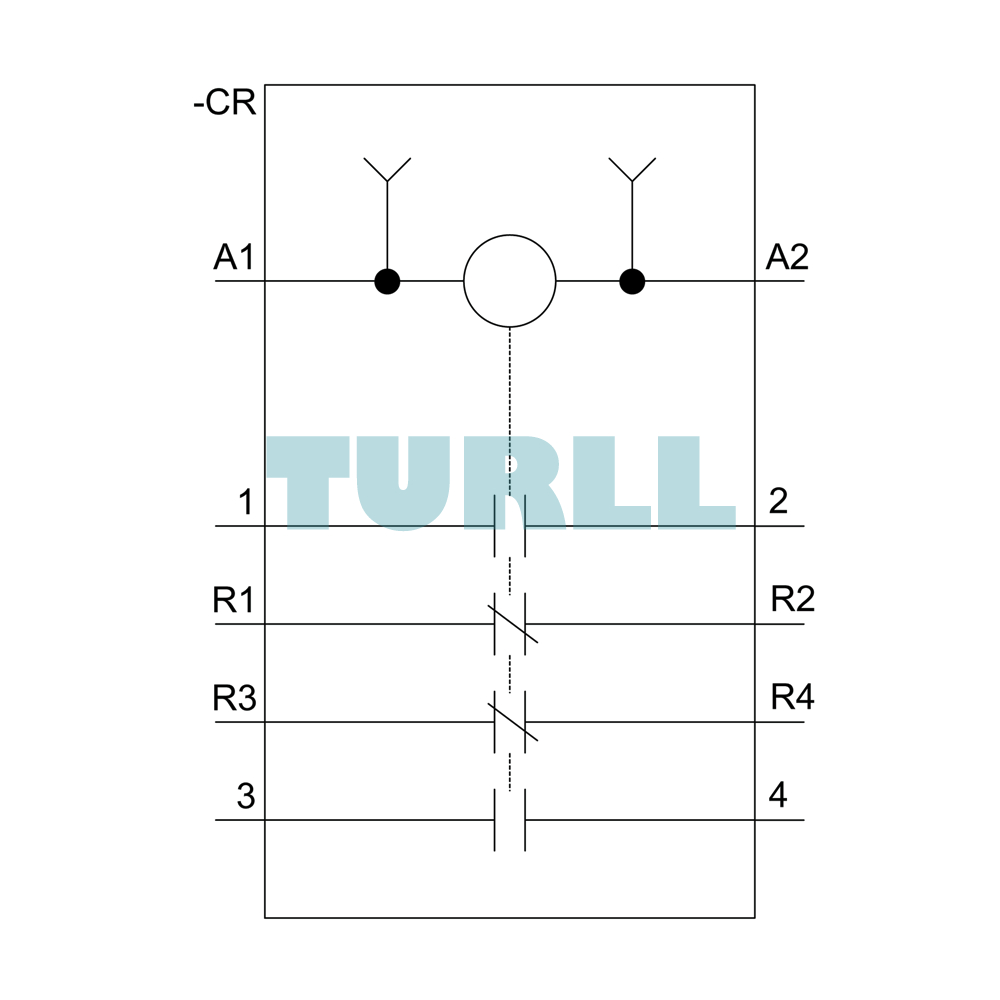

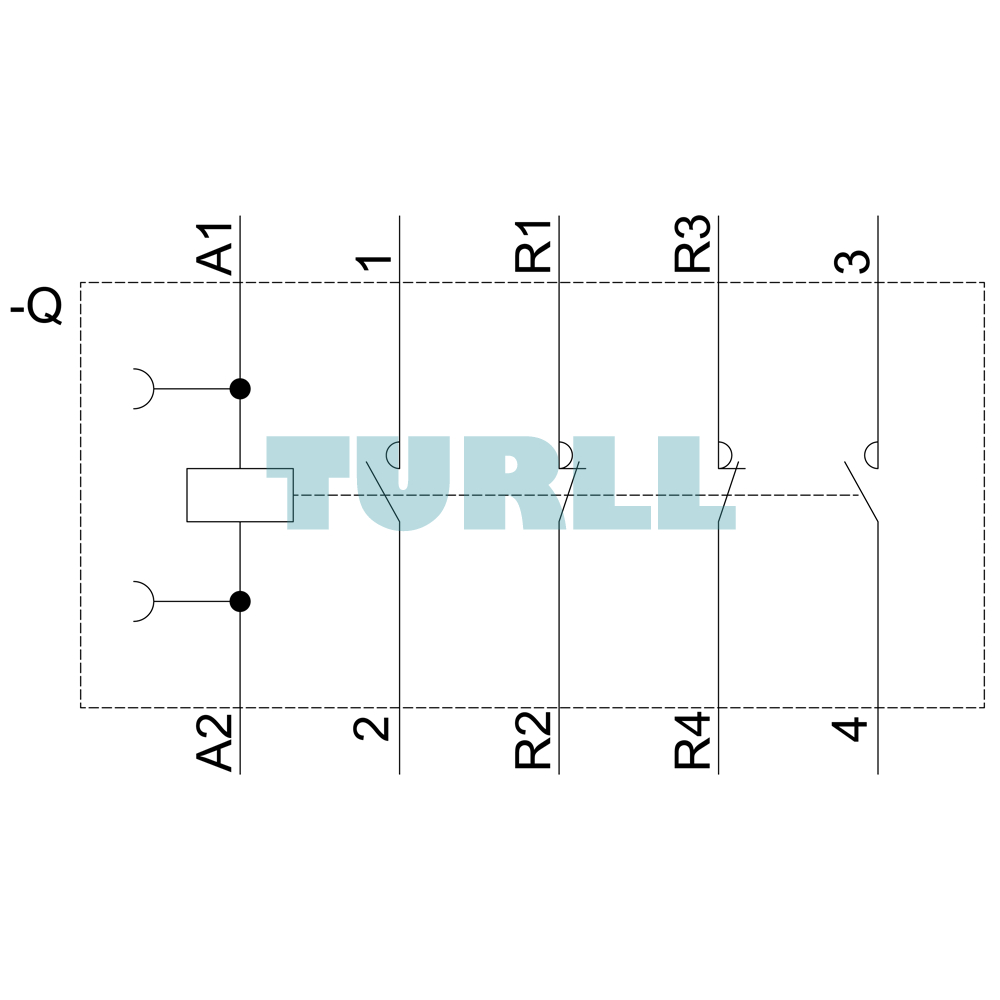

• Main Contacts: 2 NO + 2 NC

• Current Rating: 16 A (AC-3)

• Power Rating: 7.5 kW / 400 V

• Coil Voltage: 220 V AC, 50 Hz / 240 V AC, 60 Hz

• Connection: Screw terminal

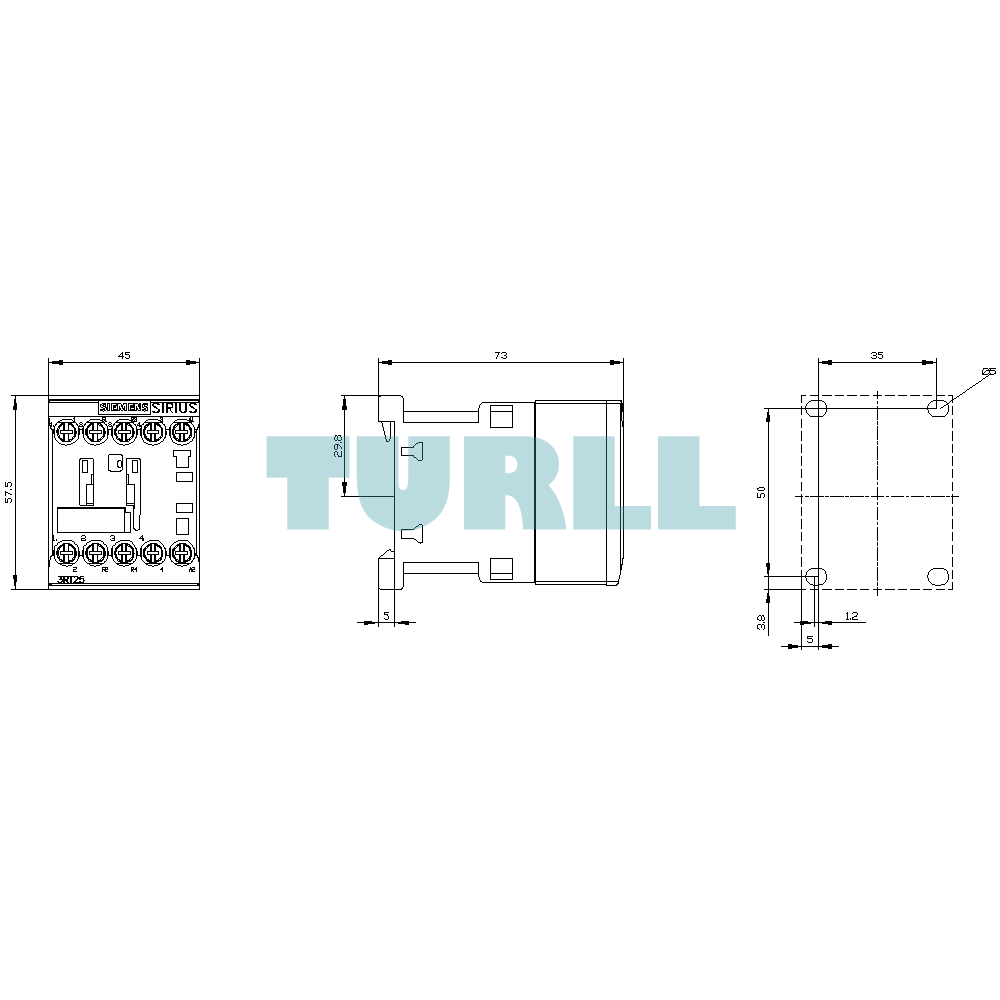

• Size: S00
