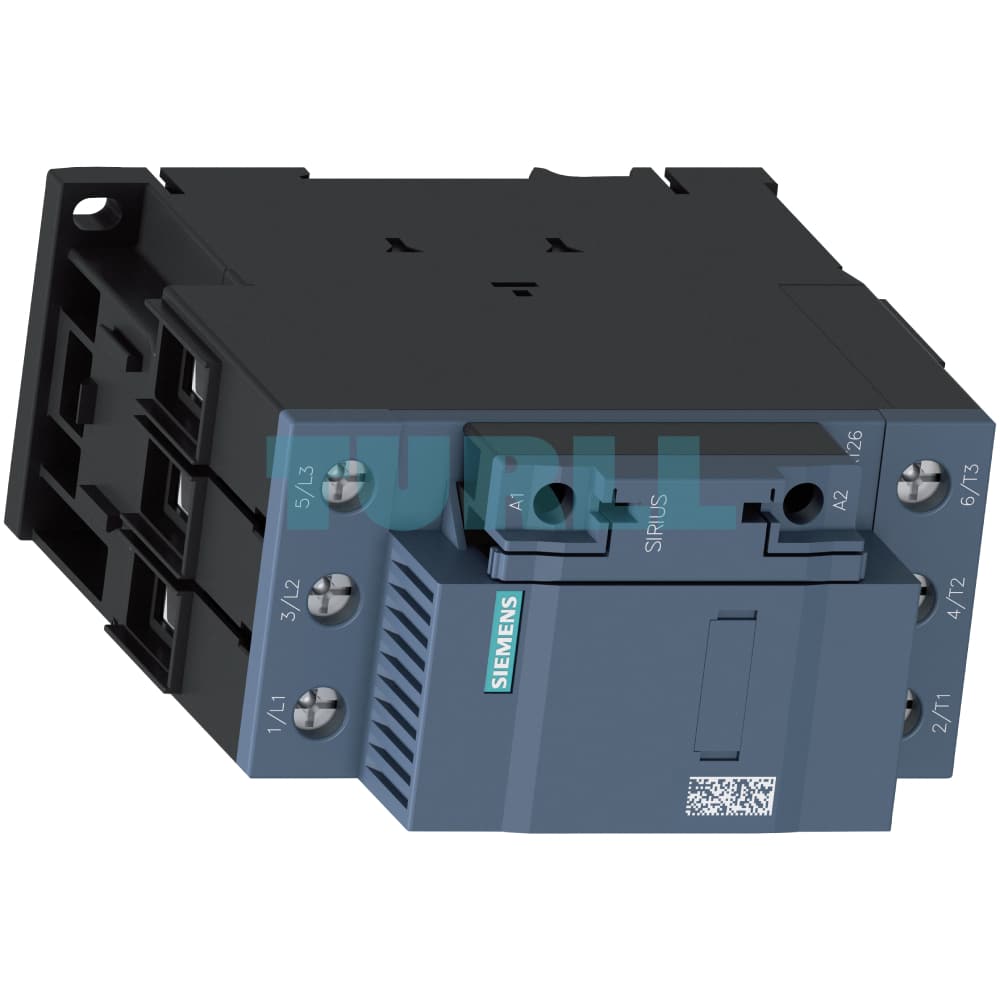

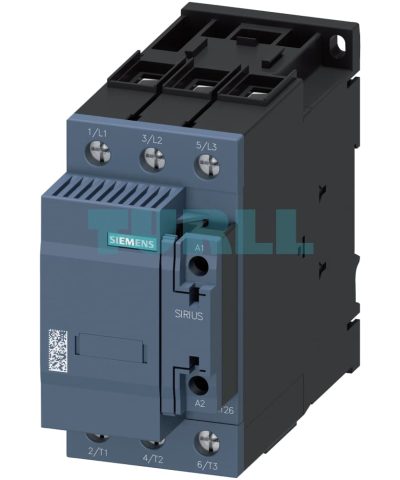

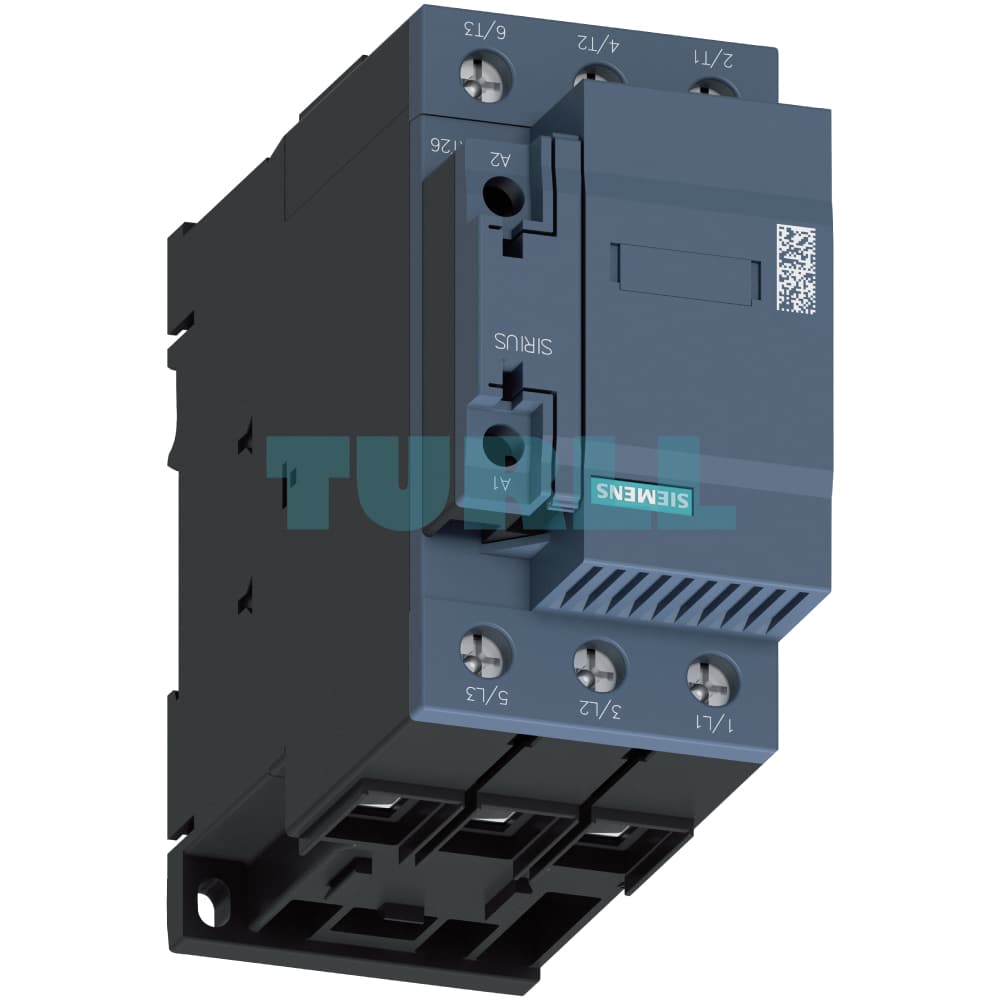

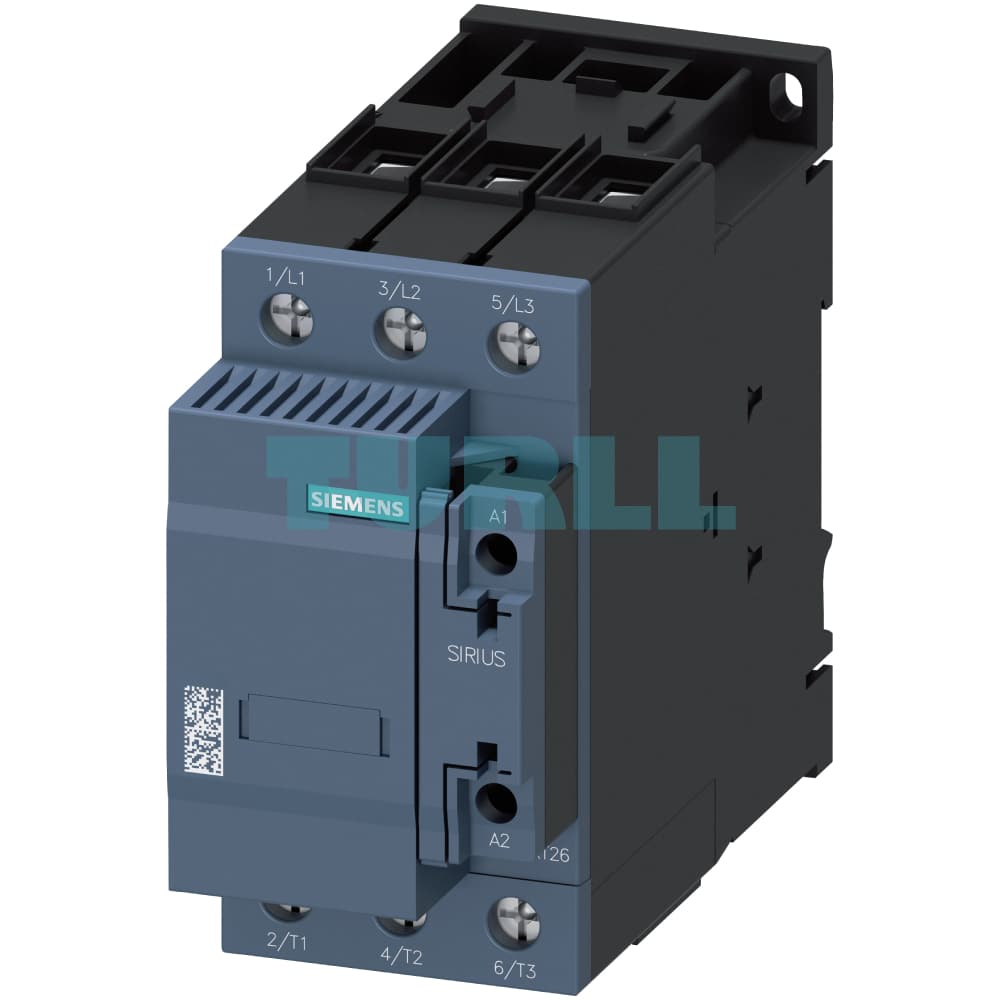

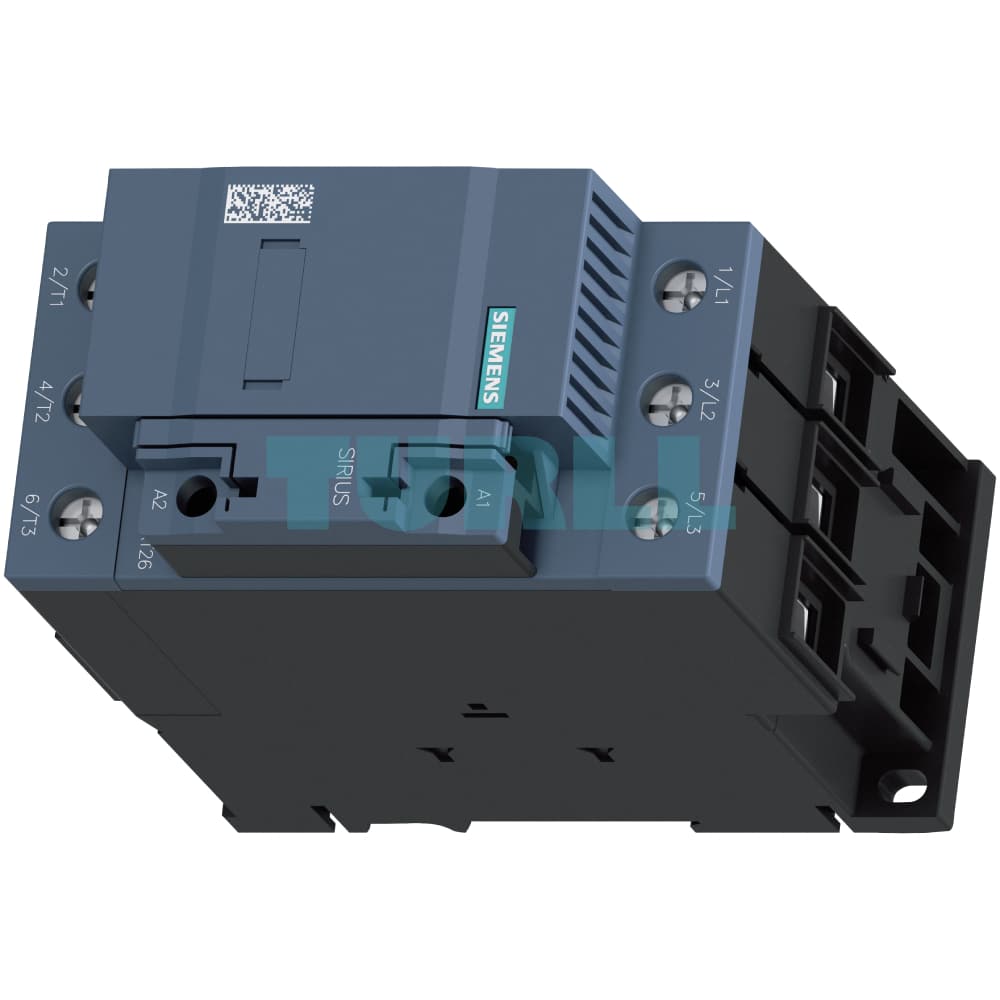

Siemens 3RT2637-1AP03 SIRIUS Capacitor Contactor, S2 Size, 75 kVAr, 230V AC, Screw Terminal Original Brand New

Overview

The Siemens 3RT2637-1AP03 is a high-performance SIRIUS capacitor contactor designed for switching capacitive loads in power factor correction systems. Part of the specialized 3RT2 series, this S2 size contactor is engineered to handle AC-6b loads up to 75 kVAr at 400V.

It features integrated precharging resistors, which are engaged by leading auxiliary contacts to limit inrush current peaks and protect the power supply network. With a 230V AC, 50 Hz control voltage, 1 NO + 1 NC auxiliary contacts, and reliable screw terminals, this contactor is a robust and essential component for managing reactive power.

Key Benefits

• Optimized for Capacitive Loads: Specifically designed for AC-6b switching, ensuring long-term reliability and performance in reactive power compensation systems.
• Minimizes Inrush Current: The unique design with precharging resistors effectively limits peak charging currents, protecting the power supply network and extending the lifespan of connected equipment.
• High-Quality Construction: Built to the stringent standards of IEC 60947 series, ensuring safety, durability, and consistent operation.
• Integrated Auxiliary Contacts: Features 1 NO + 1 NC auxiliary contacts for seamless integration into control circuits and signaling.
• Easy Installation: Equipped with robust screw terminals for secure and straightforward wiring.
• Versatile Application: Suitable for switching both choked and unchoked capacitors and for use in converter applications.

Functions and Features

• Capacitor Switching: Designed for the specific demands of switching capacitive loads (AC-6b), minimizing electrical stress on the system.
• Precharging Resistors: These resistors are switched on via leading auxiliary contacts just before the main contacts close.
• Control Voltage: Operates with a 230V AC, 50 Hz control supply voltage, compatible with standard industrial control systems.
• Terminal Type: Features secure screw terminals for main and auxiliary circuits.
• Size S2: A compact yet powerful design, ideal for space-constrained control panels.
• Standards Compliance: Fully compliant with a range of international standards, including IEC 60947-1, IEC 60947-4-1, IEC 60947-5-1, IEC 60831-1, and IEC 61921.
• Accessory Expandability: The 3RT2637-1AP03 can be expanded with additional lateral auxiliary switches and surge suppressors for enhanced functionality.
