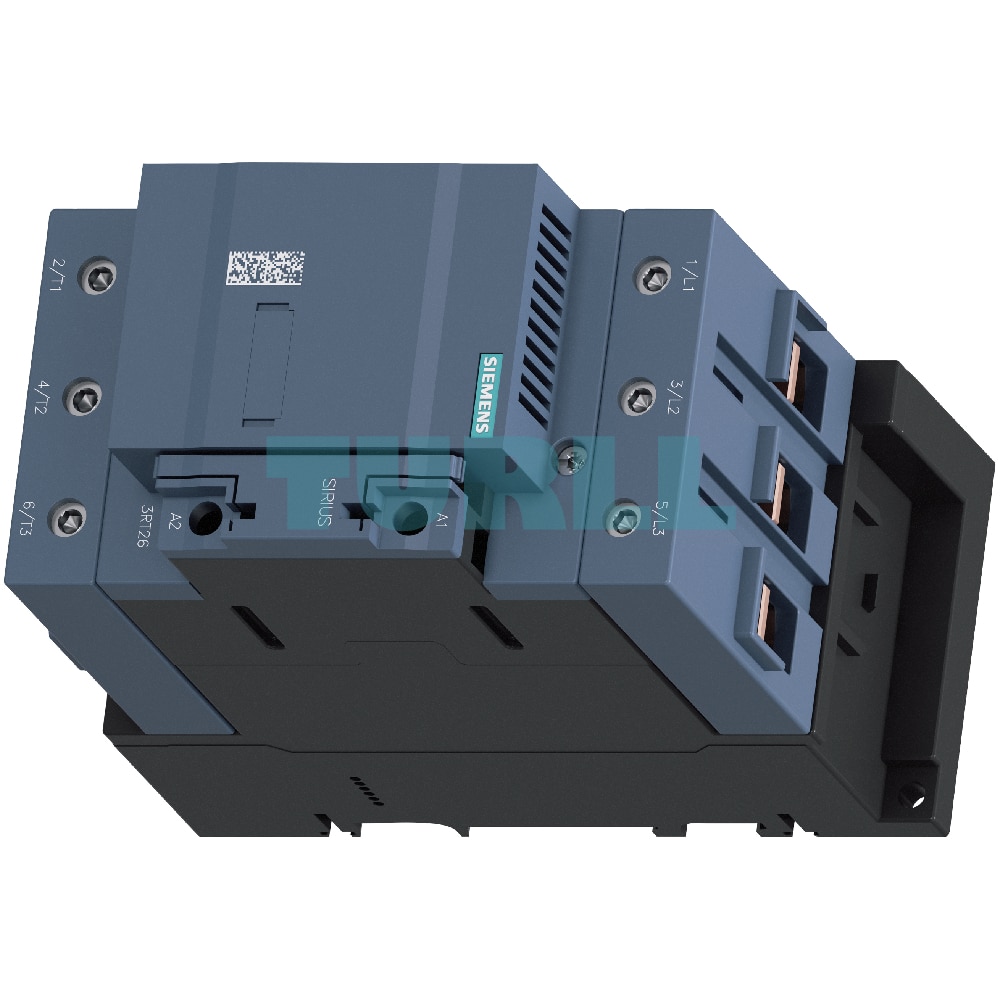

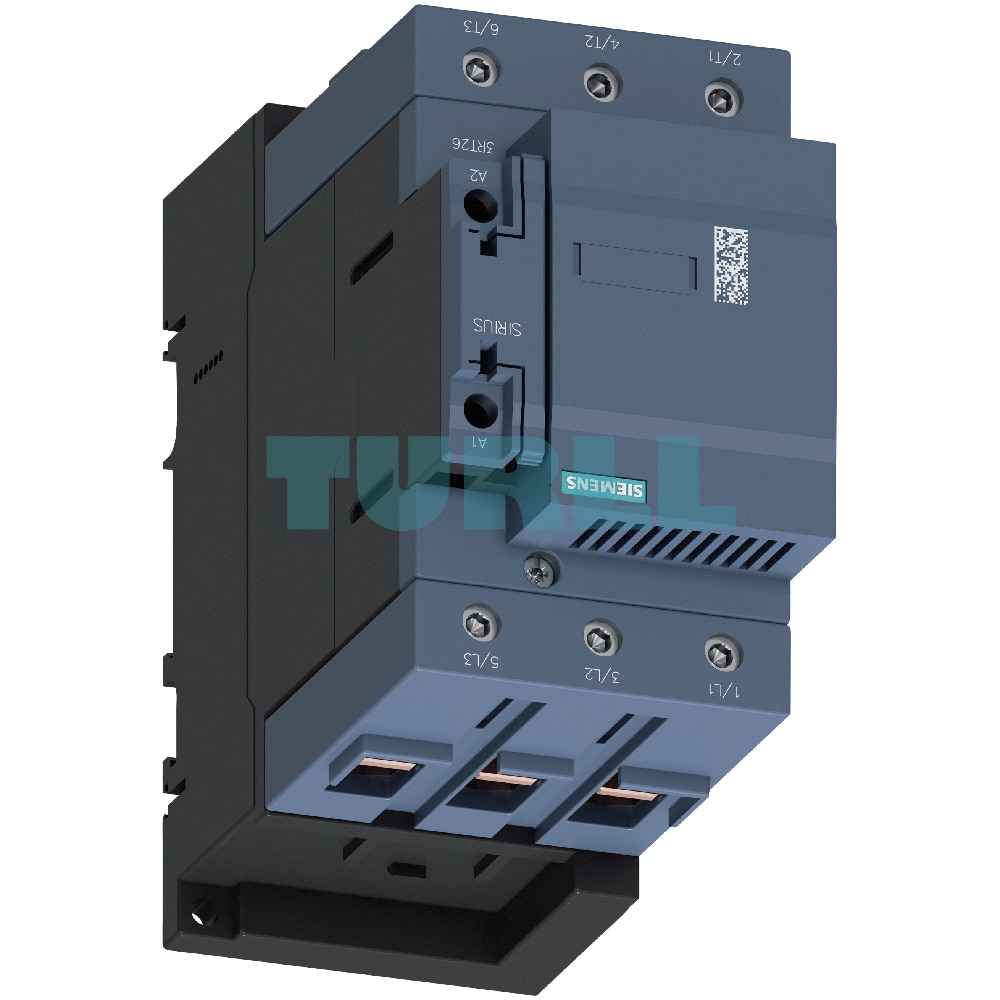

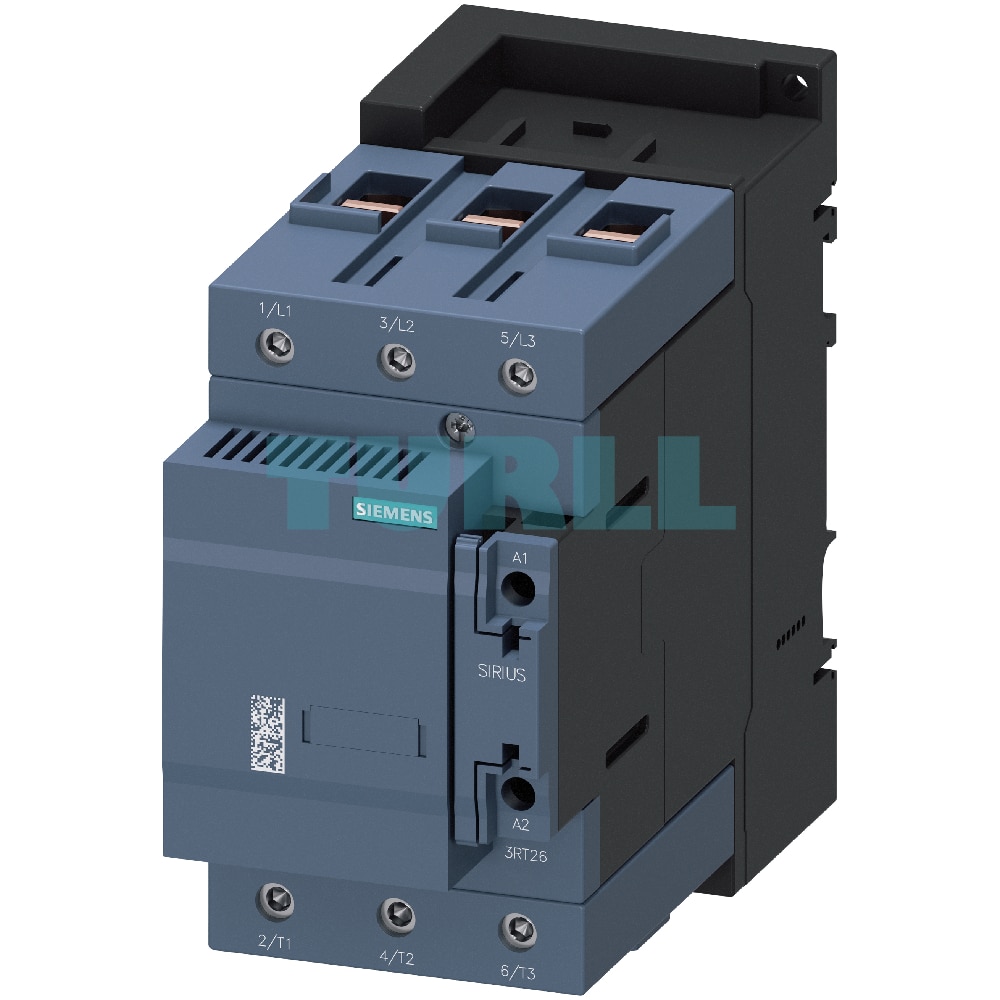

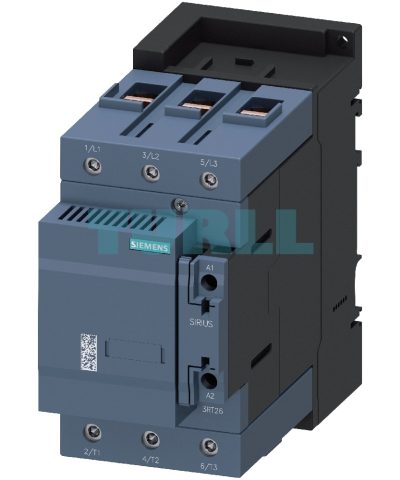

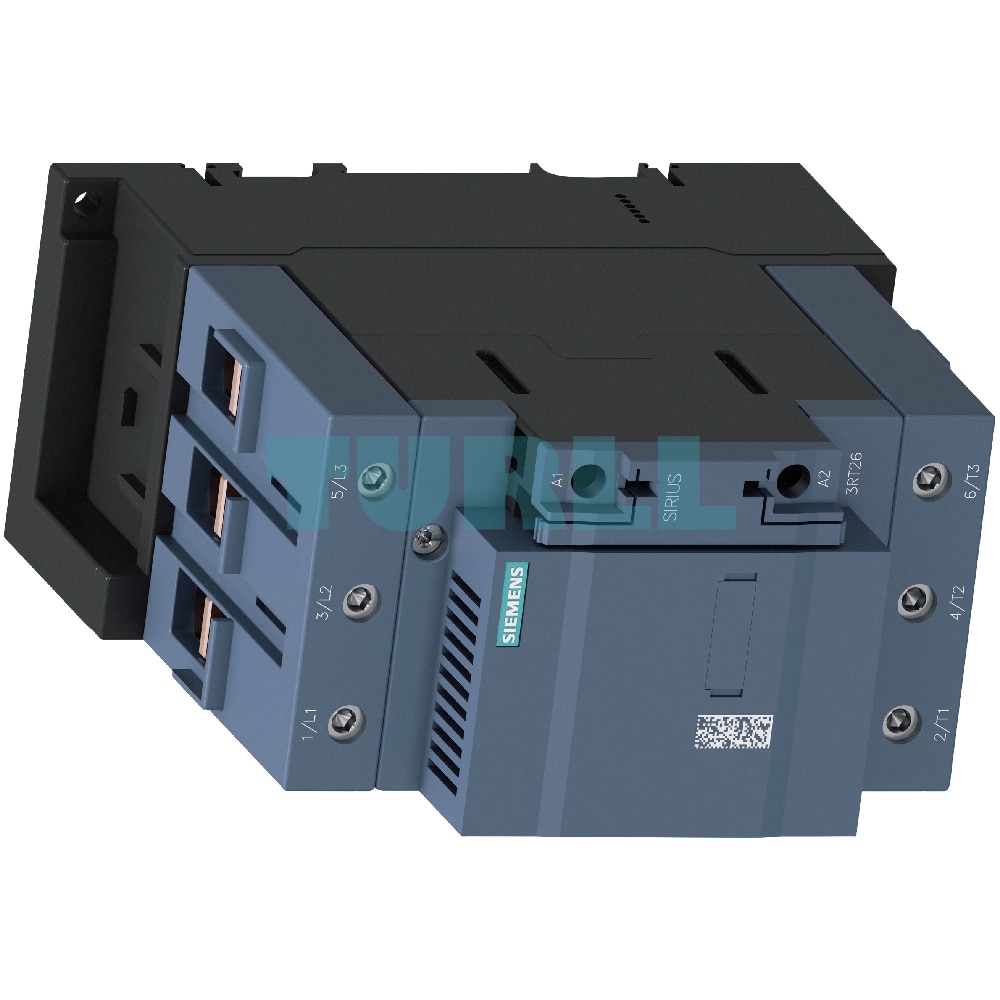

Siemens 3RT2646-1AF05 Capacitor Contactor, AC-6b 100 kVAr, 400V, 3-Pole, 110V AC Coil, S3 Size Original Brand New

Overview

The Siemens 3RT2646-1AF05 is a high-performance capacitor contactor specifically engineered for switching capacitive loads in reactive current compensation systems. Part of the innovative SIRIUS 3RT2 product family, this specialized contactor is designed to handle AC-6b loads up to 100 kVAr at 400 V. Its core function is to limit the high peak charging current that occurs when switching capacitors, thereby minimizing negative impacts on your power supply network.

This is achieved through integrated precharging resistors, which are switched on via leading auxiliary contacts before the main contacts close. The 3RT2646-1AF05 is a robust, 3-pole device with a 110 V AC coil (50 Hz), 2 normally closed (NC) auxiliary contacts, and secure screw terminals. Its S3 size makes it a powerful yet compact solution for various industrial applications, including switching converters and unchoked capacitors.

Key Features & Benefits

• Optimized for Capacitive Loads (AC-6b): Specifically designed to manage the high inrush currents associated with switching capacitors, ensuring smooth and reliable operation for systems up to 100 kVAr at 400V.
• Integrated Precharging Resistors: Leading auxiliary contacts engage precharging resistors before the main contacts, effectively limiting peak charging currents and protecting both the contactor and the power supply network from stress.
• Enhanced System Protection: Minimizes harmonics and voltage fluctuations caused by capacitor switching, contributing to a healthier and more stable electrical network.
• Durable and Reliable: Built to IEC standards (IEC 60947-1, IEC 60947-4-1, etc.), ensuring high quality and long-term performance in demanding industrial environments.
• Convenient Screw Terminals: Provides a secure and reliable connection for your main and auxiliary circuits.
• Compact S3 Size: Offers a powerful solution in a manageable form factor, ideal for integration into various control panels and equipment.
• Flexible Auxiliary Contacts: Comes with 2 NC auxiliary contacts for versatile control and signaling applications. The design also allows for expansion with lateral auxiliary switches (sold separately).

Function & Application

The Siemens 3RT2646-1AF05 plays a critical role in reactive power compensation systems by reliably switching power capacitors. Its unique design with leading auxiliary contacts and precharging resistors is crucial for mitigating the inrush currents that can damage equipment and degrade power quality. This makes it an ideal component for:

• Switching choked or unchoked capacitors in power factor correction (PFC) systems.
• Controlling converters and other inductive or capacitive loads.
• Industrial applications requiring precise and reliable switching of capacitive circuits.

Safety and Protection

To ensure safe and reliable operation, all connections on the 3RT2646-1AF05 must be properly protected.

• Short-Circuit and Overload Protection: Consult the technical data sheet for specific recommendations on protecting the main and auxiliary circuits. Consider using circuit breakers or suitable fuses.
• Overvoltage Protection: The contactor coil can be protected against overvoltage surges using separately available accessories such as RC elements, varistors, or diodes. These suppressors help to extend the lifespan of the coil and other components in the control circuit.
