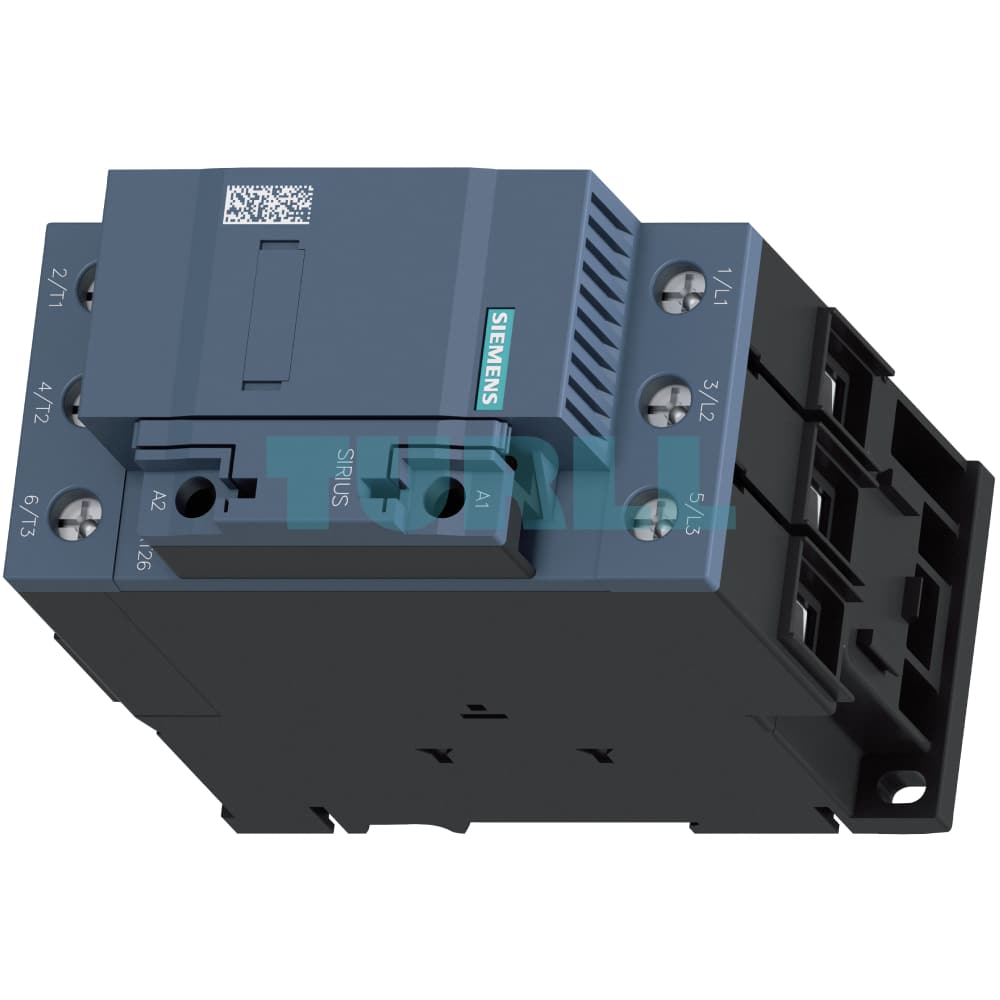

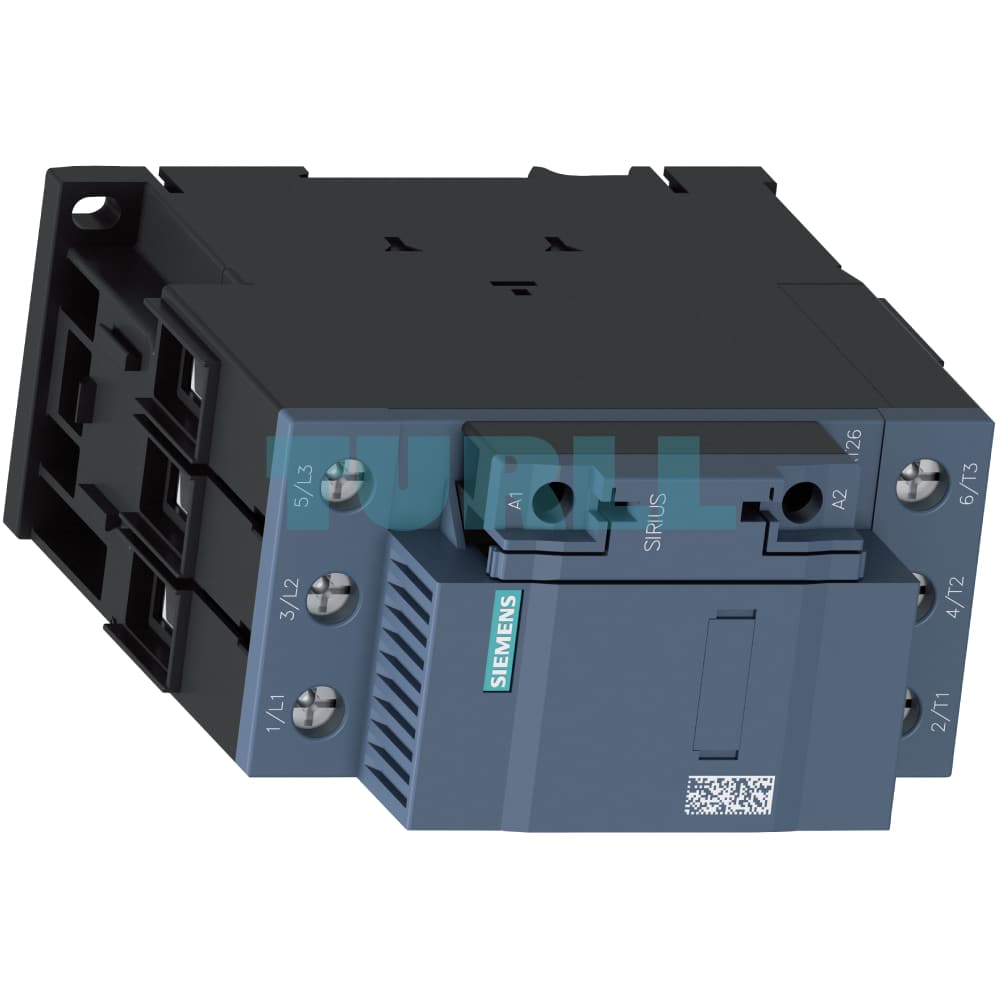

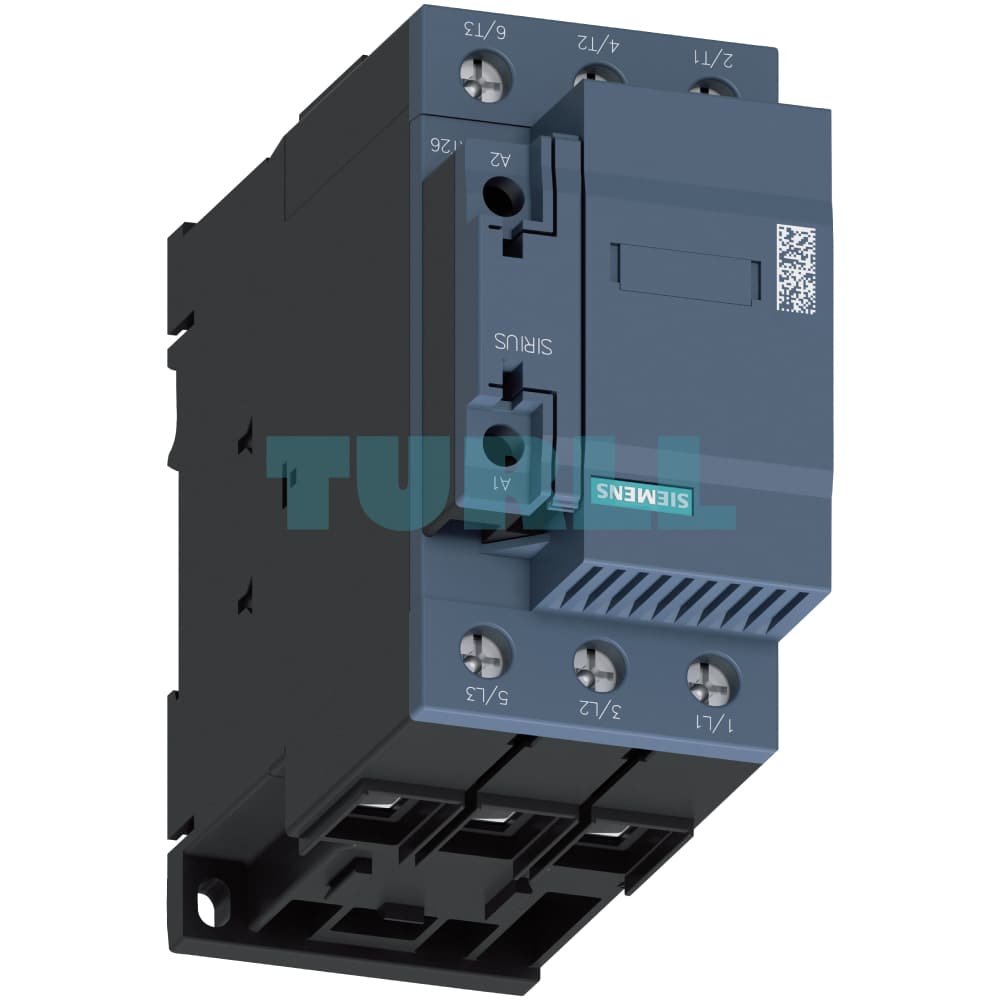

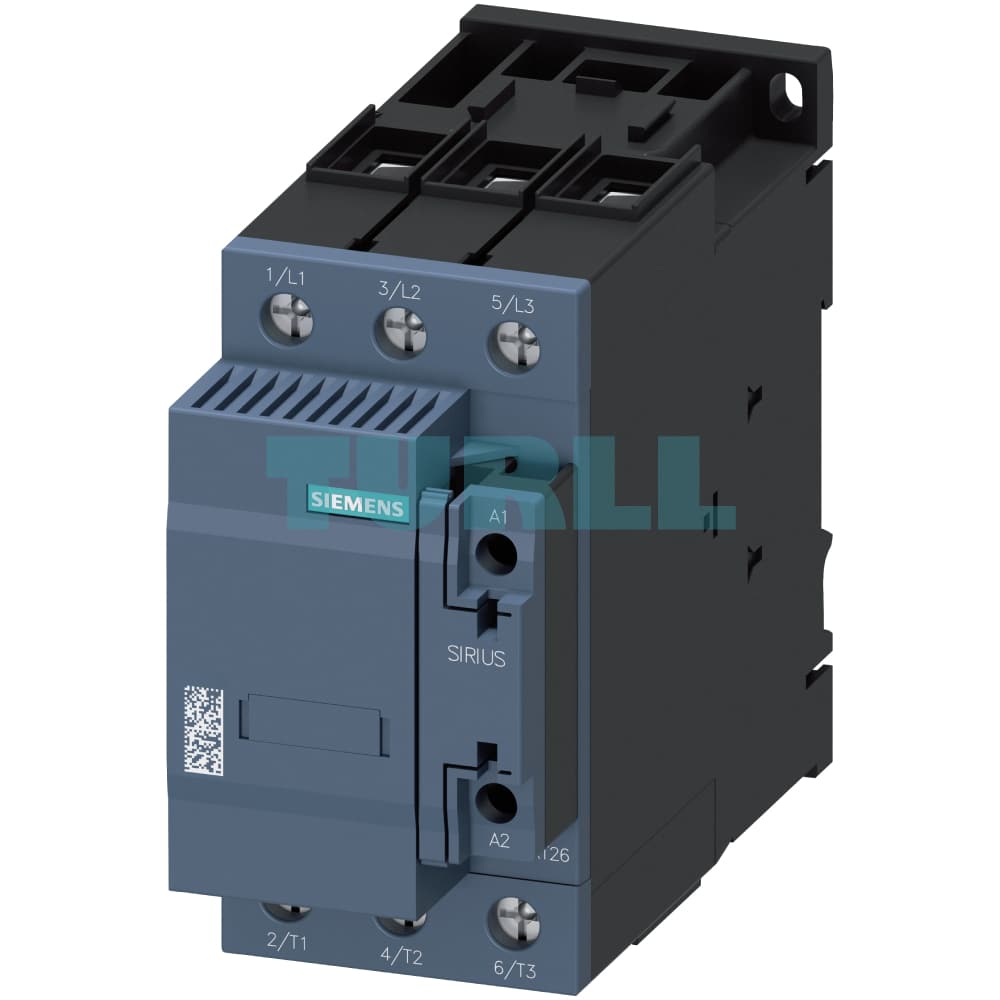

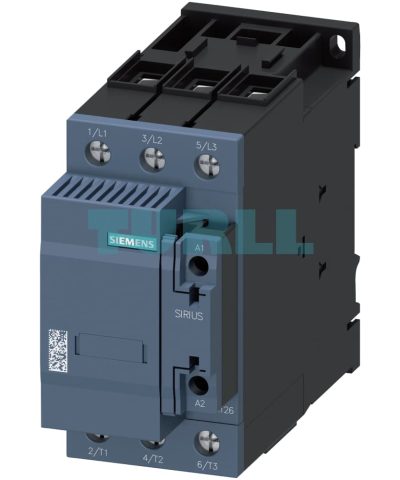

Siemens 3RT2646-1AP03 Capacitor Contactor 100 kVAr, 400 V, 3-Pole, AC-6b Original Brand New

Overview

The Siemens 3RT2646-1AP03 is a high-performance capacitor contactor designed for switching capacitive loads in reactive current compensation systems. As a specialized variant of the SIRIUS 3RT2 series, this contactor is engineered to handle AC-6b duty, providing reliable and efficient operation for up to 100 kVAr at 400 V. Its unique design incorporates leading auxiliary contacts that engage precharging resistors, effectively limiting the peak charging current of capacitors. This minimizes network disturbances and ensures the longevity of the system components. With a robust Size S3 frame and versatile screw terminals, the 3RT2646-1AP03 is a reliable solution for demanding industrial applications, including switching choked or unchoked capacitors and converters.

Key Features & Benefits

• Optimized for Capacitive Loads: Specifically designed for AC-6b applications, preventing damaging inrush currents and extending the life of both the contactor and the capacitors.
• Integrated Precharging Resistors: Leading auxiliary contacts with precharging resistors limit current peaks, ensuring smooth and stable switching operations.
• High Performance: Rated for up to 100 kVAr at 400 V, making it suitable for a wide range of power factor correction systems.
• Robust Construction: Built on a Size S3 frame, ensuring durability and reliability in industrial environments.
• Flexible Auxiliary Contacts: Comes with 1 NO + 1 NC auxiliary contacts, providing versatile control and monitoring options.
• Easy Installation: Equipped with user-friendly screw terminals for secure and straightforward wiring.
• Compliance with Global Standards: Conforms to key international standards including IEC 60947-1, IEC 60947-4-1, IEC 60831-1, and IEC 61921, guaranteeing quality and safety.

Functionality & Technical Details

The 3RT2646-1AP03 capacitor contactor operates by employing a unique two-stage switching process. When the contactor is energized, the leading auxiliary contacts close first, bringing precharging resistors into the circuit. This initial connection absorbs the sudden inrush current from the capacitive load. After a brief delay, the main contacts close, bypassing the resistors and providing the full current path to the capacitor bank. This sequence ensures a gentle and controlled connection, protecting both the electrical network and the equipment from harmful current surges.

The contactor is rated for a control supply voltage of 230 V AC at 50 Hz. It is a 3-pole device, suitable for three-phase systems. The integrated auxiliary contacts (1 NO + 1 NC) allow for easy integration into control circuits for status indication or interlocks. The device can also be retrofitted with additional lateral auxiliary switches and surge suppressors (RC elements, varistors, etc.) for enhanced functionality and protection.

Standards

• IEC 60947‑1
• IEC 60947‑4‑1
• IEC 60947‑5‑1
• IEC 60831‑1
• IEC 61921

Protection & Safety

Proper protection of the 3RT2646-1AP03 is crucial for safe and reliable operation. All connections—main, auxiliary, and control—must be protected against short circuits and overloads using appropriate devices as detailed in the technical data sheet and configuration manuals. Protection against overvoltage at the control supply voltage connection can be achieved by retrofitting optional surge suppressors, which are available as accessories.
