Overview

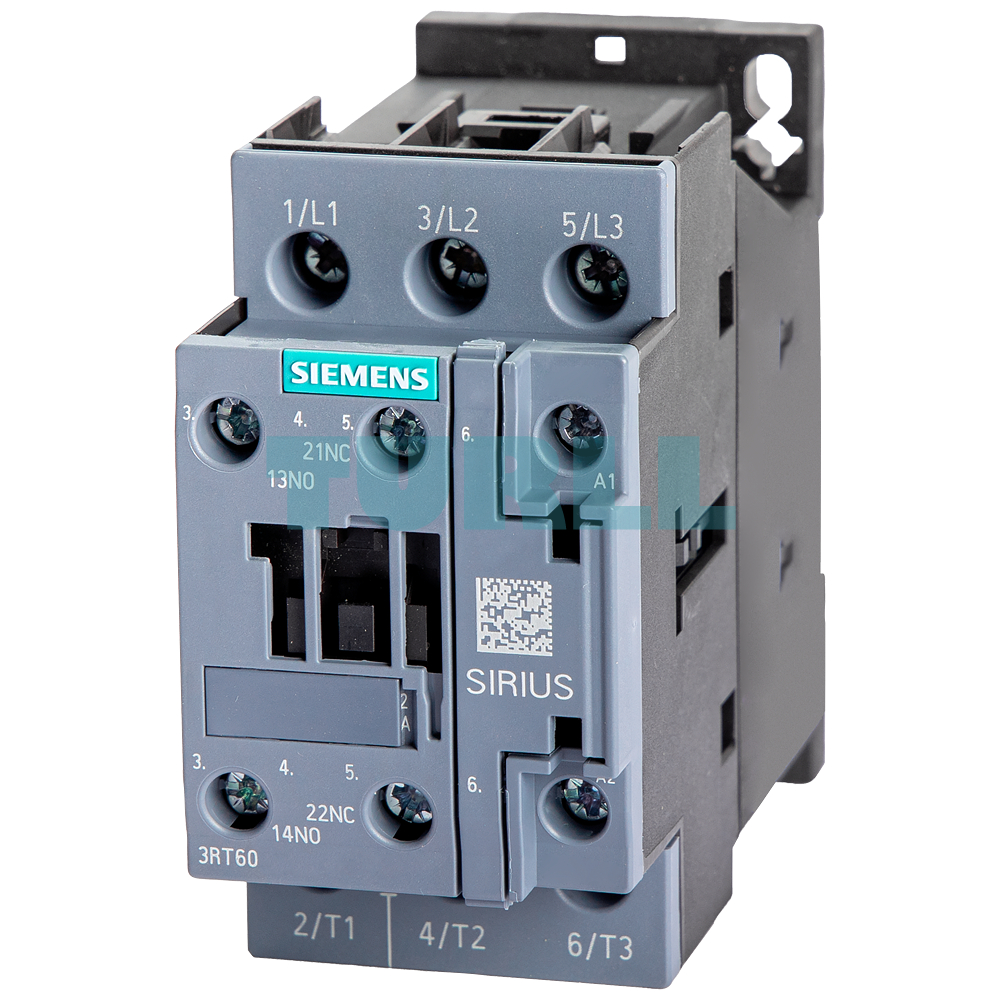

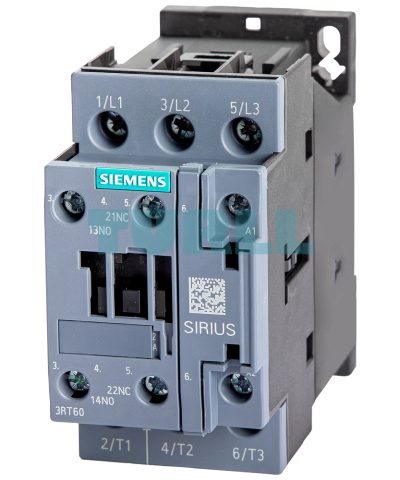

The Siemens SIRIUS 3RT6023-1AM00 is a high-performance 3-pole power contactor designed for switching motors and other loads up to 4 kW at 400 V (AC-3). Part of the proven SIRIUS modular system, this size S0 contactor offers a compact, robust, and reliable solution for industrial control applications. It features a control supply voltage of 220 V AC at 50 Hz and comes equipped with integrated auxiliary contacts (1 NO + 1 NC) for simple integration into control circuits. The device uses secure and industry-standard screw terminals for all connections.
Key Benefit
-
Reliable Performance: Handles AC3 loads up to 4 kW at 400 V with stable switching operations.
-
Durable Construction: Compact Size S0 housing and screw terminals ensure longevity and secure connections.
-
Versatile Use: Suitable for industrial automation, motor control circuits, and general switching applications.
-
Enhanced Safety: AUX contacts (1 NO + 1 NC) provide additional signaling and safety functionality.
Functions & Features
-
AC 220 V, 50 Hz operation
-
3-pole contactor configuration
-
AC3 rated for motor loads up to 4 kW at 400 V
-

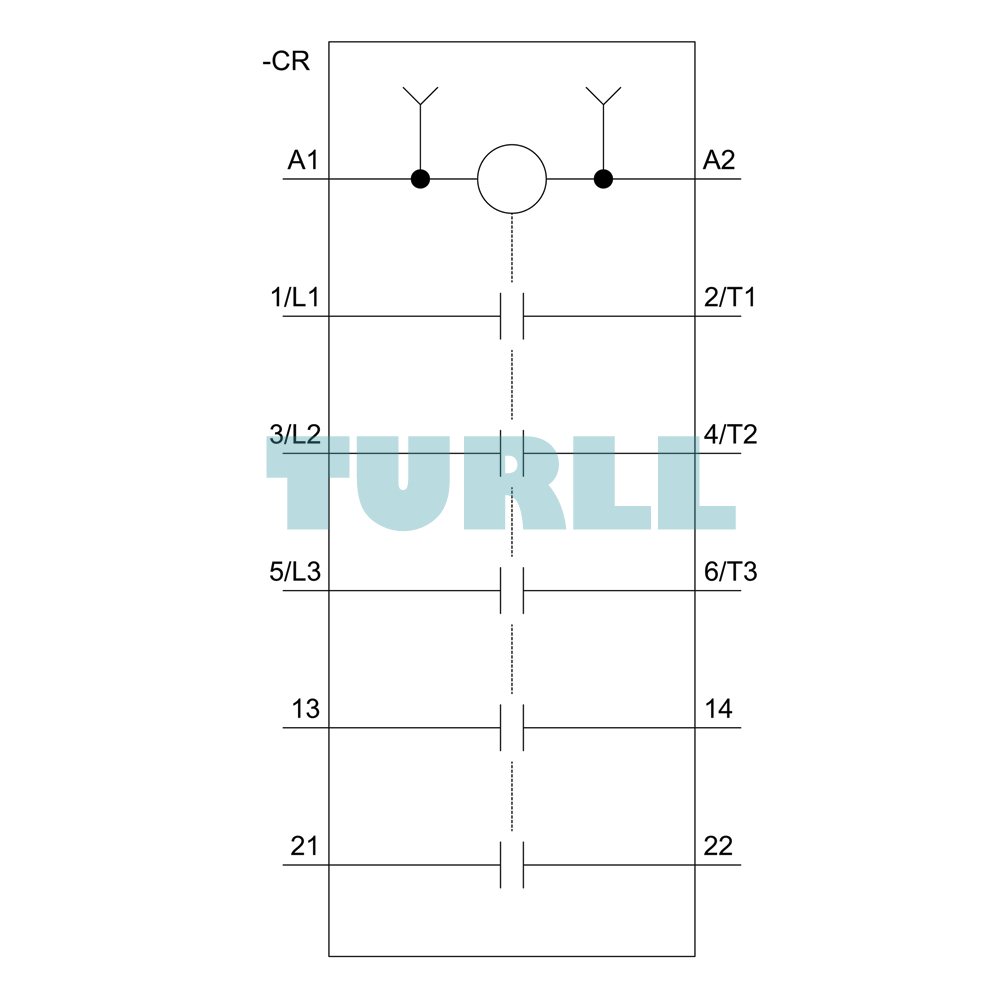

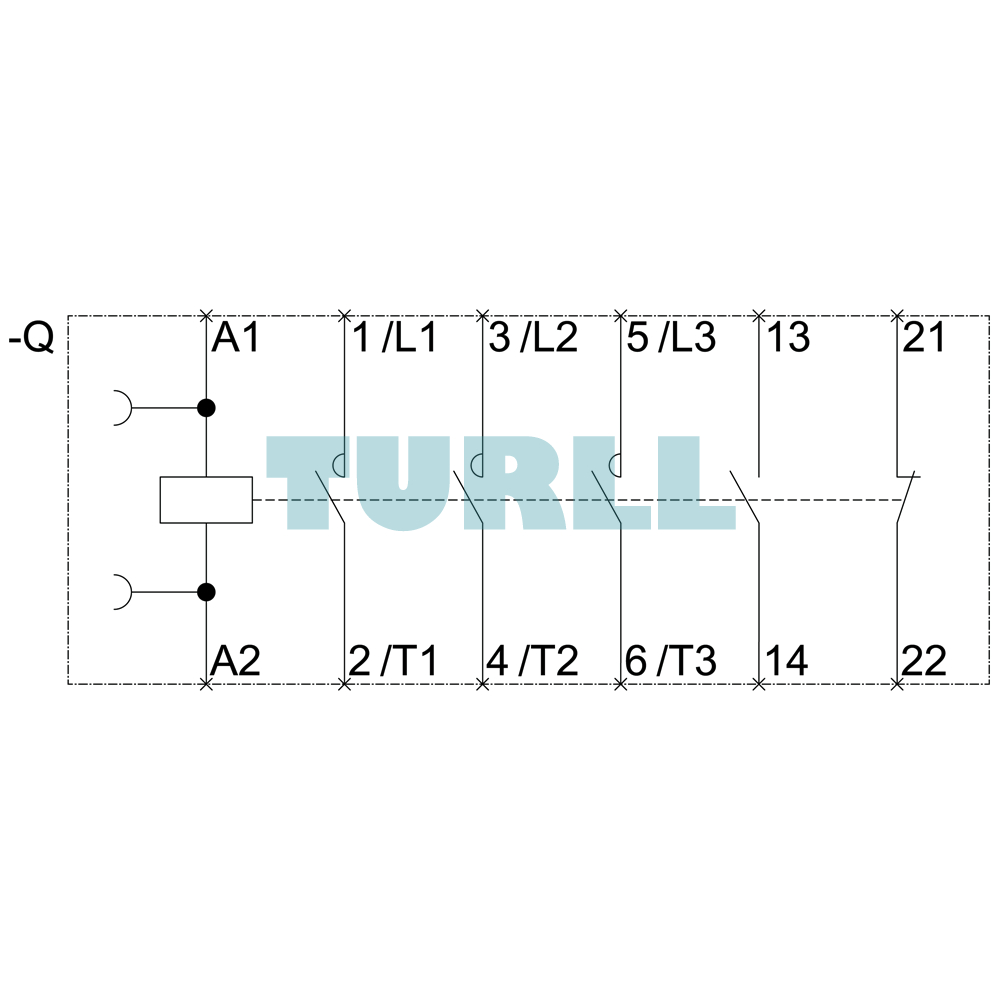

1 Normally Open (NO) + 1 Normally Closed (NC) auxiliary contact
-

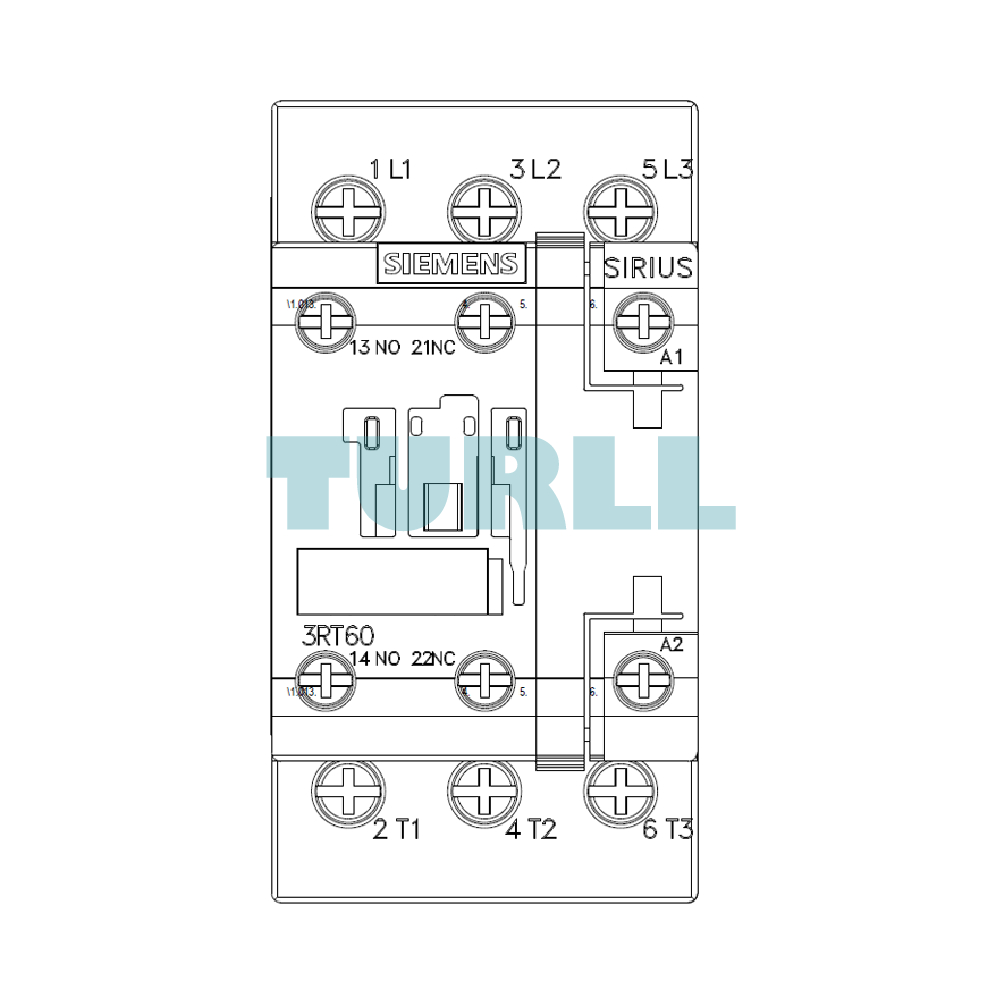

Screw terminal connection for secure wiring
-

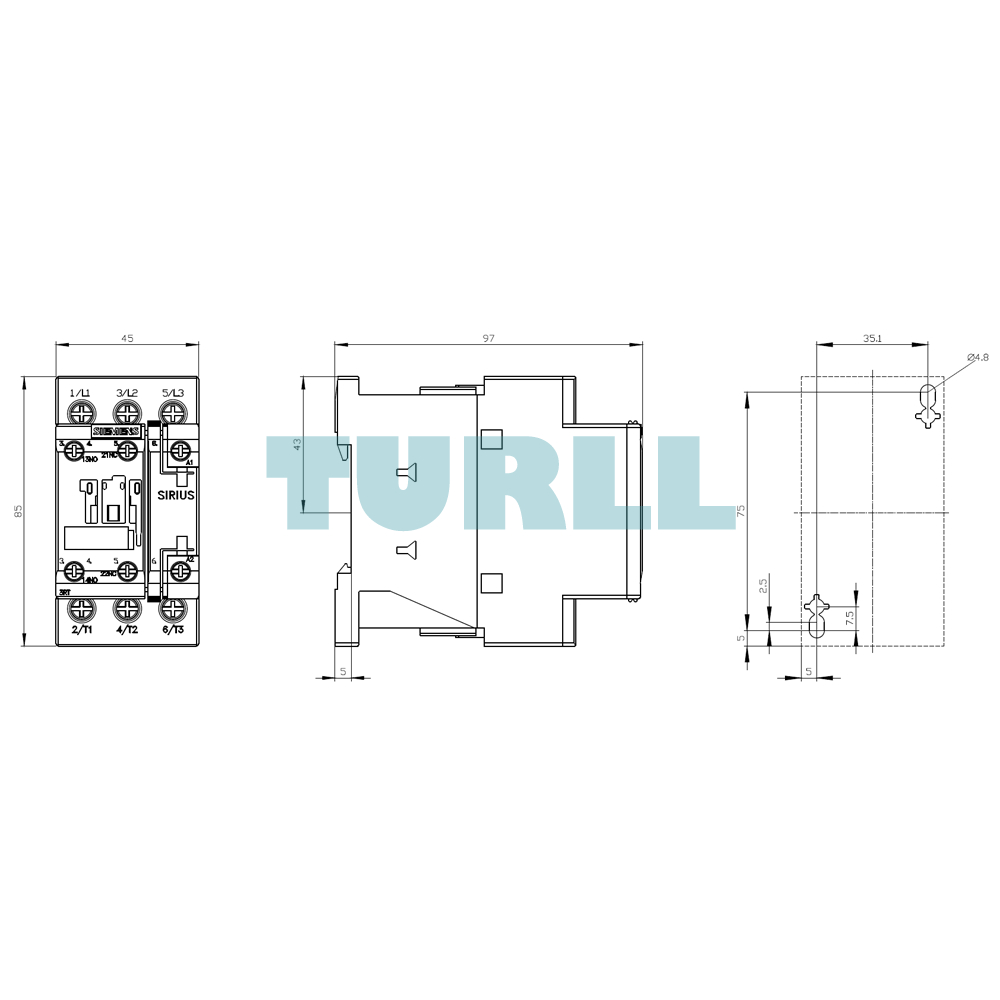

Compact Size S0 for space-saving installations
-
High mechanical and electrical endurance for long-term reliability
Application
The 3RT6023-1AM00 contactor is primarily used for:
-
Switching 3-phase AC motors (Start/Stop function).
-
Switching resistive loads (heating elements).
-
Control and switching of various industrial machines and equipment.
-
Acting as an isolating element in control panels.
