Overview

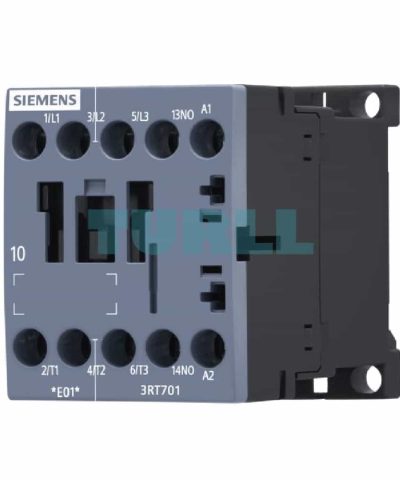

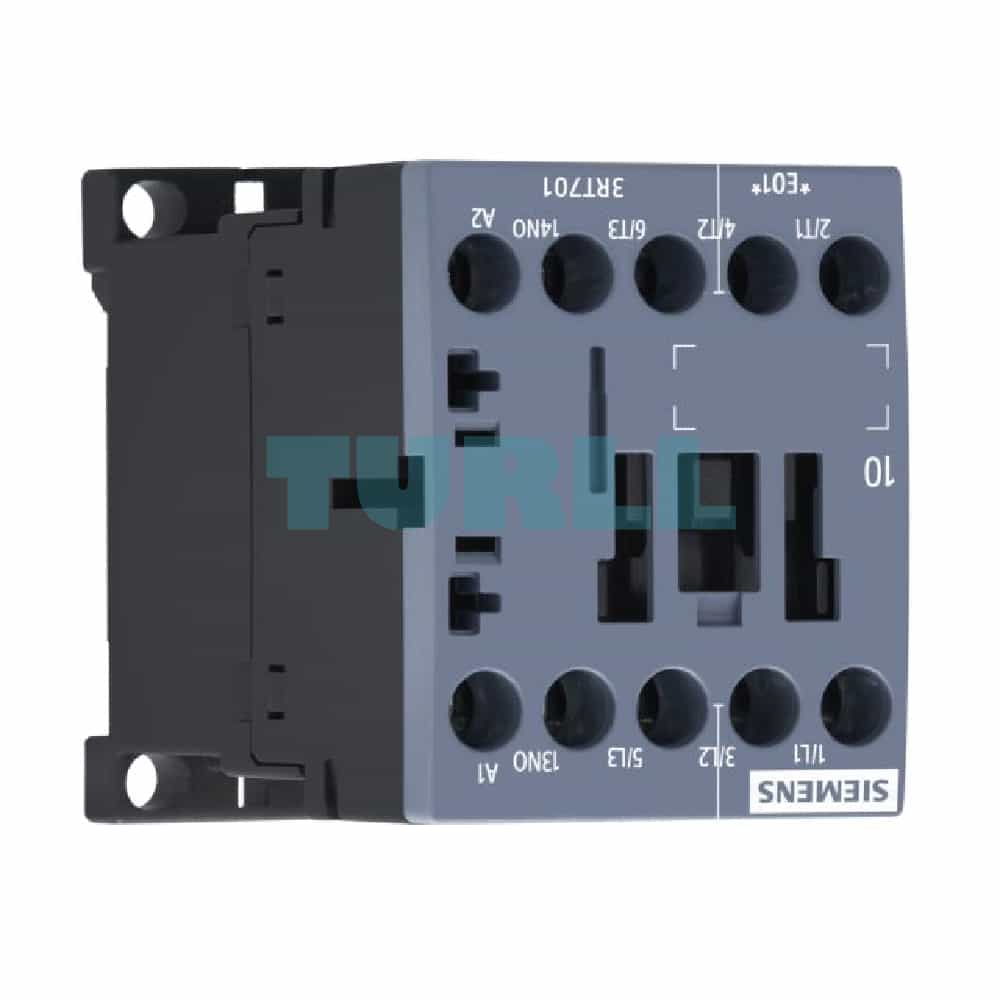

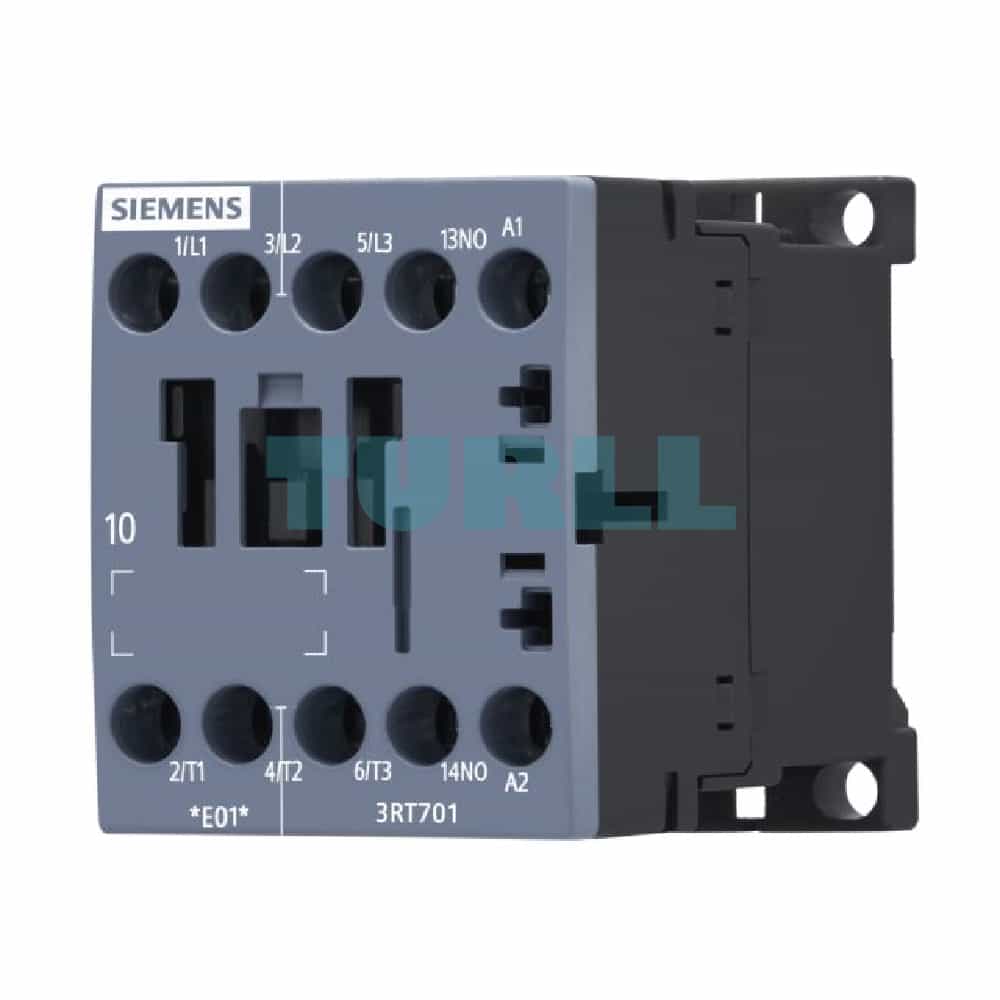

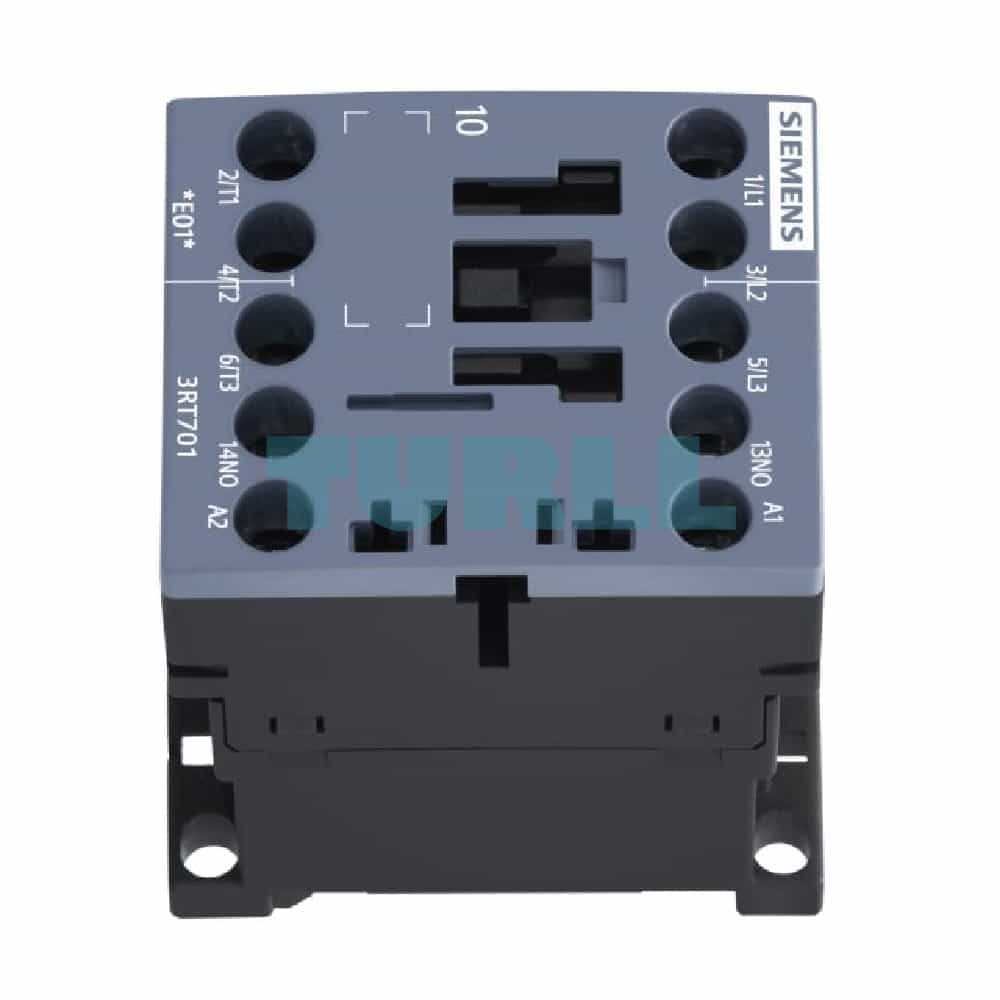

The Siemens 3RT7014-1AF01 is a compact and powerful SIRIUS series contactor designed for reliable switching of motors and resistive loads. Part of the highly successful Siemens 3RT family, this S00 size contactor is optimized for AC-3 switching applications up to 6A at 400V (or 2.2kW), making it an ideal choice for a wide range of industrial and commercial automation tasks. It features a robust design, a single normally open (1NO) auxiliary contact, and a control coil voltage of 110V AC (50/60Hz). The use of screw terminals ensures a secure and straightforward connection, simplifying installation and maintenance.
Key Features & Benefit
- High-Performance Switching: Rated for AC-3 applications up to 6A at 400V, this contactor is engineered for switching three-phase motors efficiently and reliably.
- Space-Saving Design: Its compact S00 size allows for high-density mounting in control panels and enclosures, maximizing valuable space.
- Reliable Auxiliary Contact: The integrated 1NO auxiliary contact provides flexible options for control circuit signaling and interlocking.
- Easy Installation: Features screw terminals for a simple and secure wiring process, reducing installation time and ensuring a reliable connection.
- Long Service Life: Built with Siemens' renowned quality, the 3RT7014-1AF01 is durable and designed for a long mechanical and electrical service life, reducing replacement costs and downtime.
- Versatile Control: The 110V AC control coil is a standard voltage, ensuring compatibility with many industrial control systems.
- Compliance & Safety: Meets global standards for industrial components, ensuring safe and compliant operation in various applications.
Technical Specification
- Product Type: Contactor, power contactor
- Product Series: Siemens SIRIUS 3RT
- Product Number: 3RT7014-1AF01
- Size: S00
- Rated Operating Current (AC-3): 6 A
- Rated Operating Power (AC-3): 2.2 kW at 400V
- Auxiliary Contacts: 1 NO (Normally Open)
- Coil Control Voltage: 110 V AC, 50/60 Hz
- Connection Type: Screw terminals
- Ambient Temperature: -25 to +60 °C
- Mounting: Standard DIN rail or screw mounting
- Application: Ideal for switching motors, resistive loads, and other inductive loads.
