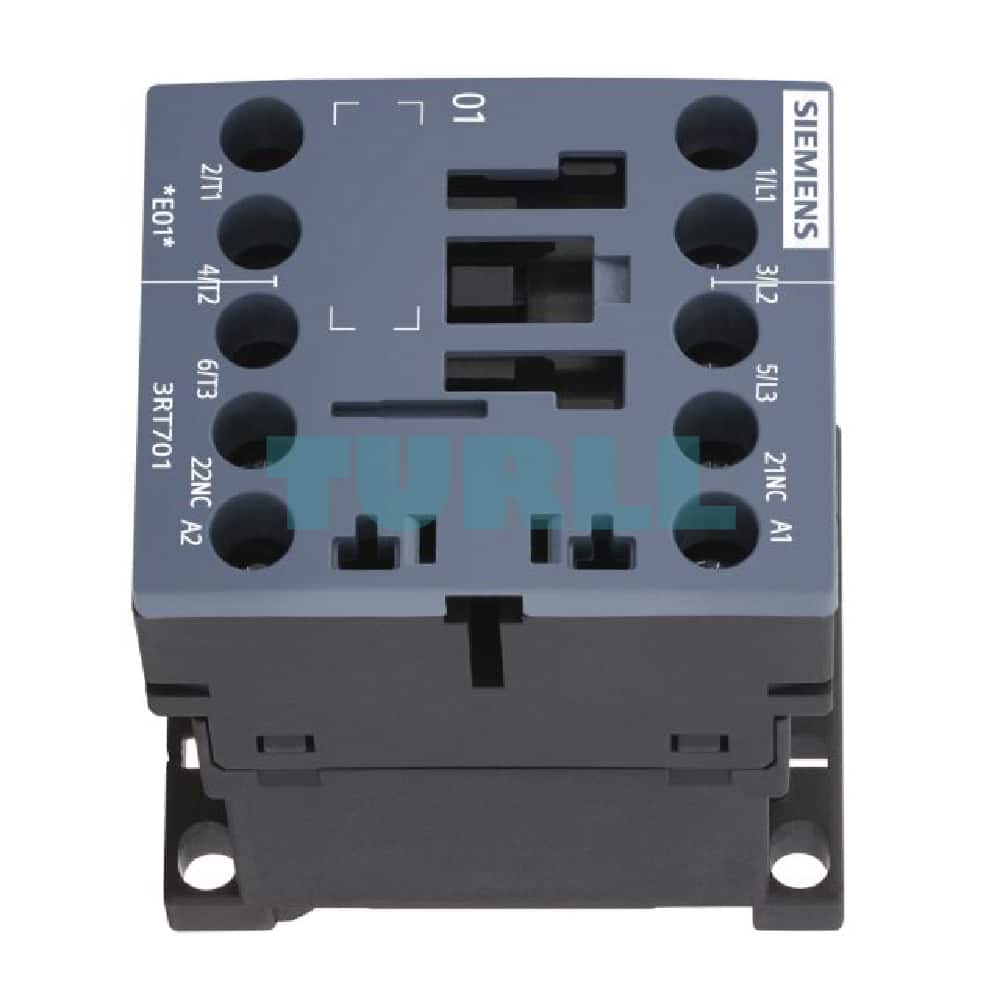

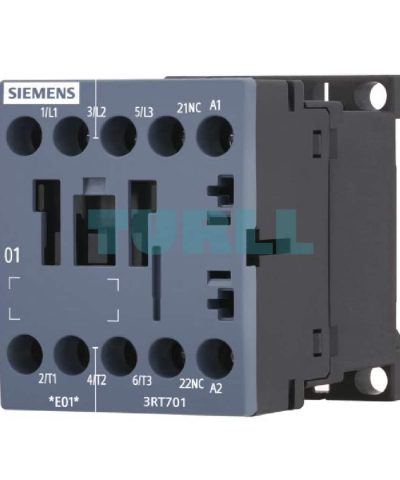

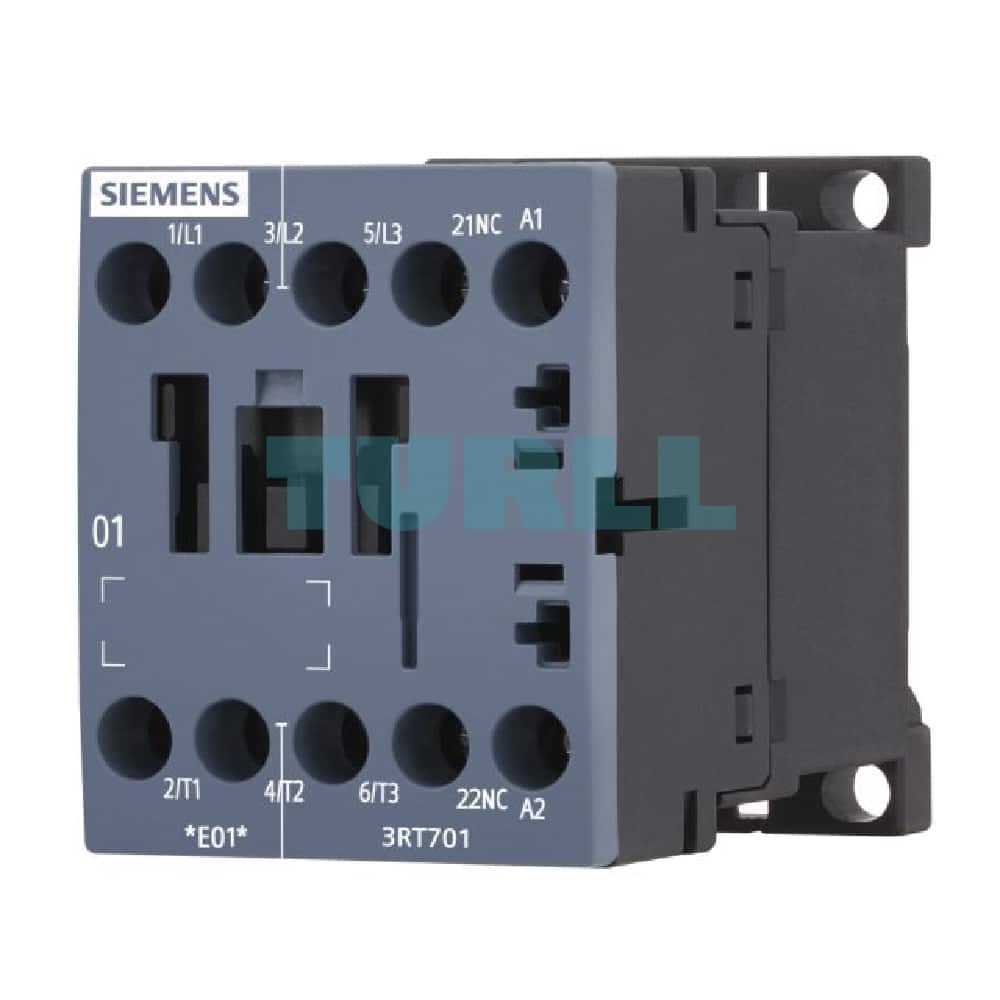

Siemens 3RT7016-1AF02 Contactor 9A, 4kW AC, 110V Coil, Size S00, Screw Terminal Original Brand New

Overview

The Siemens 3RT7016-1AF02 is a high-performance SIRIUS 3RT contactor designed for reliable switching of AC motors and other inductive loads. With a rated operational current of 9A for AC-3 applications and a power rating of 4kW at 400V, this compact contactor is ideal for various industrial control applications. Its size S00 frame and screw terminals ensure easy installation and a secure, vibration-resistant connection. The integrated 1 Normally Closed (NC) auxiliary contact provides additional control flexibility.

Key Features & Specification

• Product Type: Contactor, SIRIUS 3RT
• Operational Current: 9A (AC-3)
• Motor Power: 4kW at 400V
• Control Voltage: 110V AC, 50/60Hz
• Auxiliary Contacts: 1 NC (Normally Closed)
• Size: S00
• Connection Type: Screw terminals
• Operating Temperature: -25 to +60°C
• Standards: IEC 60947, EN 60947

Benefit

• Reliable Performance: Engineered by Siemens, a global leader in industrial automation, for long-lasting and dependable operation.
• Compact Design: The size S00 frame saves valuable space within control panels and enclosures.
• Easy Installation: Screw terminals allow for quick and secure wiring, reducing installation time.
• Versatile Application: Suitable for a wide range of motor control and industrial switching tasks.
• Integrated Auxiliary Contact: The built-in NC contact simplifies circuit design and reduces the need for external components.

Function

The Siemens 3RT7016-1AF02 Contactor is used to switch a large current circuit (main circuit) using a small current control circuit. When the 110V AC coil is energized, it generates a magnetic field that pulls the main contacts closed, allowing power to flow to the connected load. When the coil is de-energized, the contacts open, interrupting the power. The 1 NC auxiliary contact changes state in tandem, providing a signal for interlocks or control logic.
