Overview

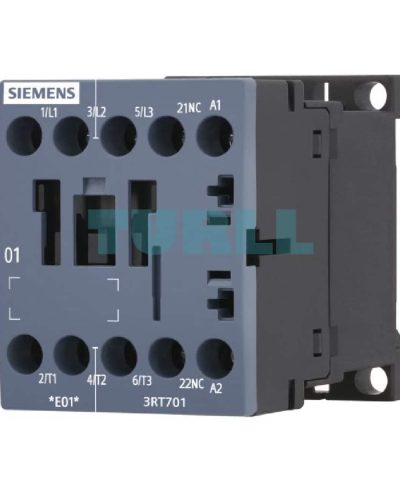

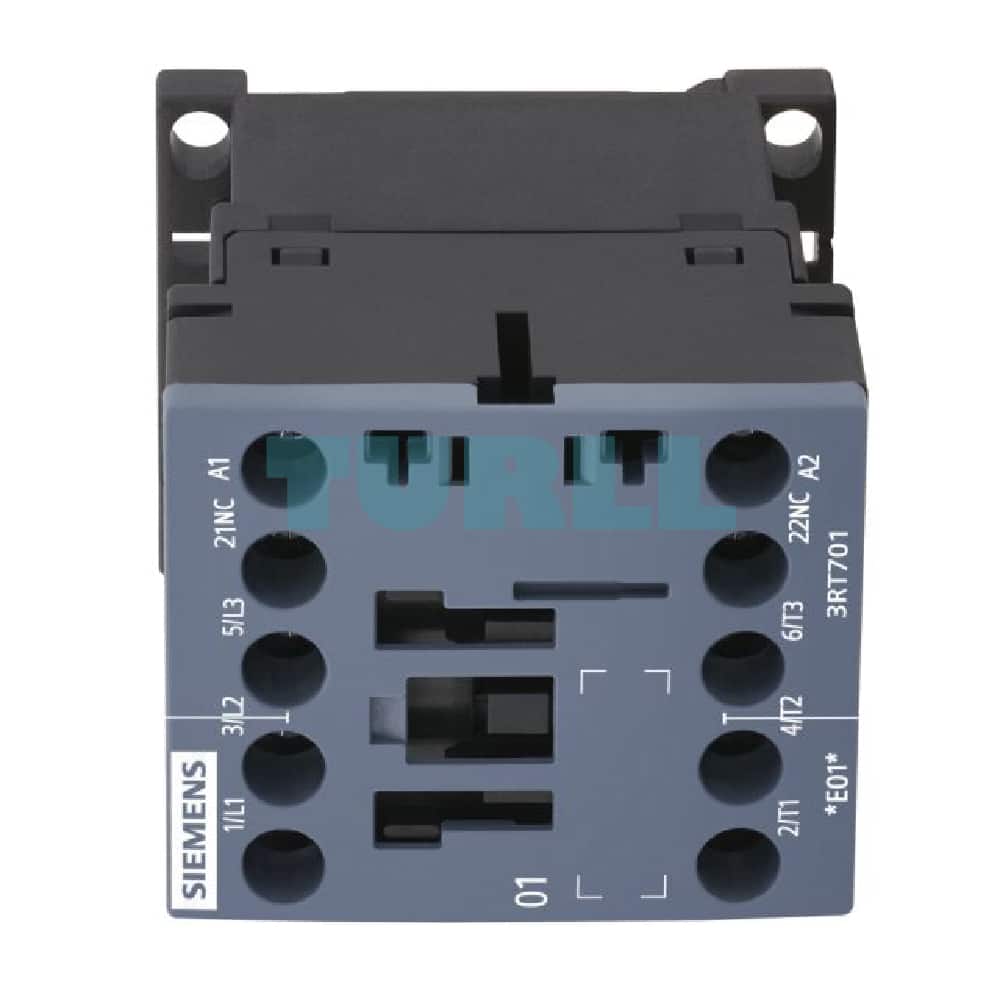

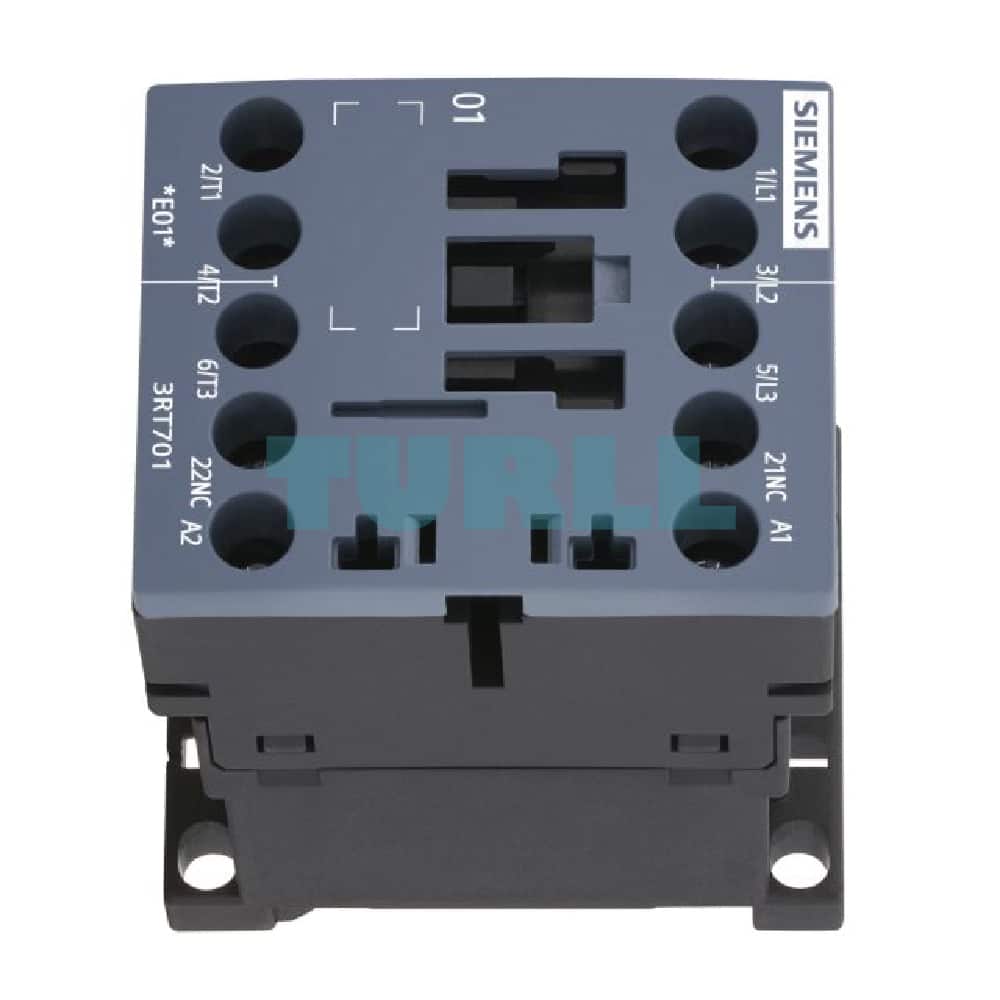

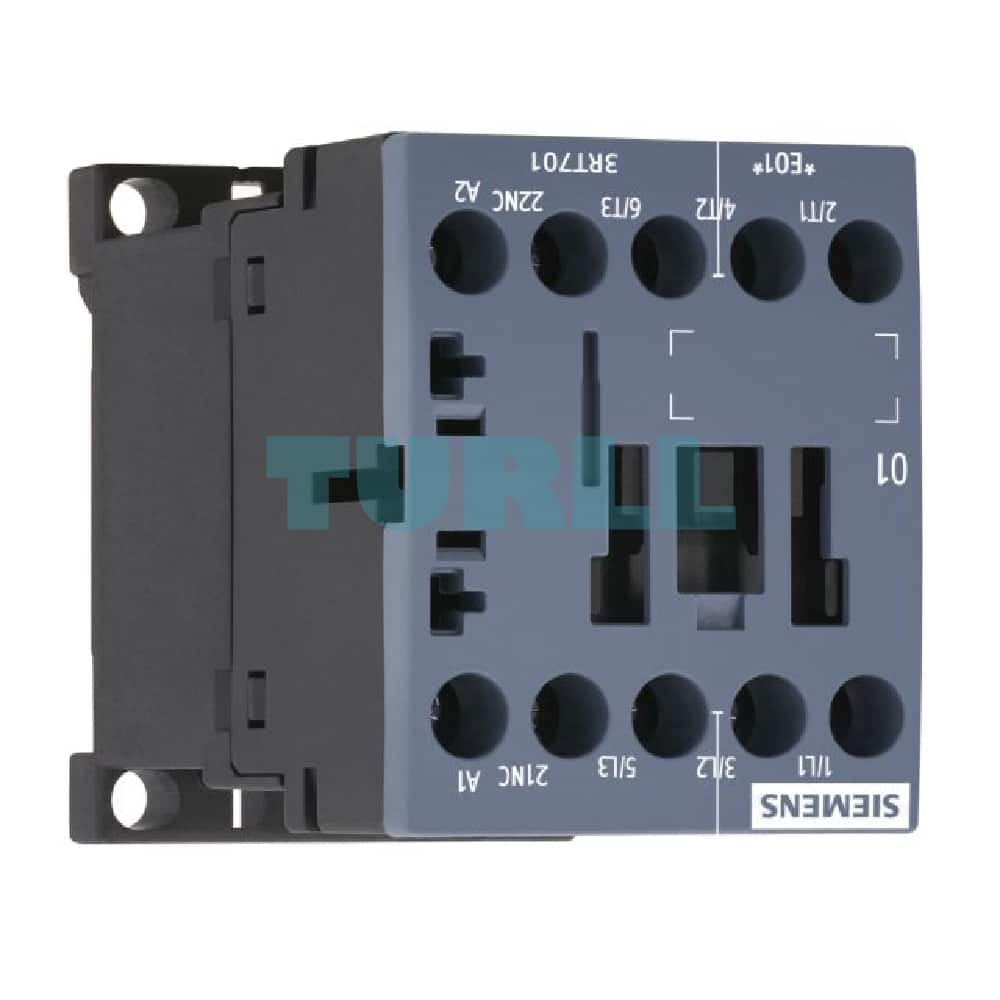

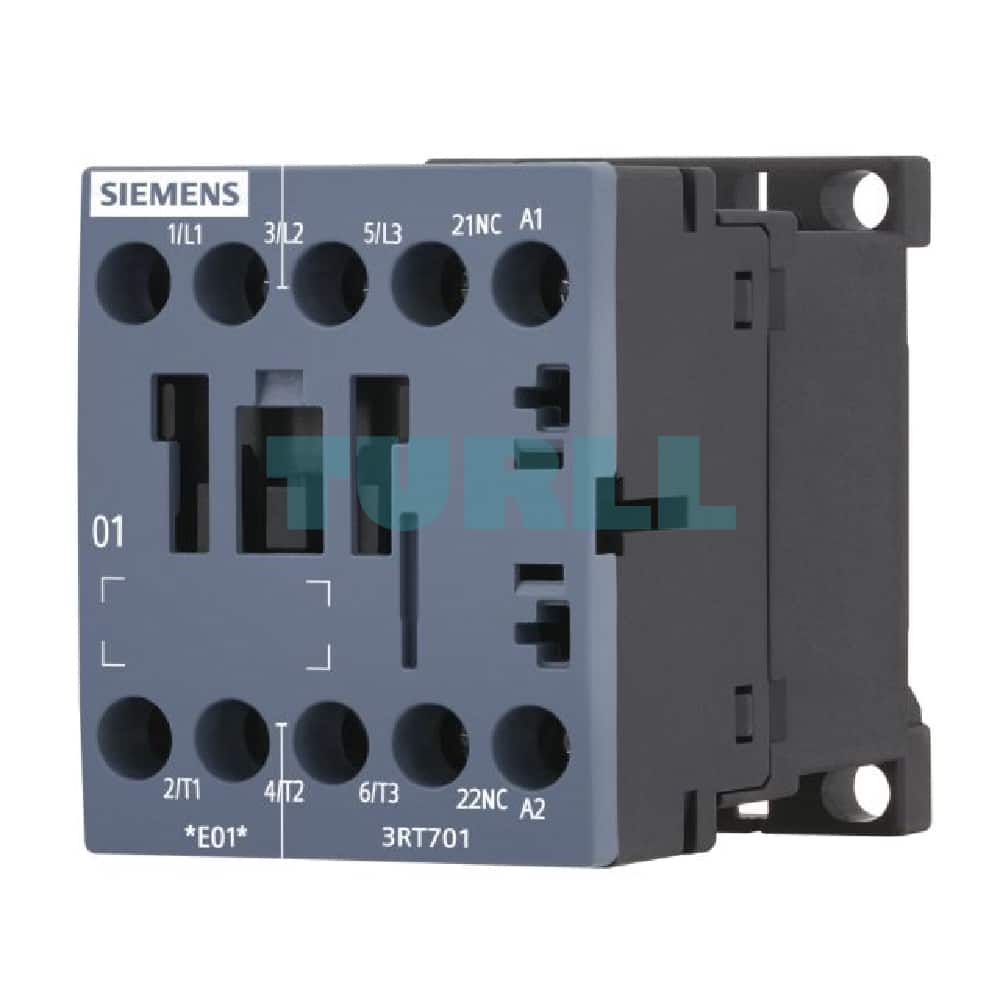

The Siemens SIRIUS 3RT7016-1AH02 is a high-performance power contactor designed for reliable switching of electric motors and other loads. Part of the trusted SIRIUS modular system, this contactor is engineered for AC-3 applications up to 9A at 400V. Its compact size S00 footprint allows for efficient use of space within control cabinets, making it an ideal choice for a wide range of industrial automation tasks. Featuring a 48V AC control voltage and a normally closed (NC) auxiliary contact, the 3RT7016-1AH02 offers flexible integration and robust performance.
Key Features & Benefit
- Reliable Performance: Rated for AC-3 applications, ensuring stable and safe switching of motor loads up to 4 kW (at 400V).
- Compact Design: The size S00 form factor saves valuable space in control panels and machinery.
- Integrated Auxiliary Contact: Includes a built-in 1NC auxiliary contact for status indication or interlocking circuits, reducing the need for separate components.
- Global Standard: A core component of the Siemens SIRIUS family, guaranteeing compatibility and seamless integration with other Siemens control products.
- Easy Installation: Features robust screw terminals for secure and straightforward wiring.
- Energy Efficient: Optimized for industrial environments with its 48V AC coil, providing dependable operation.
- Broad Application: Suitable for a variety of tasks, from simple motor control to complex automated systems.
Technical Specifications (Function)
- Product Type: Power Contactor
- Part Number: 3RT7016-1AH02
- Manufacturer: Siemens
- Series: SIRIUS 3RT
- Application: AC-3 (Motor Switching)
- Rated Operating Current (Ie): 9A at 400V
- Rated Power (kW): 4 kW at 400V
- Control Supply Voltage (Us): 48V AC (50/60Hz)
- Auxiliary Contacts: 1NC (Normally Closed)
- Size: S00
- Connection Method: Screw Terminals
- Mounting: DIN Rail
