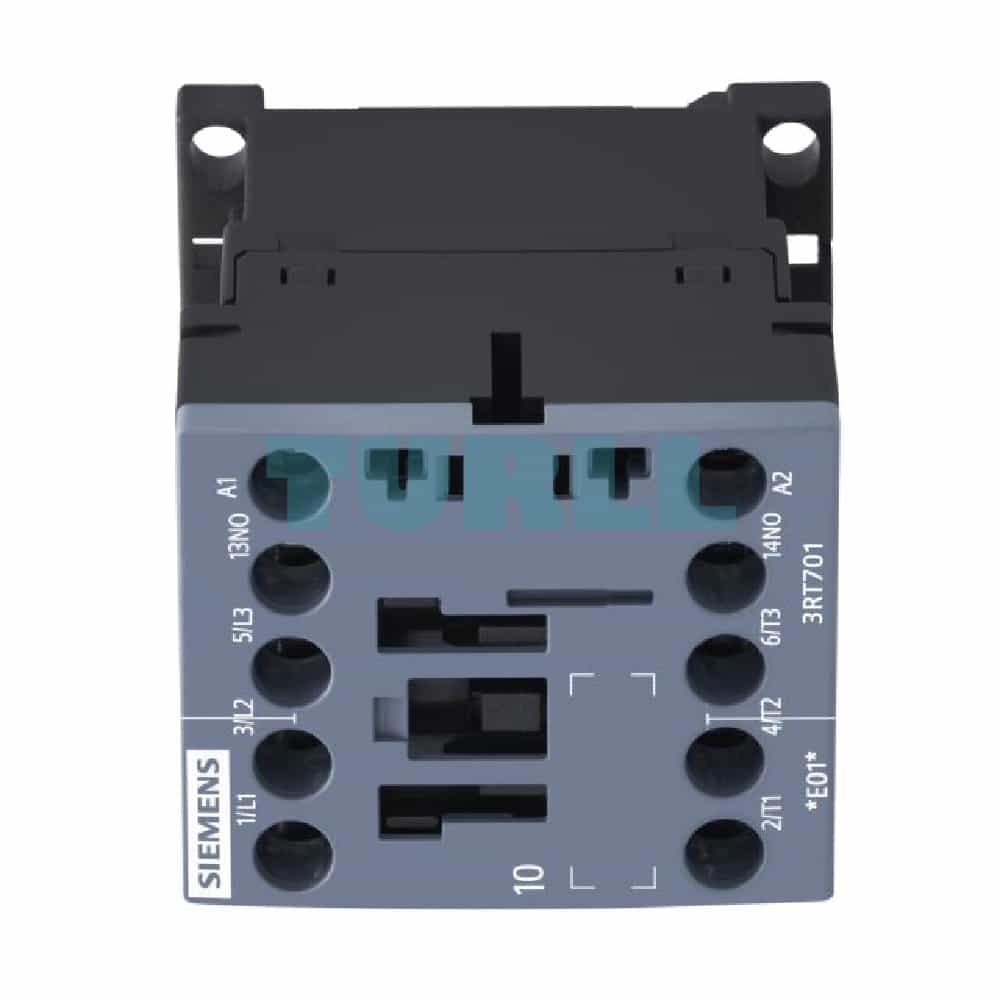

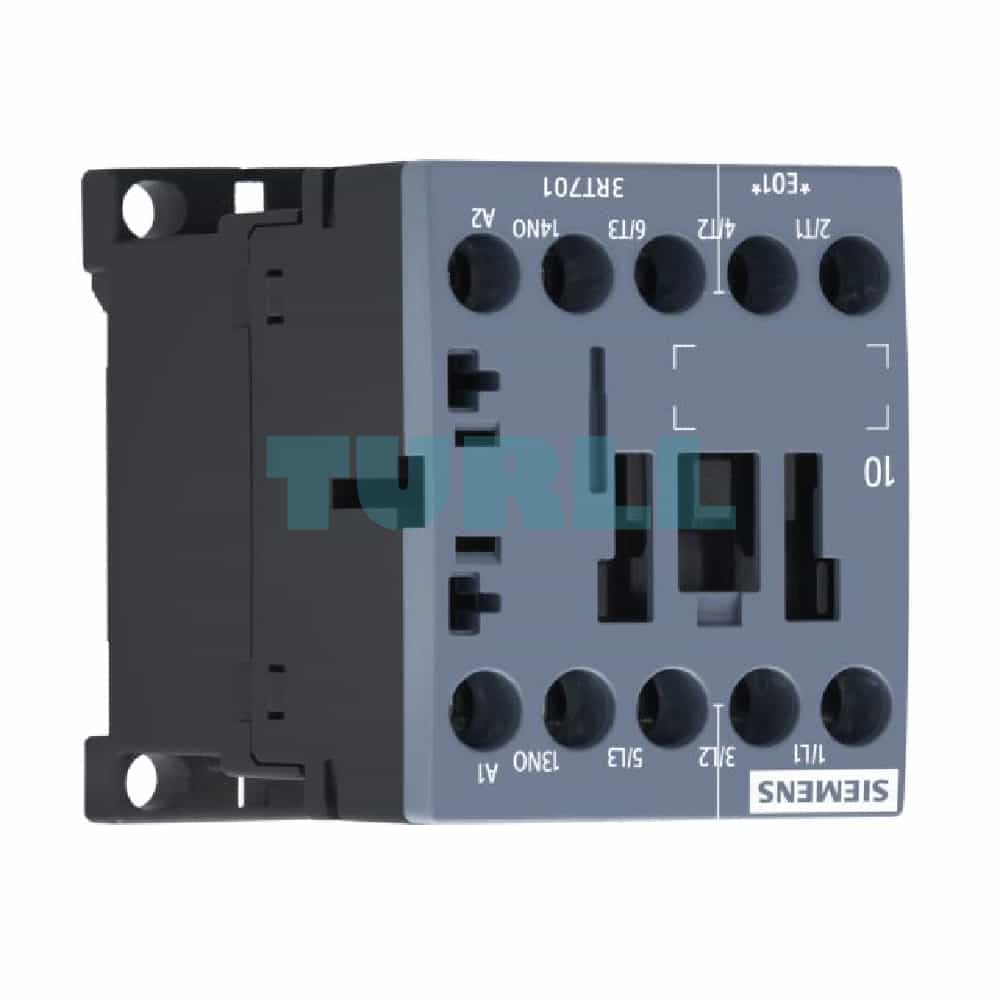

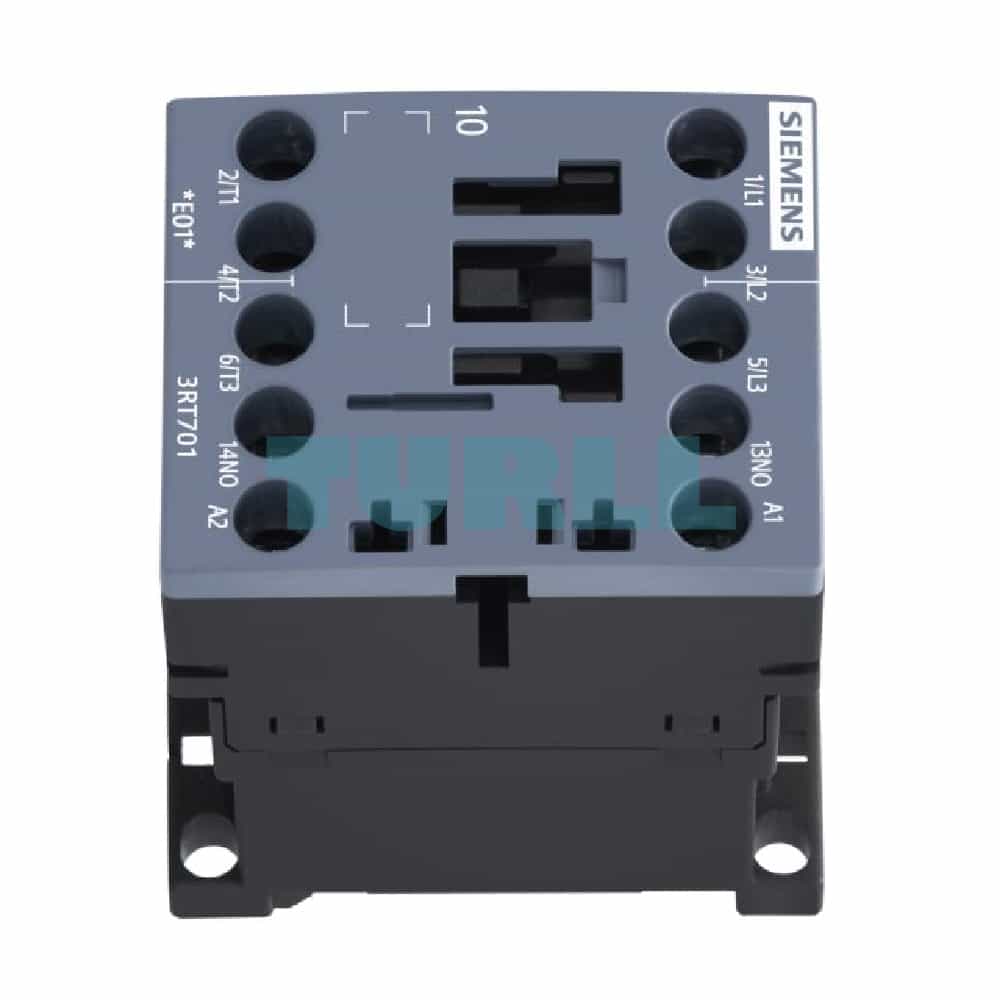

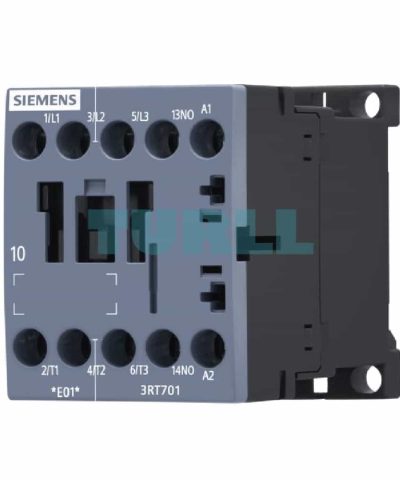

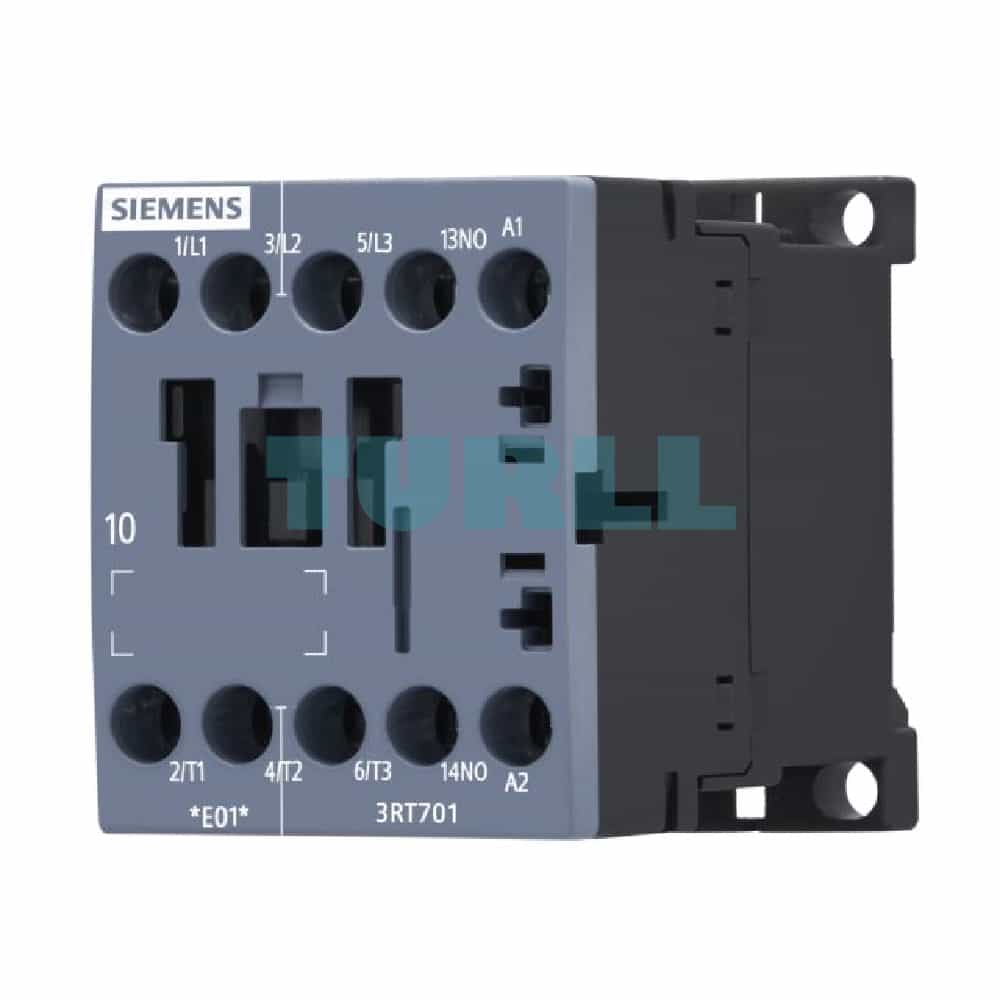

Siemens 3RT7016-1AQ01 Contactor 9A/4kW, AC-3, 380V Coil, Size S00, Screw Terminals Original Brand New

Overview

The Siemens 3RT7016-1AQ01 is a high-performance SIRIUS series power contactor designed for reliable switching of standard three-phase AC motors. As a part of the S00 size category, it offers a compact and space-saving solution for a wide range of industrial applications. This model is engineered for AC-3 duty, rated for 9A at 400V, with a motor power capacity of 4 kW. Its robust design and screw terminals ensure a secure and durable electrical connection, making it an ideal choice for motor control and automation systems.

Key Features & Technical Specification

• Product Number: 3RT7016-1AQ01
• Contactor Type: Power Contactor
• Series: SIRIUS 3RT
• Size: S00
• Rated Operating Current (AC-3): 9A at 400V
• Rated Motor Power (AC-3): 4 kW at 400V
• Control Supply Voltage (Uc): 380V AC, 50/60Hz
• Auxiliary Contacts: 1 NO (Normally Open)
• Connection Type: Screw Terminals
• Mounting: DIN Rail or Screw Mounting
• Standard: IEC 60947-4-1
• Operating Temperature: -25°C to +60°C
• Dimensions (WxHxD): 45 mm x 57.5 mm x 73 mm (approx.)

Benefit

• Reliable Performance: Built with Siemens’ renowned quality, the 3RT7016-1AQ01 guarantees consistent and reliable operation for motor switching applications.
• Space-Saving Design: The compact S00 size allows for high-density panel layouts, optimizing space within control cabinets.
• Easy Installation: Features like screw terminals and standard DIN rail compatibility simplify the installation and wiring process, reducing setup time.
• Versatility: Suitable for a broad spectrum of applications, including motor control, resistive loads, and general switching tasks.
• Safety & Durability: Engineered to meet international standards (IEC), ensuring safe operation and a long service life in demanding industrial environments.

Function

The Siemens 3RT7016-1AQ01 contactor serves as an electrically operated switch, primarily used for remotely controlling a three-phase motor. When the 380V AC control coil is energized, the main contacts close, allowing power to flow to the motor. The integrated 1 NO auxiliary contact can be used for feedback, interlocking, or to control other components in the automation system, providing flexibility and enhanced control capabilities.

Application

• Motor control and switching
• Pump and fan control
• HVAC systems
• Conveyor systems
• General industrial automation
