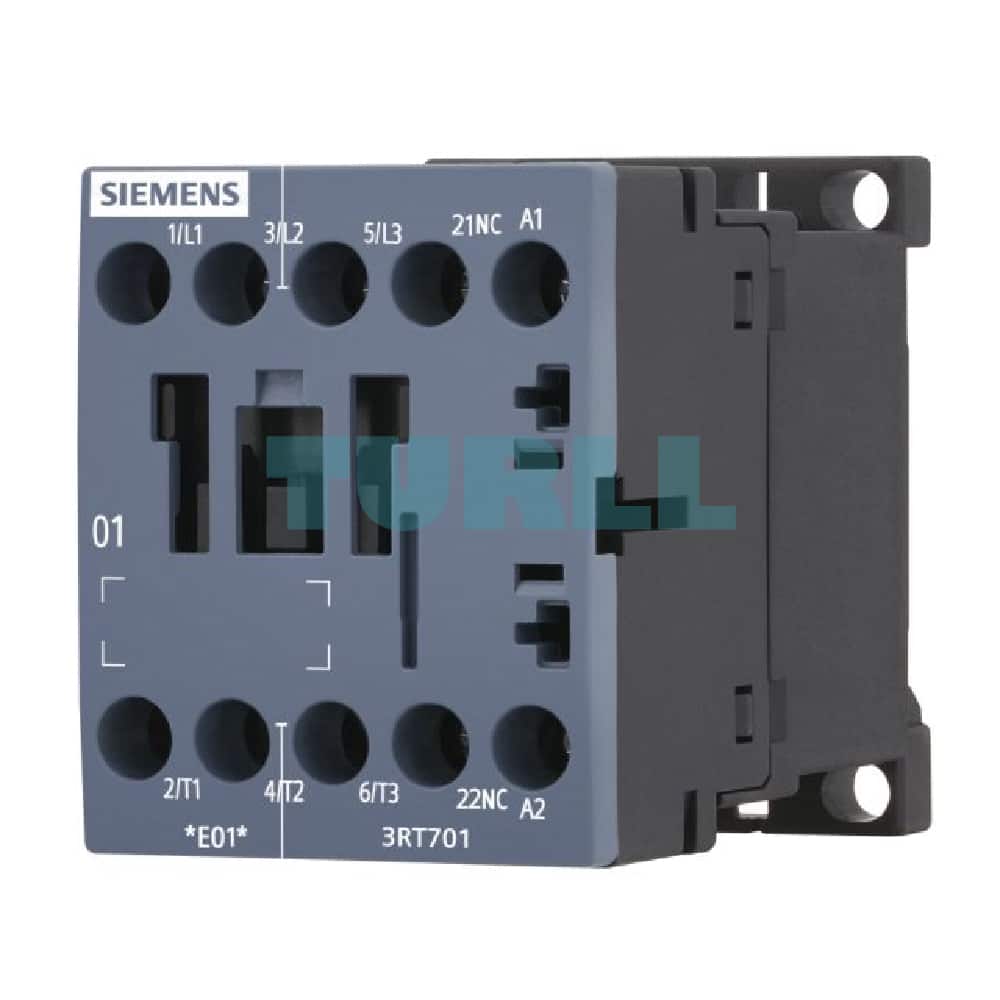

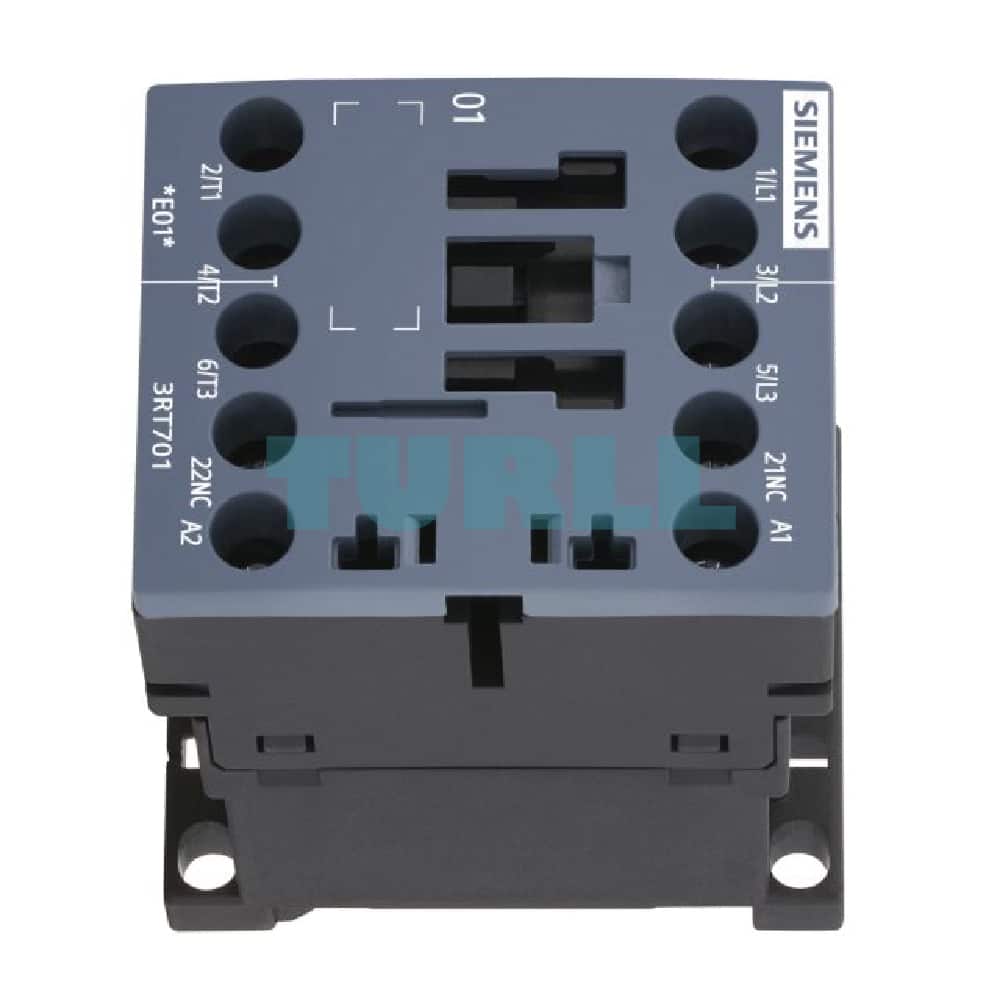

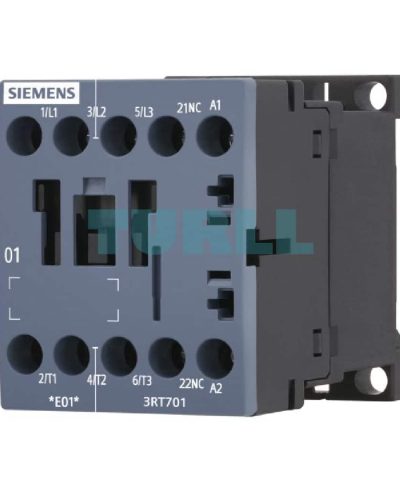

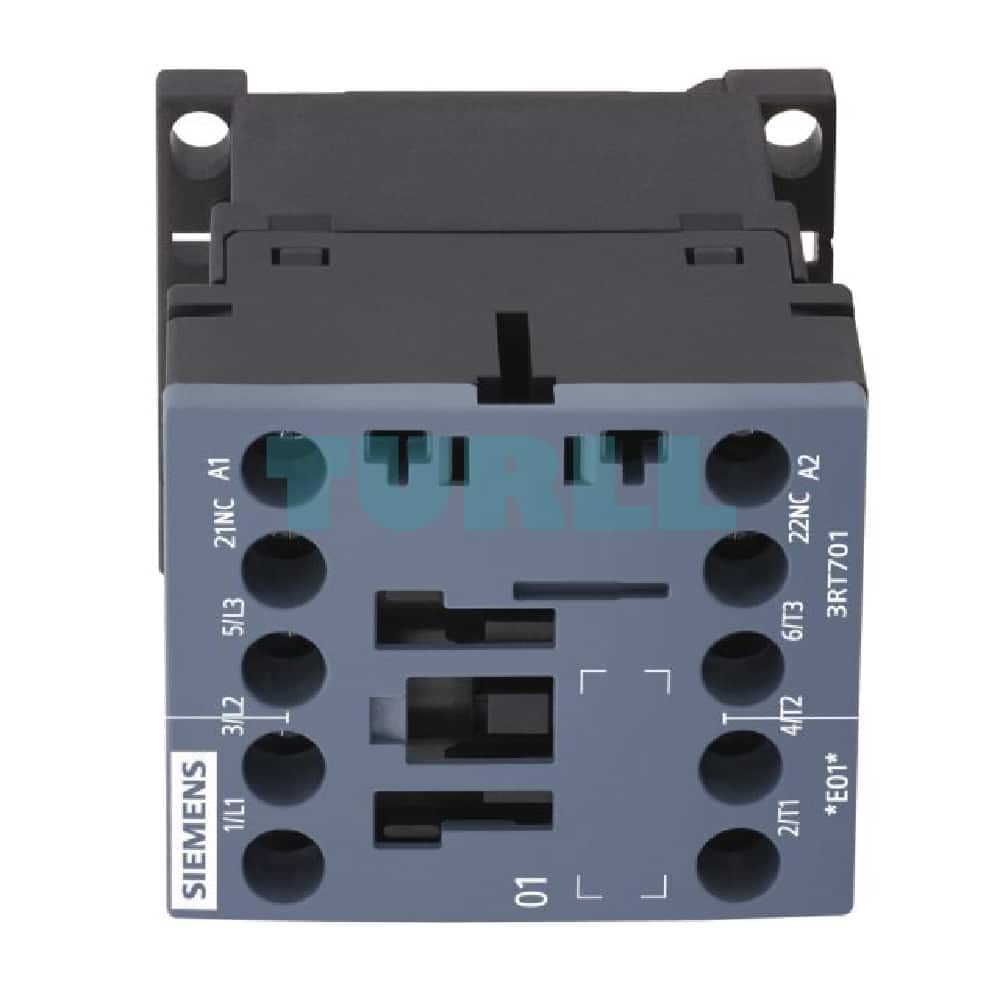

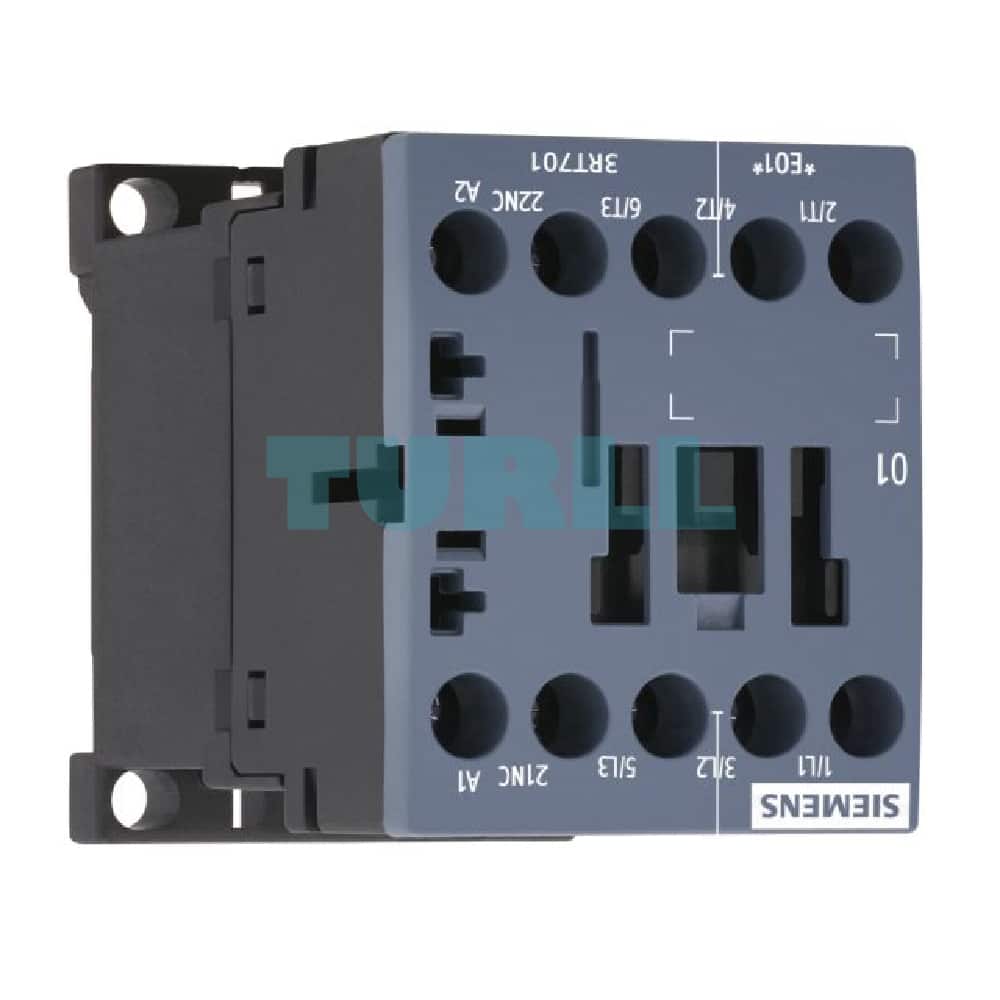

Siemens 3RT7017-1AH02 Contactor 12A, 5.5kW, 48V AC Coil, Screw Terminal Original Brand New

Overview

The Siemens 3RT7017-1AH02 is a high-performance, robust power contactor designed for industrial control applications. As part of the SIRIUS series, this size S00 contactor is engineered for switching motors and other resistive loads. It features a rated operational current of 12A under AC-3 conditions for up to 5.5kW at 400V, making it a reliable solution for a wide range of applications. The integrated 1 Normally Closed (1NC) auxiliary contact provides added flexibility for control circuits. With its compact design and user-friendly screw terminals, the 3RT7017-1AH02 offers easy installation and maintenance, ensuring seamless integration into your control panel.

Key Features & Benefit

• Reliable Performance: Rated for AC-3 switching of 12A at 400V, providing secure and efficient motor control.
• Energy Efficient: Optimized design minimizes power consumption during operation.
• Compact Size: The size S00 form factor saves valuable space in your control cabinet.
• Integrated Auxiliary Contact: The built-in 1NC auxiliary contact simplifies wiring for interlocking and signaling.
• Durable Design: Constructed for a long electrical and mechanical lifespan, reducing downtime and maintenance costs.
• Simple Installation: Easy-to-use screw terminals ensure quick and secure wiring.
• Versatile Application: Suitable for a wide range of motor and non-motor loads in various industrial environments.

Function

The Siemens 3RT7017-1AH02 contactor functions as an electrically operated switch. When the 48V AC control voltage is applied to the coil (terminals A1 and A2), the magnetic field generated pulls the main contacts together, allowing power to flow to the connected load (e.g., an electric motor). When the voltage is removed, a spring returns the contacts to their open position, safely de-energizing the load. The 1NC auxiliary contact operates in reverse; it is normally closed when the contactor is de-energized and opens when the contactor coil is energized. This function is crucial for creating interlocking circuits, status signaling, and control logic.

Technical Specification

• Product Type: Power Contactor
• Product Number: 3RT7017-1AH02
• Rated Operational Current (AC-3): 12A (at 400V)
• Rated Power (AC-3): 5.5 kW (at 400V)
• Control Supply Voltage: 48V AC, 50/60 Hz
• Auxiliary Contacts: 1NC (Normally Closed)
• Size: S00
• Connection Type: Screw terminals
• Series: SIRIUS
• Mounting: DIN rail mountable
• Manufacturer: Siemens
