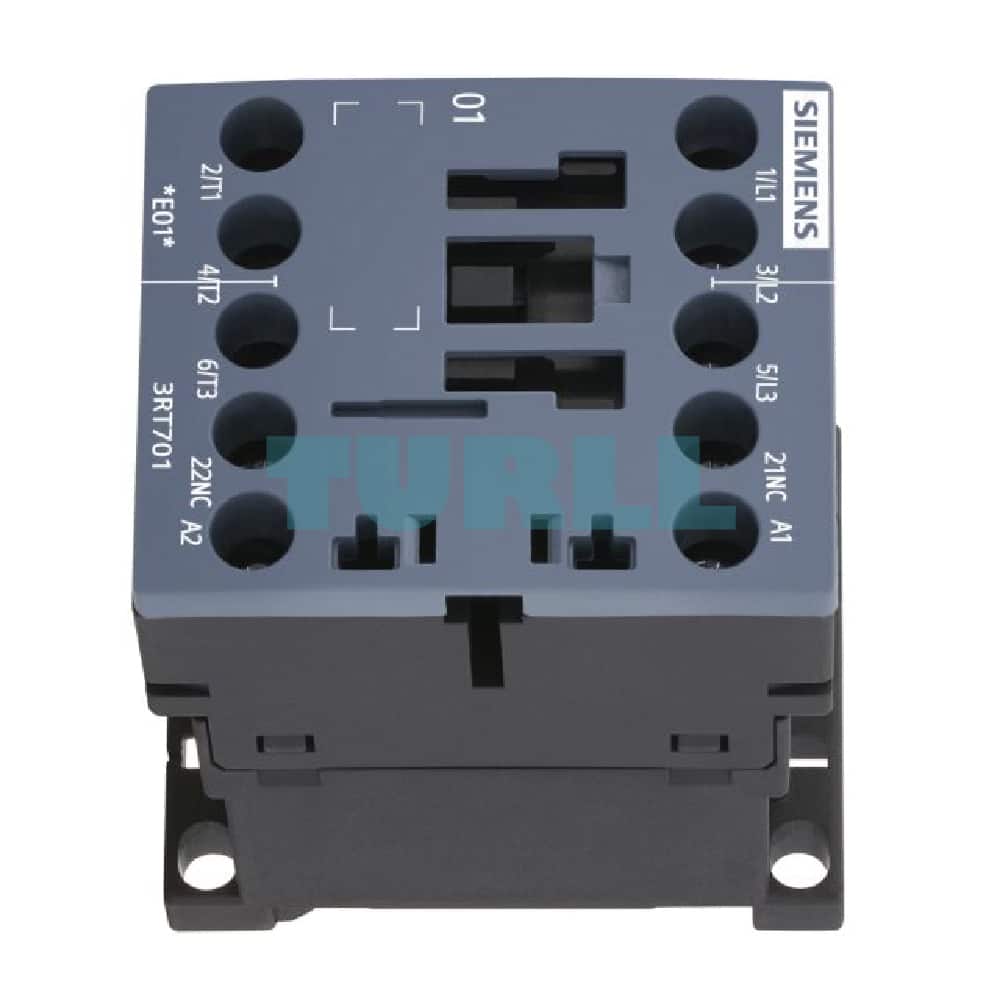

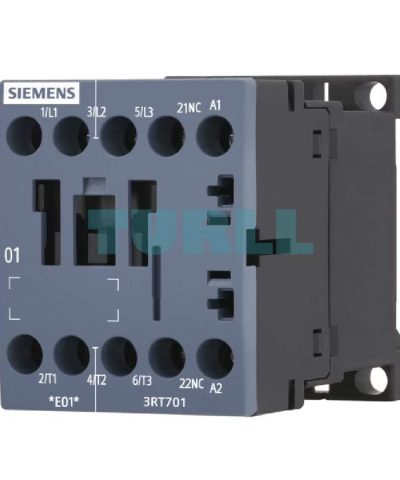

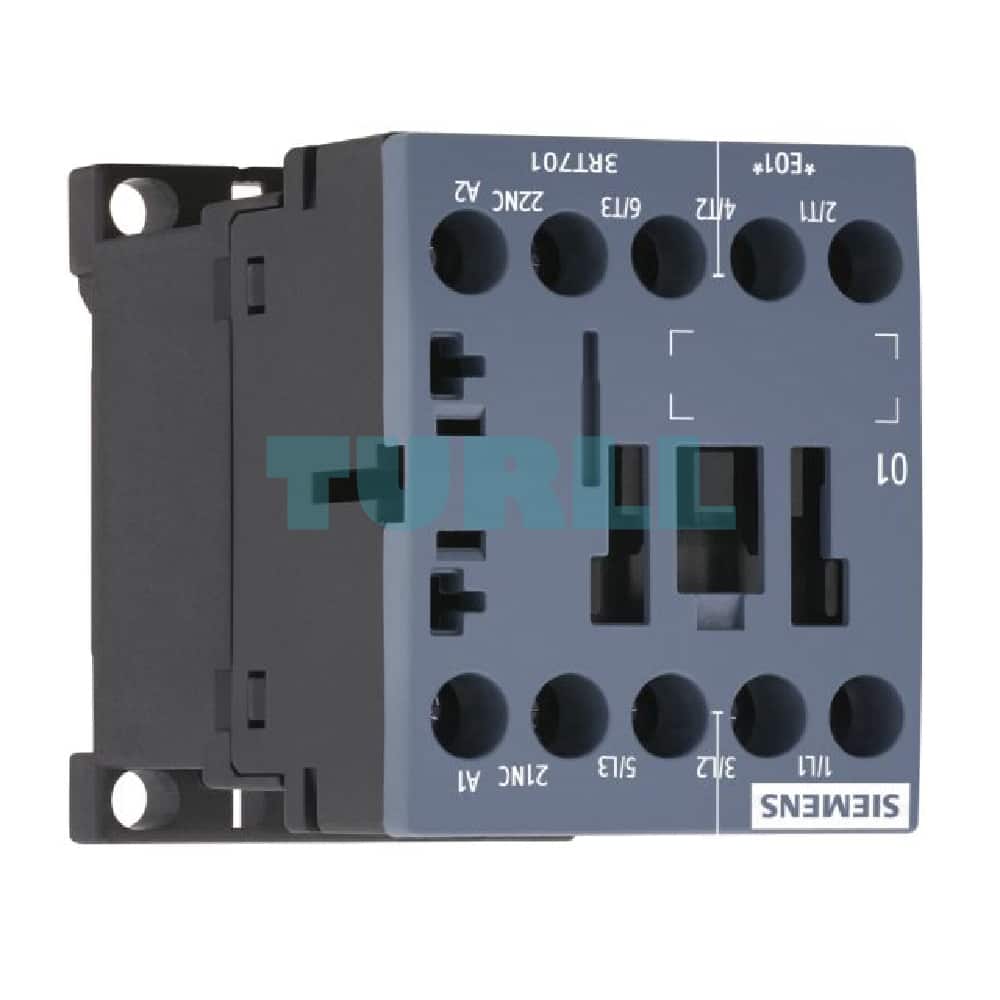

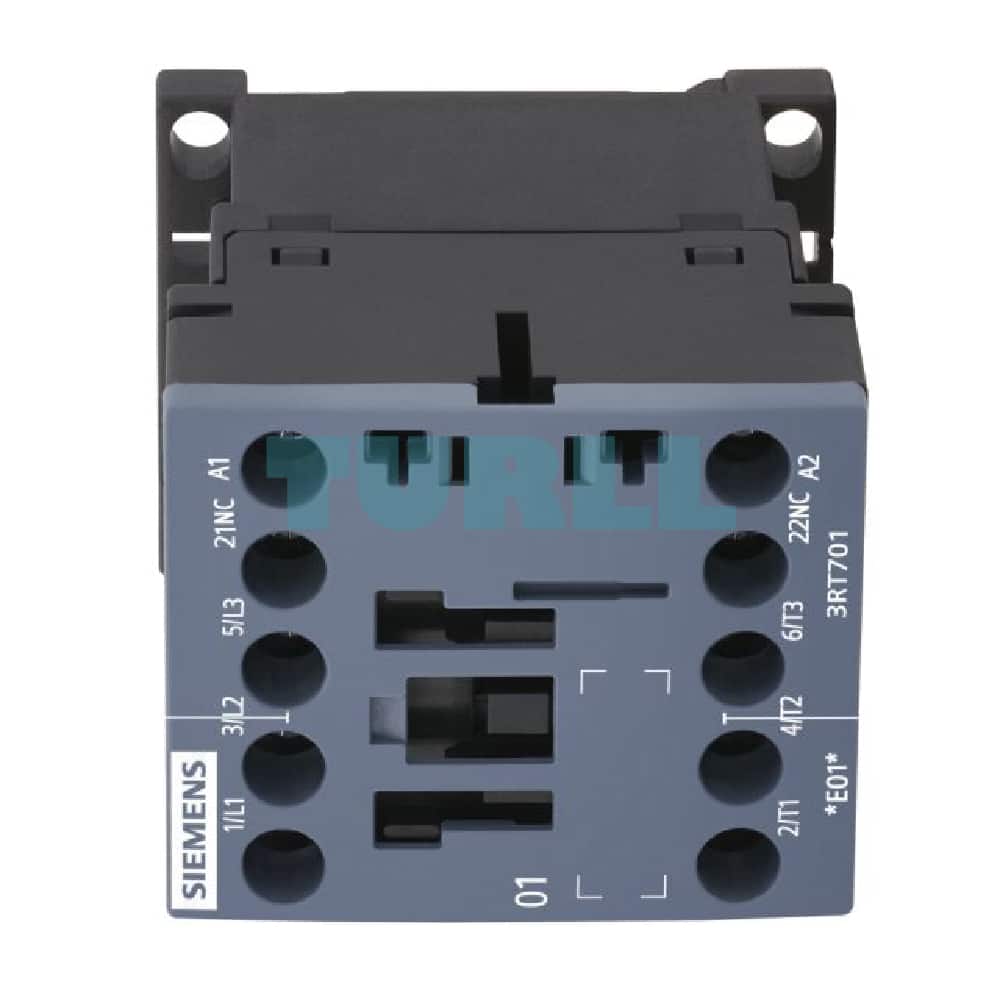

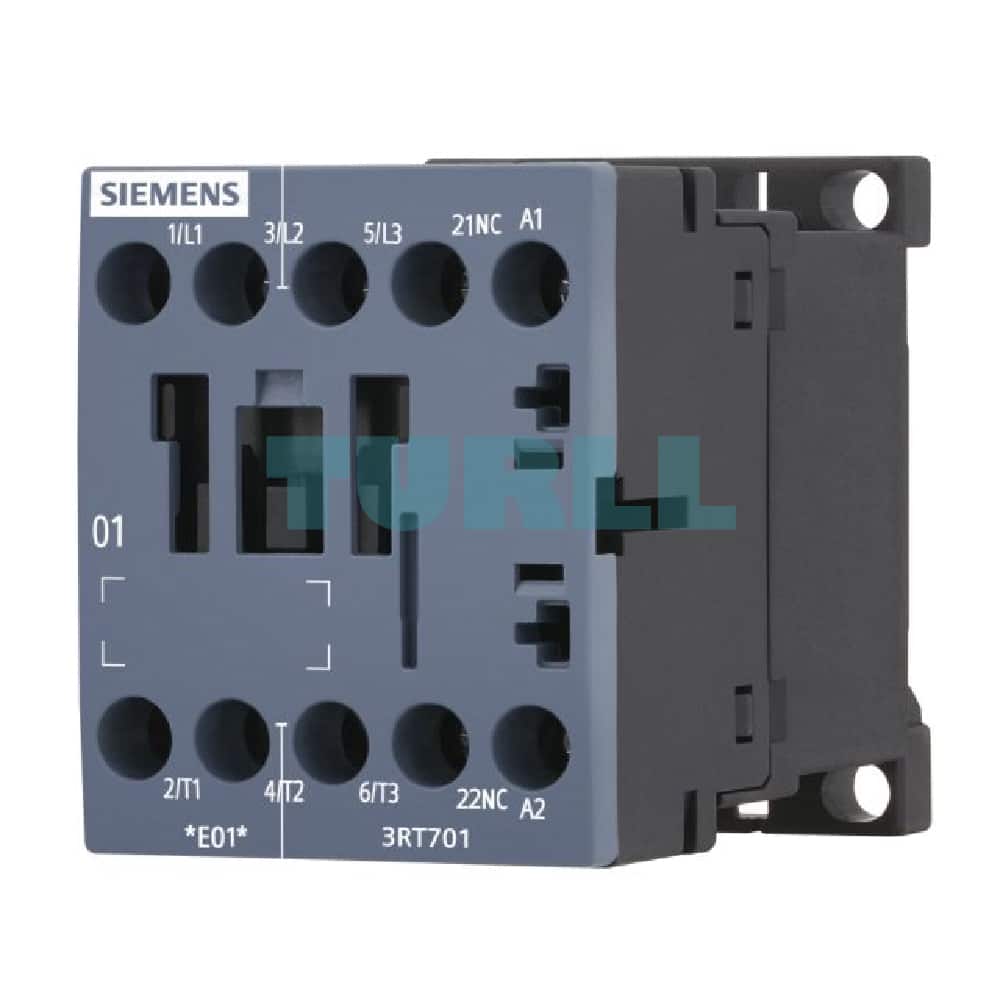

Siemens 3RT7017-1AV02 SIRIUS Contactor AC-3 12A/5.5kW, 400V, Size S00 with Screw Terminals Original Brand New

Product Overview

The Siemens 3RT7017-1AV02 is a high-performance SIRIUS 3RT series contactor, specifically engineered for the reliable switching of three-phase squirrel-cage motors. This compact and robust device is part of the modular SIRIUS system, which simplifies installation and wiring in industrial control panels. It is rated for AC-3 applications up to 12A and 5.5kW at 400V, making it a perfect choice for a wide range of motor control and general-purpose switching tasks.

With its space-saving Size S00 design and reliable screw terminals, the 3RT7017-1AV02 contactor offers a cost-effective and efficient solution for your automation needs. The integrated 1NC auxiliary contact provides valuable feedback for control circuits, ensuring seamless operation and monitoring.

Key Features & Technical Specification

• Product Number: 3RT7017-1AV02
• Manufacturer: Siemens
• Product Line: SIRIUS 3RT
• Contactor Type: AC-3
• Rated Operating Current: 12A
• Rated Power: 5.5 kW at 400V
• Operating Voltage: 400V AC
• Coil Voltage: 400V AC, 50/60Hz
• Number of Poles: 3-pole
• Auxiliary Contacts: 1 NC (Normally Closed)
• Size: S00
• Terminal Type: Screw terminals
• Mounting: DIN rail mountable

Benefit

• High Reliability: The SIRIUS 3RT series is known for its long mechanical and electrical lifespan, ensuring minimal downtime and maintenance.
• Compact Design: The Size S00 frame is a space-saver, allowing for high-density installations in control cabinets where space is at a premium.
• Easy Installation: Screw terminals provide a secure and straightforward connection, while the standard DIN rail mounting simplifies setup.
• Versatile Application: Ideal for switching motors, but also suitable for switching resistive loads, lighting, and other inductive loads.
• Integrated Auxiliary Contact: The built-in 1 NC contact streamlines wiring and reduces the need for external components, saving both space and cost.
• Global Recognition: As a Siemens product, the 3RT7017-1AV02 is a trusted component in automation and control systems worldwide.

Application

The Siemens 3RT7017-1AV02 contactor is suitable for a variety of industrial and commercial applications, including:

• Motor Control: Starting and stopping small to medium-sized motors in conveyor systems, pumps, fans, and compressors.
• Machine Tools: Integration into control panels for lathes, milling machines, and other automated equipment.
• HVAC Systems: Used for switching compressors and fans in heating, ventilation, and air conditioning units.
• General Purpose Switching: Controlling lighting circuits, heating elements, and other electrical loads in industrial environments.
