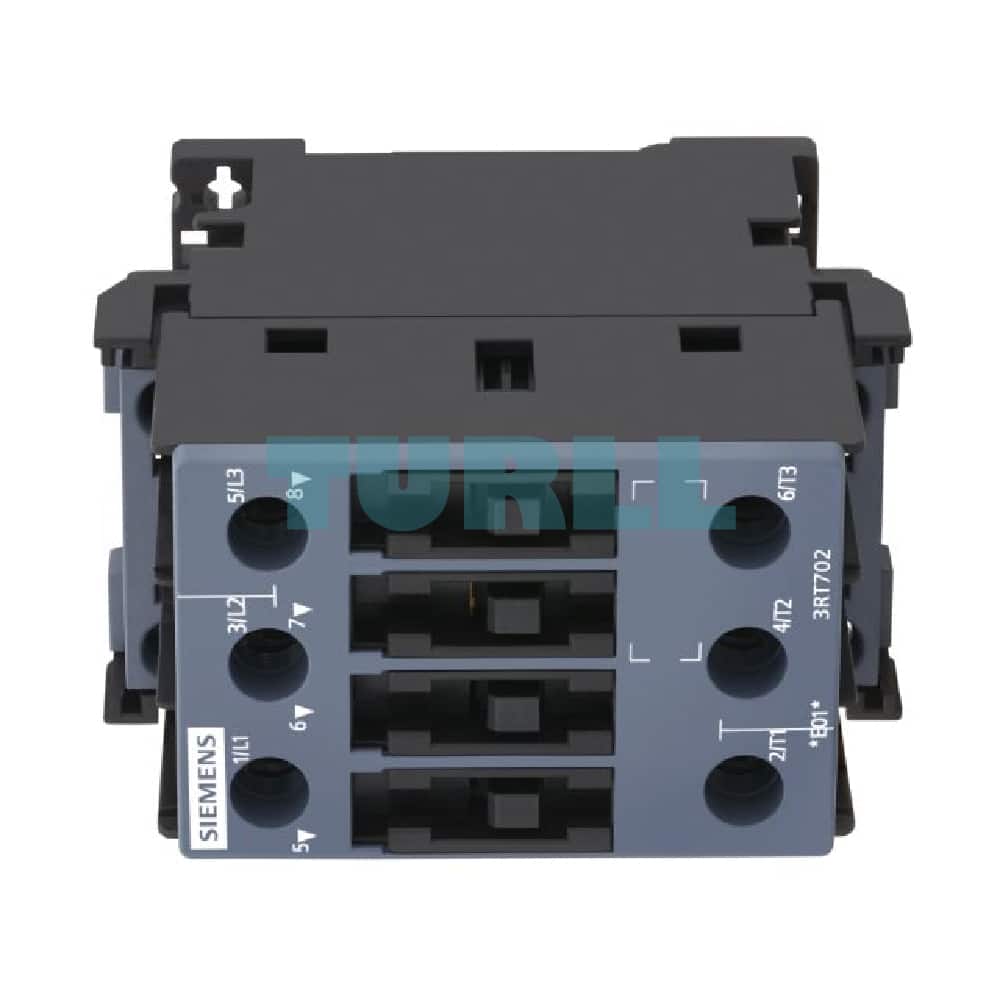

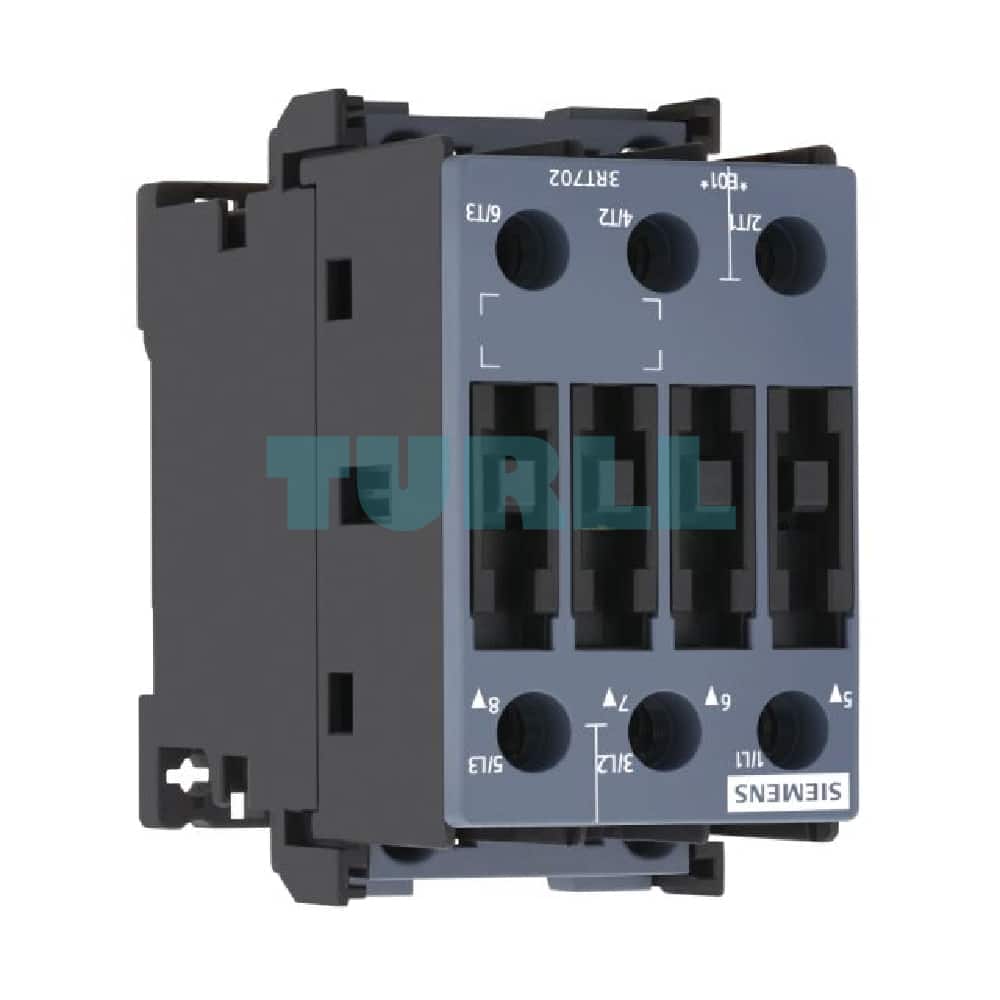

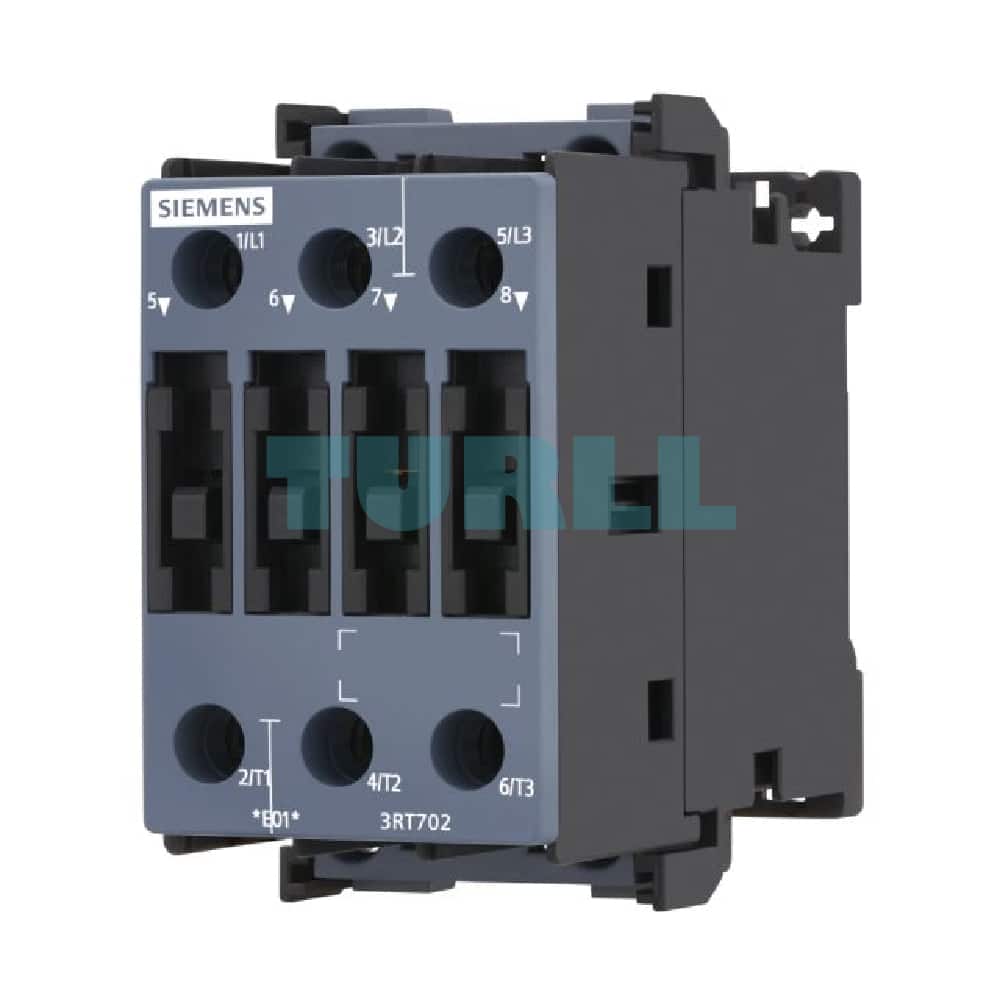

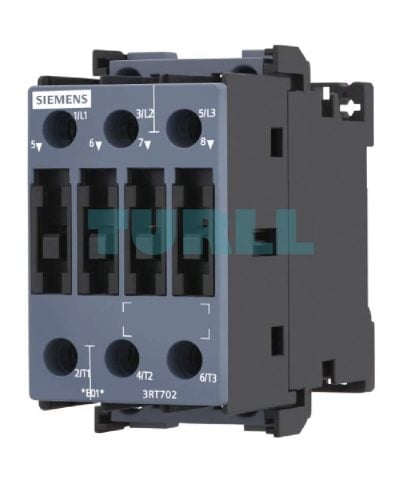

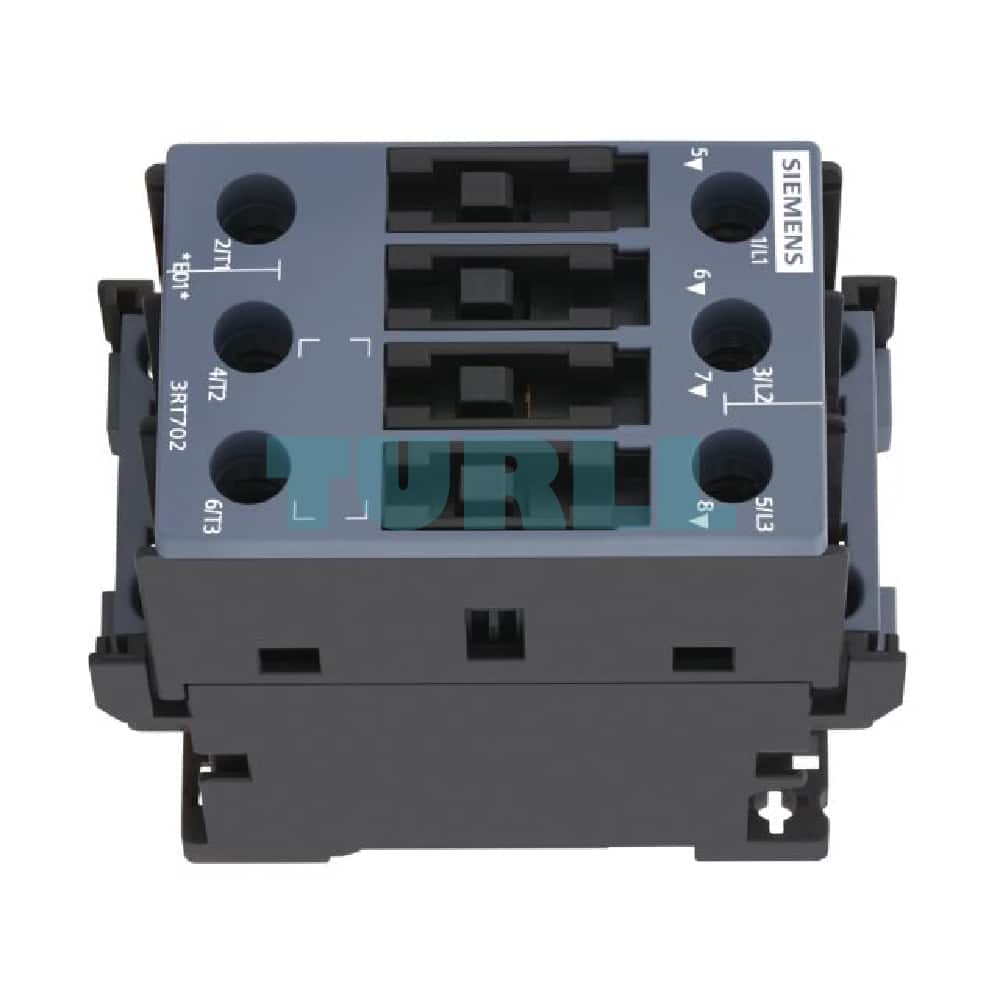

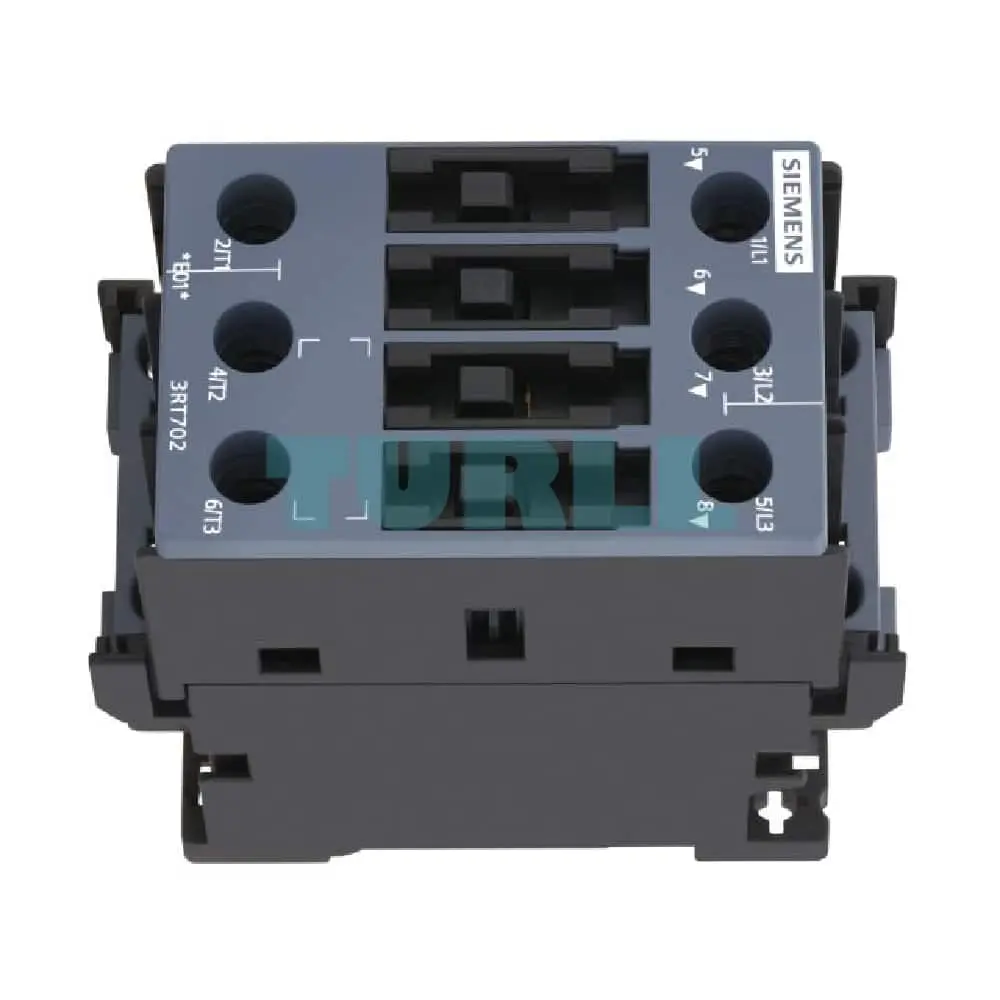

Siemens 3RT7027-1AG20 Contactor 32A/15kW, 110V AC Coil, S0, Screw Terminal Original Brand New

Overview

The Siemens 3RT7027-1AG20 is a high-performance SIRIUS series power contactor designed for reliable switching of electric motors and other loads. This 3-pole contactor is rated for AC-3 applications up to 32A at 400V, providing 15kW of switching capacity. Its compact Size S0 design makes it ideal for space-constrained industrial control panels. The integrated 110V AC coil ensures compatibility with common control circuits, and its robust screw terminals provide a secure and durable connection.

Key Features & Benefit

• High Performance: Capable of handling demanding AC-3 applications up to 32A and 15kW, ensuring reliable motor control.
• Compact Design: The Size S0 form factor saves valuable panel space, allowing for more efficient layouts.
• Durable Connections: Screw terminals offer a strong, vibration-resistant connection, reducing maintenance and improving safety.
• Versatile Use: Ideal for a wide range of applications, including motor control, lighting, and heating systems.
• Long Service Life: Built with Siemens’ renowned quality and engineering, providing a long operational life and high reliability.

Function

The Siemens 3RT7027-1AG20 contactor acts as an electrically operated switch, primarily used for controlling three-phase electric motors. When the 110V AC coil is energized, the magnetic field it creates pulls the main contacts closed, allowing current to flow to the motor. When the coil is de-energized, a spring forces the contacts open, safely interrupting the circuit. This makes it a crucial component in industrial automation and power distribution systems.

Technical Specification

• Product Number: 3RT7027-1AG20
• Product Type: Power Contactor
• Rated Operational Current (Ie): 32A (for AC-3)
• Rated Power: 15 kW (at 400V)
• Number of Poles: 3
• Operating Coil Voltage: 110V AC, 50/60Hz
• Size: S0
• Terminals: Screw Terminals
• Series: SIRIUS 3RT
