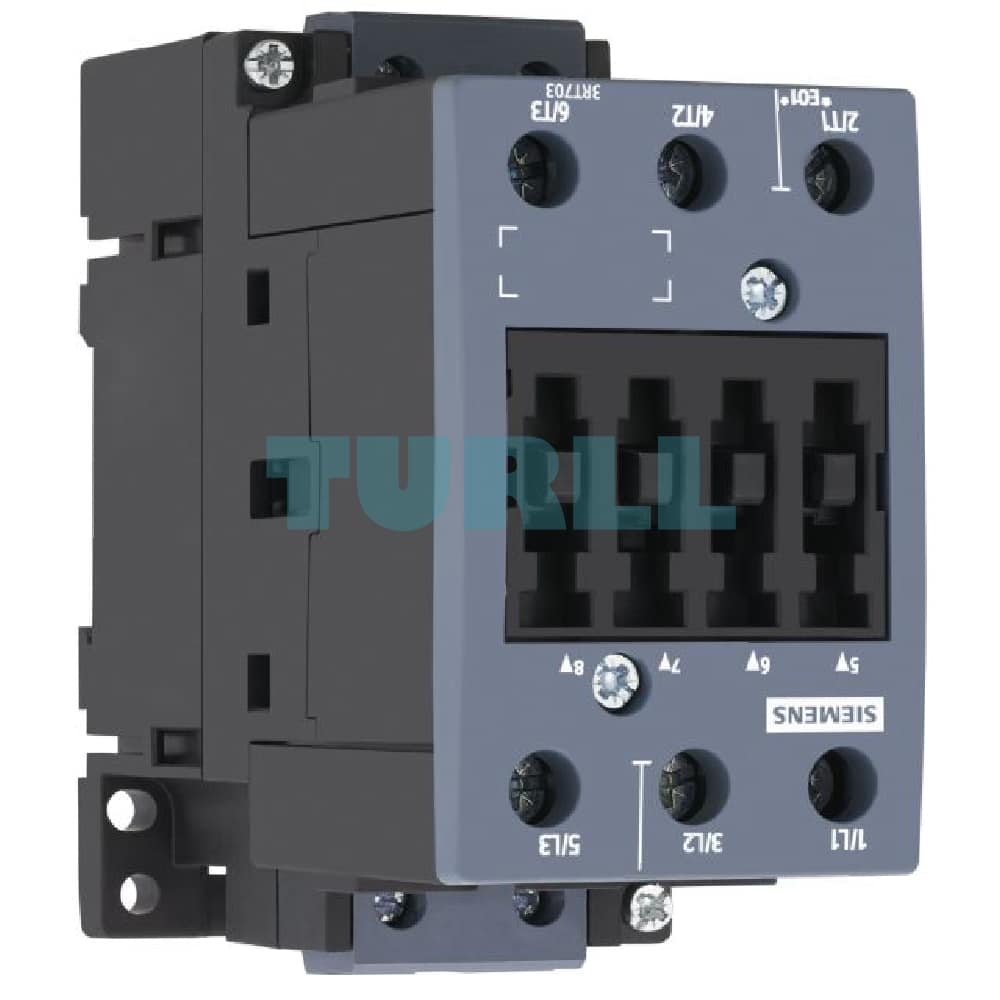

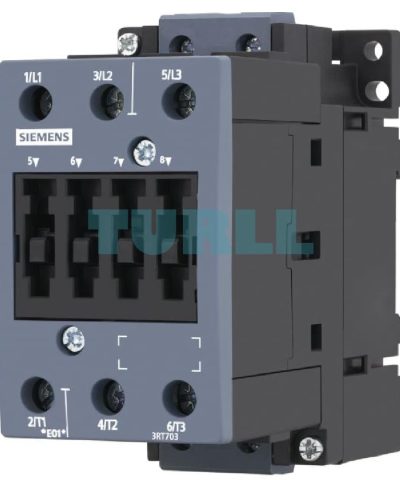

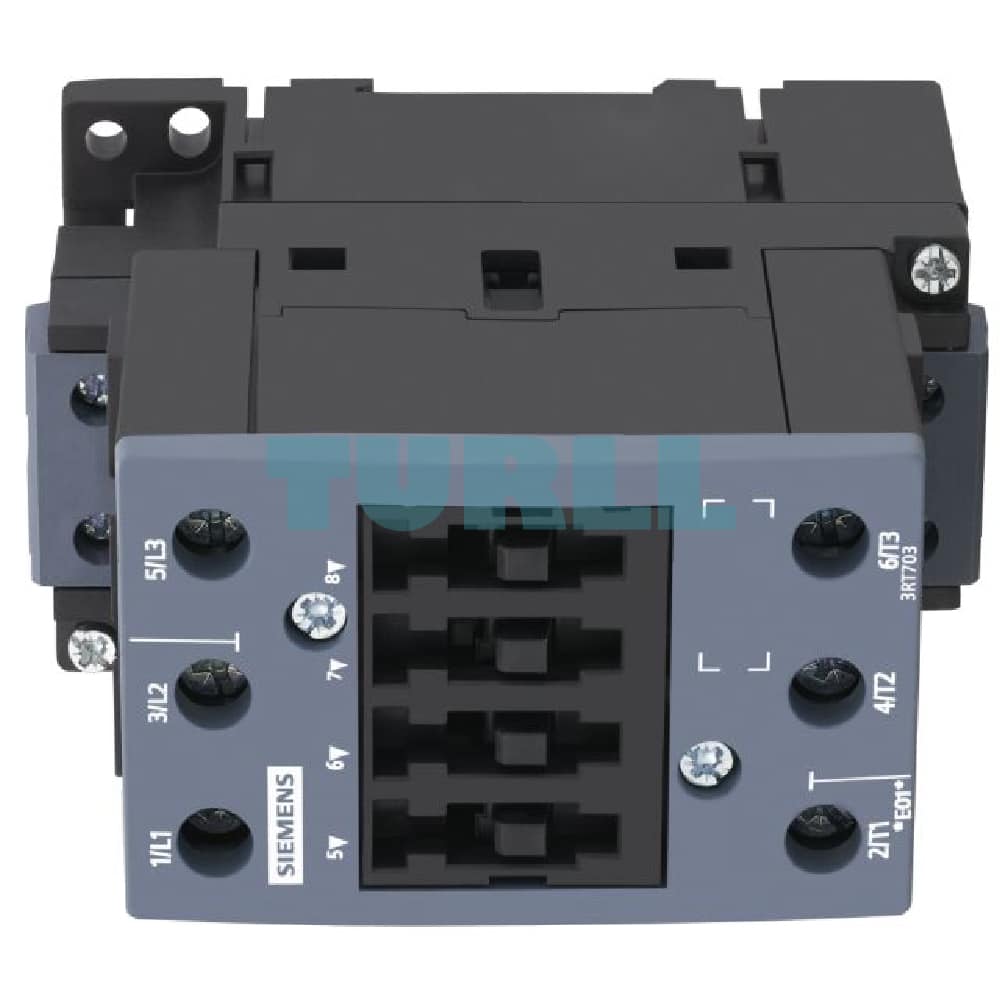

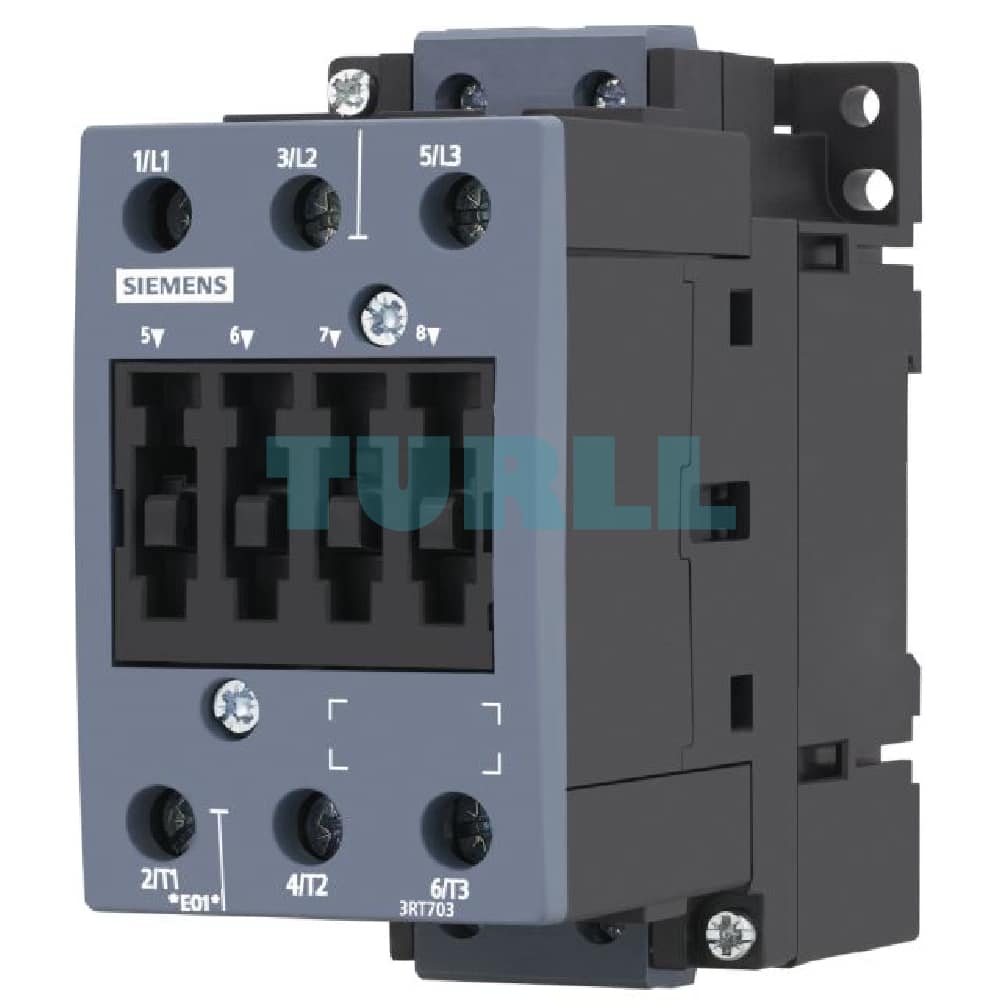

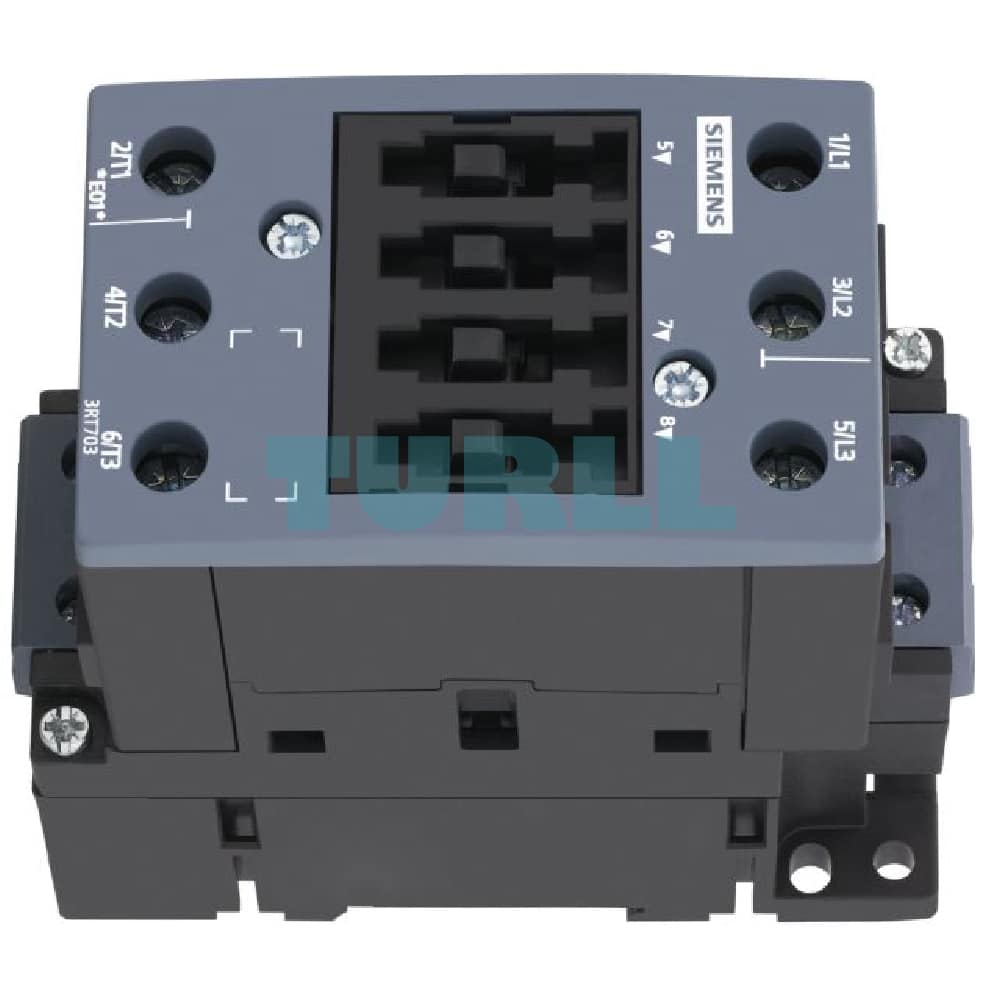

Siemens 3RT7036-1AH00 SIRIUS Contactor AC-3, 50A, 22kW, 400V, 48 VAC, 3-Pole, Size S2, Screw Terminal Original Brand New

Overview

The Siemens 3RT7036-1AH00 is a high-performance SIRIUS series AC contactor designed for reliable switching of electric motors and other loads up to 50A. As a key component in industrial automation and control systems, this 3-pole contactor is engineered for robust performance and long service life. Its compact Size S2 design allows for efficient use of space within control cabinets, while the integrated screw terminals ensure secure and straightforward wiring. The 48 VAC, 50 Hz coil makes it suitable for a wide range of standard industrial power supply configurations.

Key Features & Benefit

• High Performance: Rated for AC-3 switching duty at 50A and 22kW at 400V, providing reliable control for demanding motor applications.
• Durable Design: Part of the trusted Siemens SIRIUS family, known for its exceptional reliability, mechanical life, and operational stability.
• Space-Saving: The compact Size S2 frame allows for high-density mounting, optimizing panel layout and reducing overall equipment size.
• Simple Installation: Features robust screw terminals that provide a secure, low-resistance connection, simplifying installation and maintenance.
• Versatile Application: Ideal for controlling a variety of electrical loads, including squirrel-cage motors, heating elements, and lighting circuits.
• Safety & Compliance: Built to meet international standards for industrial control equipment, ensuring safe and reliable operation.

Technical Specification

• Product Series: Siemens SIRIUS 3RT7
• Part Number: 3RT7036-1AH00
• Type: AC Contactor (AC-3)
• Number of Poles: 3
• Rated Operational Current (Ie): 50 A (at 400 V)
• Rated Operational Power (Pe): 22 kW (at 400 V)
• Coil Voltage: 48 VAC, 50 Hz
• Size: S2
• Termination Type: Screw Terminal
• Mounting: Standard DIN rail or screw mounting
• Operating Temperature: -25°C to +60°C

Function

The Siemens 3RT7036-1AH00 functions as a relay for high-current applications. When the 48 VAC coil is energized, it generates a magnetic field that pulls the movable contacts into position, closing the circuit and allowing power to flow to the connected load. When the coil is de-energized, springs return the contacts to their open position, interrupting the circuit. This makes it a crucial component for starting, stopping, and reversing motors, as well as for controlling other industrial loads safely and efficiently from a low-power control signal.
