Siemens 3RV2011-1AA10 Circuit Breaker, S00, Motor Protection, CLASS 10, 1.1–1.6 A Original Brand New
$60.30

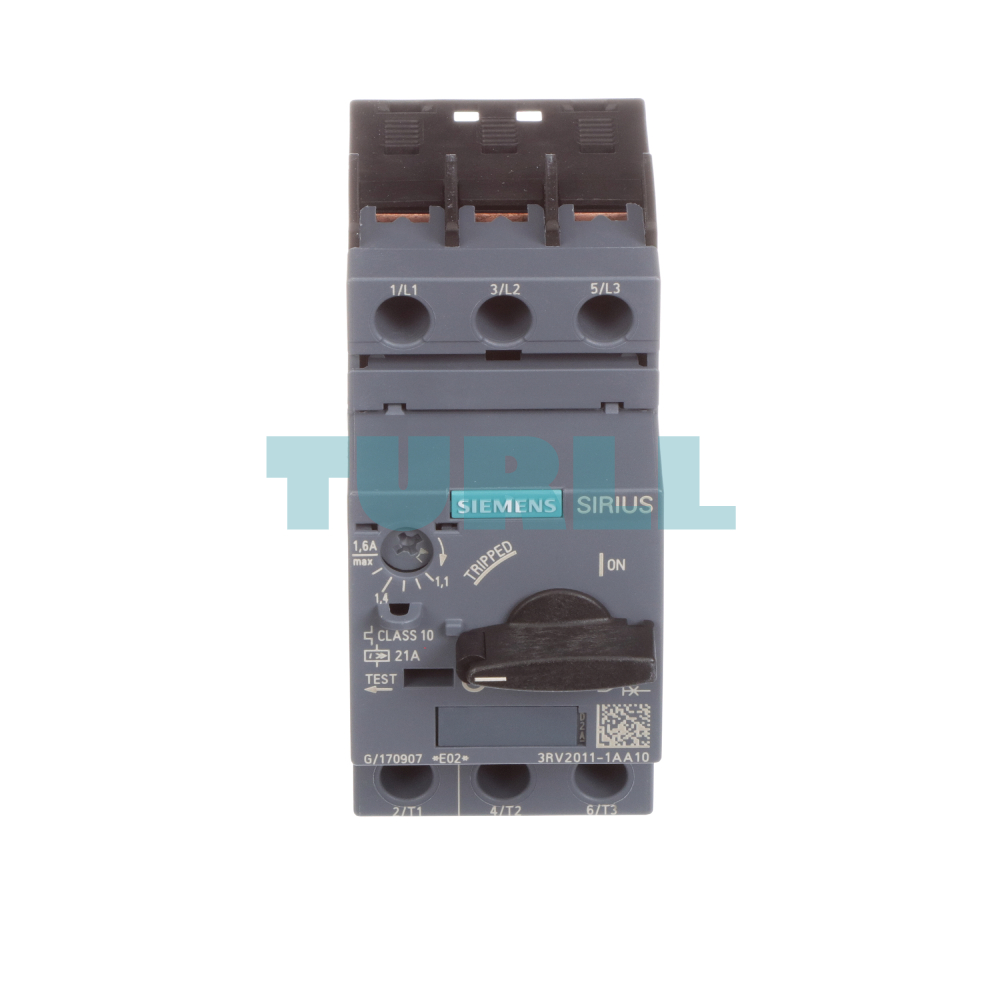

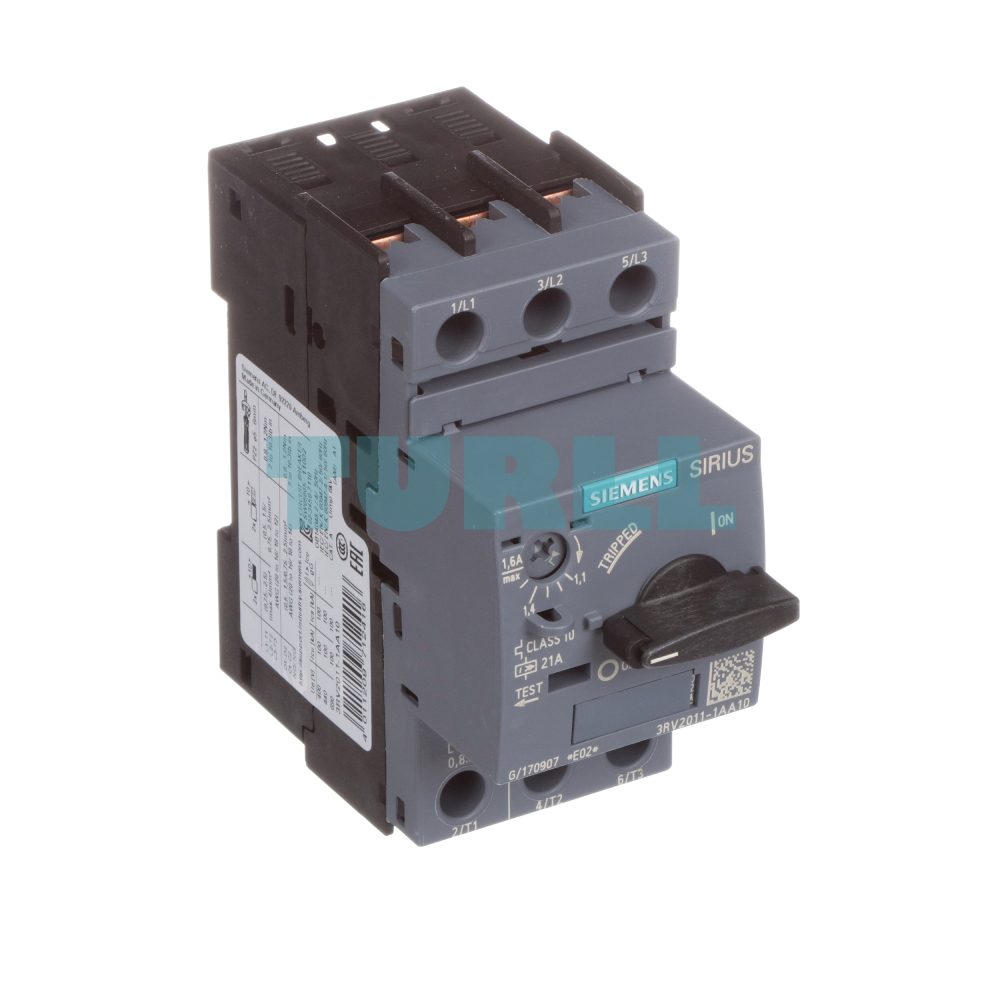

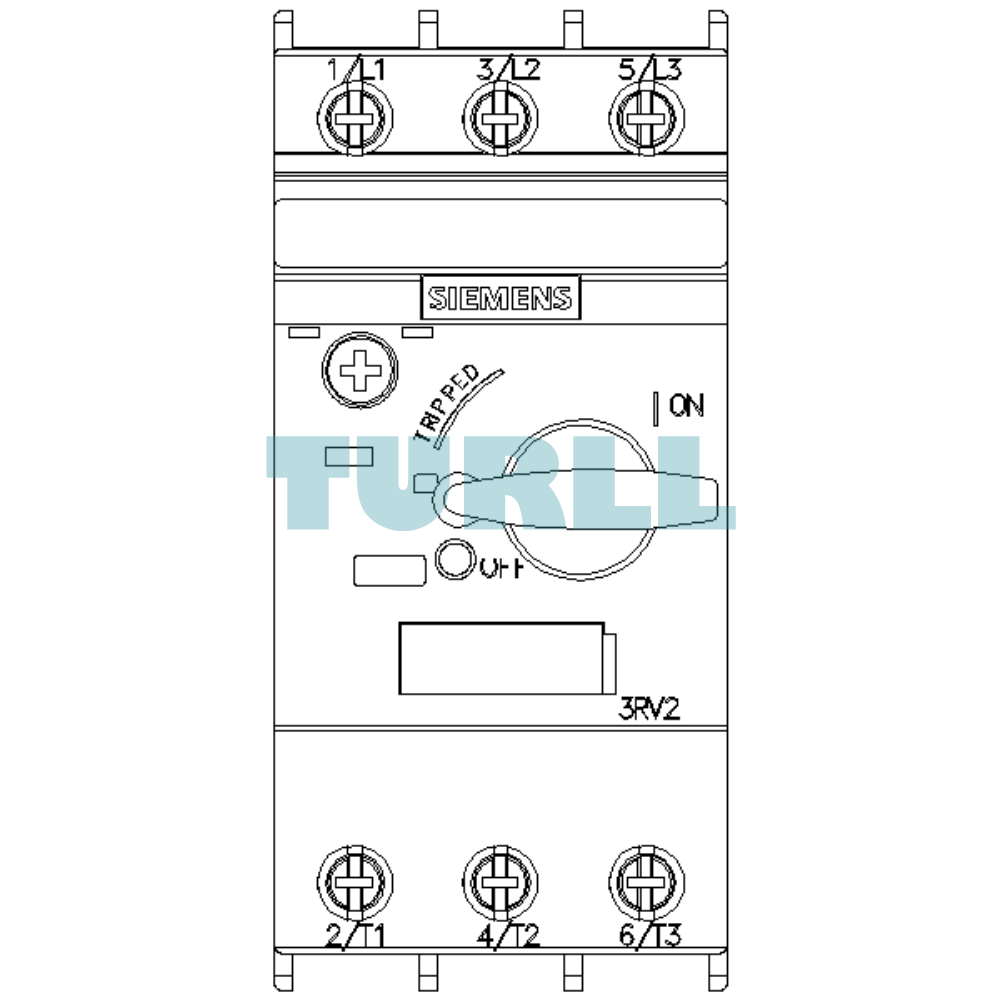

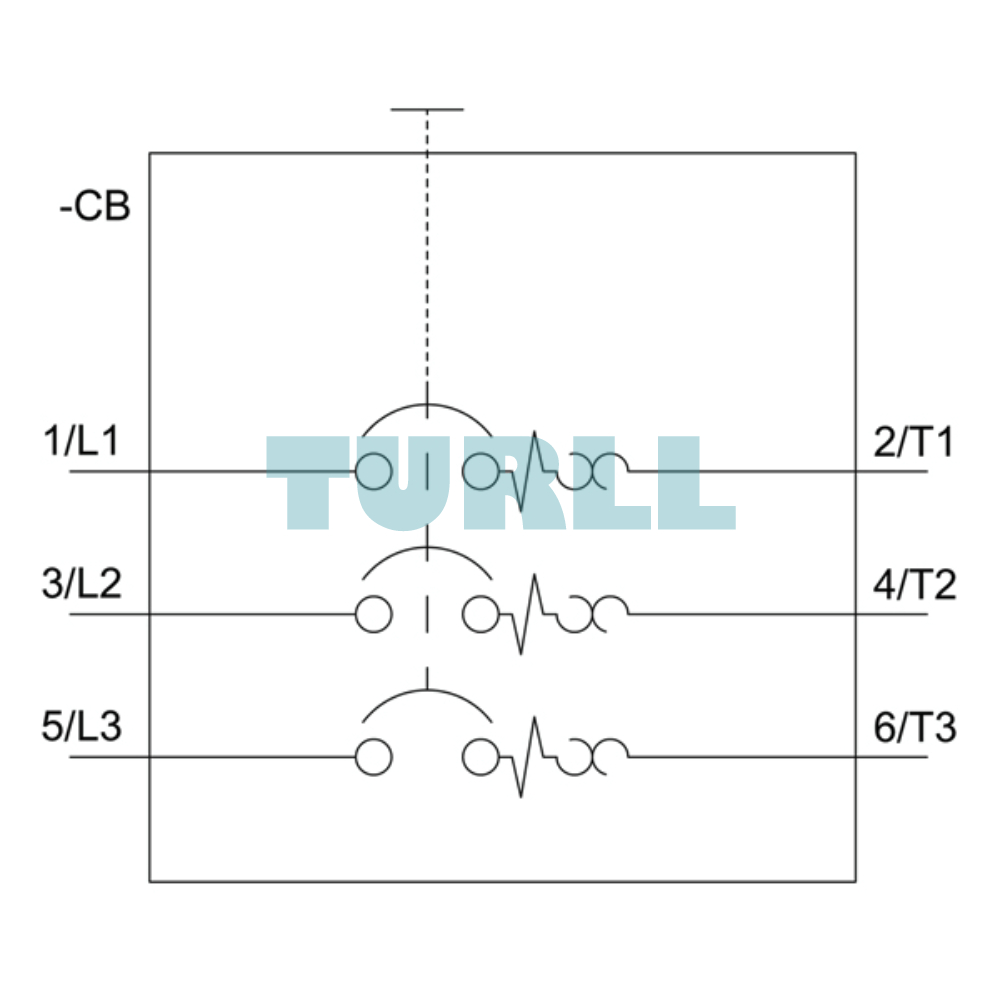

Siemens 3RV2011-1AA10 is a compact, thermal-magnetic circuit breaker size S00 designed specifically for reliable motor protection. It features a precision-adjustable A-release (1.1 to 1.6 A) for overload protection and a non-adjustable N-release (21 A) for short-circuit protection. Connection is made simple with screw terminals. This model offers CLASS 10 tripping and standard switching capacity, making it an essential component in industrial control applications.
Availability: In stock
Overview
The Siemens 3RV2011-1AA10 is a high-performance circuit breaker designed for reliable motor protection in industrial and commercial applications. This S00-sized breaker ensures optimal safety and efficiency, safeguarding motors from overloads and short circuits. Built with Siemens quality standards, it guarantees durability and consistent performance.
Key Features & Function
-
Size S00: Extremely compact design allows for high-density installation in control cabinets.
-
Motor Protection: Specifically calibrated for motor loads, adhering to the stringent CLASS 10 tripping characteristics.
-
Adjustable Thermal Overload Release (A-release): The current range of 1.1 A to 1.6 A can be precisely set to match the motor’s nominal current, ensuring accurate overload protection.
-
Fixed Short-Circuit Release (N-release): Provides instantaneous protection against dangerous short-circuits at a set value of 21 A, ensuring rapid shutdown.
-
Connection Type: Reliable and familiar screw terminals for secure and straightforward wiring.
-
Switching Capacity: Standard switching capacity, suitable for typical industrial environments.
Benefit
-
Enhanced Motor Lifespan: CLASS 10 protection minimizes thermal stress on the motor windings, extending equipment service life.
-
Increased System Uptime: Rapid and precise fault isolation reduces downtime caused by short-circuits and overloads.
-
Space Efficiency: The S00 form factor allows for smaller cabinet designs and easier integration with other SIRIUS components.
-
Reliability: As part of the Siemens SIRIUS range, the 3RV2011-1AA10 guarantees high operational reliability and safety standards.
Application
-
Industrial motor circuits
-
Commercial machinery protection
-
Electrical control panels
Visit 3RV2011-1AA10 for more detail info
For more our products visit turll
Download
| Weight | 0.345 kg |
|---|---|
| Dimensions | 49.00 × 102.00 × 102.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS |
| product designation | Circuit breaker |
| design of the product | For motor protection |
| product type designation | 3RV2 |
| size of the circuit-breaker | S00 |
| size of contactor can be combined company-specific | S00, S0 |
| product extension auxiliary switch | Yes |
| power loss [W] for rated value of the current | – |
| ● at AC in hot operating state | 7.25 W |
| ● at AC in hot operating state per pole | 2.4 W |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| surge voltage resistance rated value | 6 kV |
| maximum permissible voltage for safe isolation in networks with grounded star point | – |
| ● between main and auxiliary circuit | 400 V |
| shock resistance acc. to IEC 60068-2-27 | 25g / 11 ms |
| mechanical service life (switching cycles) | – |
| ● of the main contacts typical | 100 000 |
| ● of auxiliary contacts typical | 100 000 |
| electrical endurance (switching cycles) typical | 100 000 |
| type of protection according to ATEX directive 2014/34/EU | Ex II (2) GD |
| certificate of suitability according to ATEX directive 2014/34/EU | DMT 02 ATEX F 001 |
| reference code acc. to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
| ambient temperature | – |
| ● during operation | -20 … +60 °C |
| ● during storage | -50 … +80 °C |
| ● during transport | -50 … +80 °C |
| temperature compensation | -20 … +60 °C |
| relative humidity during operation | 10 … 95 % |
| number of poles for main current circuit | 3 |
| adjustable current response value current of the current-dependent overload release | 1.1 … 1.6 A |
| operating voltage | – |
| ● rated value | 20 … 690 V |
| ● at AC-3 rated value maximum | 690 V |
| operating frequency rated value | 50 … 60 Hz |
| operational current rated value | 1.6 A |
| operational current at AC-3 at 400 V rated value | 1.6 A |
| operating power at AC-3 | – |
| ● at 230 V rated value | 0.3 kW |
| operating frequency at AC-3 maximum | 15 1/h |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 0 |
| number of CO contacts for auxiliary contacts | 0 |
| product function | – |
| ● ground fault detection | No |
| ● phase failure detection | Yes |
| trip class | CLASS 10 |
| design of the overload release | thermal |
| breaking capacity operating short-circuit current (Ics) at AC | – |
| ● at 240 V rated value | 100 kA |
| ● at 400 V rated value | 100 kA |
| ● at 500 V rated value | 100 kA |
| ● at 690 V rated value | 100 kA |
| breaking capacity maximum short-circuit current (Icu) | – |
| ● at AC at 240 V rated value | 100 kA |
| ● at AC at 400 V rated value | 100 kA |
| ● at AC at 500 V rated value | 100 kA |
| ● at AC at 690 V rated value | 100 kA |
| response value current of instantaneous short-circuit trip unit | 21 A |
| full-load current (FLA) for 3-phase AC motor | – |
| ● at 480 V rated value | 1.6 A |
| ● at 600 V rated value | 1.6 A |
| yielded mechanical performance [hp] | – |
| ● for single-phase AC motor | – |
| — at 230 V rated value | 0.1 hp |
| ● for 3-phase AC motor | – |
| — at 460/480 V rated value | 1 hp |
| — at 575/600 V rated value | 0.8 hp |
| product function short circuit protection | Yes |
| design of the short-circuit trip | magnetic |
| design of the fuse link for IT network for short-circuit protection of the main circuit | – |
| ● at 500 V | gL/gG 20 A |
| ● at 690 V | gL/gG 16 A |
| mounting position | any |

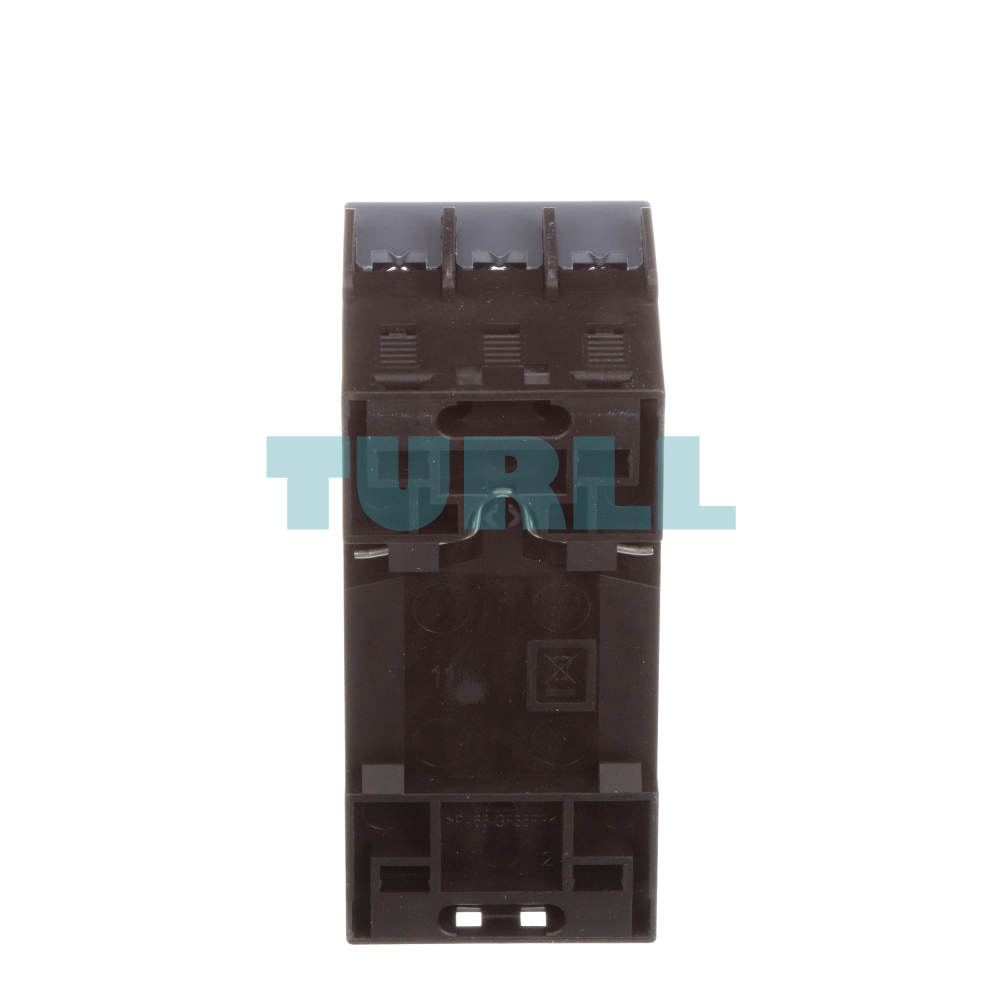

| fastening method | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715 |
| required spacing | – |
| ● for grounded parts at 400 V | – |
| ● for live parts at 400 V | – |
| ● for grounded parts at 500 V | – |
| ● for live parts at 500 V | – |
| ● for grounded parts at 690 V | – |
| ● for live parts at 690 V | – |
| — downwards | 50 mm |
| — upwards | 50 mm |
| — backwards | 0 mm |
| — at the side | 30 mm |
| — forwards | 0 mm |
| product component removable terminal for auxiliary and control circuit | No |
| type of electrical connection | – |
| ● for main current circuit | screw-type terminals |
| arrangement of electrical connectors for main current circuit | Top and bottom |
| type of connectable conductor cross-sections | – |
| — solid or stranded | 2x (0,75 … 2,5 mm²), 2x 4 mm² |
| — finely stranded with core end processing | 2x (0.5 … 1.5 mm²), 2x (0.75 … 2.5 mm²) |
| ● at AWG cables for main contacts | 2x (18 … 14), 2x 12 |
| tightening torque | – |
| ● for main contacts with screw-type terminals | 0.8 … 1.2 N·m |
| design of screwdriver shaft | Diameter 5 to 6 mm |
| size of the screwdriver tip | Pozidriv 2 |
| design of the thread of the connection screw | – |
| ● for main contacts | M3 |
| B10 value | – |
| proportion of dangerous failures | – |
| ● with high demand rate acc. to SN 31920 | 50 % |
| failure rate [FIT] | – |
| ● with low demand rate acc. to SN 31920 | 50 FIT |
| T1 value for proof test interval or service life acc. to IEC 61508 | 10 y |
| protection class IP on the front acc. to IEC 60529 | IP20 |
| touch protection on the front acc. to IEC 60529 | finger-safe, for vertical contact from the front |
| display version for switching status | Handle |
| For use in hazardous locations | Test Certificates Declaration of Conformity |
| last modified: | 11/16/2021 |
