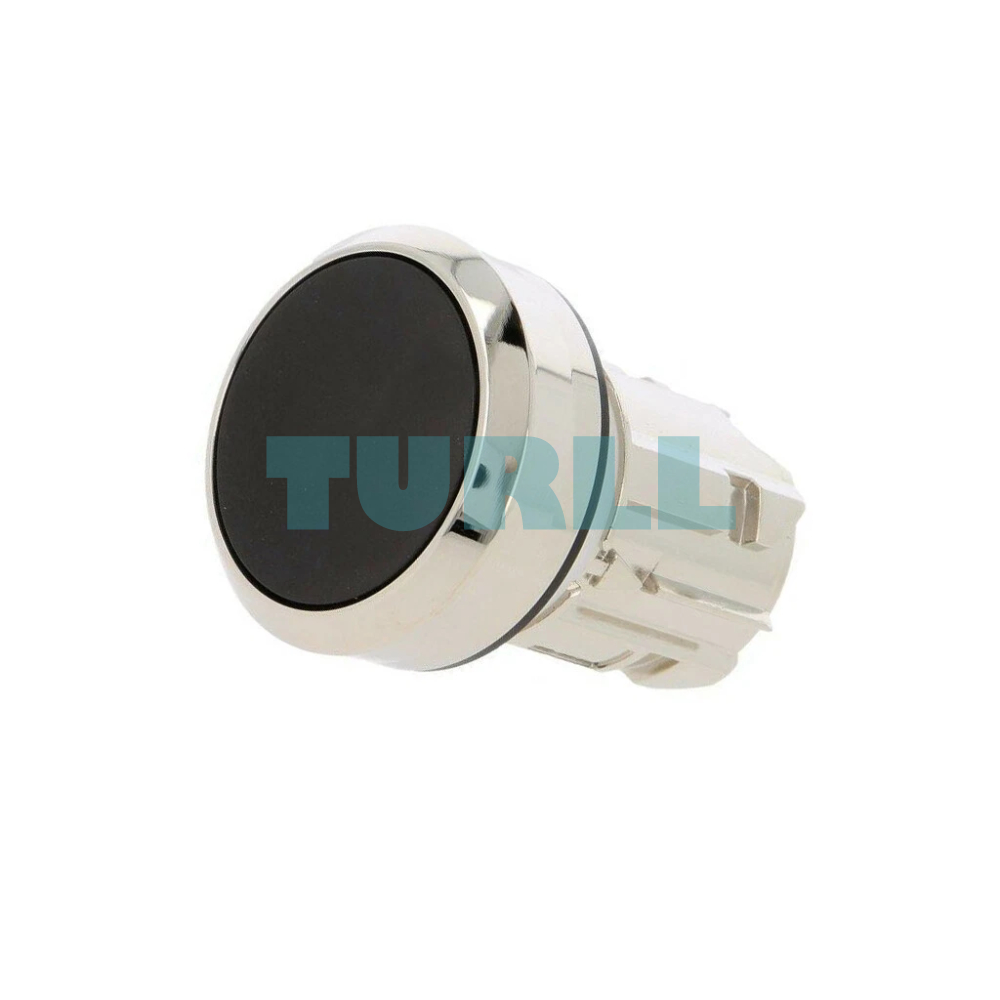

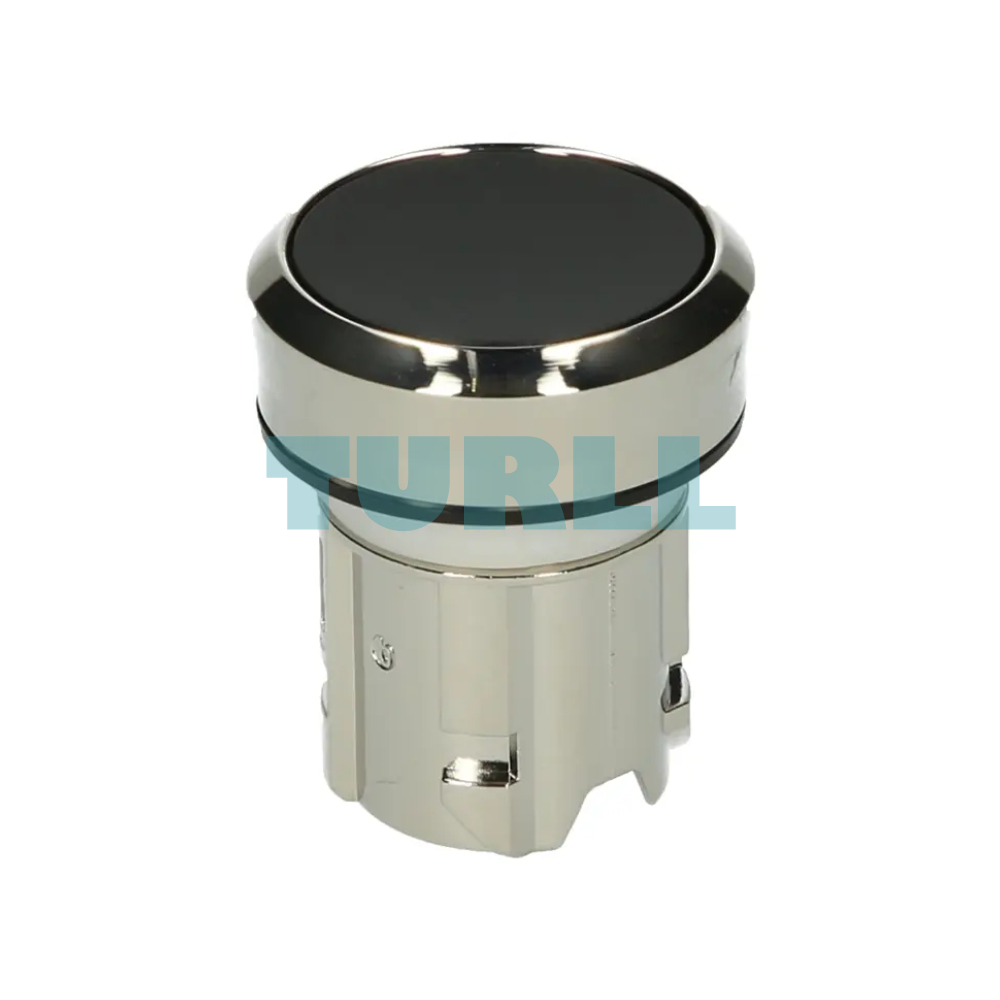

Siemens 3SU1050-0AB10-0AA0 Metal Pushbutton, 22mm, Flat Momentary Black Shiny Operator Original Brand New
$5.28
A premium 22mm round metal pushbutton from the SIRIUS ACT series. Featuring a sleek, shiny metal bezel and a black flat actuator, this momentary contact switch is designed for high-durability industrial applications requiring precise manual control.
Availability: In stock
Overview
The Siemens 3SU1050-0AB10-0AA0 Pushbutton is a high-quality industrial control component designed for reliability and durability. Featuring a 22 mm mounting diameter, flat momentary contact, and a shiny black metal finish, this pushbutton is ideal for control panels, machinery, and automation systems. Its robust metal construction ensures long service life even in demanding industrial environments.
Benefit
-
Rugged Durability: Constructed with high-grade shiny metal for superior impact resistance and aesthetic appeal.
-
Easy Installation: Designed for simple, one-handed mounting with a secure snap-on concept.
-
Environmental Protection: High IP rating (IP66/IP67/IP69K) ensures reliability against water, dust, and high-pressure washdowns.
-
Compact Design: The 22mm standard sizing allows for high-density placement on control consoles.
Function
-
Enables manual control in industrial automation systems
-
Suitable for start/stop operations, signaling, and machine control
-
Designed for momentary actuation, returning to default position after release
-
Compatible with Siemens modular pushbutton systems
Technical Specification
-
Brand: Siemens
-
Product Number: 3SU1050-0AB10-0AA0
-
Mounting Diameter: 22 mm
-
Shape: Round
-
Material: Metal
-
Finish: Shiny
-
Color: Black
-
Actuation Type: Flat pushbutton
-
Contact Type: Momentary
Visit 3SU1050-0AB10-0AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.035 kg |
|---|---|
| Dimensions | 28.00 × 35.00 × 28.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Pushbuttons |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| number of command points | 1 |
| design of the actuating element | Flat button |
| principle of operation of the actuating element | momentary contact type |
| product extension optional | – |
| ● light source | No |
| ● contact module | Yes |
| color of the actuating element | black |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 29.5 mm |
| product component front ring | Yes |
| design of the front ring | Standard |
| material of the front ring | Metal, high gloss |
| color of the front ring | silver |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| operating frequency maximum | 3 600 1/h |
| mechanical service life (switching cycles) typical | 10 000 000 |
| reference code acc. to IEC 81346-2 | S |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %) |

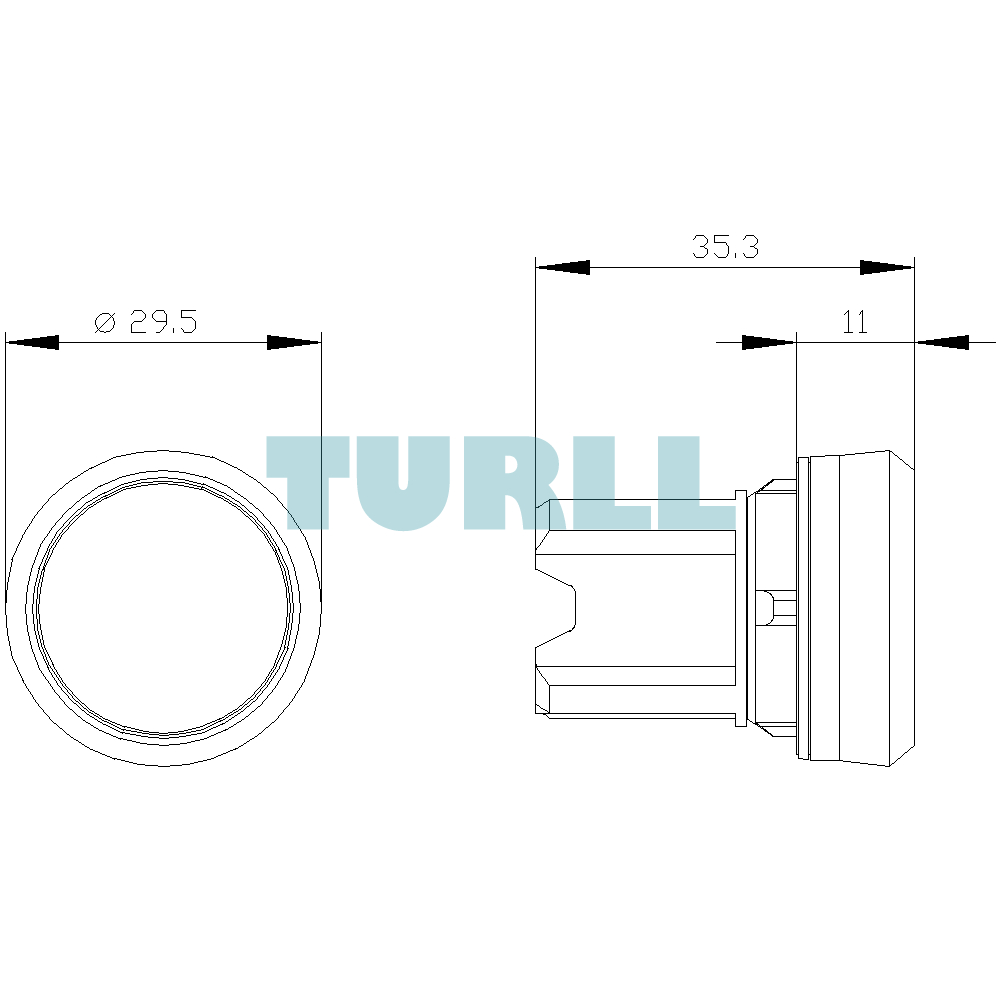

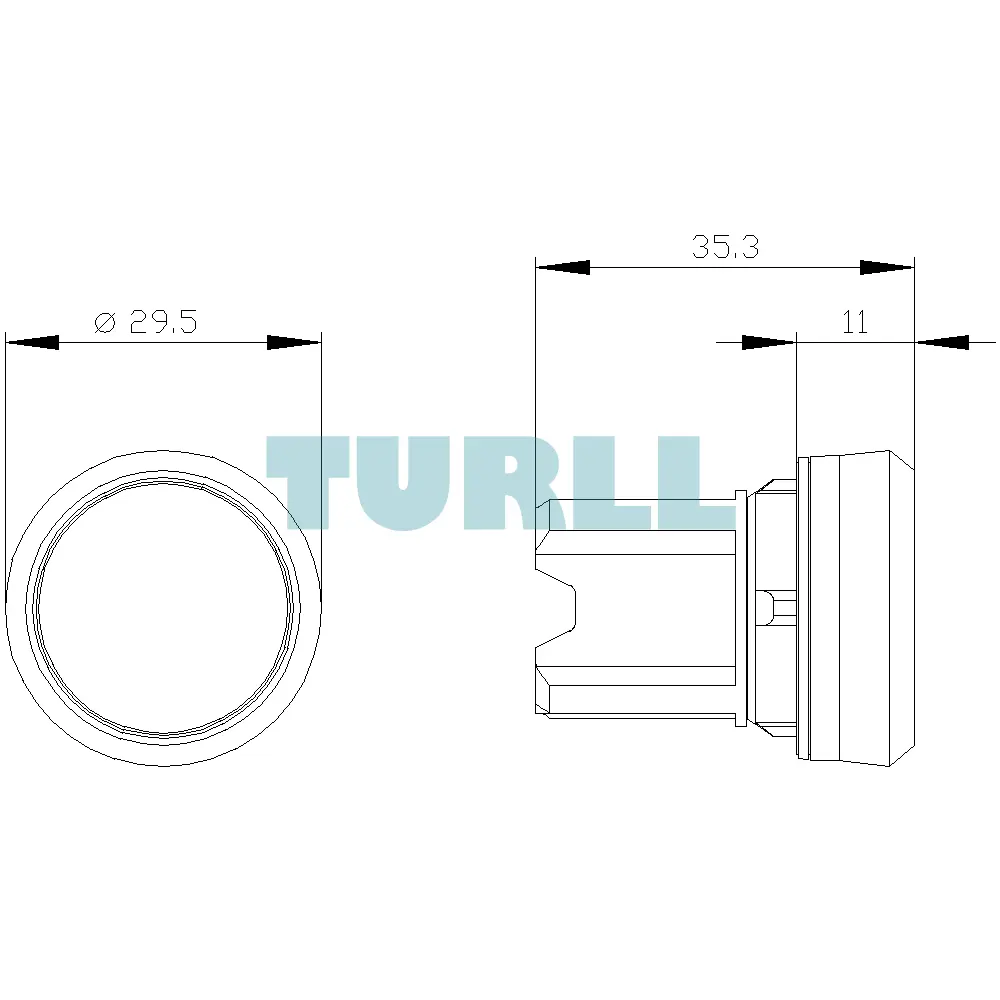

| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 11 mm |
| installation width | 29.5 mm |
| installation depth | 24.3 mm |
| Test Certificates | Marine / Shipping |
| last modified: | 10/6/2021 |
