3SU1050-1AD10-0AA0
Siemens 3SU1050-1AD10-0AA0 Mushroom Pushbutton, 22mm, Metal, Momentary, Black Original Brand New
Original price was: $18.73.$7.59Current price is: $7.59.
USDIn warehouse stock
Dispatches in 1–3 days
- Condition
- Original brand new
- Warranty
- 12 months
Review shipping and applicable charges at checkout. Dispatch time excludes transit.
Select a configuration to check its price, availability and supply terms.
Send your model and quantity. We will confirm the price and lead time.
Specifications & documents ↓Payments, shipping & warranty
PayPal- Bank transfer
See available methods at checkout.Payment guide →
PRODUCT DATA
Specifications
Check the full model number and every required specification.
| SKU / model | 3SU1050-1AD10-0AA0 |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Mushroom pushbuttons |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| number of command points | 1 |
| principle of operation of the actuating element | momentary contact type |
| product extension optional light source | No |
| color of the actuating element | black |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 30 mm |
| marking of the actuating element | Customized labeling, text in lower case / capital letters, all lines start with capital letter |
| number of switching positions | 2 |
| product component front ring | Yes |
| design of the front ring | Standard |
| material of the front ring | Metal, high gloss |
| color of the front ring | silver |
| product function | - |
| ● EMERGENCY OFF function | No |
| ● EMERGENCY STOP function | No |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | - |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | - |
| ● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| operating frequency maximum | 3 600 1/h |
| mechanical service life (switching cycles) typical | 10 000 000 |
| reference code acc. to IEC 81346-2 | S |
| ambient temperature | - |
| ● during operation | -25 ... +70 °C |
| ● during storage | -40 ... +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %) |
| shape of the installation opening | round |

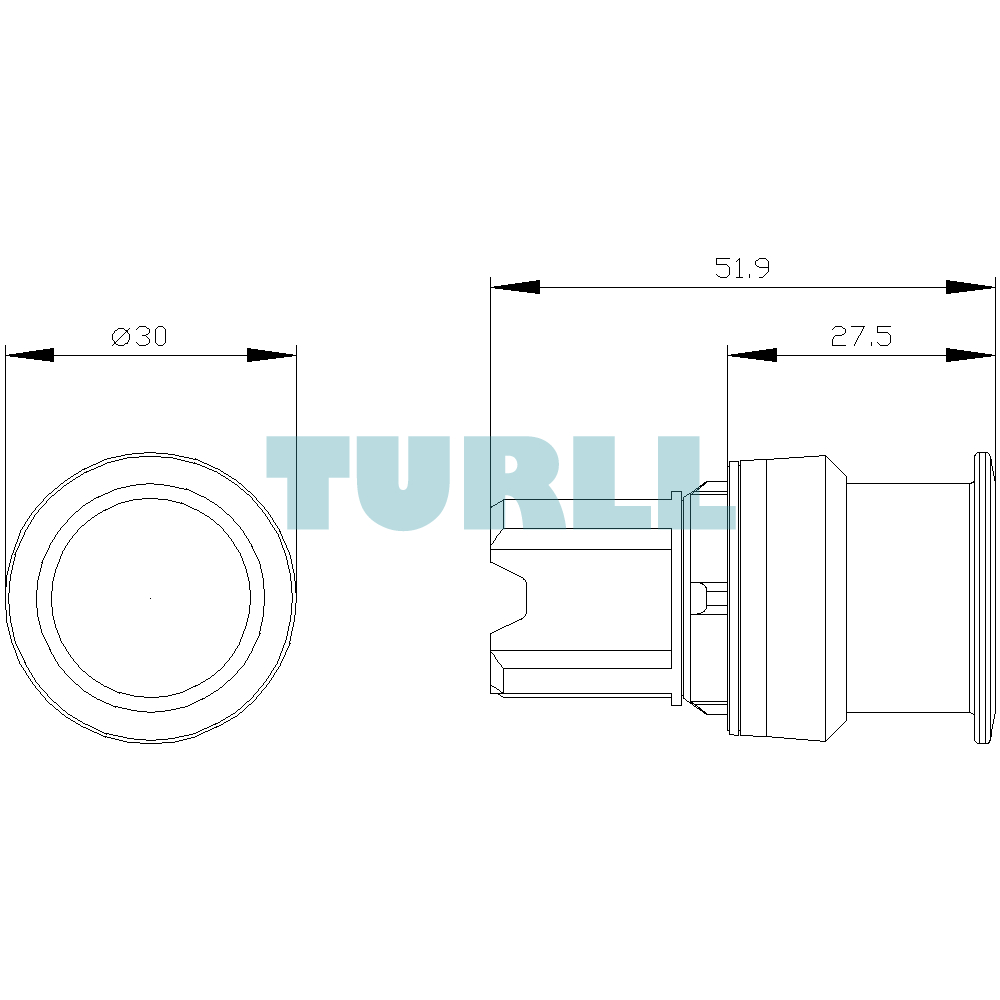

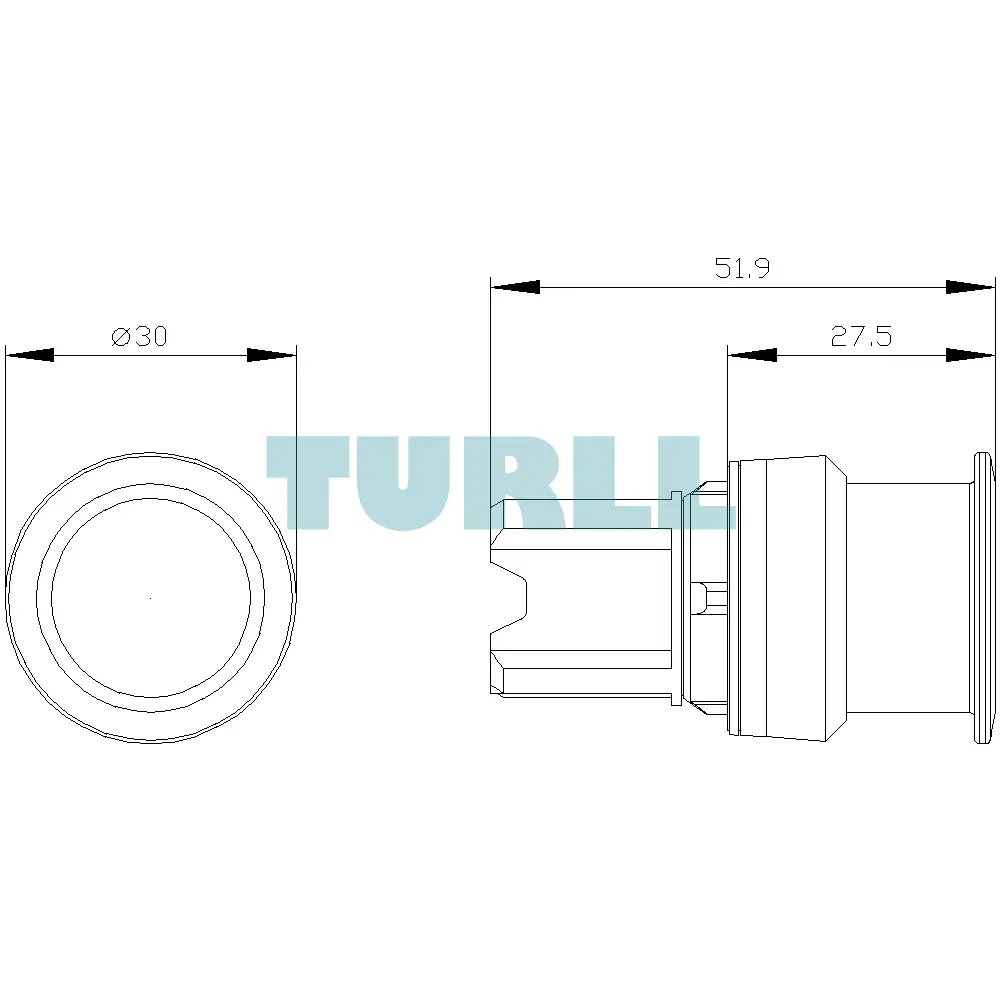

| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 27.5 mm |
| installation width | 30 mm |
| installation depth | 24.4 mm |
| last modified: | 11/18/2021 |
| Weight for shipping | 0.044 kg |
| Dimensions for shipping | 30.00 × 60.00 × 30.00 mm |
No public document is linked for this model.
Ask for technical documentationDescription
Overview

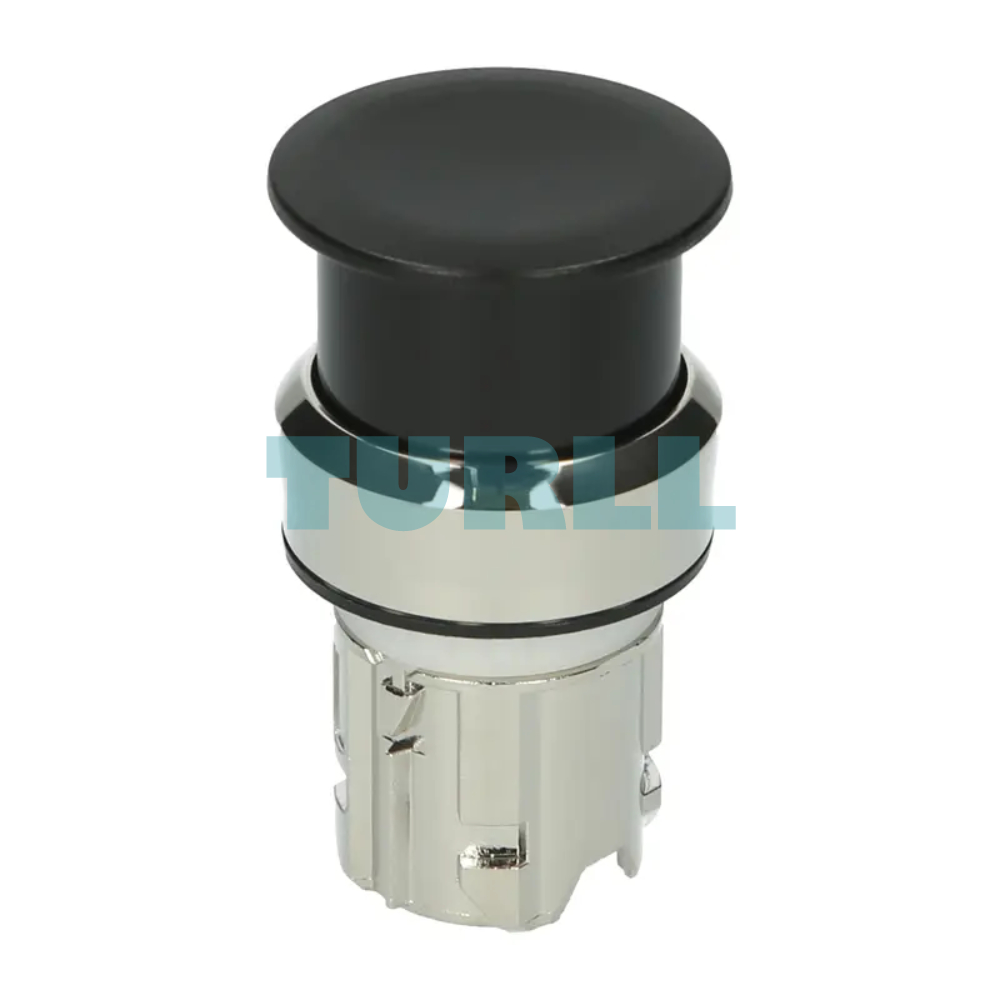

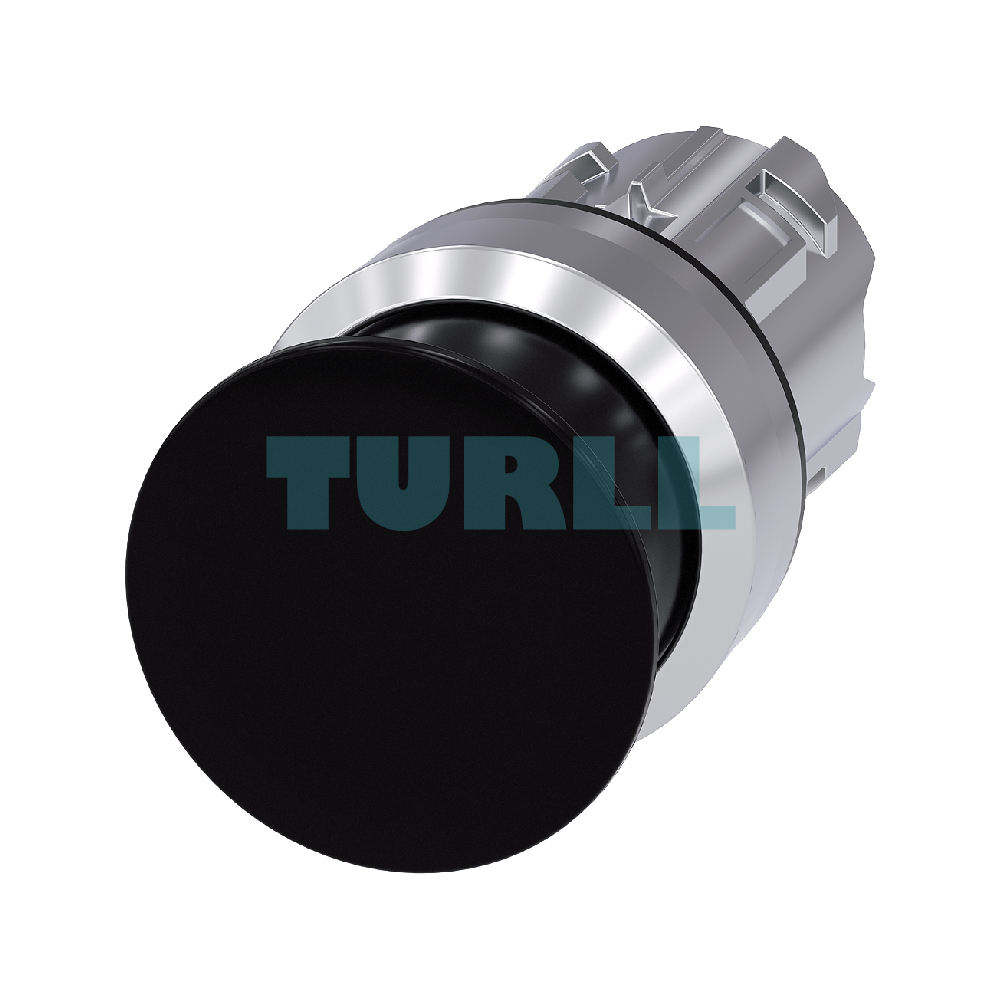

The Siemens 3SU1050-1AD10-0AA0 is part of the SIRIUS ACT command and signaling device series, engineered for maximum performance and a modern industrial aesthetic. This specific component is a non-illuminated mushroom pushbutton constructed from high-grade, shiny black metal, ensuring durability and resistance in harsh environments. With a standard 22 mm mounting diameter and a substantial 30 mm head, it offers easy activation for crucial machine control functions.
Key Benefit
-
Industrial Durability: Robust metal construction ensures a long service life and high resistance to impact, dust, and moisture in industrial settings.
-
Reliable Operation: The momentary contact function provides reliable and precise control for stop, start, or reset applications.
-
Aesthetic & Ergonomic: The shiny black 30 mm mushroom head is highly visible, easy to operate, and provides a sleek, modern look.
-
Ease of Integration: Standard 22 mm mounting allows for simple installation into existing control panels, enclosures, or consoles.
Function & Features
-
Type: Momentary contact pushbutton
-
Mounting Diameter: 22 mm
-
Shape: Round mushroom
-
Material: Metal, shiny finish
-
Color: Black
-
Button Diameter: 30 mm
-
Operation: Momentary, ideal for emergency or start/stop functions
-
Compatibility: Fits standard industrial control panels
Download
Visit 3SU1050-1AD10-0AA0 for more detail info
