Siemens 3SU1050-4BM01-0AA0 RONIS Key-Operated Switch, 22mm Metal Selector, 3 Positions Original Brand New
$23.21
Overview
The Siemens 3SU1050-4BM01-0AA0 RONIS key-operated switch is a high-quality industrial control component designed for secure and reliable operation. Featuring a 22 mm round metal actuator with a shiny finish, this selector switch ensures durability, safety, and professional appearance in control panels and machinery.
Equipped with lock number SB30 and supplied with two keys, this switch supports three switch positions (I > O < II) with momentary contact functionality, making it ideal for controlled access and authorization-based switching applications.
Benefit
-
Enhanced Security – Key-operated mechanism prevents unauthorized use
-
Industrial-Grade Durability – Robust metal construction with shiny finish
-
Precise Control – 3-position selector for flexible operational control
-
System Compatibility – Standard 22 mm mounting for easy installation
-
Flexible Lock Options – Supports special lock variants (SB31, 421, 455)
Function & Features
-
Manufacturer: Siemens
-
Product Number: 3SU1050-4BM01-0AA0
-
Switch Type: RONIS key-operated selector switch
-
Mounting Diameter: 22 mm
-
Shape: Round
-
Material: Metal
-
Surface Finish: Shiny
-
Lock Number: SB30
-

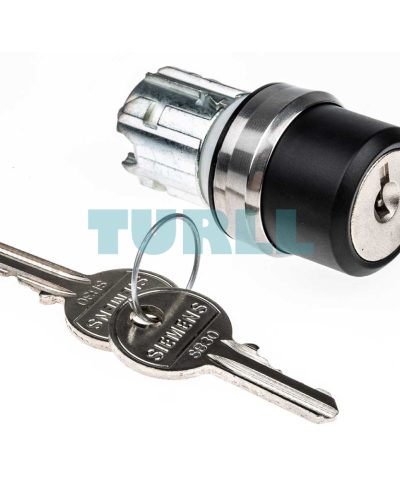

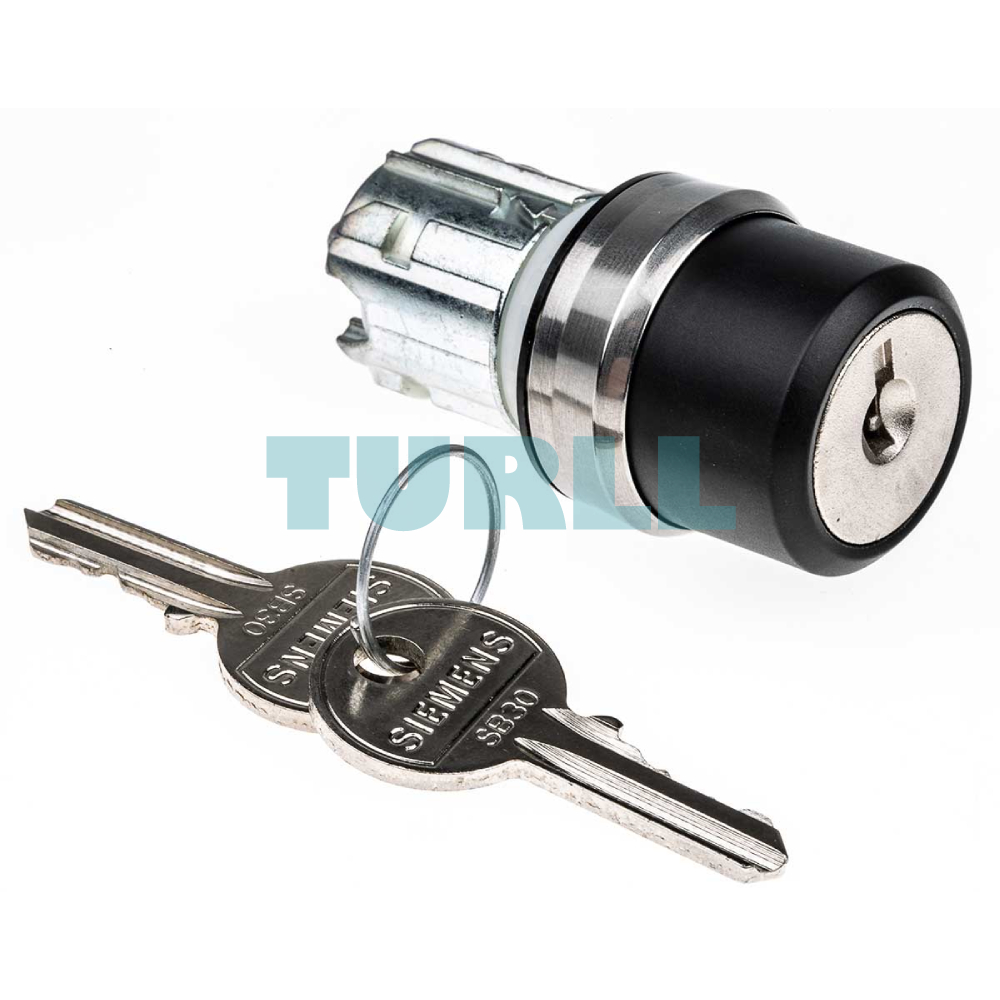

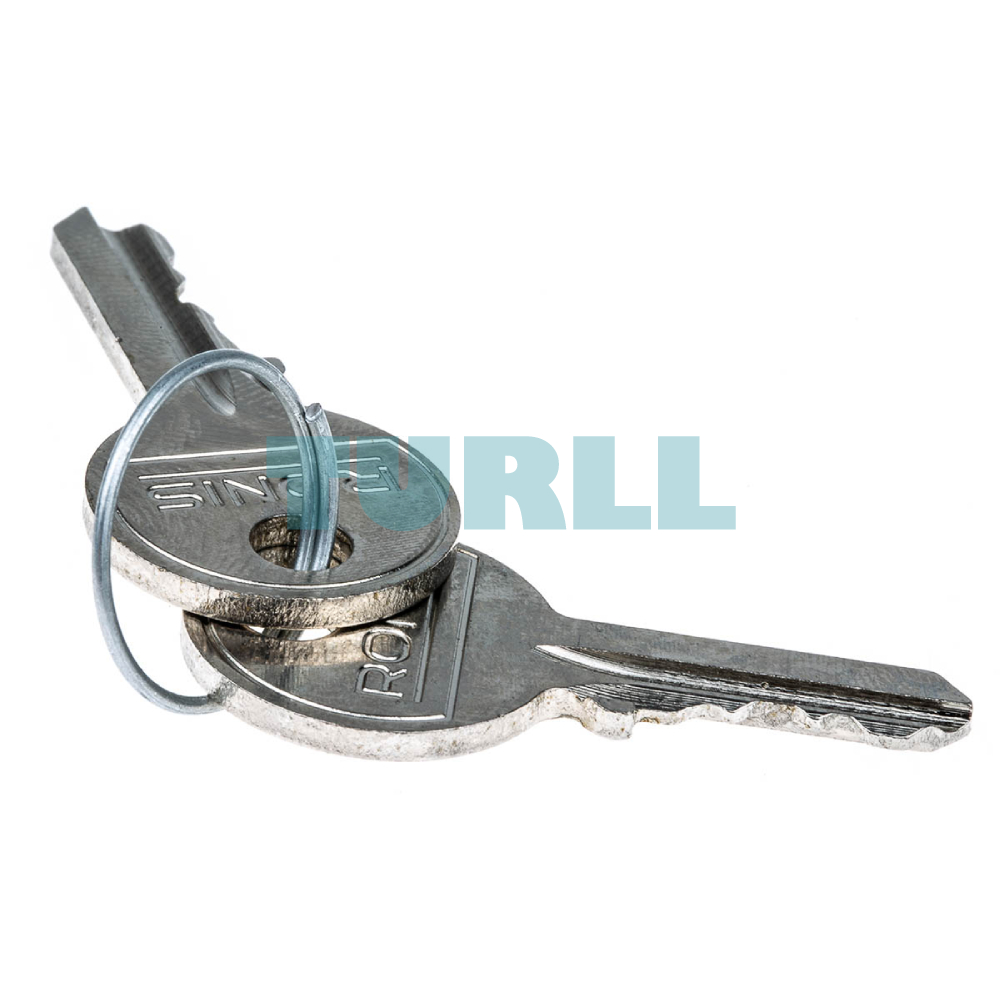

Keys Included: 2 keys
-
Switch Positions: I > O < II
-
Contact Type: Momentary
-
Actuating Angle: 2 × 45°
-
Switch Positions Orientation: 10:30h / 12h / 13:30h
-
Key Removal Position: O
-
Optional Special Locks: SB31, 421, 455
Visit 3SU1050-4BM01-0AA0 for more detail info
For more our products visit turll
Download
Datasheet in PDF
Availability: In stock
Overview
The Siemens 3SU1050-4BM01-0AA0 RONIS key-operated switch is a high-quality industrial control component designed for secure and reliable operation. Featuring a 22 mm round metal actuator with a shiny finish, this selector switch ensures durability, safety, and professional appearance in control panels and machinery.
Equipped with lock number SB30 and supplied with two keys, this switch supports three switch positions (I > O < II) with momentary contact functionality, making it ideal for controlled access and authorization-based switching applications.
Benefit
-
Enhanced Security – Key-operated mechanism prevents unauthorized use
-
Industrial-Grade Durability – Robust metal construction with shiny finish
-
Precise Control – 3-position selector for flexible operational control
-
System Compatibility – Standard 22 mm mounting for easy installation
-
Flexible Lock Options – Supports special lock variants (SB31, 421, 455)
Function & Features
-
Manufacturer: Siemens
-
Product Number: 3SU1050-4BM01-0AA0
-
Switch Type: RONIS key-operated selector switch
-
Mounting Diameter: 22 mm
-
Shape: Round
-
Material: Metal
-
Surface Finish: Shiny
-
Lock Number: SB30
-
Keys Included: 2 keys
-
Switch Positions: I > O < II
-
Contact Type: Momentary
-
Actuating Angle: 2 × 45°
-
Switch Positions Orientation: 10:30h / 12h / 13:30h
-
Key Removal Position: O
-
Optional Special Locks: SB31, 421, 455
Visit 3SU1050-4BM01-0AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.020 kg |
|---|---|
| Dimensions | 30.00 × 100.00 × 30.00 mm |
| Brand | SIEMENS |
| Product brand name | SIRIUS ACT |
| Product designation | Key-operated switches |
| Design of the product | Actuating/signaling element |
| Product type designation | 3SU1 |
| Product line | Metal, shiny, 22 mm |
| Manufacturer's article number | – |
| ● of included key | 3SU1950-0FB80-0AA0 |
| Manner of function of the actuating element | momentary contact, 2×45° (10:30 h/12 h/13:30 h), return on both sides |
| Product extension optional Light source | No |
| Color | – |
| ● of the actuating element | silver |
| Material of the actuating element | metal |
| Shape of the actuating element | Key |
| Outer diameter of the actuating element | 29.5 mm |
| Marking of the actuating element | Any inscription, symbol compliant with ISO7000 and IEC60417 |
| Number of switching positions | 3 |
| Switch position for key distraction | O |
| Actuating angle | – |
| ● clockwise | 45° |
| ● anticlockwise | 45° |
| Lock make | RONIS |
| Key number | SB30 |
| Product component front ring | Yes |
| Design of the front ring | Standard |
| Material of the front ring | Metal, high gloss |
| Color of the front ring | silver |
| Protection class IP | IP66, IP67, IP69(IP69K) |
| ● of the terminal | IP20 |
| Degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| Shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50 g / 11 ms |
| Vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| Operating frequency maximum | 1 800 1/h |
| Mechanical service life (switching cycles) | – |
| ● typical | 300 000 |
| Reference code acc. to DIN EN 81346-2 | S |
| Reference code acc. to DIN EN 61346-2 | S |
| Ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| Environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %) |

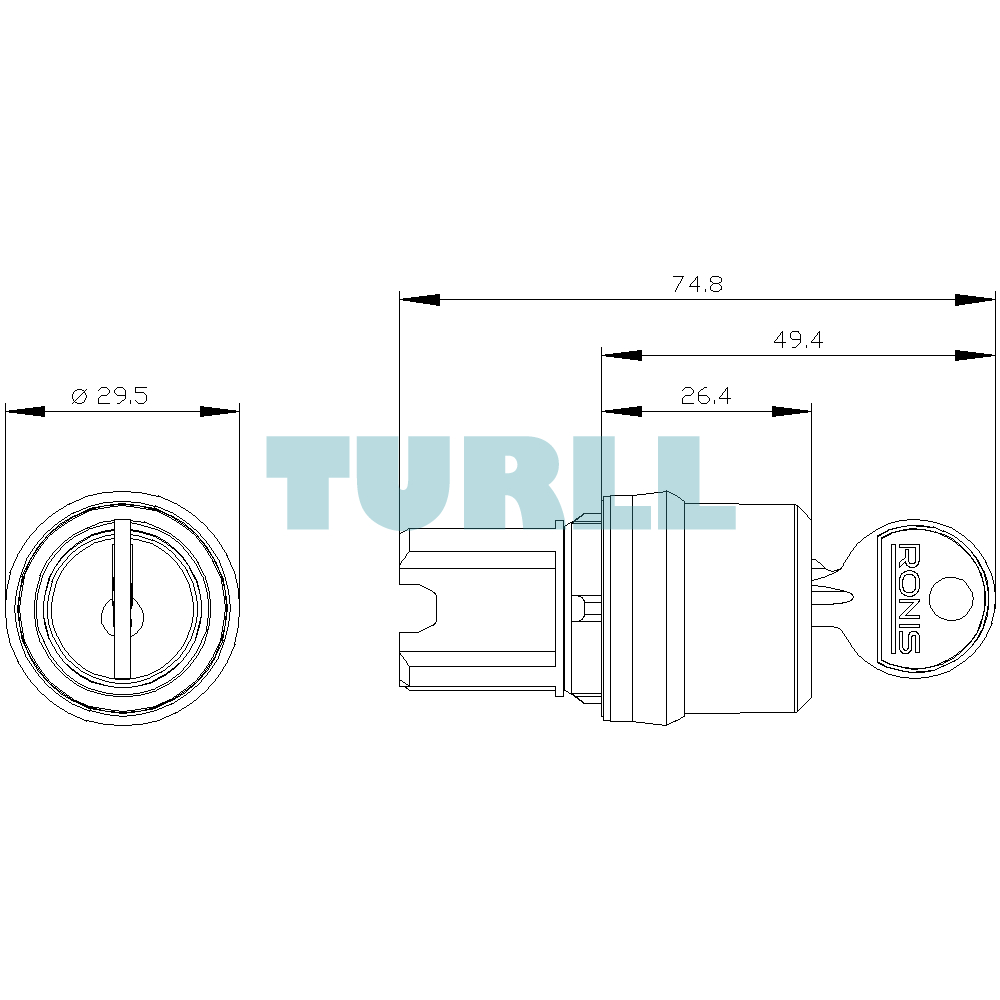

| Height | 29.5 mm |
| Width | 29.5 mm |
| Shape of the installation opening | round |
| Mounting diameter | 22.3 mm |
| Positive tolerance of installation diameter | 0.4 mm |
| Mounting height | 49.4 mm |
| Installation width | 29.5 mm |
| Installation depth | 25.4 mm |
| Test Certificates | Marine / Shipping |
| last modified: | 02/18/2020 |
