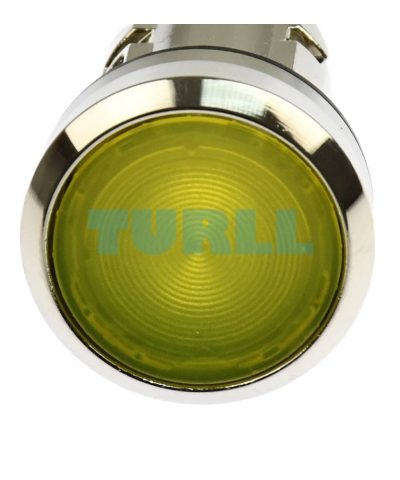

Siemens 3SU1051-0AB30-0AA0 Illuminated Pushbutton, 22mm, Metal Yellow Flat, Momentary Switch Original Brand New
$6.27
High-quality Siemens SIRIUS ACT Illuminated Pushbutton, 22 mm, round, shiny metal, yellow, flat, momentary contact type. Perfect for durable industrial HMI applications.
Availability: In stock
Overview
The Siemens SIRIUS ACT 3SU1051-0AB30-0AA0 is a premium, robust, and highly visible component designed for modern industrial control applications. Part of the proven SIRIUS ACT series, this unit features a durable 22 mm round metal enclosure with a shiny chrome finish, ensuring longevity and an attractive appearance on any control panel. It is a flat, yellow, momentary contact type pushbutton, ideal for signaling and operational control where visual confirmation is critical. Its design adheres to high standards of reliability and is built to integrate seamlessly into complex automation systems.
Benefit
-
High Visibility: Yellow illuminated actuator improves operator recognition
-
Durable Construction: Robust metal housing with shiny finish
-
Reliable Performance: Momentary contact ensures precise control
-
Industrial Grade: Designed for harsh and continuous-use environments
-
Easy Installation: Standard 22 mm mounting size
Function
-
Provides momentary switching for control circuits
-
Delivers visual status indication through illumination
-
Enables safe and efficient machine operation
-
Ideal for start, stop, reset, or command functions
Application
-
Start/Stop Stations: Machine operation panels.
-
Emergency Signaling: Caution or warning indicators.
-
Process Control: Manual intervention points in automated lines.
-
Panel Building: High-end control cabinets and console desks.
Technical Features
-
Manufacturer: Siemens
-
Product Number: 3SU1051-0AB30-0AA0
-
Mounting Diameter: 22 mm
-
Actuator Shape: Flat
-
Color: Yellow
-
Material: Metal, shiny finish
-
Contact Type: Momentary
-
Illumination: Yes
-
Series: Siemens 3SU1
Visit 3SU1051-0AB30-0AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.036 kg |
|---|---|
| Dimensions | 30.00 × 40.00 × 30.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Illuminated pushbuttons |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| number of command points | 1 |
| design of the actuating element | Flat button |
| principle of operation of the actuating element | momentary contact type |
| product extension optional | – |
| ● light source | Yes |
| ● contact module | Yes |
| color of the actuating element | yellow |
| material of the actuating element | plastic |
| shape of the actuating element | round |

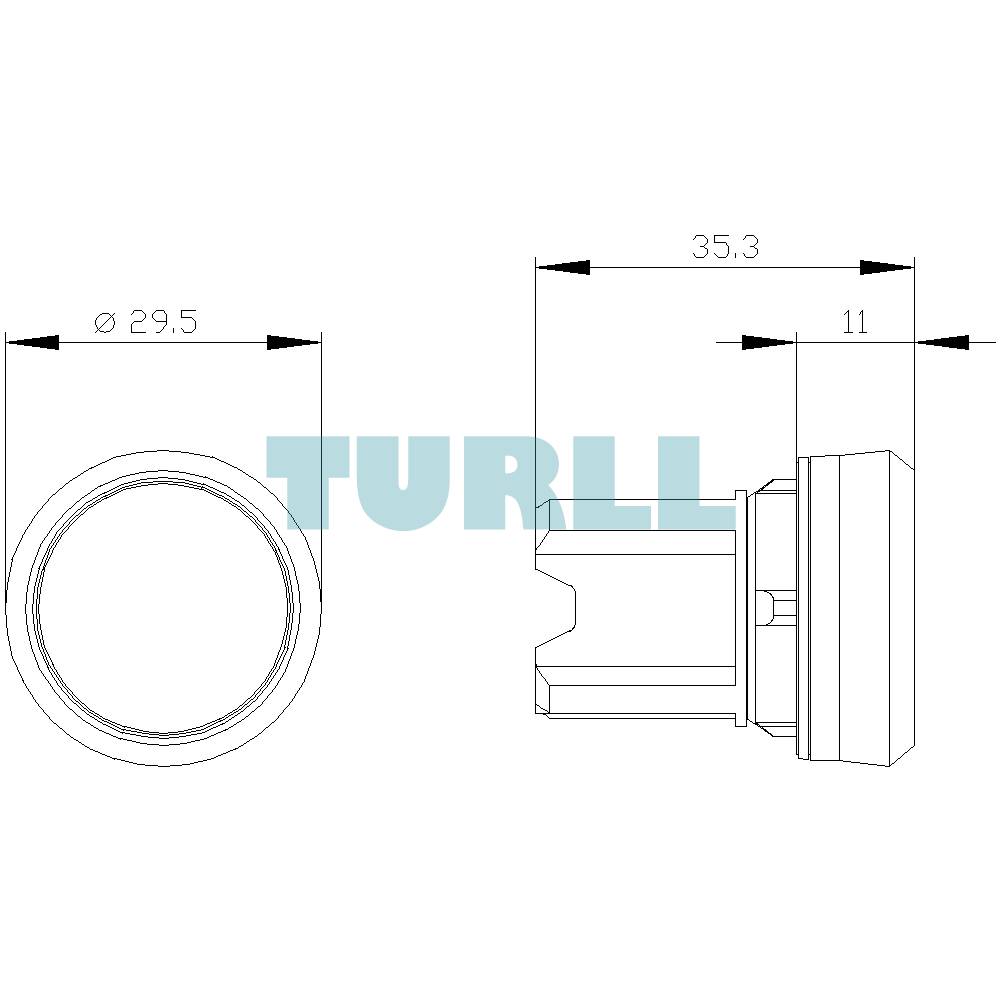

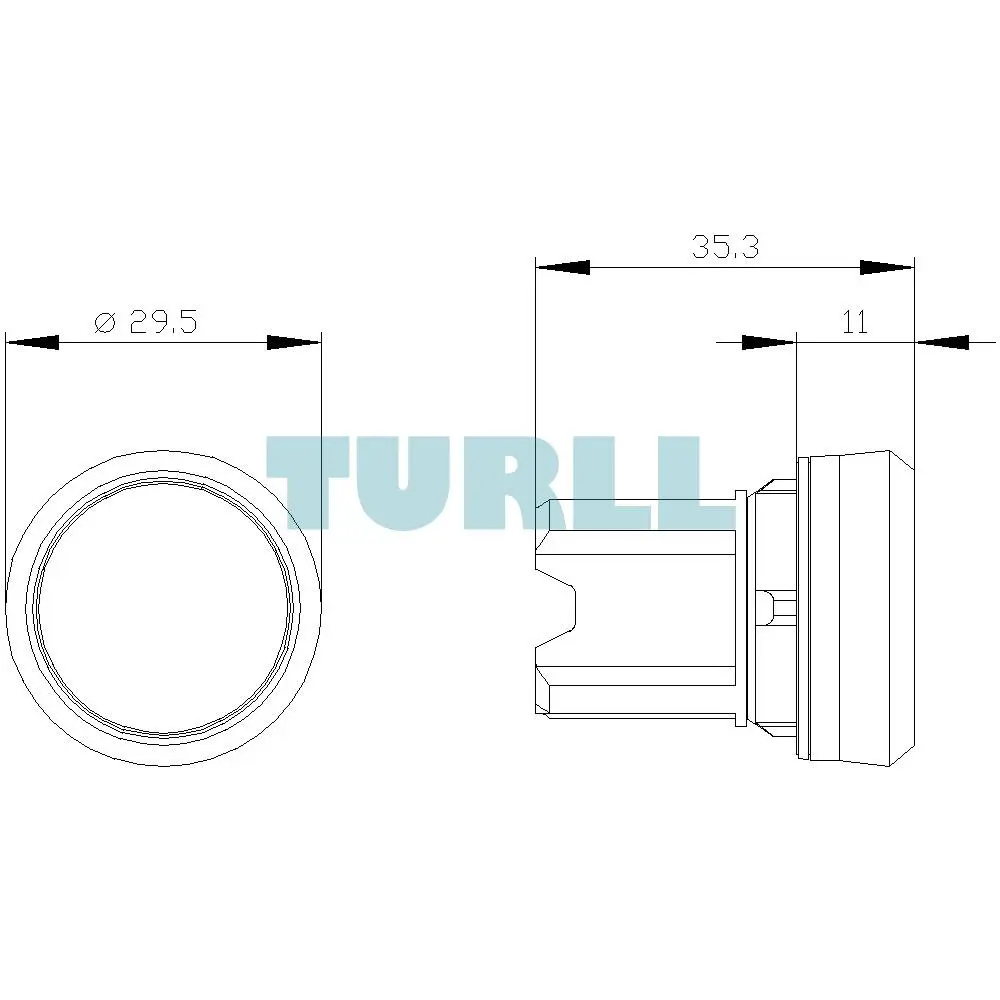

| outer diameter of the actuating element | 29.5 mm |
| product component front ring | Yes |
| design of the front ring | Standard |
| material of the front ring | Metal, high gloss |
| color of the front ring | silver |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| operating frequency maximum | 3 600 1/h |
| mechanical service life (switching cycles) typical | 3 000 000 |
| reference code acc. to IEC 81346-2 | S |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %) |
| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 11 mm |
| installation width | 29.5 mm |
| installation depth | 24.3 mm |
| Test Certificates | Marine / Shipping |
| last modified: | 10/6/2021 |
