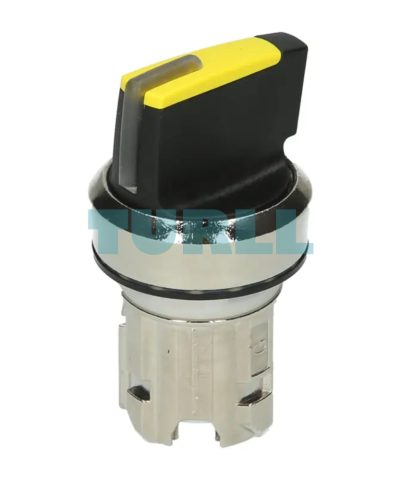

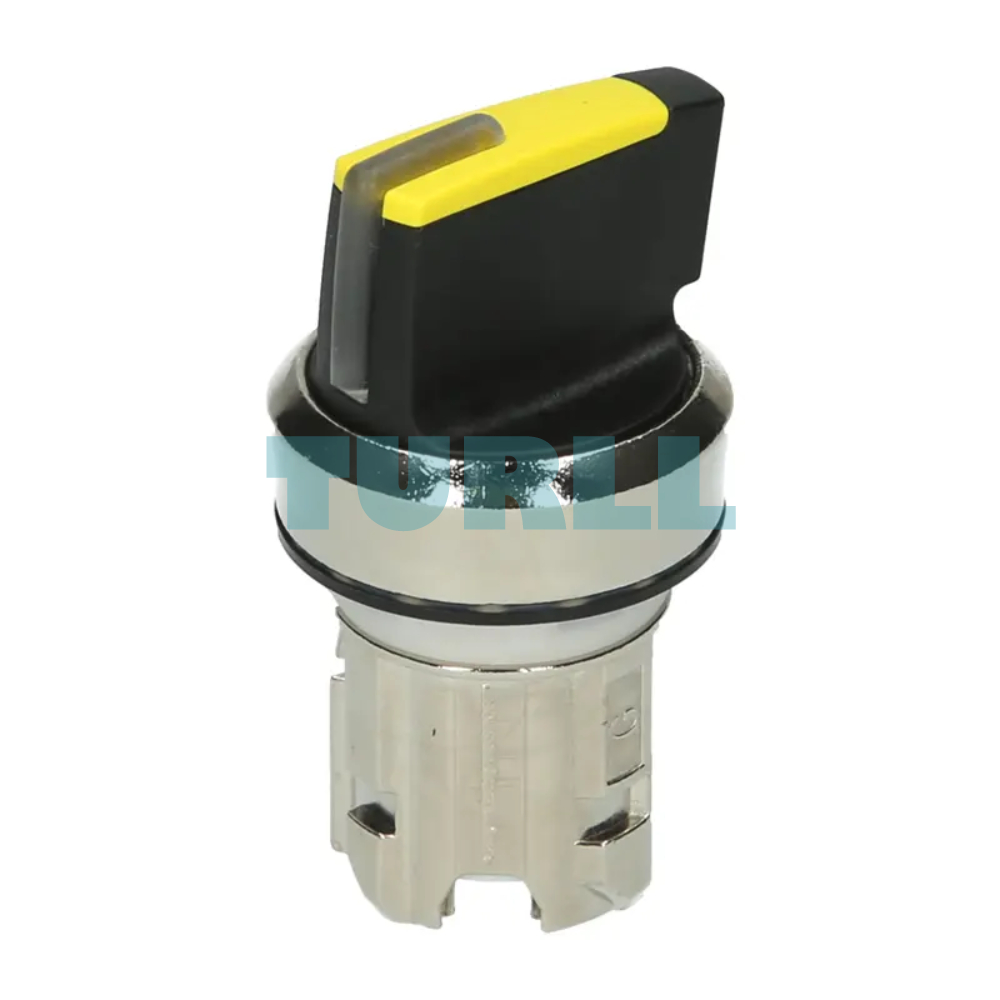

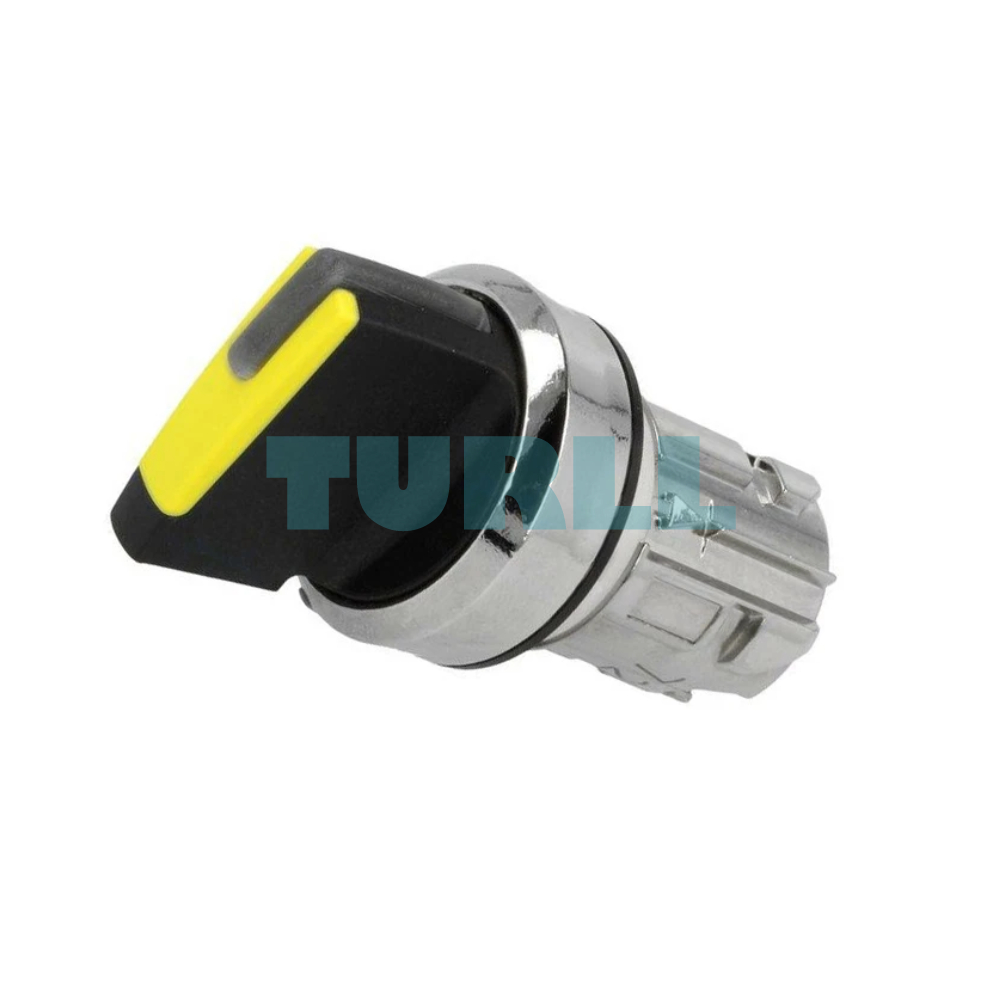

Siemens 3SU1052-2BC30-0AA0 Illuminable, 22mm, Round Metal, Selector Switch, Yellow, Momentary Original Brand New
$9.68
Siemens 3SU1052-2BC30-0AA0 is a 22 mm round, illuminable metal selector switch in yellow with 2 switch positions (O<I), momentary contact type, and a 45° actuating angle. Ideal for precise control in industrial applications.
Availability: In stock
Overview
The Siemens 3SU1052-2BC30-0AA0 is a high-performance, illuminable selector switch from the SIRIUS ACT command and signaling device series. Designed for industrial control panels, this component offers a 2-position momentary contact function (O<I) with a 45° actuating angle. It features a durable, shiny metal front ring and a highly visible yellow actuator, ensuring reliable operation and clear status indication. Its modular design (22 mm mounting diameter) allows for flexible integration into modern machinery and systems, providing exceptional robustness (IP66, IP67, IP69K protection) and simple installation.
Features & Function
-
Type: Illuminable selector switch
-
Size: 22 mm round
-
Material: Metal, shiny finish
-
Color: Yellow
-
Switch Type: Short selector switch
-
Positions: 2 switch positions (O<I)
-
Contact Type: Momentary
-
Actuating Angle: 45°
-
Mounting Time: 10:30h / 12h standard
-
Durability: Designed for long-lasting industrial use
-
Application: Ideal for machinery, control panels, and industrial automation
Benefit
- Enhanced Visibility: Illuminable yellow actuator provides clear, instant visual feedback of the switch status, improving operator safety and process management.
- Industrial Durability: Features a robust metal front ring and high protection ratings (IP66, IP67, IP69K) for reliable performance in harsh industrial environments.
- Simple Installation: Standard 22 mm mounting diameter and self-holding feature simplify assembly, saving valuable commissioning time
Visit 3SU1052-2BC30-0AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.020 kg |
|---|---|
| Dimensions | 93.00 × 147.00 × 40.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Selector switches |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| number of command points | 1 |
| design of the actuating element | Selector, short |
| principle of operation of the actuating element | momentary contact, 45° (10:30 h/12 h), return from center to left |
| product extension optional | – |
| ● light source | Yes |
| ● contact module | Yes |
| color of the actuating element | yellow |
| material of the actuating element | plastic |
| shape of the actuating element | Handle |

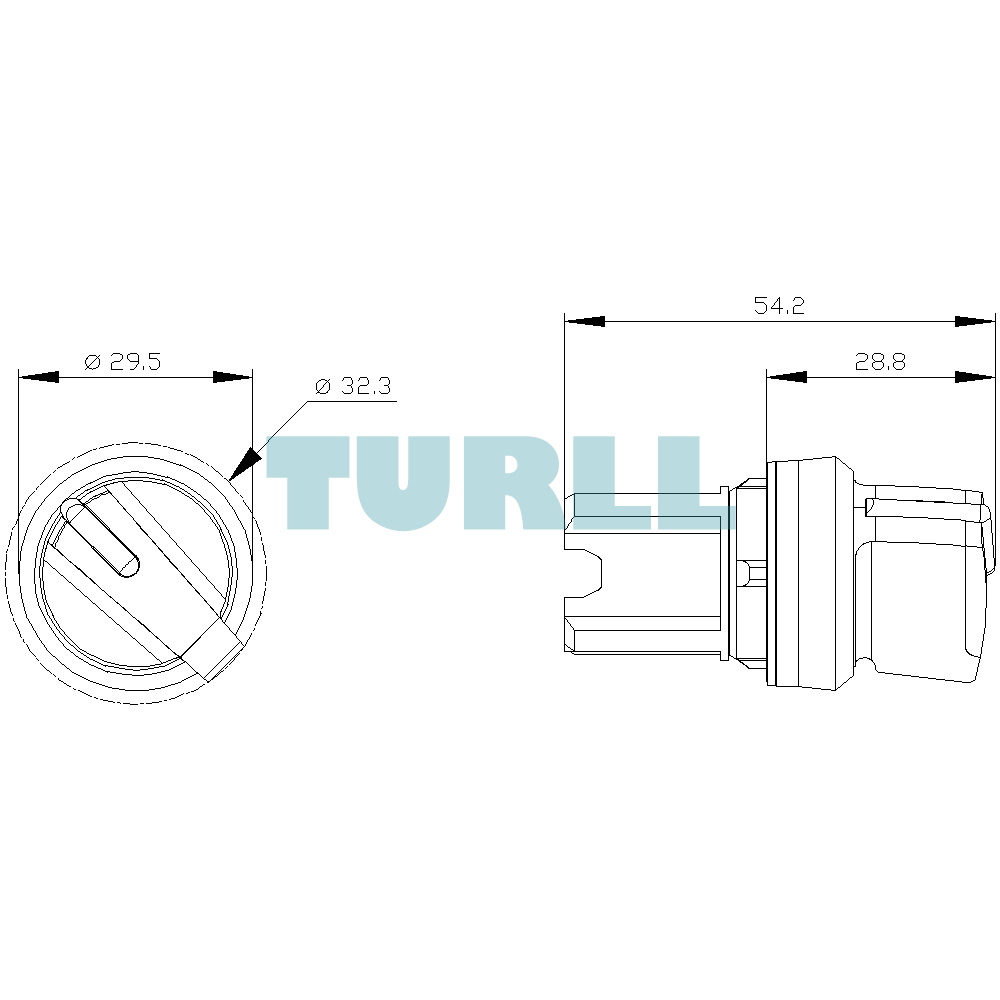

| outer diameter of the actuating element | 32.3 mm |
| marking of the actuating element | Customized labeling, text in lower case / capital letters, all words start with capital letters |
| number of switching positions | 2 |
| actuating angle | – |
| ● clockwise | 45° |
| product component front ring | Yes |
| design of the front ring | standard |
| material of the front ring | Metal, high gloss |
| color of the front ring | silver |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| operating frequency maximum | 1 800 1/h |
| mechanical service life (switching cycles) typical | 1 000 000 |
| reference code acc. to IEC 81346-2 | S |
| B10 value with high demand rate acc. to SN 31920 | 500 000 |
| proportion of dangerous failures | – |
| ● with low demand rate acc. to SN 31920 | 20 % |
| ● with high demand rate acc. to SN 31920 | 20 % |
| failure rate [FIT] with low demand rate acc. to SN 31920 | 100 FIT |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %) |
| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 28.8 mm |
| installation width | 32.3 mm |
| installation depth | 25.4 mm |
| last modified: | 10/6/2021 |
