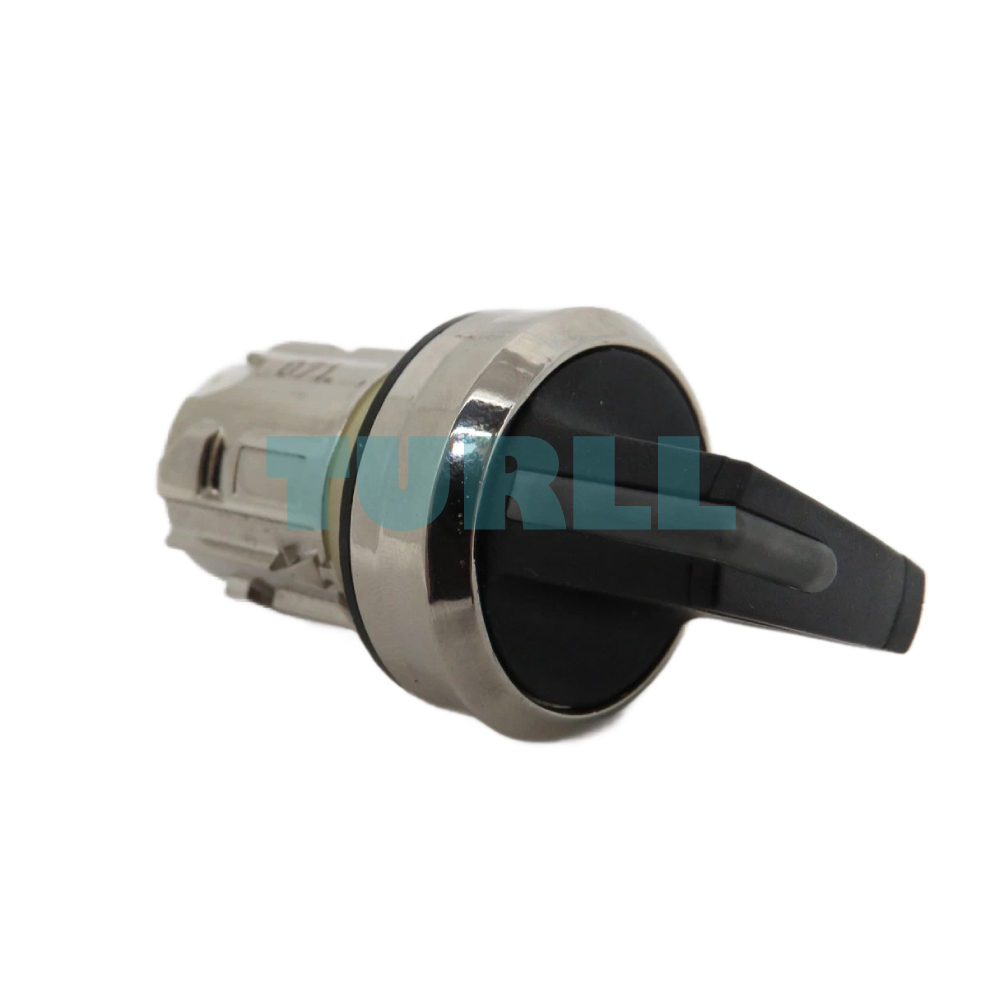

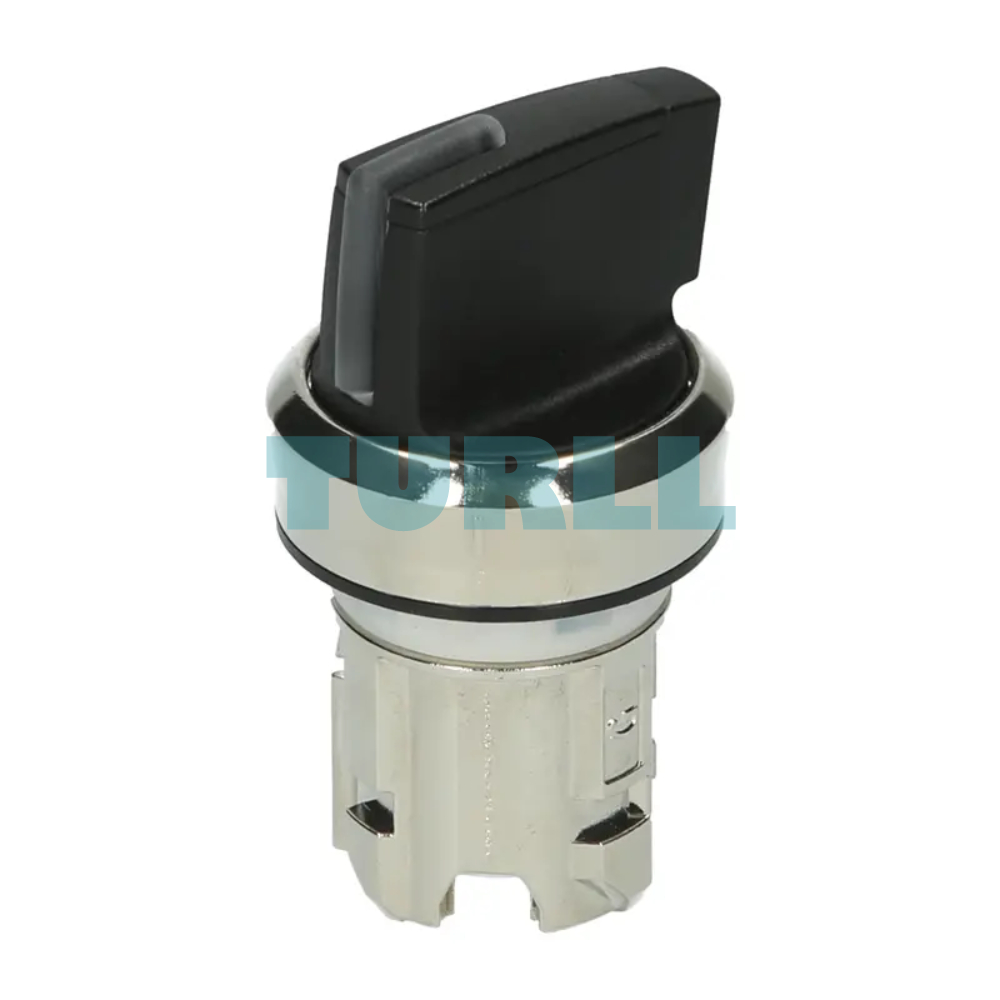

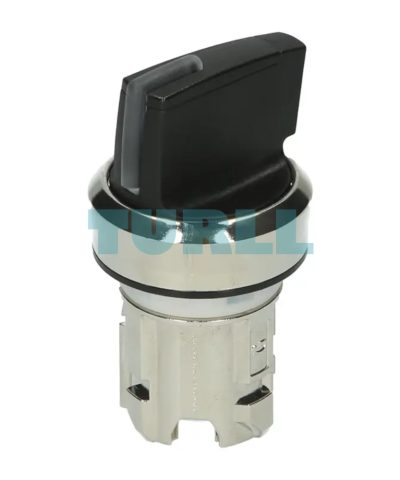

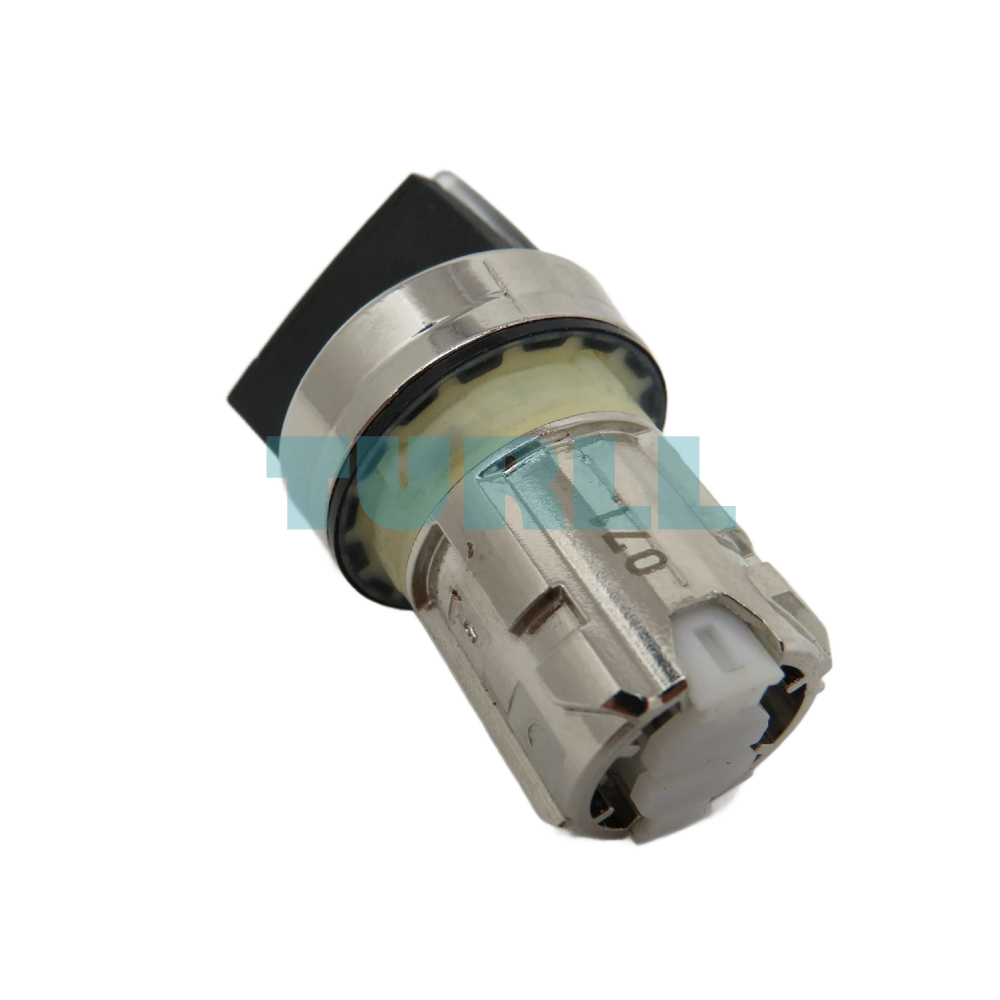

Siemens 3SU1052-2BF10-0AA0 Illuminable Selector Switch, 22mm, Metal, Black, 2 Positions Original Brand New
$9.68
Illuminable selector switch from the SIRIUS ACT range. Designed for demanding industrial environments, this 22mm round switch features a sleek, shiny metal construction that provides both aesthetic appeal and rugged durability. Its short black handle is designed for tactile precision and clear visual orientation.
Availability: In stock
Overview
Part of the rugged Siemens SIRIUS ACT series, the 3SU1052-2BF10-0AA0 is engineered for durability and aesthetic appeal. This selector switch is designed for 22mm mounting holes and offers an illuminable feature, ensuring high visibility in complex control environments. Its shiny metal finish provides superior resistance to environmental factors while maintaining a professional look.
Key Features & Functions
-
Action Type: 2-position (O-I) latching mechanism for maintained states.
-
Actuating Angle: 90° throw (positioned at 10:30h/13:30h) for clear visual status.
-
Illuminable Design: Can be backlit for status indication (LED modules sold separately).
-
Build Quality: High-grade shiny metal construction for harsh industrial settings.
-
Series: Compatible with the modular SIRIUS ACT system for easy assembly.
Technical Benefit
-
Long-Term Reliability: Built to withstand frequent operation with high mechanical endurance.
-
Standardized Mounting: The 22mm round design fits standard industrial cutouts globally.
-
Tactile Feedback: Crisp 90° rotation ensures the operator can feel the switch engage correctly.
-
Aesthetic Integration: The shiny metal collar provides a high-end finish suitable for modern machinery.
Visit 3SU1052-2BF10-0AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.056 kg |
|---|---|
| Dimensions | 30.00 × 70.00 × 30.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Selector switches |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| number of command points | 1 |
| design of the actuating element | Selector, short |
| principle of operation of the actuating element | latching, 90° (10:30 h/13:30 h) |
| product extension optional | – |
| ● light source | Yes |
| ● contact module | Yes |
| color of the actuating element | black |
| material of the actuating element | plastic |
| shape of the actuating element | Handle |
| outer diameter of the actuating element | 32.3 mm |
| number of switching positions | 2 |
| actuating angle | – |
| ● clockwise | 90° |
| product component front ring | Yes |
| design of the front ring | standard |
| material of the front ring | Metal, high gloss |
| color of the front ring | silver |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| operating frequency maximum | 1 800 1/h |
| mechanical service life (switching cycles) typical | 1 000 000 |
| reference code acc. to IEC 81346-2 | S |
| B10 value with high demand rate acc. to SN 31920 | 100 000 |
| proportion of dangerous failures | – |
| ● with low demand rate acc. to SN 31920 | 20 % |
| ● with high demand rate acc. to SN 31920 | 20 % |
| failure rate [FIT] with low demand rate acc. to SN 31920 | 100 FIT |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %) |
| shape of the installation opening | round |

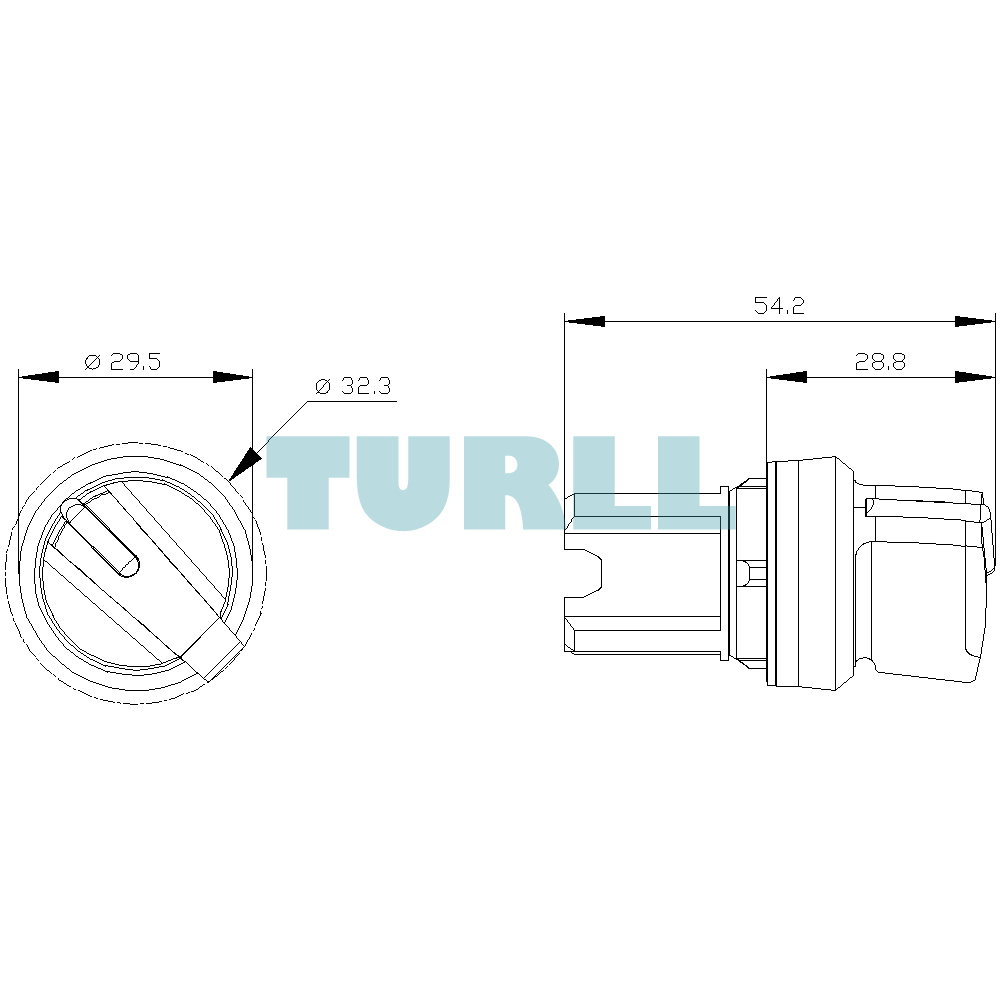

| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 28.8 mm |
| installation width | 32.3 mm |
| installation depth | 25.4 mm |
| Test Certificates | Marine / Shipping |
| last modified: | 10/6/2021 |
