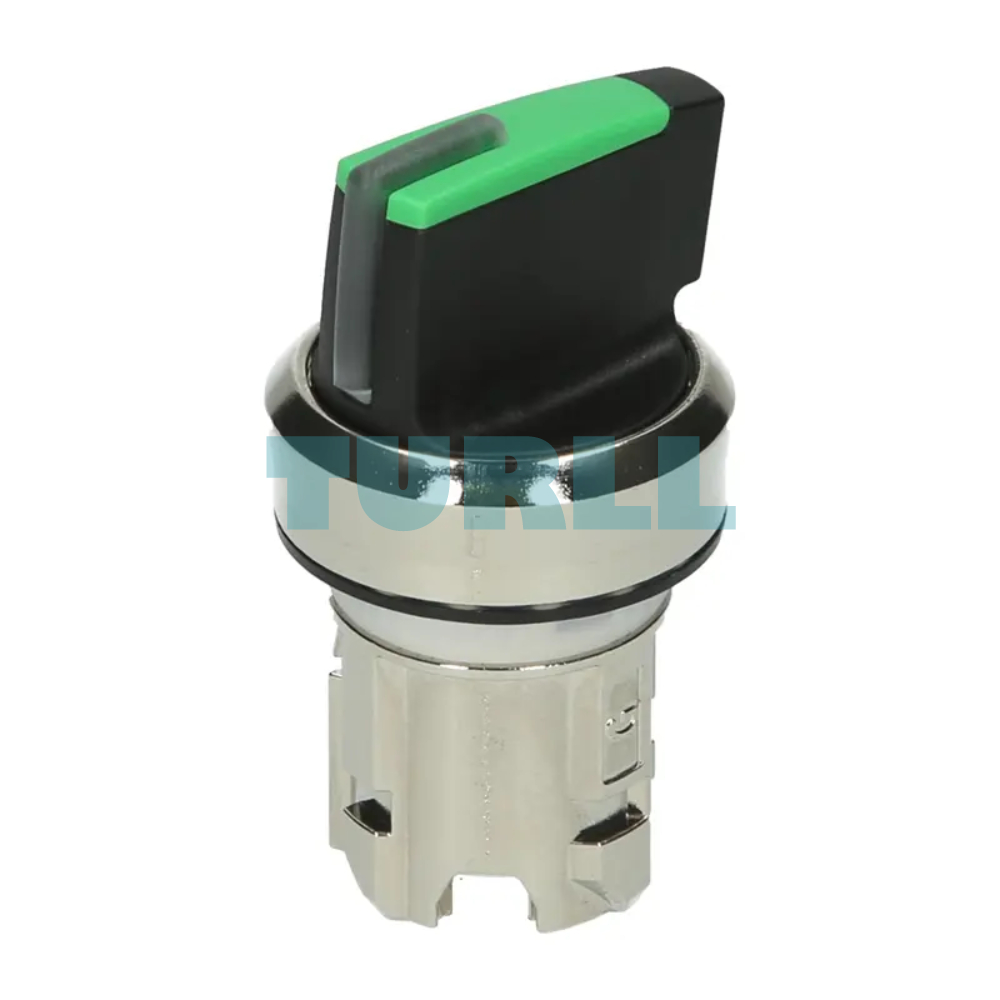

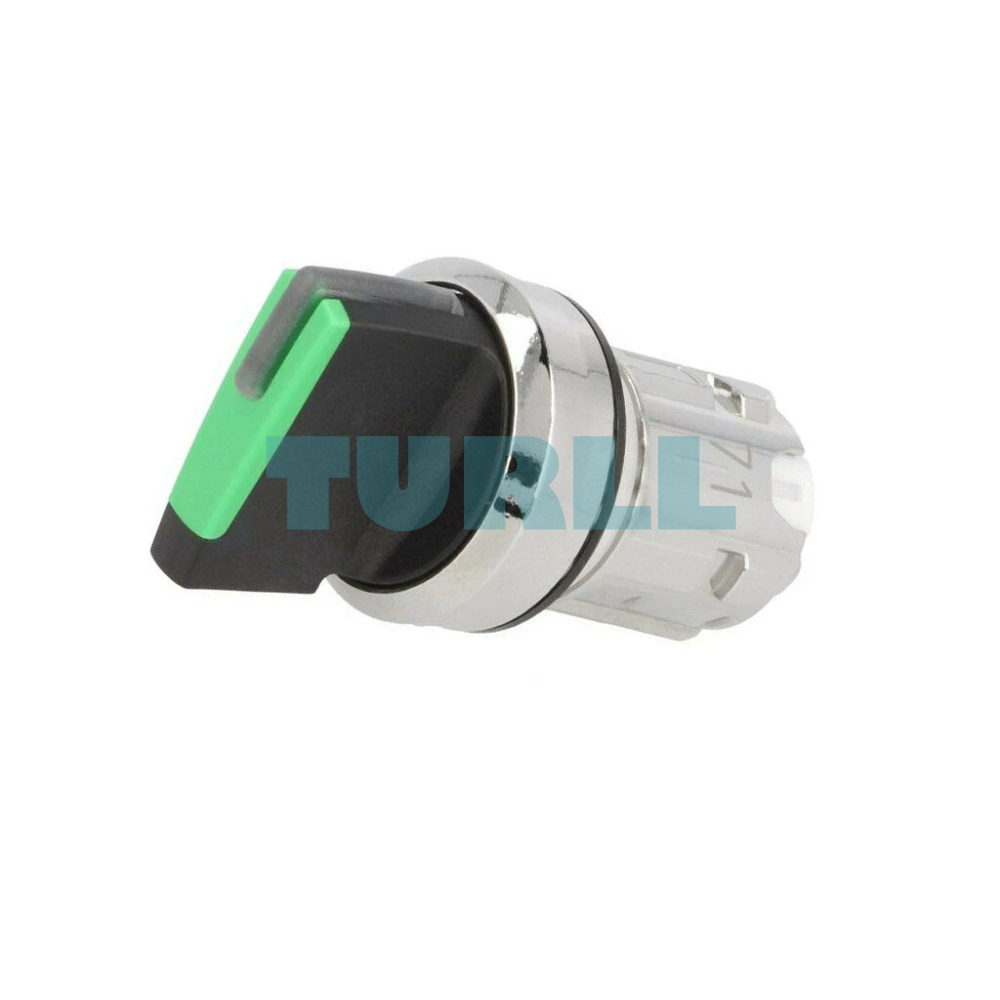

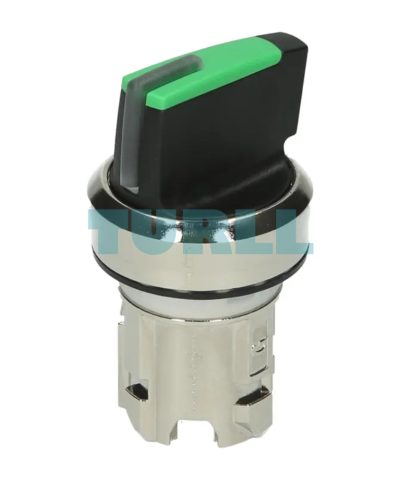

Siemens 3SU1052-2BF40-0AA0 Illuminated Selector Switch, 22 mm, Metal, Green, 2 Positions, Latching Original Brand New
$9.68
Selector switch, illuminable, 22 mm, round, metal, shiny green, short actuator, 2 switch positions (O–I), latching, 90° actuating angle, 10:30h/13:30h.
Availability: In stock
Overview
The Siemens 3SU1052-2BF40-0AA0 is a high-quality illuminated selector switch designed for reliable control and signaling applications. Built with a durable metal body, this 22 mm round selector switch features a shiny green illuminated actuator for enhanced visibility and operational clarity. Engineered with two switch positions (O–I), short actuator design, and a 90° actuating angle, it provides precise manual operation in industrial environments.
Benefit
-
Exceptional Durability: Features a shiny metal front ring that provides maximum protection against industrial wear, dust, and water (IP ratings apply to complete assembly).
-
Clear Status Indication: As an illuminable switch, it allows operators to instantly verify the selected position (O-I), enhancing operational safety and efficiency.
-
Simple & Reliable Operation: Offers 2 latching switch positions (10:30h/13:30h), ensuring the switch remains in the selected position until manually changed.
-
Easy Installation: Designed for the SIRIUS ACT system, which features a simple, modular design for quick, error-free assembly without special tools.
-
Standard Compatibility: The industry-standard 22 mm mounting diameter ensures seamless integration into new and existing control designs.
Function
-
Manual switching between two positions (O–I)
-
Status indication through illumination
-
Control of machinery, automation panels, and electrical equipment
-
Secure latching for stable position retention
-
Rotation-based activation with a 90° actuating angle
Visit 3SU1052-2BF40-0AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.020 kg |
|---|---|
| Dimensions | 28.00 × 52.00 × 28.00 mm |
| Brand | SIEMENS |
| Product brand name | SIRIUS ACT |
| Product designation | Selector switches |
| Design of the product | Actuating/signaling element |
| Product type designation | 3SU1 |
| Number of command points | 1 |
| Design of the operating mechanism | Toggle switch |
| Manner of function of the actuating element | latching, 90° (10:30 h/13:30 h) |
| Product extension optional Light source | Yes |
| Color of the actuating element | green |
| Material of the actuating element | plastic |
| Shape of the actuating element | Handle |
| Outer diameter of the actuating element | 32.3 mm |
| Marking of the actuating element | Customized labeling, graphical symbols acc. to ISO7000 and IEC60417 |
| Number of switching positions | 2 |
| Actuating angle | – |
| ● clockwise | 90° |
| Product component front ring | Yes |
| Design of the front ring | standard |
| Material of the front ring | Metal, high gloss |
| Color of the front ring | silver |
| Protection class IP | IP66, IP67, IP69(IP69K) |
| Degree of protection NEMA rating | NEMA 1, 2, 3, 3R, 4, 4X, 12, 13 |
| Shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50 g / 11 ms |
| Vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| Operating frequency maximum | 1 800 1/h |
| Mechanical service life (switching cycles) | – |
| ● typical | 1 000 000 |
| Reference code acc. to DIN EN 81346-2 | S |
| Reference code acc. to DIN EN 61346-2 | S |
| B10 value | – |
| Proportion of dangerous failures | – |
| ● with high demand rate acc. to SN 31920 | 20 % |
| Failure rate [FIT] | – |
| ● with low demand rate acc. to SN 31920 | 100 FIT |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| Ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| Environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %) |

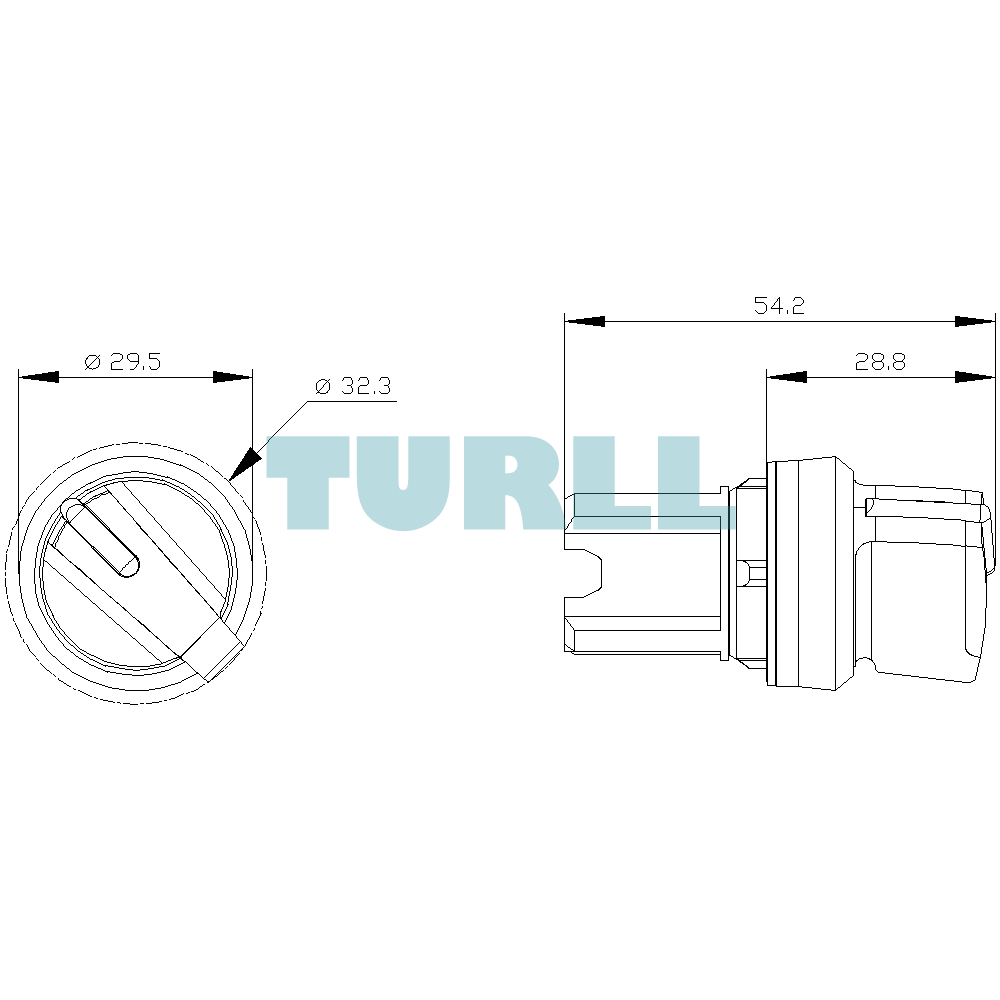

| Height | 32.3 mm |
| Width | 32.3 mm |
| Shape of the installation opening | round |
| Mounting diameter | 22.3 mm |
| Positive tolerance of installation diameter | 0.4 mm |
| Mounting height | 28.8 mm |
| Installation width | 32.3 mm |
| Installation depth | 25.4 mm |
| last modified: | 10/30/2019 |
